5tons LPG Skid Station For Nigeria
Filling System:LPG pump and LPG filling scales
1 Units Leakage Detector with 1 Sensor,
Whole Set Pipeline System with all valves
Tank Acessories: Safety Valve, Level Gauge, Water Sprinkler System, Air out Valve, Drain Valve
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5tons lpg skid station for nigeria in China. If you're going to buy high quality 5tons lpg skid station for nigeria, welcome to get more information from our factory. For price consultation, contact us.
Description
Medium: Liquified Petroluem Gas
Tank material: Q345R, shell 10mm,end plate 12mm
Tank Design Pressure: 1.71Mpa,
Tank Acessories: Safety Valve, Level Gauge, Water Sprinkler System, Air out Valve, Drain Valve,
Filling System:

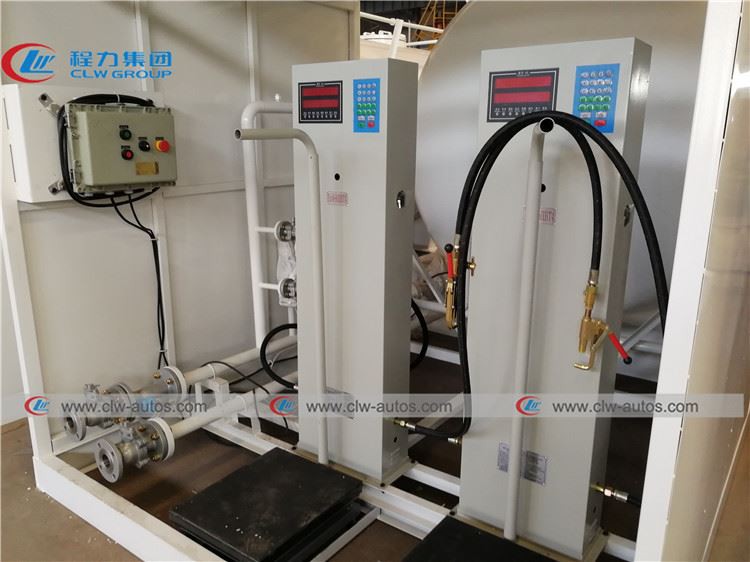

2 Units LPG filling scales in Digital Control,
1 Units 2" LPG pumps with 380V-3 Phase 5.5KW Explosive Motor,

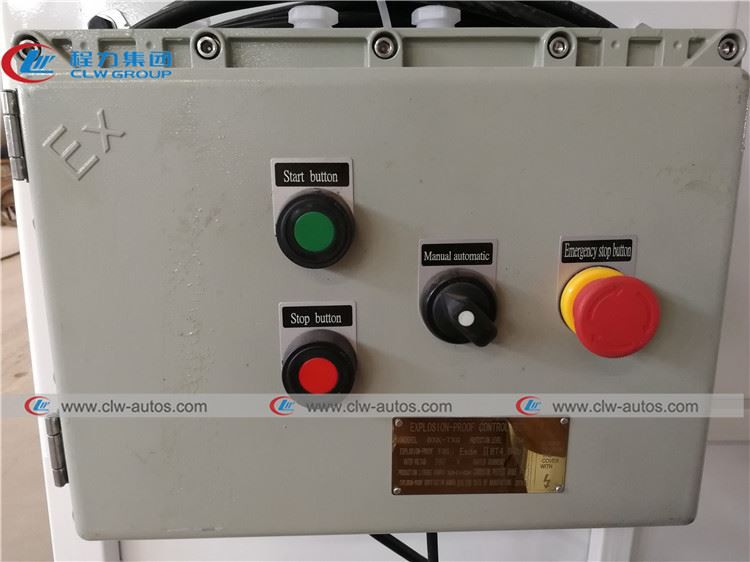

1 Units Electrical Control Box with Air Switch,
1 Units Leakage Detector with 1 Sensor,
Solid Steel Base, Steel Sunshade for Filling Area,

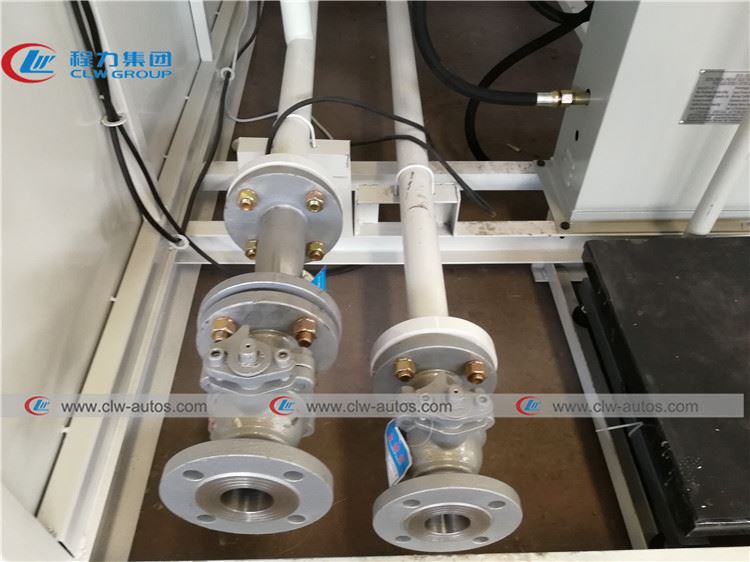

Whole Set Pipeline System with all valves,

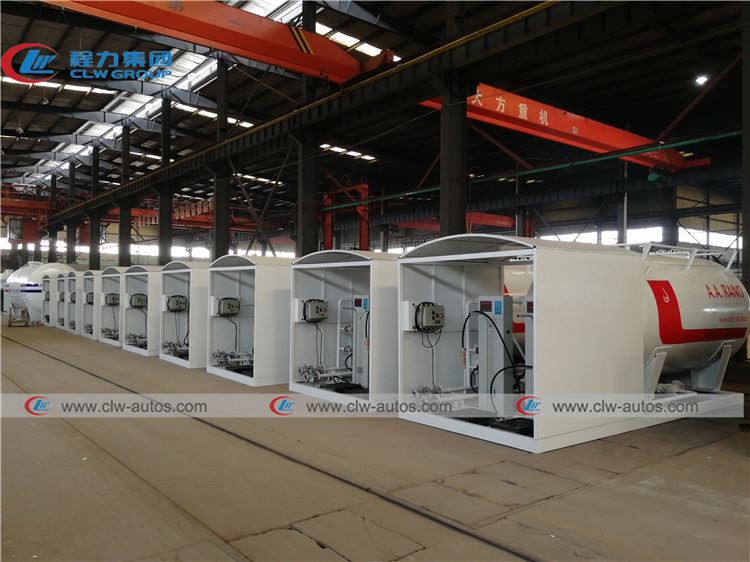

Reference picture
Specification

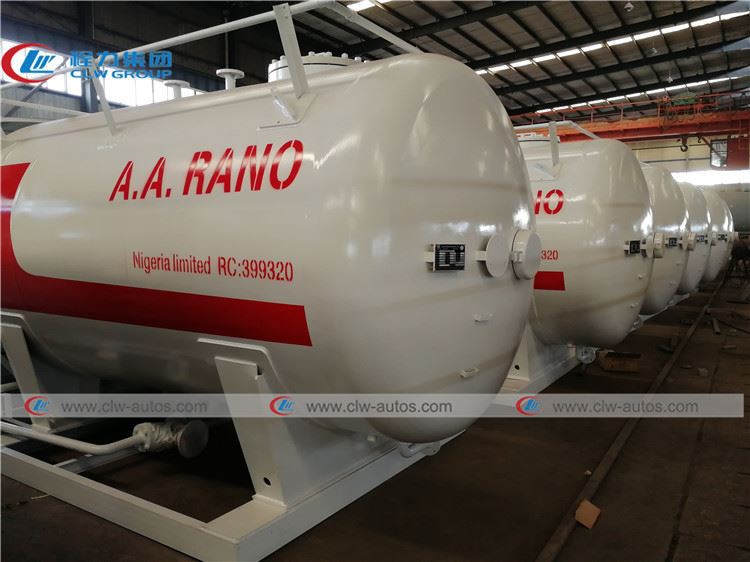

Specification of 5ton 10cbm LPG Tank | |
Volume of Tank | 10CBM(10,000liters) 5ton |
Net weight(Kg) | 10190 |
Thickness of Shell (mm) | 10 mm |
Thickness of Endplate (mm) | 10 mm |
Tank Diameter (mm) | 1600 mm |
Tank Dimensions (mm) (length x width x height) | 8260*1620*2210mm |
Material of Tank | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.71 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 500-590 kg/ cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
Specification of LPG Pump and Motor | |
Item | Specification |
Specification of the Motor | |
Model | Chinese famous brand |
Revolving speed | 1470 r/min |
Power | 5.5 kw |
Voltage | 380 V |
Protection grade | Anti explosive |
Specification of the hydrocarbon Pump | |
Model | YQB15-5 |
Medium | Liquid petroleum gas |
Speed | 15 m3/h |
Input and Output Diameter | 50 mm |
Working pressure | 2.0 Mpa |
Working temperature | -40ºC- 50ºC |
Material | carbon steel |
Key word: LPG skid station, 5ton LPG skid station, 5tons LPG filling plant, 5mt LPG Gas Station
