Dongfeng 15-20CBM 6X4 Compactor Garbage Truck
A garbage truck is a truck specially designed to collect municipal solid waste and transport it to a solid waste treatment facility, such as a landfill or transfer station.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 15-20cbm 6x4 compactor garbage truck in China. If you're going to buy high quality dongfeng 15-20cbm 6x4 compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product description
A garbage truck is a truck specially designed to collect municipal solid waste and transport it to a solid waste treatment facility, such as a landfill or transfer station. Other common names for this type of truck include trash truck in the United States, and refuse truck, dustcart, rubbish truck, junk truck, bin wagon, dustbin lorry, bin lorry or bin van elsewhere. Technical names include waste collection vehicle and refuse collection vehicle (RCV). These trucks are a common sight in most urban areas.
Compression/compactor Garbage/trash trucks
The compression garbage truck consists of a sealed garbage compartment, a hydraulic system and an operating system. The whole vehicle is a fully sealed type, and all the sewage in the process of self-compression, self-dumping, and compression enters the sewage tank, which more thoroughly solves the problem of secondary pollution during garbage transportation and avoids inconvenience to people. Imported parts have the advantages of high pressure, good sealing, convenient operation and safety. Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.
Features
1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader compressed garbage truck: option for 3-20m3 compressed garbage truck
6--Steering wheel of rear loader compressed garbage truck: both left and right hand drive,meet the needs of different countries
7--Emission standard of compressed garbage truck: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of compressed garbage truck : option for japanese and chinese brand,such as dongfeng, isuzu, faw, foton, howo, jac, jmc, forland...
Product specifications
Model | 15-20 m3 Capacity Dongfeng Compactor Garbage Truck | |
Dimension & Weight | ||
Overall dimension | Length (mm) | 10800 |
Width (mm) | 2500 | |
Height (mm) | 3350 | |
Capacity Options | 15m3, 16m3, 18m3, 20m3 | |
Wheelbase (mm) | 4600+1350 | |
Total weight (kg) | 20800 | |
Tare weight (kg) | 9905 | |
Payload (kg) | 10000 | |
Engine | ||
Engine Model | Dongfeng Cummins ISB350-22 | |
Engine Type | 6 cylinder in-line, 4 Stroke Water, cooled, turbocharge, intercooler | |
Fuel Type | Diesel | |
Engine Power (kW/HP) | 260/350 | |
Max torque (N.m/rpm) | 650/1700 | |
Displacement (L) | 8.9 | |
Emission | Euro 3 | |
Chassis system | ||
Transmission | 6 speed, Manuel | |
Suspension Type | Leaf spring | |
Clutch | Φ395mm single sheet dry-type clutch | |
Steering | Power steering | |
Tyre | 11.00R20 or 10.00R20, 10pcs+ 1 spare tyre | |

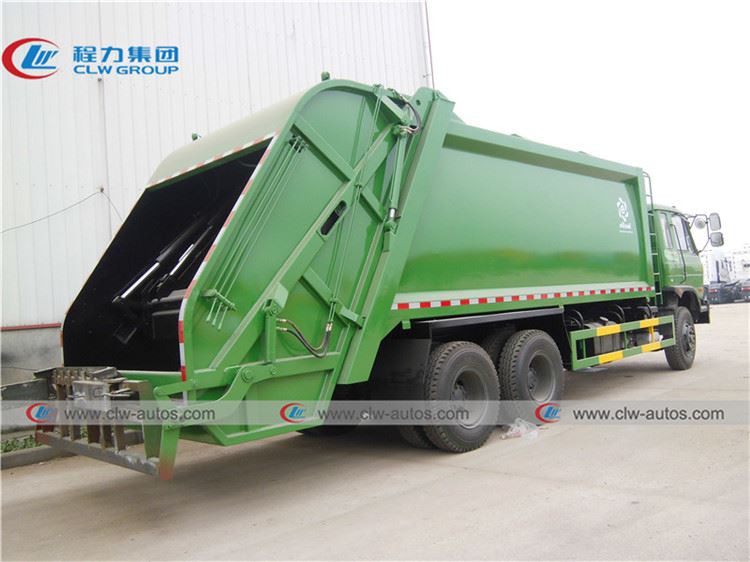

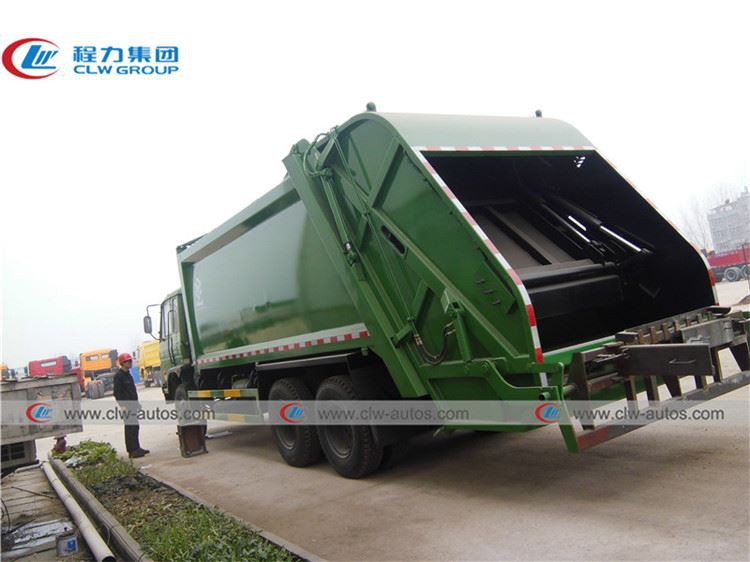

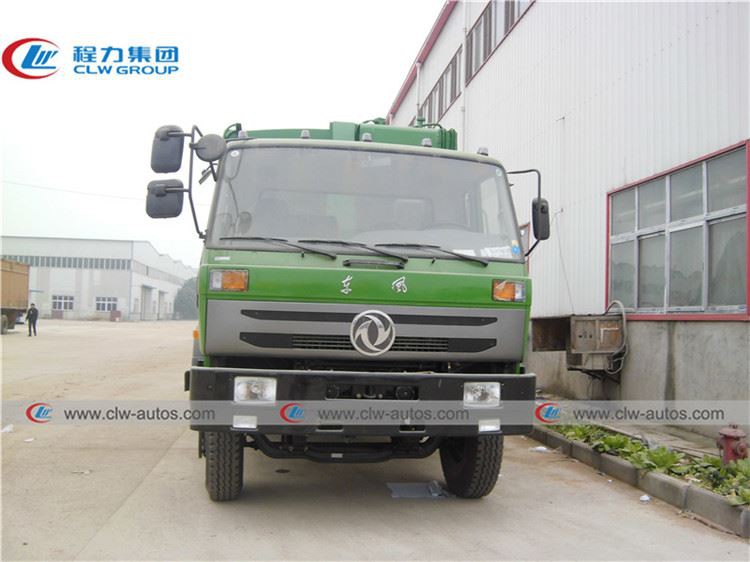

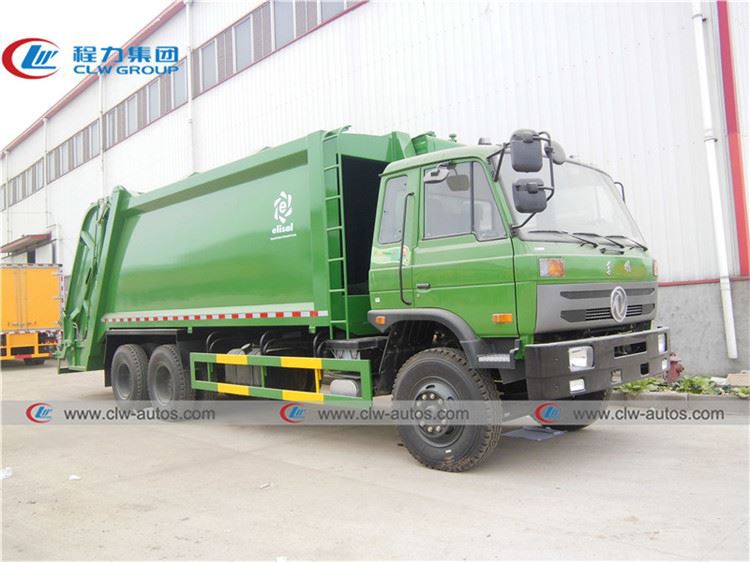

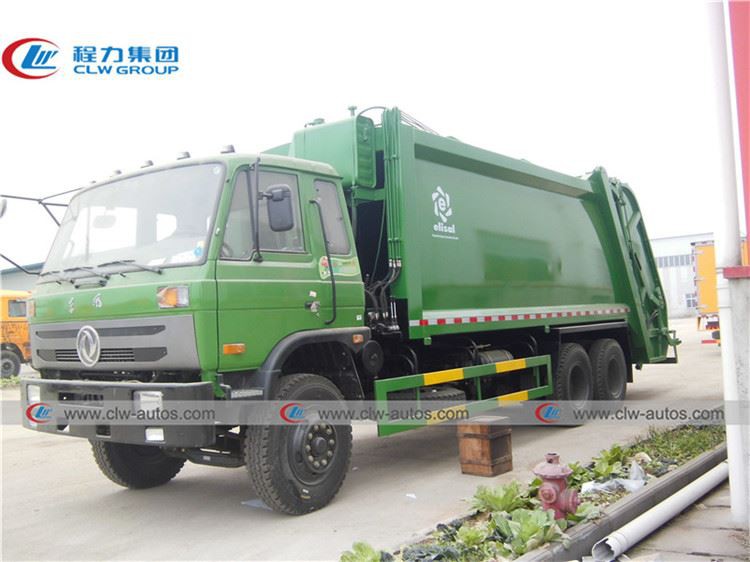

Product pictures
Key words: compactor garbage truck, compression garbage truck, trash truck, garbage collection truck, compressed garbage truck, dongfeng garbage truck
