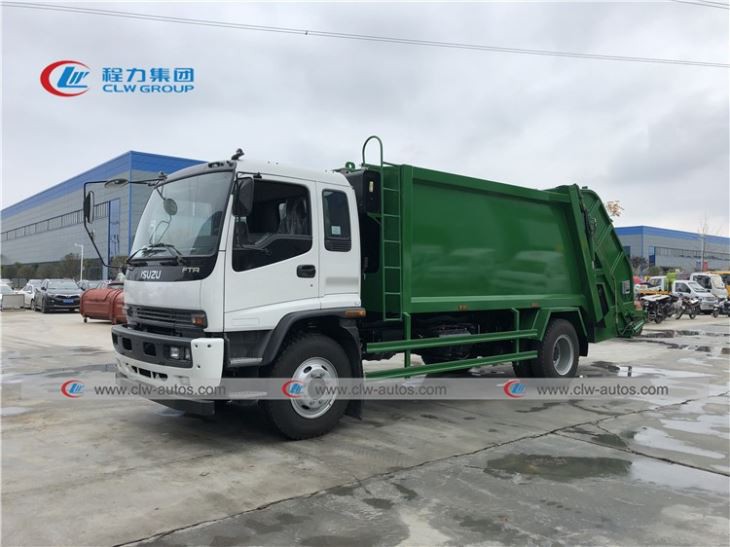

ISUZU FTR 12CBM Compactor Garbage Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 12cbm compactor garbage truck in China. If you're going to buy high quality isuzu ftr 12cbm compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.



Function

1--
Easy Full Automatic Operation of
garbage compactor truck : computer control system for loading and unloading operations.
2--
One Person Operation of
garbage compactor t
ruck: Reducing sanitation working, greatly improves the working environment.
3--
Double Operation System of
garbage compactor t
ruck: computer control system and manual operation greatly improves the vehicle usage rate.

Feature

--Equipped with hermetic dustbin, hydraulic system and operating system

 --Automatic compress and discharge, sewage can be collected by the dump tank.

--High compressed rate, leakproofness is good, operation is convenient and security is dependable

--Compactor garbage truck are equipped with manual & electrical control panel.

UsageCompactor garbage truck are suitable for waste management companies which using for city
garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost

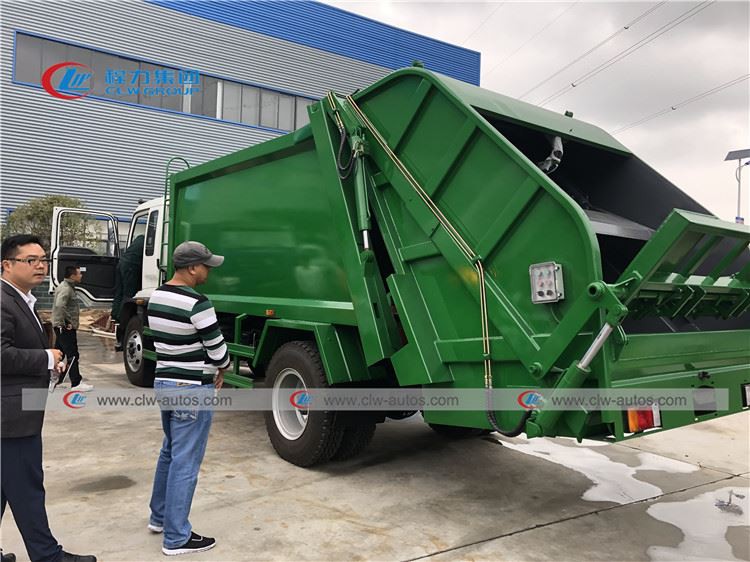

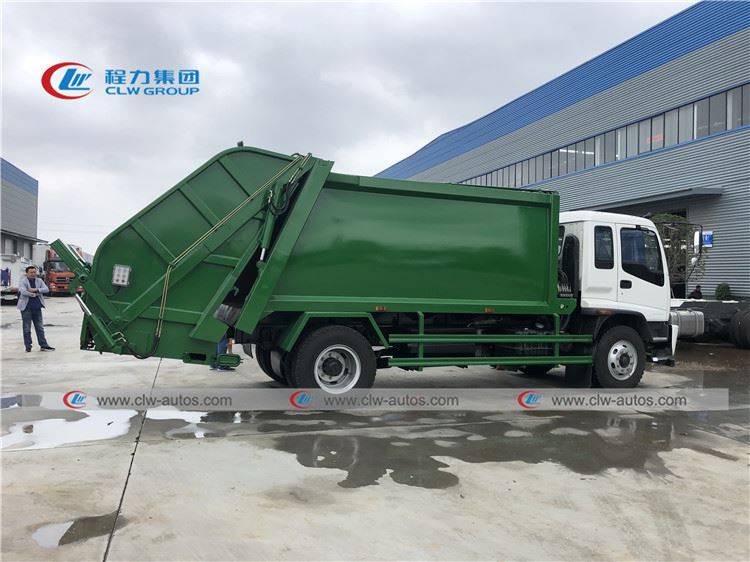

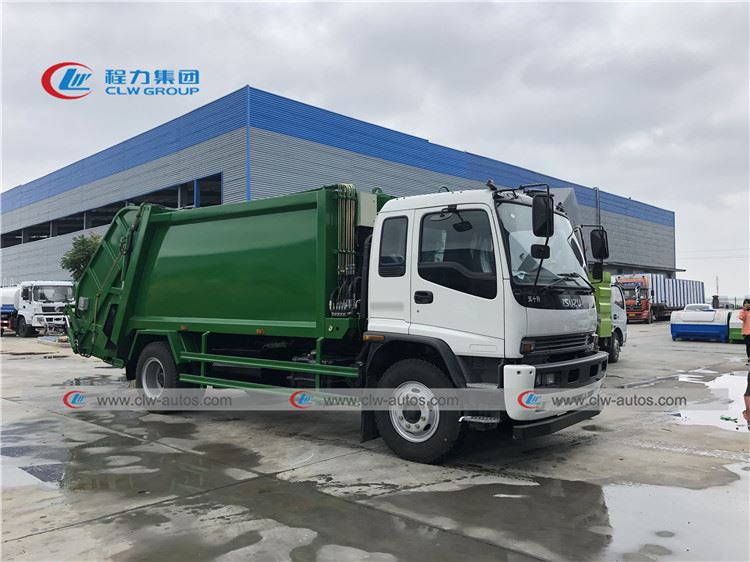

Reference picture

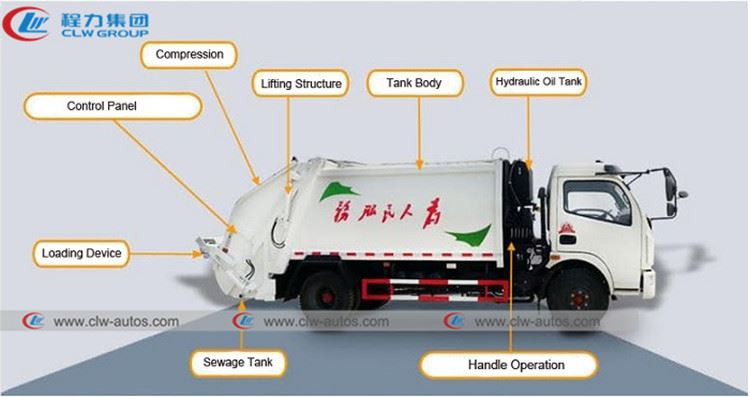

Garbage Truck Structure
Specification

ISUZU 12CBM compactor garbage truck  Waste Management Truck
Overall Dimension	8500×2500×3000 mm	Gross Vehicle Weight	16000 kg
Curb Weight	9300 kg	Loading Weight	6700 kg
Wheel Base	4500 mm	Front / Rear Axle	6300 kg / 13000kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine
Engine horsepower	190HP, EURO IV,V,VI
Max Driving Speed	90 km/h
Gear Box	6 Forward Gear, 1 Reverse Gear,
Tire	9.00-20(6 pieces with one spare)
Garbage Bin	Capacity	10cbm or 12CBM
	Material	4mm Carbon Steel for Garbage Bin Body
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4

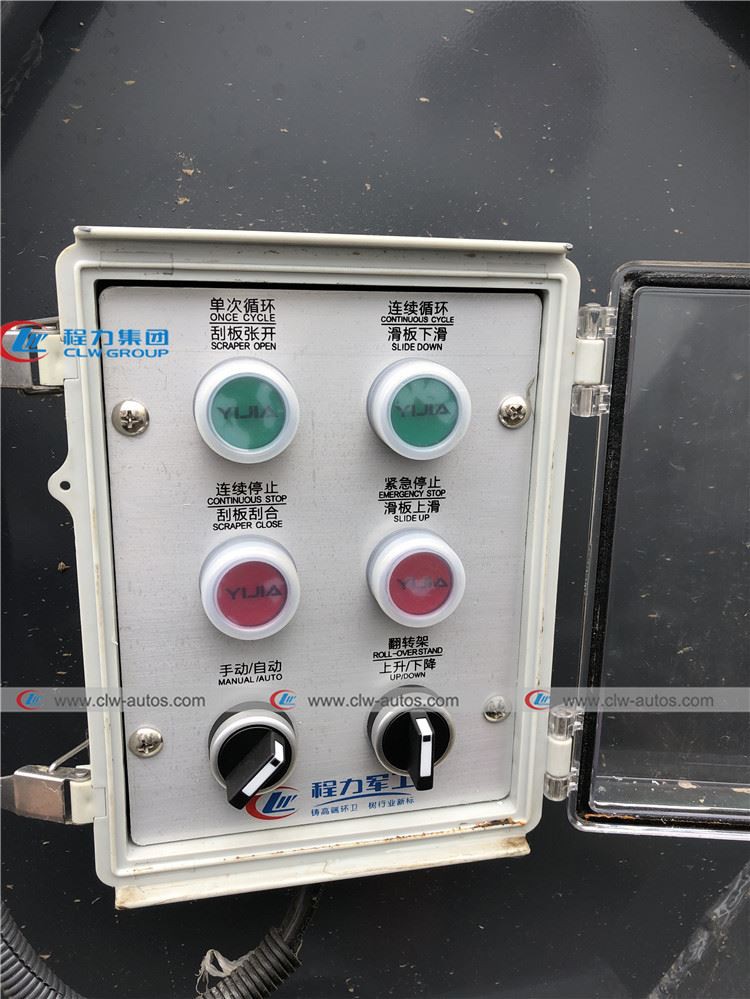

Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

Product for ISUZU compactor garbage truck

RFQ

Q1: What kinds of garbage truck I can order from your company?

A: We have different type garbage trucks for your choice,and we will recommend the most suitable type based on your need.

Q2: Have you supplied garbage truck to any overseas countries?

A: Yes, of course. Our team has more than 10 years experience exporting garbage trucks to many Africa and south-east Asian countries.



Q3: If I order garbage truck from your company, how could I make sure I can get the qulified product?

A: There is no worries about the quality. Our engineer team has more than 10 years experience of design and produce garbage trucks. From the very beginning of the production, we will send photos and videos to you.

Once the truck finshed, we will send operationg videos to you to confirm, if all is satisfied, you can make the balance payment.

Q3: What about warranty and after sale service?

A: Truck warranty is 12 months from the date you start using truck, or 13 months from the date when delivered. We could like to recommend you to buy some wearing parts together with the truck. If you need spart parts in the long run, we will send to you at factory price.
