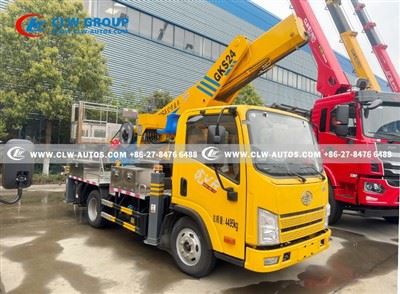

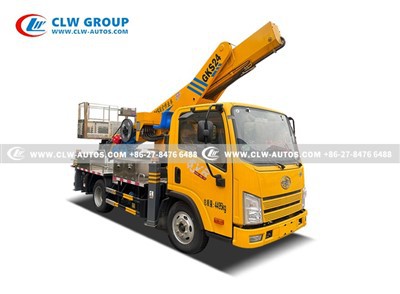

FAW Tiger VR 24 Meters Aerial Platform Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw tiger vr 24 meters aerial platform truck in China. If you're going to buy high quality faw tiger vr 24 meters aerial platform truck, welcome to get more information from our factory. For price consultation, contact us.

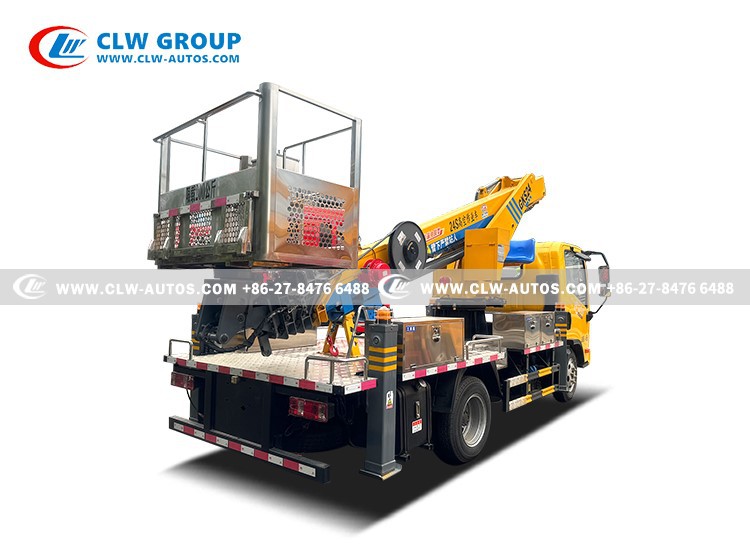

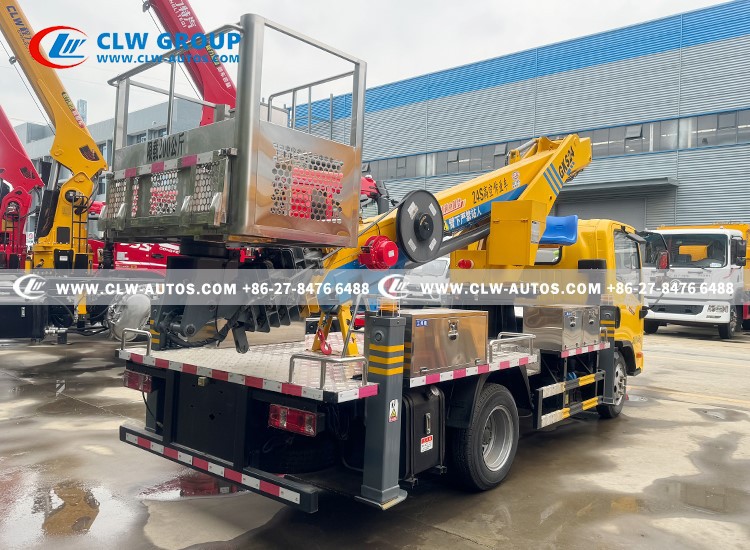

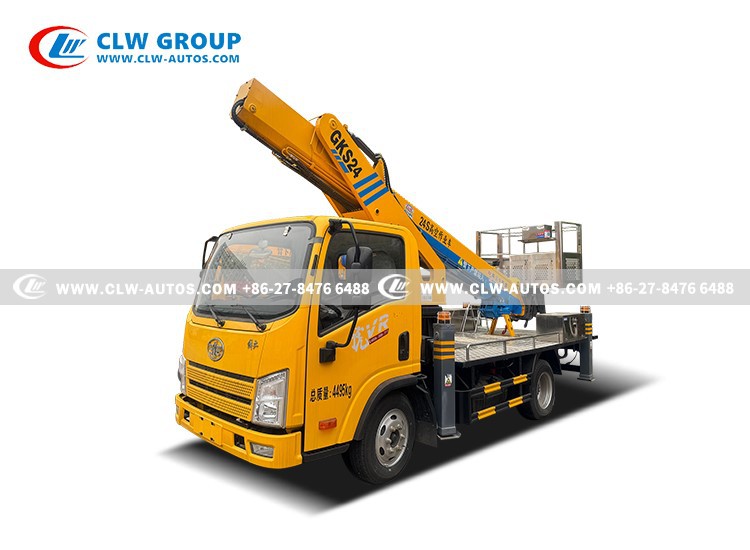

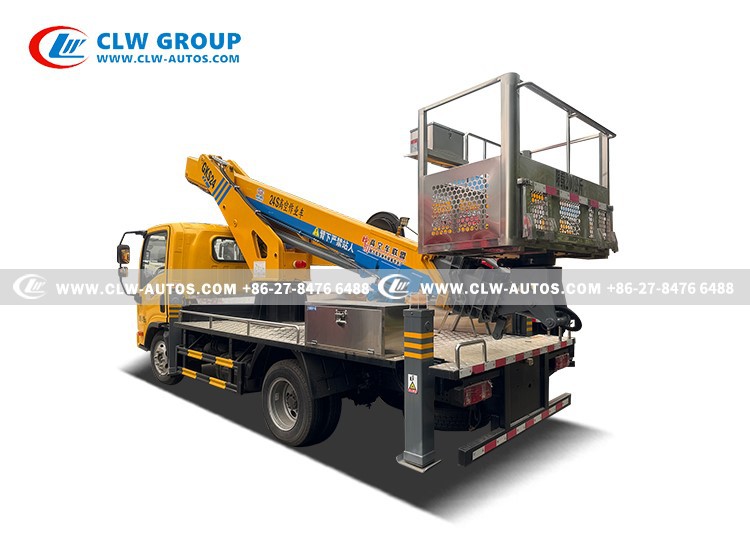

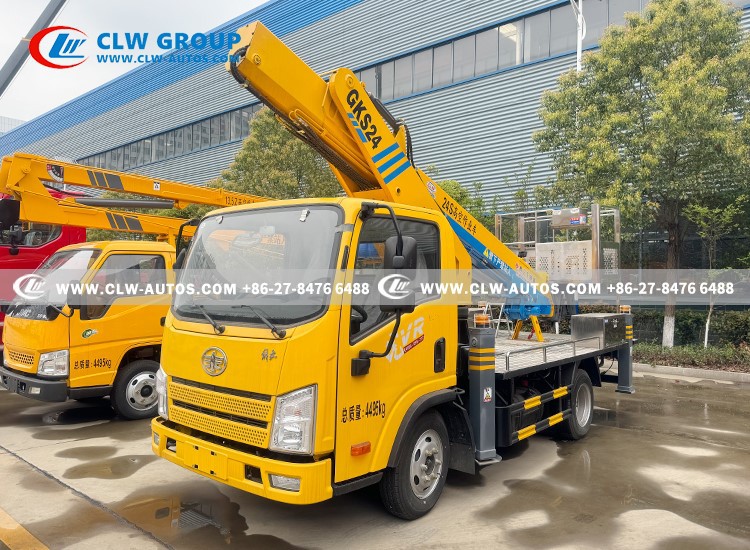

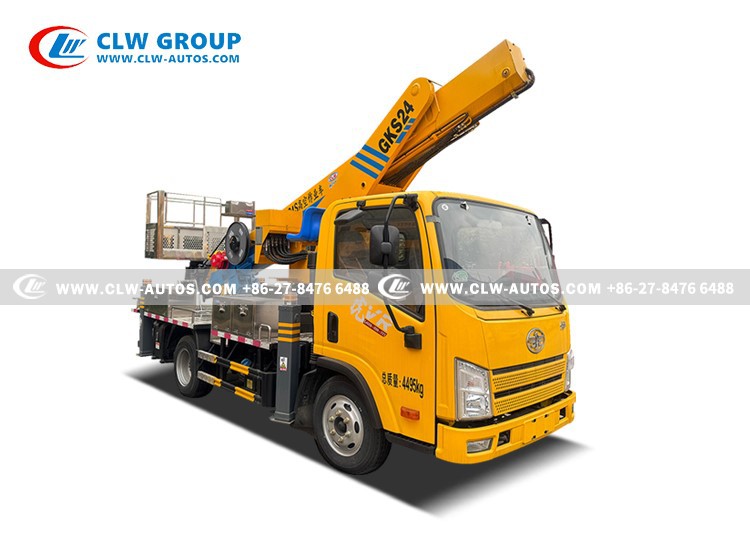

FAW Tiger VR 24 meters Aerial Platform Truck







• What is the aerial work platform truck?



An aerial platform truck, also known as a cherry picker or boom truck, is a type of vehicle-mounted aerial work platform that allows workers to access high places such as buildings, bridges, and construction sites. aerial platform trucks are versatile machines that can perform a wide range of tasks that require access to high places.

The truck is mounted on a heavy-duty chassis with a sturdy frame and suspension system to support the weight of the aerial platform and its occupants. The body of the truck is typically made of steel or aluminum and is designed to provide protection for the worker and equipment.



Advantage design features for Aerial platform truck
Automatic interlock device for getting on and off the truck	It is used for interlocking in and out of the truck to prevent the danger of misoperation
Manual emergency pumps	When the engine and main pump fail, the emergency system can send the staff back to the ground and the whole vehicle can be retracted to the driving state
Emergency stop device for the working platform	It is used for emergency stop operation and limits boom operation
Automatically limit the working range	When the working range reaches the specified value, the dangerous direction is automatically restricted.
Uneven roads restrict work	When the ground is uneven, the lifting boom will limit the work in the dangerous direction
Night safety alerts	On the vehicle there are engineering strobe lights, LED lights
The engine ignitions and shutdown	The controller can control the ignition and shutdown of the engine
Anti-leakage protector	It is equipped with a leakage protector to ensure the safety of the power supply of the whole vehicle and the use of power tools



• What aerial working truck do we have?



1. Aerial working height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,30m, 32m, 34m, 45m

2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.







Condition	New condition/left hand drive/4x2
Chassis	Brand			FAW
	Curb weight(kg)			4495 kg
	Wheelbase(mm )			3360mm
	Dimensions(mm)			5998×2200×3150 mm
	Axle loading			2800/6000 kg
	Max. driving speed(km/h)			80 km/h
	Clutch			Reinforced diaphragm clutch
	Steering Gear			Power steering, hydraulic steering with power assistance
	Tire	Quantity(pcs)		6 pcs with one spare tire
		Specifications		7.50R16
Gear box	Manual type, 6TS40, 6 Forwards & 1 Reverse
Cab	Single row, Tiltable. It can accommodate two people. With air conditioner.
Engine	Brand			Yunnei
	Model	YC4D130-33
	Displacement(L)		4.214L
	Power(kw)/Horsepower(HP)			6 kw/130HP
	Cylinder quantity(pcs)			4 pcs
	Emission standard			Euro 2
Aerial Platform Structure Parameter
Arm Material			High intense BS960 steel
Working height (m)			24
Platform height (m)			21.3
Max working radius (m)			9.5
Max working radius in max working height(m)			2
Boom type			Five section telescopic arm,Synchronous scaling

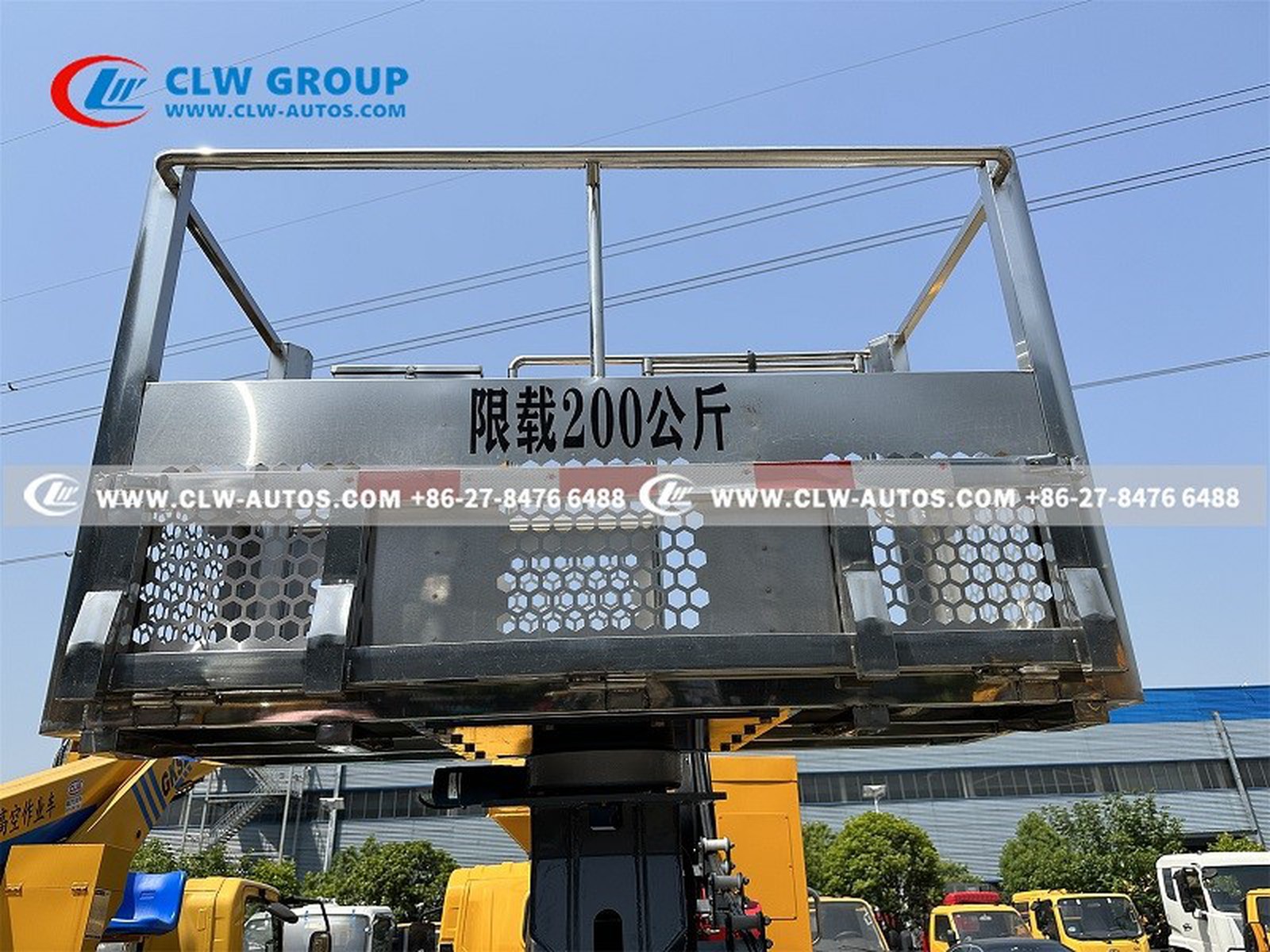

Bucket size(mm)			1800*750*1150mm
Bucket loading capacity			200kg
Rotation Angle			360 degree
Outrigger			Model		Front V, rear H design, individually adjustment
			Quantity		4
			Horizontal span		4500mm
			Vertical span		4600 mm
Hydraulic cylinder at telecopic arm			Two units, Chinese famous brand

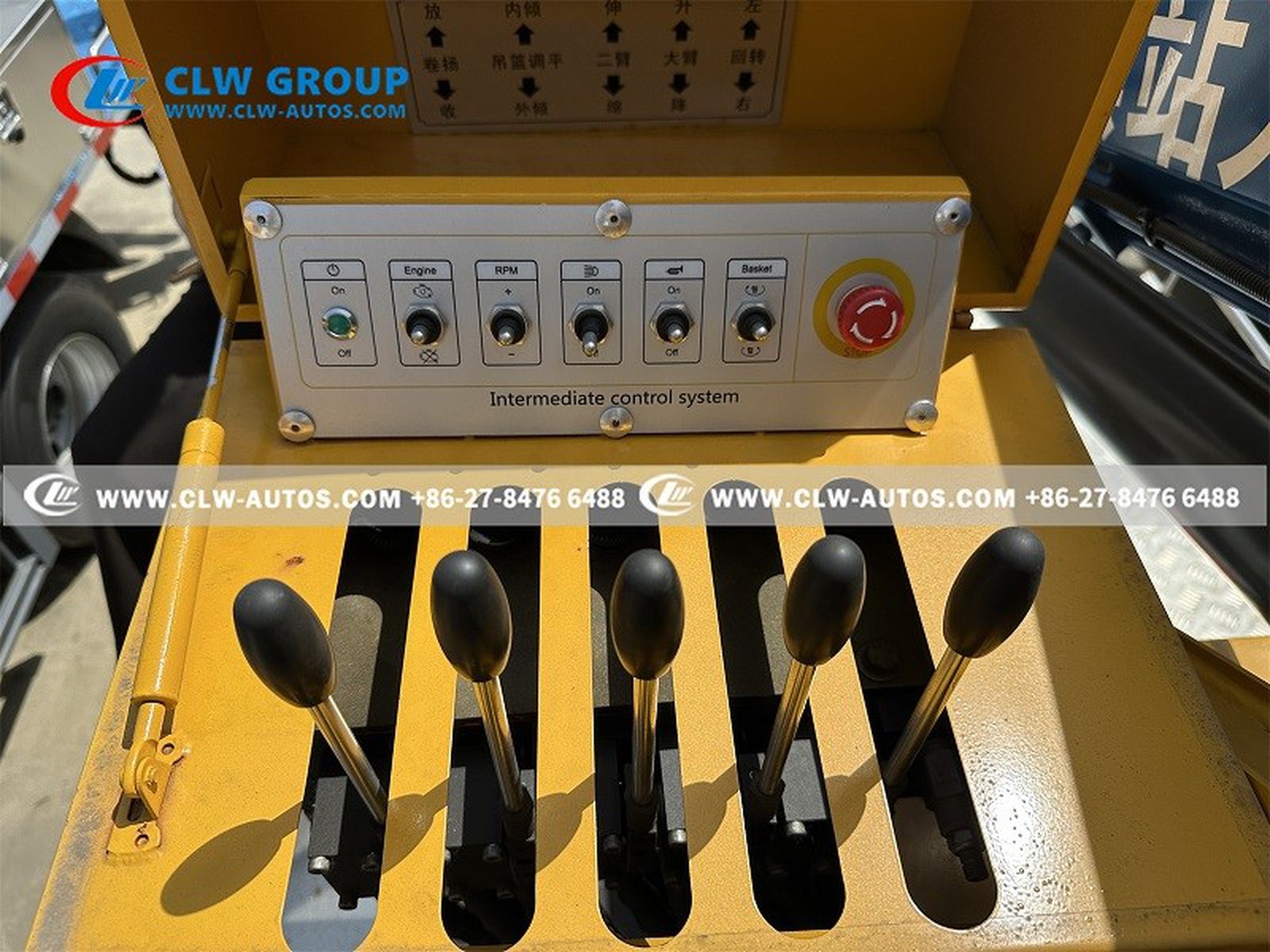

Main Control Mode			Remote control panel & side panel operating beside the chair, 5 inch LCD control panle,
Leveling system			Hydrostatic self-leveling
LCD Working display panel			Display arm length, working height, working radius, tilt angle.
Hoarding and walking platform			Stainless steel fence and non-slip walking platform
Remarks			1. Color is optional
			2. Customized LOGO painting as per customer request
