ISUZU 22 Meters Telescopic Boom High Operation Aerial Bucket Truck
Lifting height:22meters
Truck brand:ISUZU/DONGFENG/HOWO
Application:lamp repair/airport/aerial working
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 22 meters telescopic boom high operation aerial bucket truck in China. If you're going to buy high quality isuzu 22 meters telescopic boom high operation aerial bucket truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Aerial bucket truck(also called high platform operation truck,bucket truck,aerial lifts,articulated telescopic aerial lifts,aerial platform truck,cherry picker,aerial work platform truck) is used wdely used in electric power, street lamp, municipal, garden, communication, airport, build (repair) ship, traffic, advertising, photography and other aerial work fields.usually it is used to bridge maintenance,lamp maintenance,electric power maintenance with essential fiberglass insulation bucket.
--Aerial bucket truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc aerial bucket truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 aerial bucket truck;
3) according to lifting height:there are 11meters,12meters,14meters,16meters,18meters,20meters,22meters aerial bucket truck;
4) according to lifting frame work,there are telescopic(sraight-arm) or folding(kunckle arm) or vertical lift aerial bucket truck;
Feature
---- ISUZU chassis ensures perfect driving performance
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- 360 ° arm rotation;
----Optional for fiberglass insulation bucket less than 230V
---- Easy operation and easy maintenance.

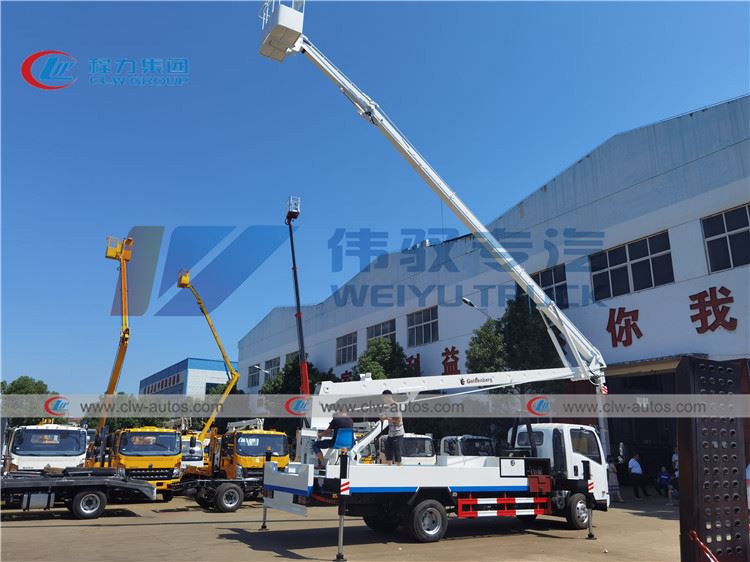

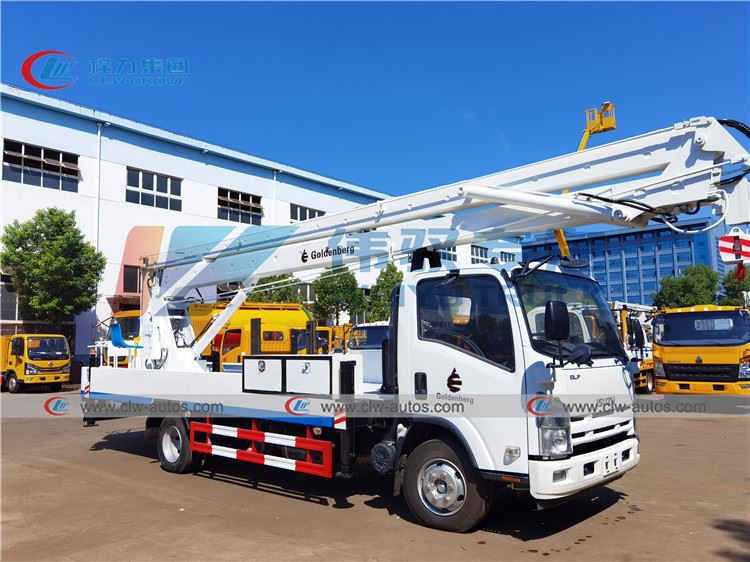

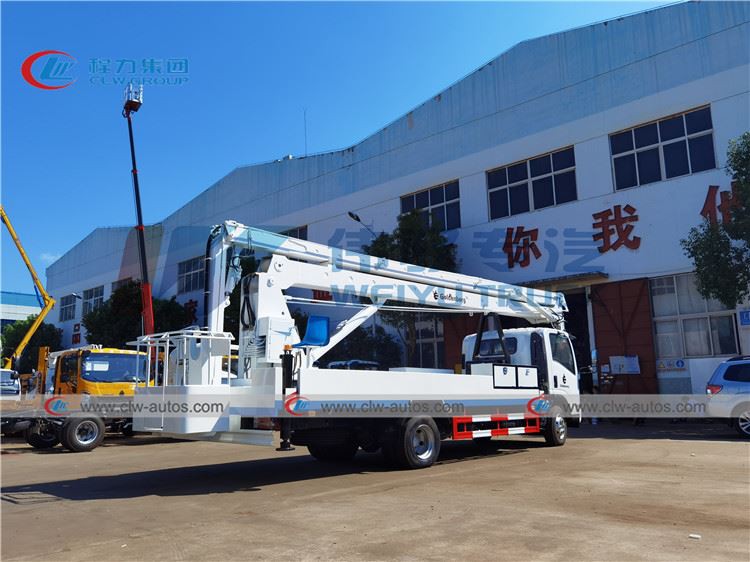

Pictures
Specification
Condition | Brand new/left hand drive /4X2 | ||
Chassis | Brand | ISUZU | |
| Wheelbase(mm) | 4175 or 4475mm | ||
| Dimensions(mm) | 7000X2500X2750mm | ||
| Front/Rear Axle loading(kg) | 4000/7000 kg | ||
| Wheel track (front/rear) (mm) | 1160/1545 mm | ||
| Front/Rear overhang(mm) | 1605/1555 mm | ||
| Approach/Departure angle(°) | 18/18 | ||
| Max. driving speed(km/h) | 95 | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 8.25R16 | ||
Transmission | Manual type MLD,6 Forwards and 1reverse | ||
Cab | isuzu 700 cabin,left Hand Driving,With A/C | ||
| Model | 4hk1-tcg40 or 4hk1-tc51 4-stroke direct injection , 4-cylinder in-line with water cooling, inter-cooling | |
| Power | 190HP | ||
| Emission standard | EURO IV,V | ||
| Displacement | 5193(ml) | ||
| Fuel type | Diesel | ||
| Upper body | |||
Working range | Max. Working platform height 22 meters; | ||
Bucket | Rated loading capacity:200kg; Safety voltage ≤230V; | ||
Lading leg | Model: H-type landing leg; No.: 4 Nos; Control method: Separate adjustable or linked adjustable; Lateral span:2680 mm; Longitudinal span:3050mm. | ||
Hook | Max. Craning weight ≤1000kg,800kg is safety; Max. Craning height:7.2meters | ||
Operating system | Two sets of operating system.operating above truck chassis or in tool box; | ||
walking board | Steel tool box and anti-slip checked plate working board | ||
Main boom | 3-section with Q345 structural low alloy steel | ||
Rotation | Double direct 360 degree rotation | ||
Safety equipment | Leg oil cylinder with hydraulic lock,Working arm cylinder with two - way balancing valve | ||
Main accessories | 1 No of Main boom oil cylinder(CLW brand) | ||
| 1 No of second boom oil cylinder(CLW brand) | |||
| 1 No of third boom oil cylinder(CLW brand) | |||
| 2 Nos of crosswise oil cylinder(CLW brand) | |||
| 4 Nos of landing legs oil cylinders(CLW brand) | |||
| 1 set of hydraulic pump | |||
| 2 sets of hydraulic motors | |||
| 3 sets of hydraulic mult-way valves; | |||
| 1 set of two-way balance valve; | |||
| Speed-reducer | |||
| Pressure gauge | |||
| Hydraulic lock | |||
72 pcs of φ8 High pressure oil pipeline; 20 pcs of φ13 High pressure oil pipeline; | |||
