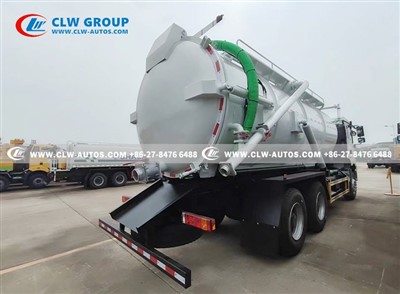

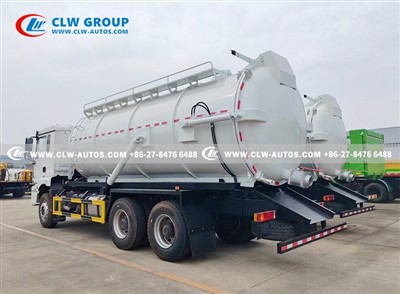

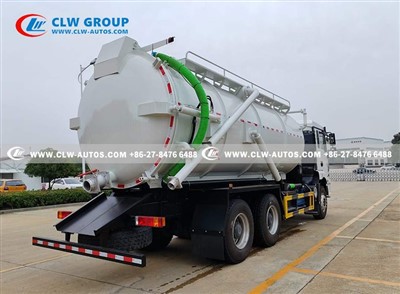

Shacman H3000 20000Liter Sewage Suction Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman h3000 20000liter sewage suction truck in China. If you're going to buy high quality shacman h3000 20000liter sewage suction truck, welcome to get more information from our factory. For price consultation, contact us.









Shacman H3000 20000Liter Sewage Suction Truck



Description

Sewage suction truck is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid materials such as feces, mud, crude oil and so on. The sewage suction truck adopts the domestic technology-leading sewage suction truck vacuum pump, which has large suction power and long suction range. It is especially suitable for suction, transportation and discharge of sludge in the sewer, especially sewer mud, silt, stones and bricks. Larger objects such as blocks



Feature

--sewage suction truck Tanker material optional for carbon steel  Q235B, you can also choose Q345 or stainless steel ;
--Tanker thickness 8mm,endplate thickness 8mm and baffle 5mm;

-- Chinese brand pump or Italy brand Battioni Pagani ,Jurop,  US brand Moro Kaiser imported brand;

--Suction speed less than 10min and and discharge speed less than 8 min;

--High quality weichai 300HP diesel engine;

-- You can also choose Top brand chinese vacuum pump 2BE-204 suitable for African countires





Specification



Shacman F3000 20,000Liter sewage suction truck
Condition	New condition/Left hand drive/6X4
Chassis	Brand			Shacman H3000
	Curb weight(kg)			10500kg
	Wheelbase(mm)			4375+1400 mm
	Dimensions(mm)			8450*2500*3150 mm
	Axle Load(kg)			7500/13000/13000 kg
	Max. driving speed(km/h)			90 km/h
	Clutch			Reinforced diaphragm clutch
	Brakes			air brake
	Steering Gear			Power assistant
	Tire	Number		10pcs with one spare tire
		Specifications		12.00R20
Transmission	RTD-11509C , manual type. 9 Forwards and 1 Reverses
Cabin	It can accommodate three people, With Air conditioner
Engine	Brand			Weichai
	Model			WP10.300E22
	Horsepower/(HP)			220HP
	Emission standard			Euro 2
Upper Body
Sewage tank	Capacity(cbm/liters)				20cbm/20,000 liters
	Tank material				Q235 carbon steel
	Tank Thickness				8 mm
Sewage pump	Italy Brand Pump		Brand		Moro Kaiser
			model		PM110W
			Speed(r/min)		1400r/min
			Max vacuum		95%
			Vertical suction range(m)		≥9m
Main parts	1. Hydraulic cylinder;
	2. Pressure meter;
	3. Liquid level gauge;
	4. Four way valve;
	5. Safety valve;
	6. Anti overflow valve, and Anti overflow warning device;
	7. Hydraulic control rear cover;
	8. Tipping sewage tank body;
	9. Operating handle system;
	10. Suction hose: Rubber material, 2 units 7 meters length
Device list	1. fire extinguisher
	2. Liquid full alarm
	3. Positive pressure and negative pressure safety valve







Optional vacuum pump : Jurop, Moro Kaiser, BATTIONI PAGANI
