Dongfeng 6CBM Combined Sewage Suction High Pressure Jetting Truck
Sewage pump:Italy Brand BP pump
Waste Tank size:4cbm
Water Tank size:2cbm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6cbm combined sewage suction high pressure jetting truck in China. If you're going to buy high quality dongfeng 6cbm combined sewage suction high pressure jetting truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!
2. Main parts: Water pump and High pressure water cleaning nozzles tc.
3. Features: It can adopts high pressure water for flushing sewer.
4. 4000 liters sewage vacuum suction truck with 2000 liters high pressure water tank(1000 liters by eash side)

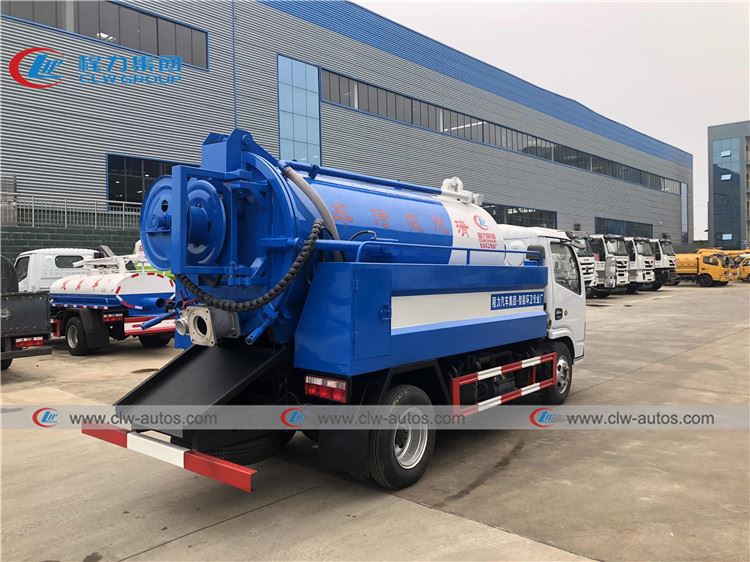

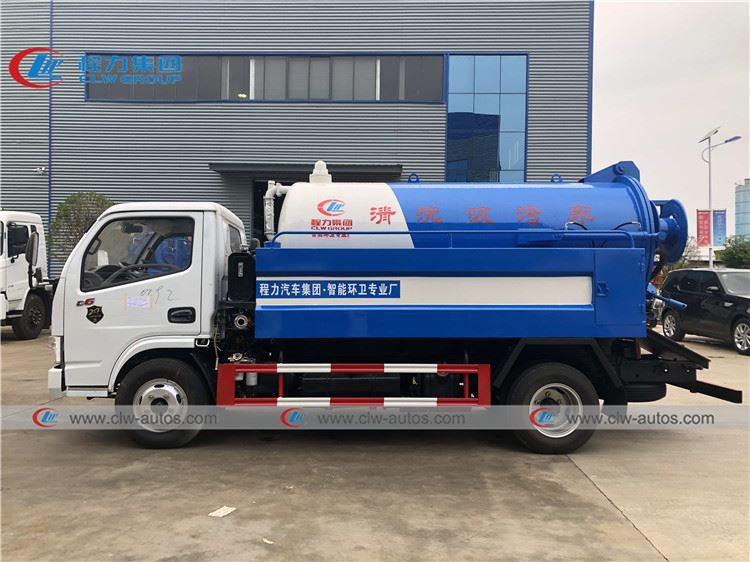

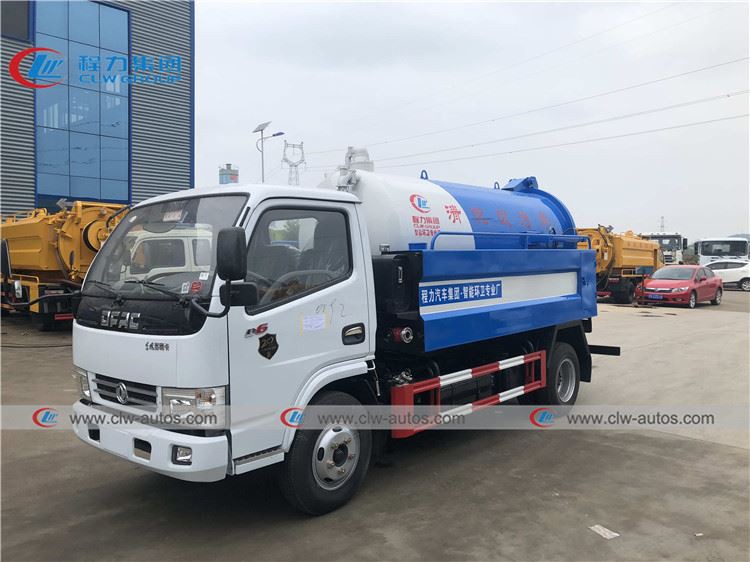

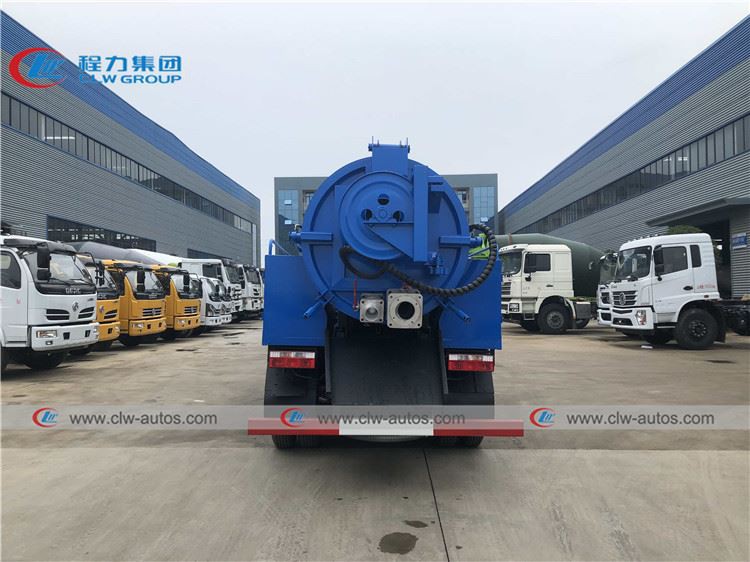

Reference picture
Truck Structure
working show
Specification
| Cab type | Single |
Overall dimension(L*W*H)(mm) | 6300*2300*2850mm | |
Wheelbase (mm) | 3300 | |
Axle number | 2 | |
Drive type | 4*2 | |
Steering type | LHD/RHD | |
Max. Drive Speed (km/h) | 100 | |
Curb weight (kg) | 5340 | |
| Chassis brand | Dongfeng |
Transmission | Manual, 5 forward and 1 reverse | |
Brakes | Air brake | |
Tire | 6.00-15 | |
| Engine Brand | Chaochai |
Fuel type | Diesel | |
Horse Power(hp) | 98hp | |
Emission Standard | Euro III/IV/V | |
| Cleaning Tank volume(m3) | 2 |
Cleaning Tank material | 4 mm good quality carbon steel; round shape | |
Sewage tank volume(m3) | 4 | |
Sewage tank material | 6 mm good quality carbon steel | |
Pump | Imported Italy high quality vacuum pump or chinese vacuum pump | |
Standard configuration | 60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc | |
Main performance | Suction time ≤ 5min | |
effective suction range ≥ 9m | ||
Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
Optional | watering |
