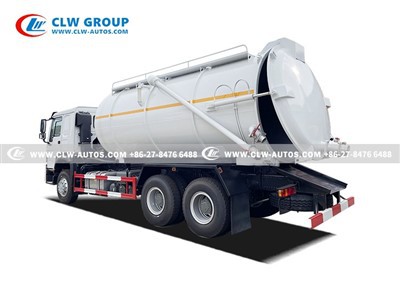

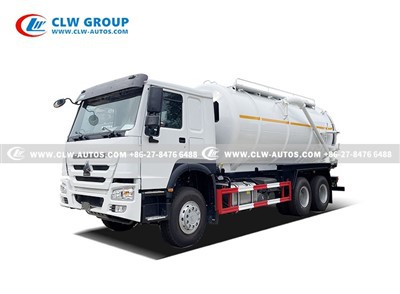

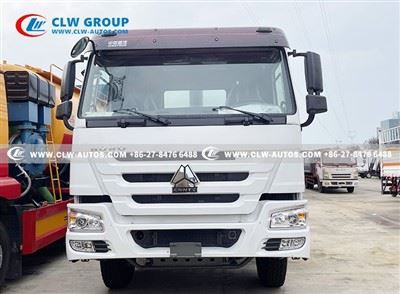

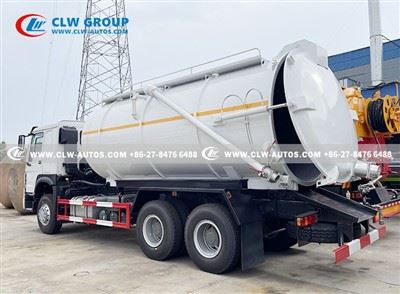

SINOTRUK HOWO 20m3 Vacuum Suction Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 20m3 vacuum suction truck in China. If you're going to buy high quality sinotruk howo 20m3 vacuum suction truck, welcome to get more information from our factory. For price consultation, contact us.









SINOTRUK HOWO 20m3 Vacuum Suction Truck



Description

Vacuum suction truck is a tank truck which has a pump and a tank. The pump is use to suck liquid,sludge,slurries, sewage,liquid waste into the tank of the truck. which also called sewage vacuum truck,  Septic tank truck, vacuum tanker truck, sewer suction truck, exhauster truck, Cesspit vaccum truck.



Feature

--Vacuum suction truck Tanker material optional for carbon steel  Q235B, you can also choose Q345 or stainless steel ;
--Tanker thickness 6mm,endplate thickness 8mm and baffle 5mm;

-- Chinese brand pump or Italy brand Battioni Pagani ,Jurop,  US brand Moro Kaiser imported brand;

--Suction speed less than 10min and and discharge speed less than 8 min;

--High quality Sinotruk Howo 400HP truck chassis;

-- Top brand chinese vacuum pump 2BE-204 suitable for African countires





Specification

Type
Overall dimension	10400*2550*3750 mm
Volume	20 cbm/20m3/20,000Liters
Drive model	4X2
Emission	ERUO II/III/IV
Horsepower	400HP
Power take-off	HW70
Vacuum pump	2BE-204, Chinese brand
Flow rate	21m3/h
Drive	Left hand driving or Right hand driving
Front axle	VGD95, 9500
Rear axle	HC16, 2*16000KG
Tyre	315/80R22.5
Oil tank	400L
Cab	HW76 New driver cab, one sleeper with A/C
Tank volume(m3)	20
Tank material	6 mm high intense carbon steel
Main function	1.Water-gas separator; 2.Oil-gas separator; 3.Hydraulic cylinder; 4.Pressure meter; 5.Liquid level gauge; 6. Four way valve; 7. Safety valve; 8. Anti overflow valve, 9. Hydraulic control rear cover; 10. Tipping sewage tank body; 11. Operating handle system; 12. Suction hose: Rubber material, 2 units 7 meters length
Option	Liquid full alarm device, water wash device, monitor at cabin with four camera
Color	Customized logo and color







Optional vacuum pump : Jurop, Moro Kaiser, BATTIONI PAGANI
