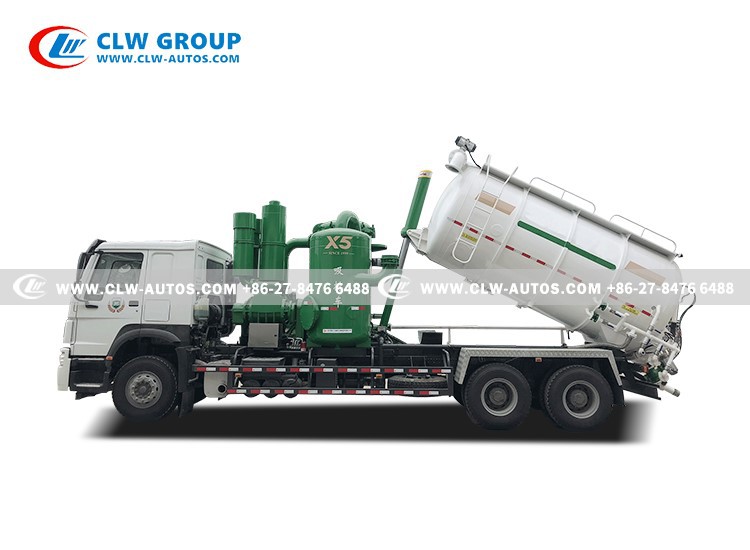

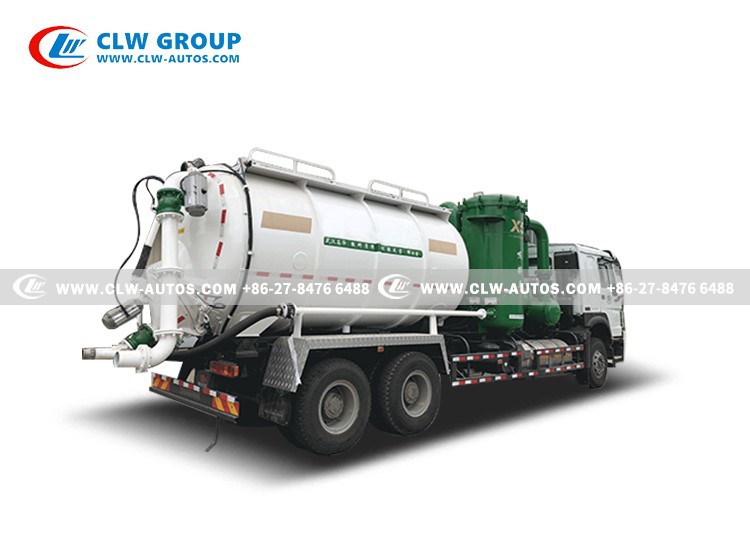

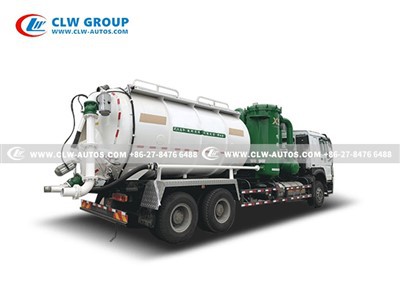

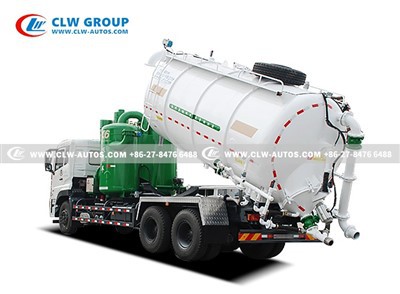

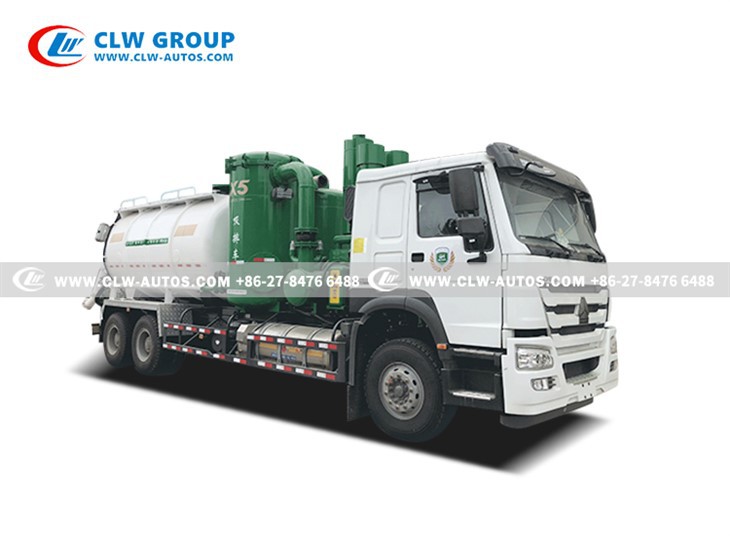

HOWO Vacuum Loader Extraction Truck

Industry Use Vacuum Truck Vacuum Powder Suction Blowing Powder Discharging 120℃ Tank Working Temperature

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo vacuum loader extraction truck in China. If you're going to buy high quality howo vacuum loader extraction truck, welcome to get more information from our factory. For price consultation, contact us.

Products Description

Industry Vacuum Loader Truck

is used for the transportation of dust removal. Negative pressure loading is used for loading, and positive pressure discharging is used for unloading (lifting and opening the back cover for dumping in emergencies); the filtered dust-laden air meets environmental protection emission standards.

Vacuum Truck Industry Use-Major Application

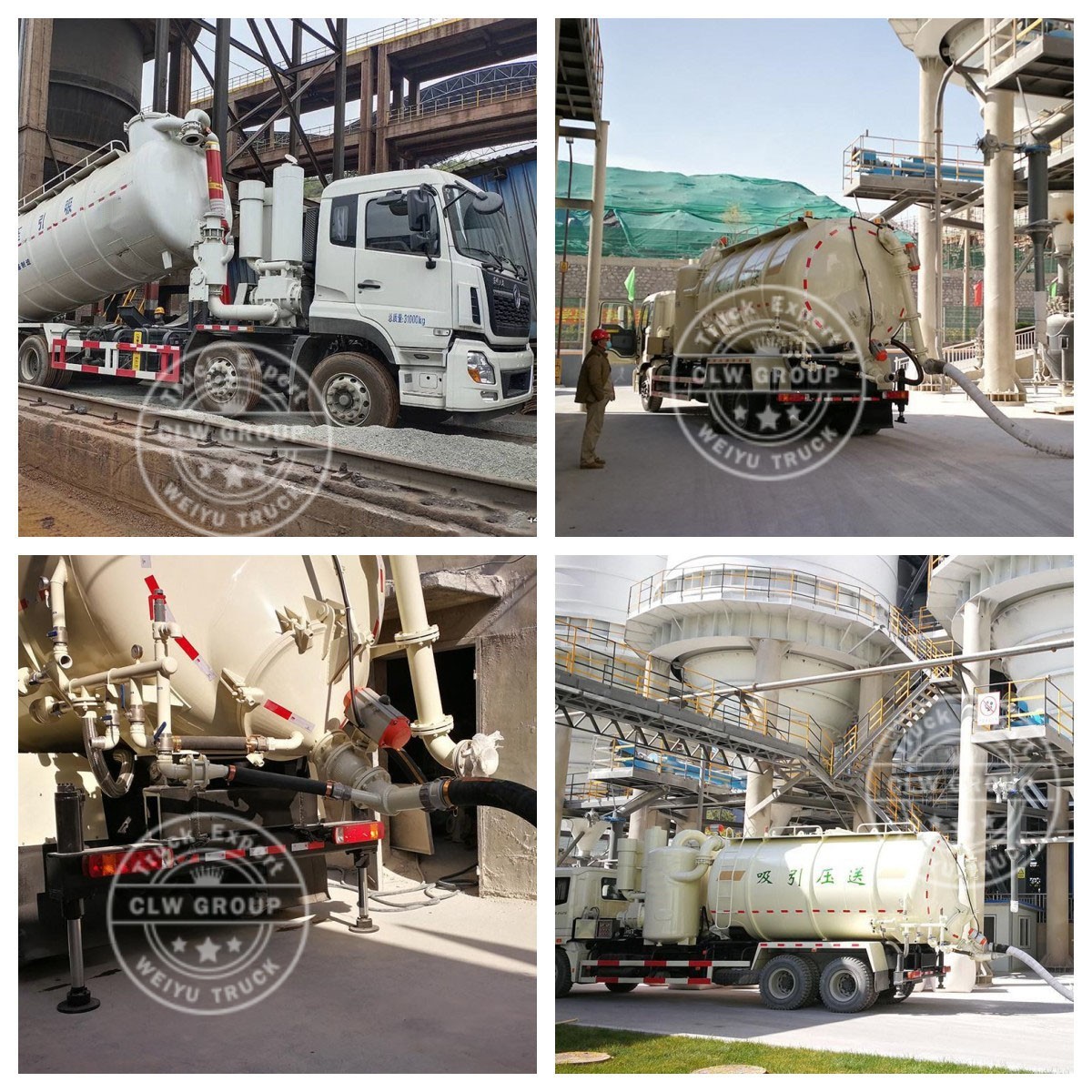

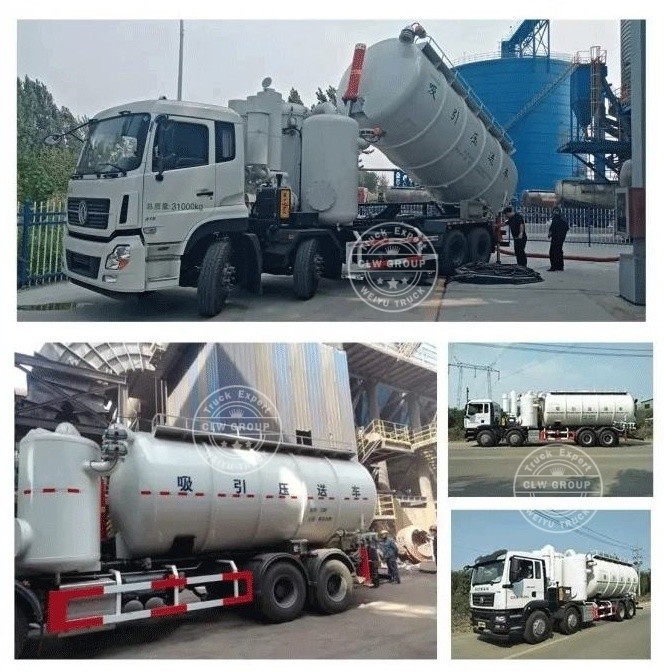

Steel Plant
Cement Factory
Chemical Manufacturer
Energy Industry
Electricity Generation
Construction Material
Different Powder Transport

Advantage of Industry Vacuum Truck

Fully Closed System to collect & delivery Powder
Suction in Loading by Vacuum Pressure
Blow to Discharging by Positive Pressure
1 Key Operation to clean tank inside & Filter bag
Warning System for Suction Loading
Multi-Stage Filter System to prevent Air Pollution
99.9% Sub-fine particles & dust been Filtered
Released Air Quality reaches U-level emission standards ≦25mg/cubic meter

Industry Vacuum Truck System

Vacuum Pump Suction System
Special Tank for High Temperature Working
Air Compressor for Blowing Discharging
Electrical Control System
Hydraulic System for Tipping & Door Opening
Filter System to Prevent Power Pollution
Meter system for working Display

Truck Brand Option:

SINOTRUK HOWO
FAW
SHACMAN
FOTON
DONGFENG

Specification

Vacuum Loader Truck Data
Overall Size：Length xWidth xDepth mm	11200×2550×3950
Engine Power	380HP
Engine Model	Weichai Diesel Engine, WP10.380E22
Driving Mode	6x4 / 3 Axle
Turning Radius	≤22 m
Tires	12.00R20, 10pieces + 1 Spare
Wheel Base(mm)	=5300+1300
Gearbox
G.V.W(kg)	25,000
Tare Weight(kg)	18,000
Tank Body
Tank Volume(m³)	16
Tank Diameter(mm)	2200
Tank Material	6/Q345B
Dish End	Front Butterfly Dish End, Rear Hemi-spherical Dish End
Tank Tipping Angle(°)	≧40
Max Vacuum Pressure(mpa)	-0.078
Suction Loading System Data
Ways of Driving	PTO Driven
Vacuum Pump	Roots Vacuum Pump
Suction Ways	Negative pressure suction material
Max Working Vacuum Pressure (mpa)	Larger than -0.078
Suction Speed(ton/hour)	30-60
Suction Speed(ton/hour)	As per actual material & working condition
Suction Hose(mm)	150
Dust filtration system	Gravity inertial dust removal, cyclone dust removal, cloth bag filtration
Filter Bag Cleaning Method	Blowing by Positive Pressure
Exhaust Dust Content(mg/m³)	20
Discharging System Data
Ways of Discharging	Open Rear Door & Tipping
Opening Ways of Rear Door	Manual
Opening Angle of Rear Door	120º
Locking Ways of Rear Door	Bolts Locking
Rate of Remaining Material In Tank	2‰
Air Source	Air Compressor or Outsource Air Supply
Air Compressor	Chinese Compressor BDW-10/2
Ways of Discharging	1. Positive Pressure Discharging
Ways of Discharging	2. Emergency Rear Door Discharging
Max Working Pressure(mpa)	0.2
Pressure Discharging Speed(t/h)	30～60
Pressure Discharging Speed(t/h)	(Outsource air supply with 20meter Discharging Height, use cement powder as reference)
Discharging Hose Diameter mm)	100
Discharging Hose Material(mm)	6/Q345B
Hydraulic Tipping Data
Hydraulic Pressure(mpa)	16
Hydraulic Cylinder Volume(L)	≈80
Tipping Cylinder	Hyva or Chinese Jiaheng
Valves Specification
Suction Valves	Valve DN150 with Pipe DN150
Discharging Valves	Valve DN125 with Pipe DN100
Other Valves	DN50～DN200
