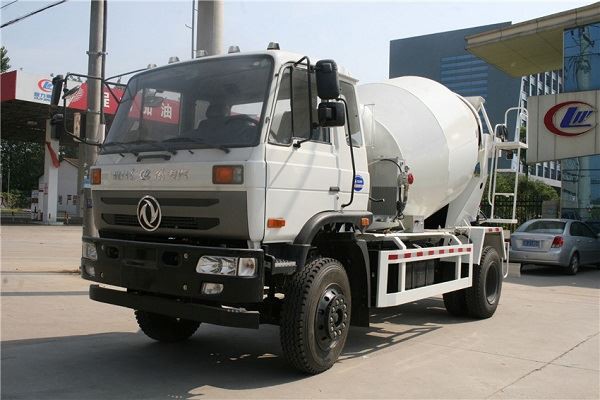

6cbm Concrete Mixer Truck
Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to our customer.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6cbm concrete mixer truck in China. If you're going to buy high quality 6cbm concrete mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Mixer Truck Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator.
4. 400Liter Water Tank with Pressure Water Filling.
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
Chassis | Brand | DONGFENG | |||||
Gross vehicle weight | 14575 kg | ||||||
Curb weight(kg) | 6530 kg | ||||||
Wheelbase(mm) | 3950mm | ||||||
Dimensions(mm) | 6850*2350*3550 mm | ||||||
Max. driving speed(km/h) | 90 km/h | ||||||
Brake | Air brake | ||||||
Tire | Number | 6pcs with one spare tire | |||||
Specifications | 9.00R20 | ||||||
Fuel tank(L) | 200 L | ||||||
Transmission | 8 Forwards and 1 Reverse with PTO | ||||||
Cabin | It can accommodate three people, With Air conditioner | ||||||
Engine | Brand | YUCHAI | |||||
Horsepower(HP) | 140 HP | ||||||
Emission standard | Euro 3 | ||||||
Upper | |||||||
Mixer drum | Max. Capacity | 6 cbm | |||||
Material | Alloy steel Q345, 4mm thickness | ||||||
Vane | Material | Alloy steel Q345, 4mm thickness | |||||
Specification | Feeding Speed (m3/min) | ≥2.8 | |||||
Discharging Speed (m3/min) | ≥1.2 | ||||||
Discharging Residual rate(%) | ≤0.5 | ||||||
Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
Discharging range | 180° full range | ||||||
Driving system | Option | Option 1 | Option 2 | Option 3 | |||
Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
Radiator | China local brand | ||||||
Water supply system | Water Tank Capacity (liters) | 300 | |||||
Water supply type | Pneumatic water supply | ||||||
Control system | Control Way | Connecting Rod Controlling | |||||
Structure Features | Mixer Tank and Vane use special anti-resistant material. | ||||||
Remarks | The color is optional | ||||||
Reference Photos
Details of concrete mixer truck
Production Process
① Production of chassis;
② Welding subframe on the chassis;
③ Production and welding of mixing drum, water tank, hydraulic pump, moter and reducer,etc;
④ Installing circuit and testing;
⑤ Painting and Customized LOGO design.
Our Advantage
① High quality materials and integrated welding process;
② Ensure stable and reliable vehicle performance through strict testing;
③ Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to our customer.

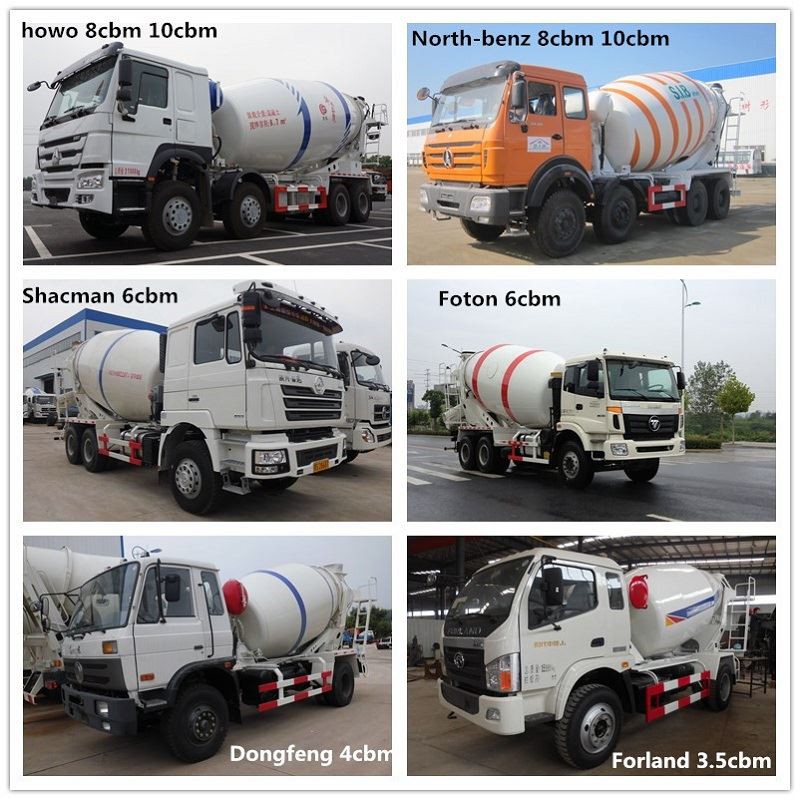

Different Capacities of Mixer Truck
Customer Visiting
Sales Service
① Pre-sales Service: Communicate with customers, analyze their requirements;
② Sales Service: Provide professional technical solutions, recommend the right models and provide quotation document accordingly, ensure quick delivery and shipment.
③ After-sales Service: Quick feedback to solve your problem, professional engineering and production team, spare parts supplied at factory price whenever needed, regular customer after-sale visiting, and free technical staff training and guidance.
FAQ
Q1: Which brand hydraulic pump and motor of your mixer truck?
A: Usually we adopts Italy brand or US brand
Q2: Which brand reducer of your mixer truck.
A: Usually we adopts Italy brand PMP or US brand
Q3: Which brand radiator of your mixer truck?
A: We usually adopts China local famous brand or imported brand.
Q4: Can you supply concrete mixer semi trailer?
A: Yes. We can
Q5: What kinds of material of your drum body?
A: High quality Q345
