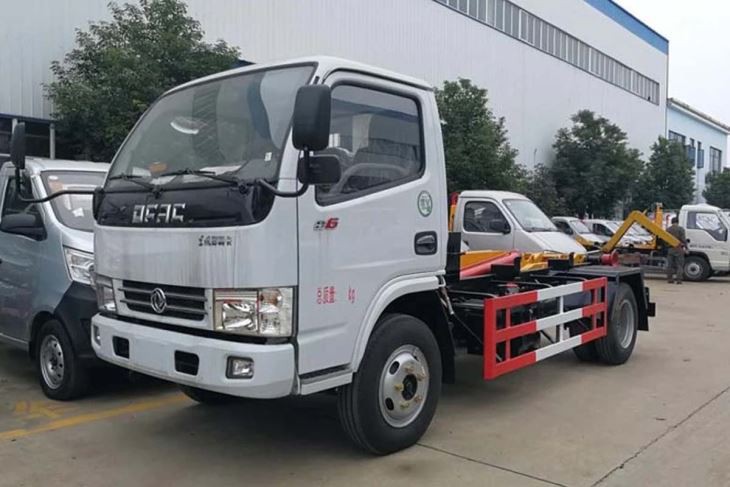

Dongfeng Hook Lift Garbage Truck
Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng hook lift garbage truck in China. If you're going to buy high quality dongfeng hook lift garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Drive type | 4*2, New condition, LHD | |
Vehicle Main Dimensions | (L x W x H)mm | 4800×1900×2540 |
Wheel base (mm) | 3300 | |
F/R Axle-Load | 2000/400 kg | |
Curb weight | 2150 kg | |
Loading weight | 2215 kg | |
GVW | 4495 kg | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | Diesel ENGINE |
Type | 4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | |
Horse Power(HP) | 95 | |
Emission standard | Euro III | |
Gearbox | 5 forwards& 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Tire | 7.00-16 Nylon tyre,6pc including 1 spare tire | |
Steering Gear | power steering, hydraulic steering with power assistance | |
Upper Body | ||
Garbage Box Material | Carbon Steel Q235 | |
Garbage Box Volume | 4 CBM | |
Remarks | 1. Color is optional | |
2. Customized LOGO painting as per customer request | ||
Truck Diagram

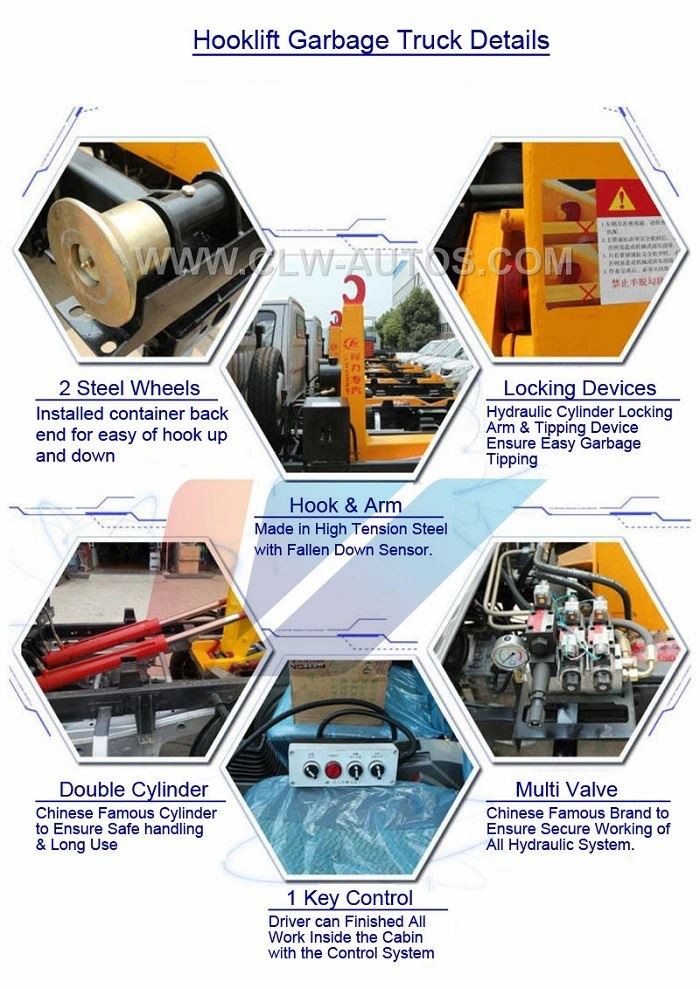

Product Details

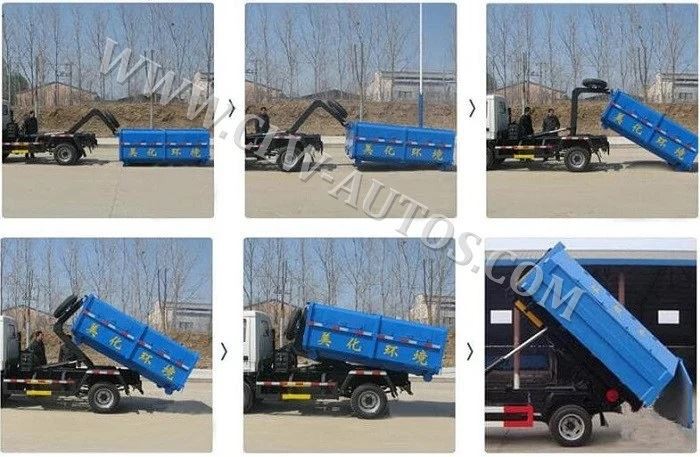

Working Show
Exhibition and Local Support
Customer Inspection
Our Advantage
① The main advantage of this car is that one car can be equipped with multiple buckets, and one car can maintain the operation of several garbage collection stations with high efficiency, and the box body is sealed design, which will not cause secondary pollution.
② It is suitable for urban streets. It can be equipped with multiple buckets per vehicle, which can greatly improve the garbage sorting and circulation while saving costs.
③ The upper end of the box is designed with an oblique angle and a cover plate, which is convenient to put the pull-arm garbage truck and the full seal. At the same time, the box is an overall sealed structure to prevent secondary pollution when the box is moved.
Sales Service
1. One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficient after-sales service;
4. Regular phone call to collect information about the vehicle's working status and feedback from customers.
FAQ
Q1: Do you accept custom order? What’s is your MOQ order?
A: Yes, we do, our MOQ is 1 unit.
Q2: What’s the payment terms?
A: By T/T bank transfer
Q3: How about shipment?
A: 20FT container, 40FT container, 40FT high container, open-top container, flat bed container ,Ro-Ro ship or bulk ship according to the size the products.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
