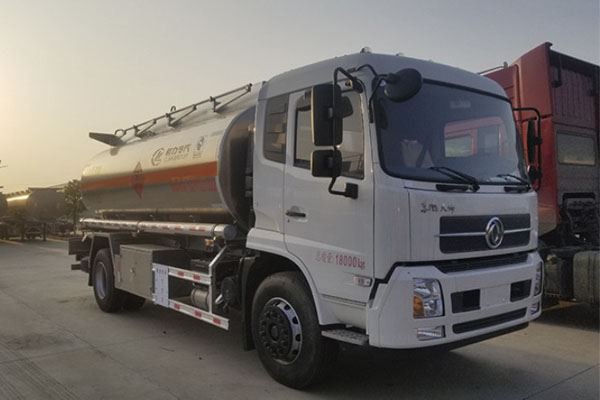

Dongfeng Stainless Steel Fuel Dispenser Truck
The stainless steel fuel dispenser truck is equipped with oil pump, could pump in/out the medium. also can with computer fuel dispenser. It could be used as the mobile filling station.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng stainless steel fuel dispenser truck in China. If you're going to buy high quality dongfeng stainless steel fuel dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
The stainless steel fuel dispenser truck is equipped with oil pump, could pump in/out the medium. also can with computer fuel dispenser. It could be used as the mobile filling station.
It can be devided into seperate compartments, to transport different types of fuels, lubricant oil, crude oil, alcohol, etc.
Specification
Drive Model | 4X2 | |
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 8500x2480x3175 |
Wheel base (mm) | 4500mm | |
Overhang (front/rear) (mm) | 1230/2570 | |
Wheel track (front/rear) (mm) | 1506/1466 | |
Approach/Departure angle(°) | 11/19 | |
Weight in KGS | Curb Weight | 6500kg |
GVW. | 18000kg | |
Max. driving speed(km/h) | 80 | |
Engine | Model | ISB180 50 |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 180HP | |
Emission standard | Euro 5 | |
Gearbox | 5 forwards & 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 100 | |
Tire | 10.00R20,295/80R22.5 tire , 6 pcs+1 spare tire | |
UPPER | ||
Fact cubage | 10000-12000 litres | |
Material | stainless steel | |

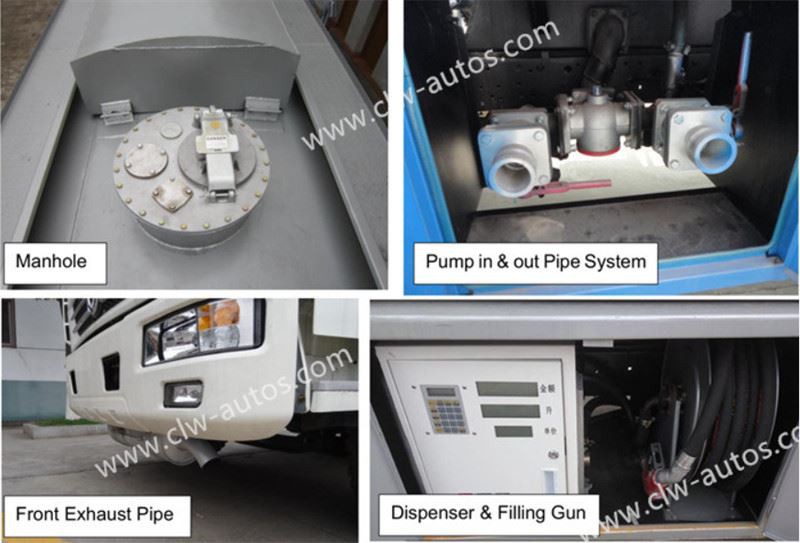

Equipment | 1.Equipped with good pump .valves and pipes,a set of Fuel Dispenser | |
2.Fueling truck equipped with a set of filling unit | ||
2.Equipped with a ladder on tank | ||
3.It can be design to have several compartments According to your requirements | ||
4.Equipped with speed limiter.The speed limit of 80 km/h | ||

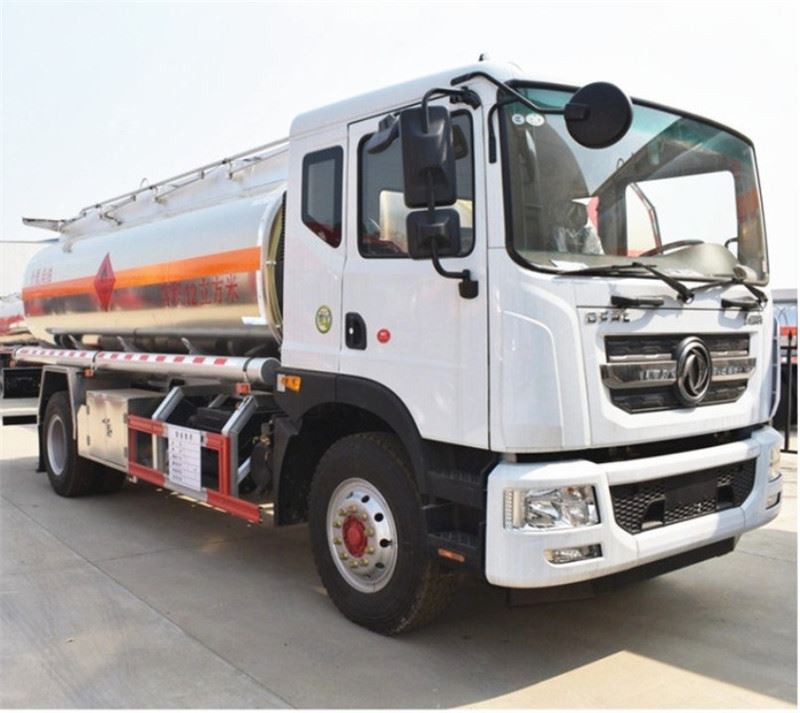

Reference Picture
Packing and Shipping
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks.
Advantages
1. Superior carrying capacity
2. Starting ability good with heavy load
3. High speed
4. Fuel economy
5. Comfortable and cab
6. Light curb weight
7. High quality
8. Good performance with low price
Customer Inspection
Overseas Exhibition
Our Service
1. We can provide operation videos for the stainless steel fuel dispenser truck.
2. The fuel dispenser truck is supplied with vulnerable parts
3. CKD and SKD are available.
FAQ
Q1: Do you have ISO certificate?
A: Yes , we have,please contact us to get our certificates.
Q2: How many units of stainless steel fuel dispenser truck does your factory produce per month?
A: Nearly 300units stainless steel fuel dispenser truck per month.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
