Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of JAC -40℃ Ice Cream Freezer Truck in China. If you're going to buy high quality JAC -40℃ Ice Cream Freezer Truck, welcome to get more information from our factory. For price consultation, contact us.

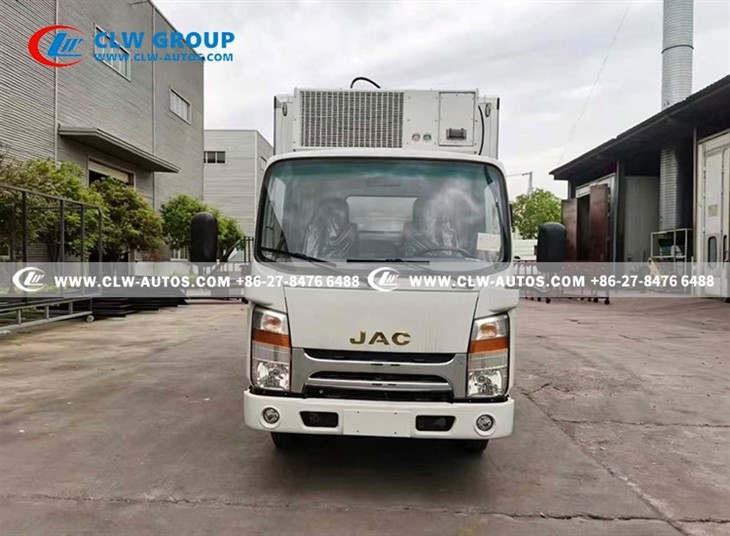

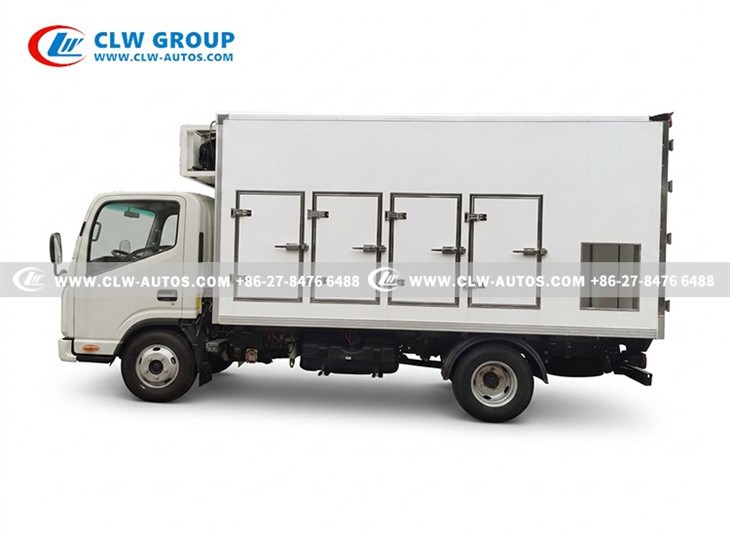

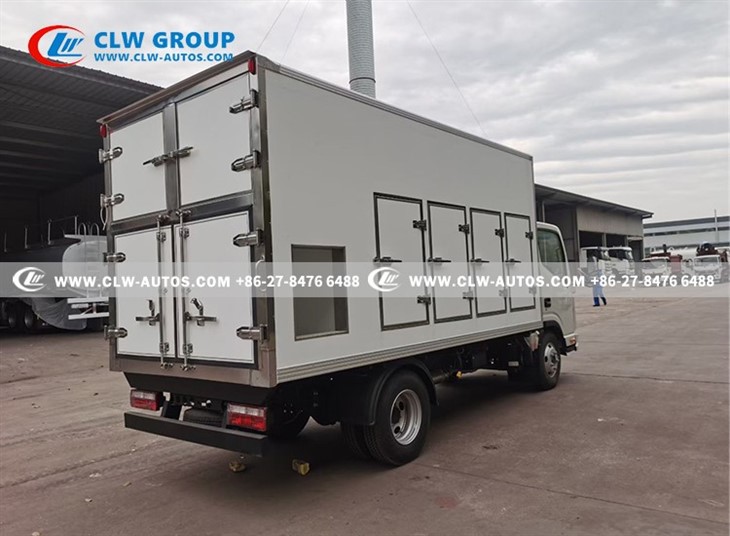

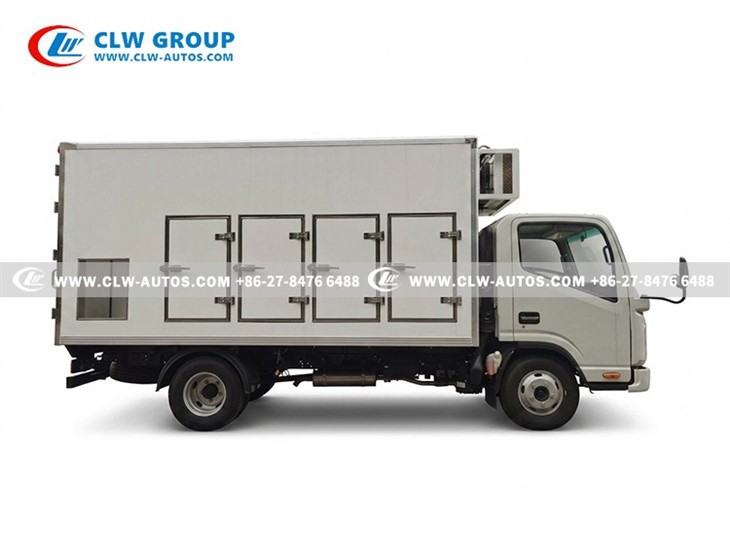

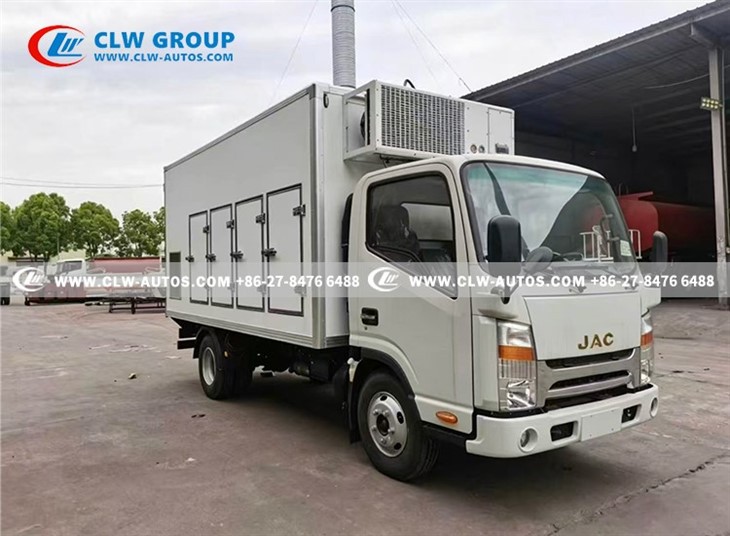

JAC -18℃ to -40℃ Ice Cream Cold Storage Truck
The JAC 160hp built for durability, hygiene & energy efficiency!
1. Operating : Night Charge, Day Discharge
Storage cooling (Charging): During the night before deployment, the onboard refrigeration unit is powered by an external source (220V/380V). This freezes the "eutectic solution" inside the cold plates within the cargo body to a solid state, typically reaching temperatures as low as -40℃.
Release cooling (Discharging): During daytime transportation, the refrigeration system remains powered off. The low temperature inside the compartment is maintained as in solid of the cold plates phase change. Even if the vehicle's engine is turned off, the cooling effect continues uninterrupted.
2. Core Technical Advantages
Ultra-Low Temperature Stability: The system can maintain a constant temperature between -25℃ and-30℃ for 10–16 hours. This is significantly lower than standard refrigerated trucks, ensuring that ice cream remains firm and free from ice crystals.
Resilience to Frequent Door Openings: Thanks to the massive thermal inertia of the cold plates, temperature recovery after opening the door is much slower than in air-cooled systems. This makes it ideal for "multi-point delivery" to supermarkets and retail stores.
Zero-Fuel Refrigeration: No fuel is consumed for cooling during transit; the system relies entirely on affordable off-peak electricity from the night before.
Silent Operation: The refrigeration unit does not run during delivery, resulting in zero noise and vibration. This is perfect for early-morning urban or community distributions.
| Products name | Ice cream Freezer Truck | Products name | Normal refrigerated truck |
| Products picture |  |
Products picture |  |
| Applications | Short-haul delivery of ice cream and frozen foods | Applications | Short or Long-haul transportation of vegetables, fruits, and meat |
| Power Source | External power supply (Charging while parked) | Power Source | Vehicle engine (Driven while driving) |
|
Refrigerator unit |
 |
Refrigerator unit |  |
| Temperature Range | Ultra-low, always remain below -18°C, keep ice cream will not melt | Temperature Range | Wide range -5℃ to 15℃, not suitable to transport Ice cream |
| Feature | Phase-Change Plates keep the box cold during stops | Risk | Parking will stop the cooling |
| Van body thickness | 120mm | Van body thickness | 80mm |
| Side door | 8pcs side door,Easy to find the goods | Side door | One side door |
| Van frame material | 304 stainless steel |
Van frame material |
201 stainless steel |
| Compartment | 8 Compartments, for storing different ice cream | Compartment | 1 or 2 compartment, Mix storing goods |
Overall Dimensions: 5995x2260x3450 mm
Brand: JAC / LHD
Cab: Single row cabin, 1driver seat + 2 passenger seat
Wheelbase: 3365 mm
Engine: HFC4DE2-2E
Horsepower: 160HP
Emission standard: Euro II
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 4495 kg
Curb weight: 3200 kg
Loading weight: 1100 kg
Tires: 7.00R16 , 6 pcs with one spare
|
Van Box |
||
|
Box Dimension |
5995x2260x3450mm |
|
|
Van body
|
Top | Cold storage strips, containing cold storage liquid, continuously release cold. |
| Celling Light | 2 sets of 24V LED | |
| Frame | Wooden, high insulation efficiency and sturdy durability | |
|
Inner |
FRP |
|
|
Middle |
120mm thickness XPS insulation layer, |
|
|
Outer |
FRP | |
|
Flooring
|
Surface layer |
Aluminum alloy ventilating slot |
|
Inner layer |
Waterproof multi-layer board |
|
| Drainage | There are 2 pcs of drainage outlets at the bottom of the front of the van | |
|
Refrigerator Unit
|
Brand/Modal |
German brand/ Bitzer |
|
Type |
Ultra-low temperature compressor |
|
|
Temperature |
The lowest temperature can reach to -40℃. | |
| Fuction |
At night, connect an external power supply to the compressor, compressor supplied to the cold storage strips to cool them down. During the day, no need use the Compressor. The cold storage strips gradually release cold air, keeping the temperature inside the box consistently below -18℃ |
|
|
Side Door
|
Left & Right side, 4pcs small doors, equipped with with heat-conducting wires, rubber curtain, sealing strips and door locks, |
|
|

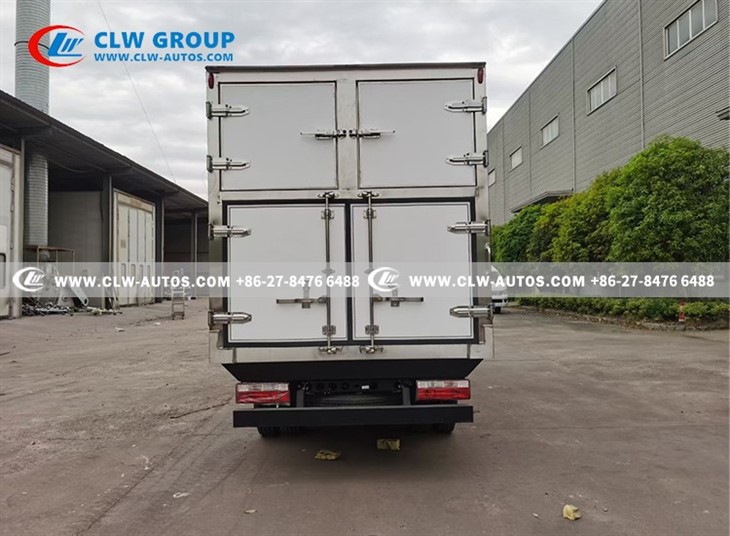

Rear Door
|
Full Size Double Opening Rear Door. The top can loaded with bulk cargo, and the bottom is filled with diesel generators. |
|
|
Diesel generators
|
For recharge or boost cooling power even when external power isn't available. | |
|
Door frame & lock
|
The corners of the door frame are all made of 304 Stainless steel material, corrosion-resistant and does not rust. |
|
|
Compartments
|
The 304 stainless steel mesh is divided into 8 compartments, which are used to store different brands of ice cream. | |
Deep Freeze Protection : Trucks maintain –18 °C up to 20 hours, even if the engine is off!
Cold storage strip
Also called Phase-Change Plates
It located at the top of the box
The cold storage strips contain cold storage liquid.
Release cold air through the phase change of the liquid
Maintains box low temperature for 12 - 20 hours
Refrigerator charging port
By external power charging for cooling.
Turn off the compressor during transpor of ice cream.
It can be cooled down after charging for 6 to 8 hours.
The van temperature can be cooled down to -40℃.
small side door
Transparent rubber curtain
Small door can prevent the rapid leakage of cold air
Heating wires are embedded inside the door frame
To prevent the door from freezing and becoming stuck
Wooden door frame is well against moisture & corrosion
304 stainless steel mesh divider
The grid divides the interior space into 8 sections.
It is convenient for storing ice cream of different brands.
The door frame covers are made of 304 stainless steel.
The grid is detachable and can be assembled as needed.
120mm thick insulated panels that block outside heat
Diesel generator
Can supply power for the refrigerator unit
Backup power supply in case of no external power
The temperature inside the box rises too quickly.
When power supply is needed for cooling, please use it.
temperature display panel
The cooler can be cool down to -40℃.
Using imported German refrigeration units,
the cooling efficiency is significantly higher.
Phase-Change Plates keep the box cold during stops.
There are various modes of transportation for you to choose from!
