Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6-wheel 3tons 4tons freezer truck in China. If you're going to buy high quality dongfeng 6-wheel 3tons 4tons freezer truck, welcome to get more information from our factory. For price consultation, contact us.
--Freezer truck(also called cooling van truck,refrigerated truck,refrigerator truck,refrigerator wagon,refrigerated box car,freezer wagon,temperature controlled vehicle,preservation vehicle) is used to deliver and transport perishable stuff at specific temperature.
--The refrigerated unit brand is optional,such as themo king,carrier,chinese brand hanxue,huatai and so on.
--according to power supplying method,ohe type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.
--The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel,and 80mm PU foam in middle to ensure perfect insulation.
-- Freezer can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc freezer truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 freezer truck;
3) according to temperature request during delivery,there are fresh transport freezer truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .
--high quality howo truck chassis;
--Spacious truck cabin with A/C;
--Powerful engine for tough road with reliable performance;
--high quality temperature preservation van body;
--Reliable chinese hanxue cooling unit or USA brand refrigerated unit;

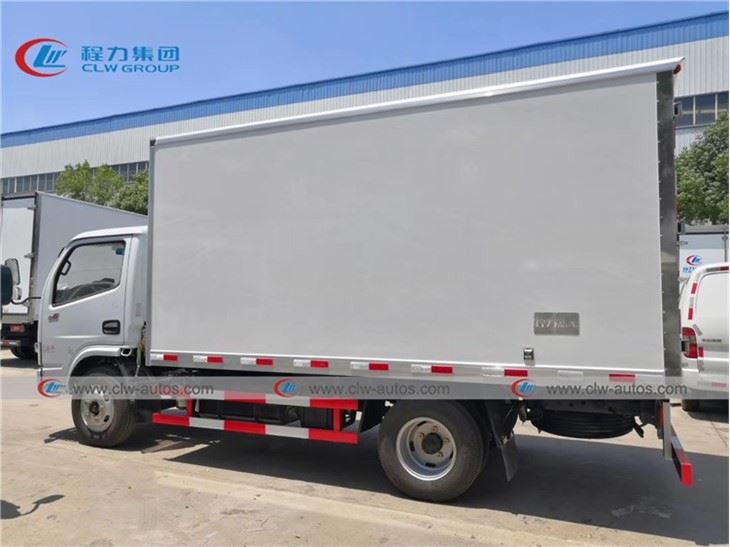

★left side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

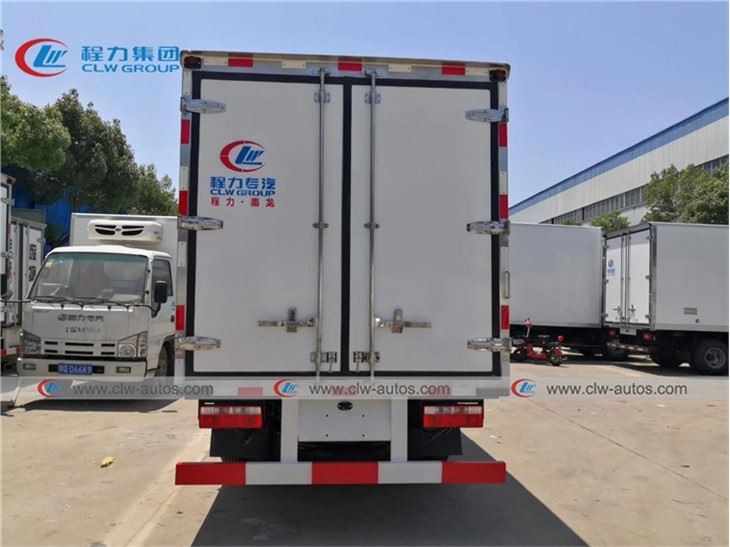

★rear side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck

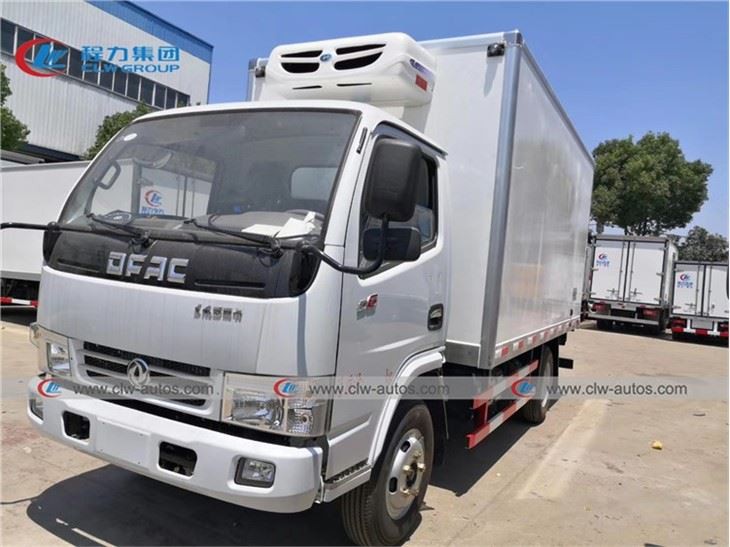

★front face of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck
★side door of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck,optional part of a freezer truck
★right side of Dongfeng 6-wheel 3Tons 4Tons Freezer Truck
Specification
| |||
Product Name | Dongfeng 4X2 4tons freezer truck | Gross Vehicle Weight (kg) | 4495 |
Curb Weight (kg) | 3150 | Cab Allowed Persons | 2-3 |
Overall Dimension | 5995x2090x2950 | loading Capacity(Kg) | 3~4tons |
Axle No. | 2 | Wheelbase (mm) | 3308 |
Chassis Technical Parameters | |||
Chassis Brand | Dongfeng | ||
Tire No. | 12 with 1 spare tire | ||
App./ Dep. Angle(º) | 23/18 | Tire Spec. | 7.00R16 |
Leaf Spring No. | 10/12 | Front Track (mm) | 1503 |
Fuel Type | Diesel | Rear Track (mm) | 1494 |
Drive Type | 4X2 | Brake System | Oil brake |
Engine Technical Parameters | |||
Engine Model | / | Emission Standard | Euro III |
Displacement ( ml ) | 2982 | Power (KW) | 85KW |
Engine Type | Water cooling, inter-cooling charged | ||
Superstructure Parameters | |||
Van size(kg) | 4000X1880X1850 mm | Van material(m) | Fiberglass for box outside and Inside bottom Aluminum pattern plate |
Insulation material | 80mm Polyurethane foam | Working temperature | -5 ℃ |
Cooling unit | Chinese Hanxue cooling unit,optional for thermo king | 3 | |
