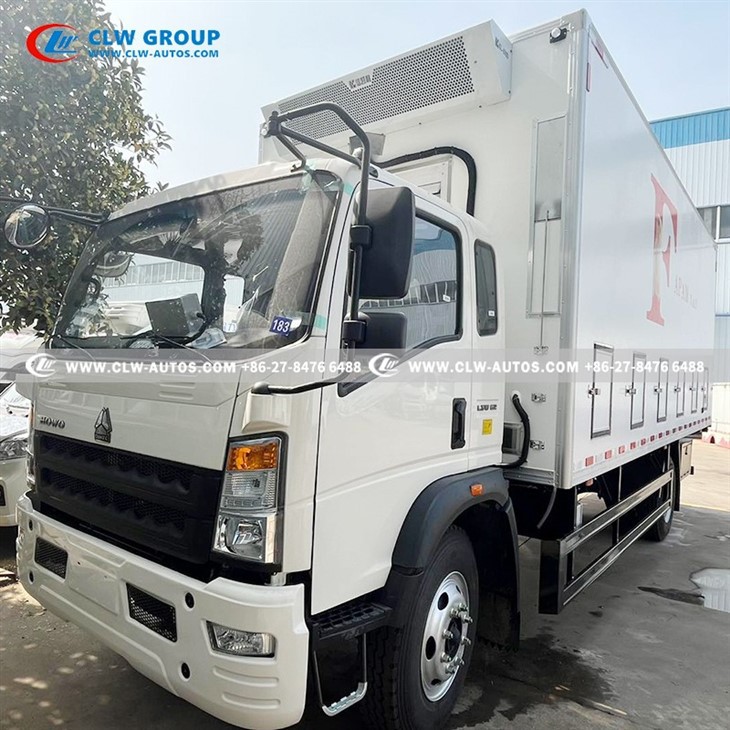

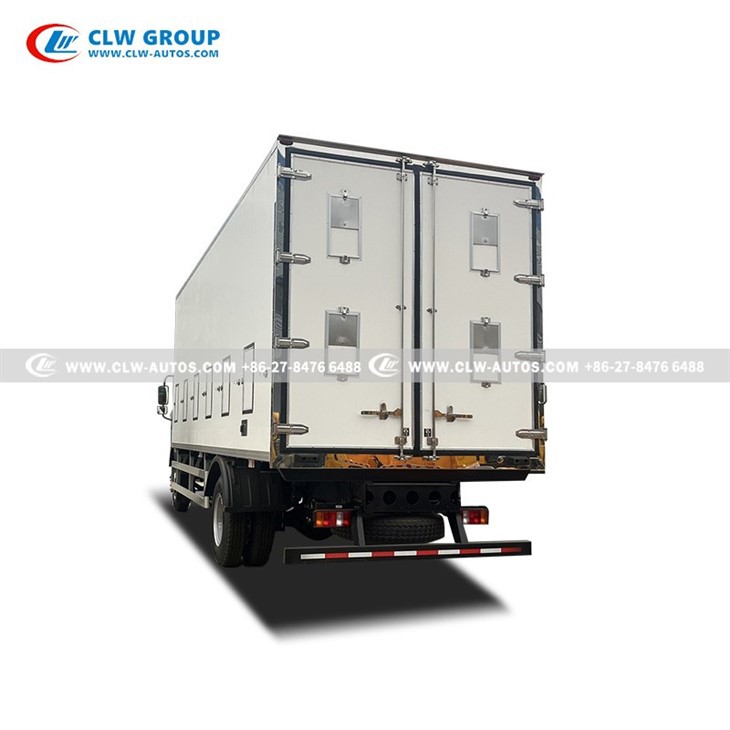

4X2 Sinotruk HOWO 6.8m Constant-Temperature
Chickling Transport Truck
The 4×2 HOWO Constant-Temperature Chickling Transport Truck is a professional livestock transportation vehicle built on the proven Sinotruk HOWO 4×2 chassis. Specifically designed for the long- and short-haul transport of 1-day-old chicks, ducklings, goslings, and other young poultry, this truck integrates six core systems: intelligent constant temperature, three-dimensional ventilation, fresh air circulation, spray humidification, video surveillance, and manure waste collection.
By minimizing transport stress and mortality rates, it ensures a high survival rate, large loading capacity, and cost-effective operation-meeting the breeding (large-scale breeding) transfer needs of poultry farms, hatcheries, and livestock traders.
Specially designed for long-distance, high-density transportation of day-old chicks and live poultry, the Sinotruk HOWO 6.8m chick transport truck offers a fully intelligent, climate-controlled environment that guarantees safety, comfort, and outstanding survival rates throughout the year.
|
1. Chassis part |
||
|
Driving mode |
4X2 |
|
|
Wheelbase |
5200mm |
|
|
Cabin |
HOWO classic mode, LHD or RHD as request With air conditioning; Electrical doors and windows; Central control lock; |
|
|
Engine |
Engine model |
Yuchai engine |
|
Horsepower |
160hp |
|
|
Emission standard |
Euro2, Euro 4, Euro 6 |
|
|
Transmission |
HW90510C2, Manuel type, 10 forward speed gears and 2 reverse |
|
|
Tyre |
9.00R20, 6+1pieces |
|
|
Front axle loading |
3,200kg |
|
|
Rear axle loading |
8,000kg |
|
|
Upper structure parameters |
||
|
Van length |
6800 mm |
|
|
Van material |
Fiberglass reinforced plastic |
|
|
Thickness |
8cm |
|
|
Base plate |
Stainless steel plate |
|
|
Ventilation system |
|||
|
Top van ventilation |
Three ventilation fans (emergency exits) are installed in the center of the top panel |
||
|
Side van ventilation |
Five operable doors and windows are added to the lower part of each of the left and right side panels. |
||
|

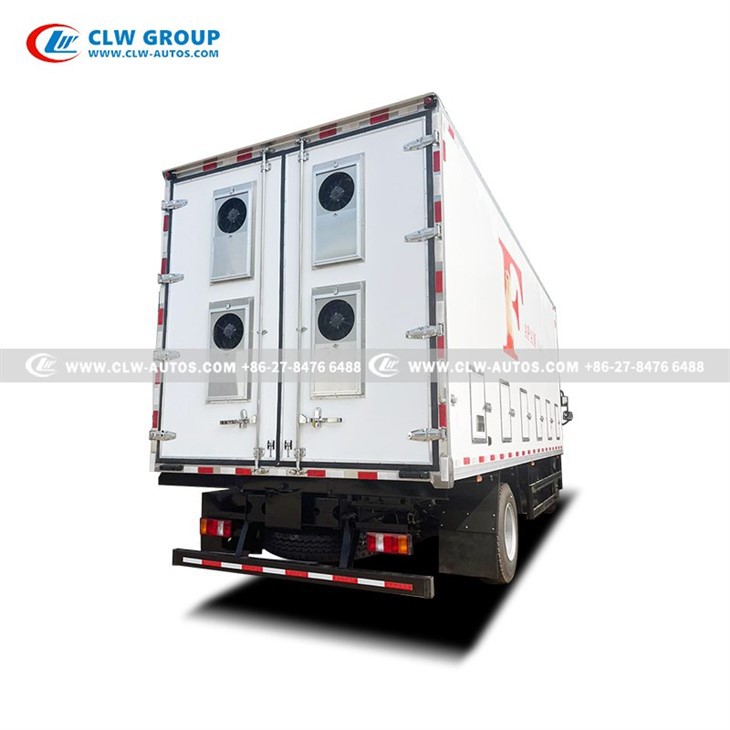

Rear van ventilation |
Two ventilation fans are installed on each side of the rear door of the enclosure. |
||
|
Temperature and humidity detection recorder |
Installed in the driver's cab, it allows for real-time monitoring of the Day-chicks' situation.
|
||
|
Control panel |
|
||
|
Diesel generator |
5KW |
|
|
|
Others |
The interior is fitted with shelves, the floor is laid with heater channels, aluminum alloy side guards are installed, and the entire vehicle's primer is treated with electrophoresis. |
||
|
Refrigerator Machine |
|||
|
Cooling refrigerator |
Famous Chinese brand or International brand Carrier |
||
|
Model |
Dual-temperature refrigeration unit |
||
|
Remarks |
Color is optional LOGO painting as per customer request |
||
All-Season Intelligent Climate Control
Equipped with a high-efficiency Carrier refrigeration unit and integrated heating system.
Automatically adjusts temperature, humidity, and CO₂ levels inside the cabin.
Ensures optimal conditions regardless of external weather, achieving a survival rate of over 95%.
Superior Thermal Insulation & Ventilation
The body is constructed with inner and outer fiberglass panels and 8 cm thick insulation foam.
Features 5 louvered vents on each side, 3 roof skylights, and multiple electric fans (8 on top, 2 on front panel, 4 at rear) for balanced airflow.
Additional natural air vents and ducts ensure continuous fresh air exchange.
Customizable Interior Layout

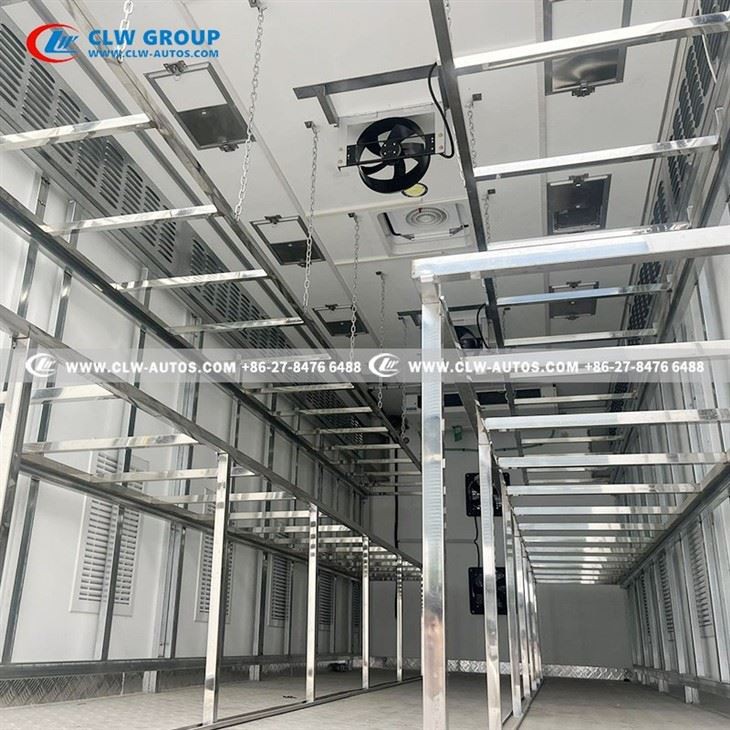

Includes built-in adjustable racks for standard chick/hen cages.
One cage can hold 7–8 hens or 100 day-old chicks (design adaptable to customer needs).
Racks can be omitted to reduce cost if not required.
Efficient Loading & Unloading
3–4 layers of hydraulic structures increase space utilization by over 50%, boosting single-vehicle transport volume.
Optional 1.5-ton hydraulic tailgate simplifies loading/unloading of turnover boxes, improving efficiency by 30%.
Smart Monitoring and Safety
Onboard multiple HD cameras + cab display for real-time monitoring of chickling status, temperature, and ventilation.
Audible and visual alarms for abnormal temperature or fan failure, providing real-time early warnings.
Stable chassis with reliable braking (ABS as standard) for enhanced safety on high-speed and complex road conditions.
High Survival Rate Design
Triple protection of constant temperature + constant humidity + constant oxygen to prevent dehydration, heat stress, and cold stress.
Independent layered spaces and reasonable loading density avoid crowding and trampling, minimizing casualties.
Soft LED lighting and low-noise fans reduce transport stress for young poultry.
Optional automatic spray humidification system to maintain compartment humidity at 55%–70%.
Applicable Scenarios
Optional Configurations
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
