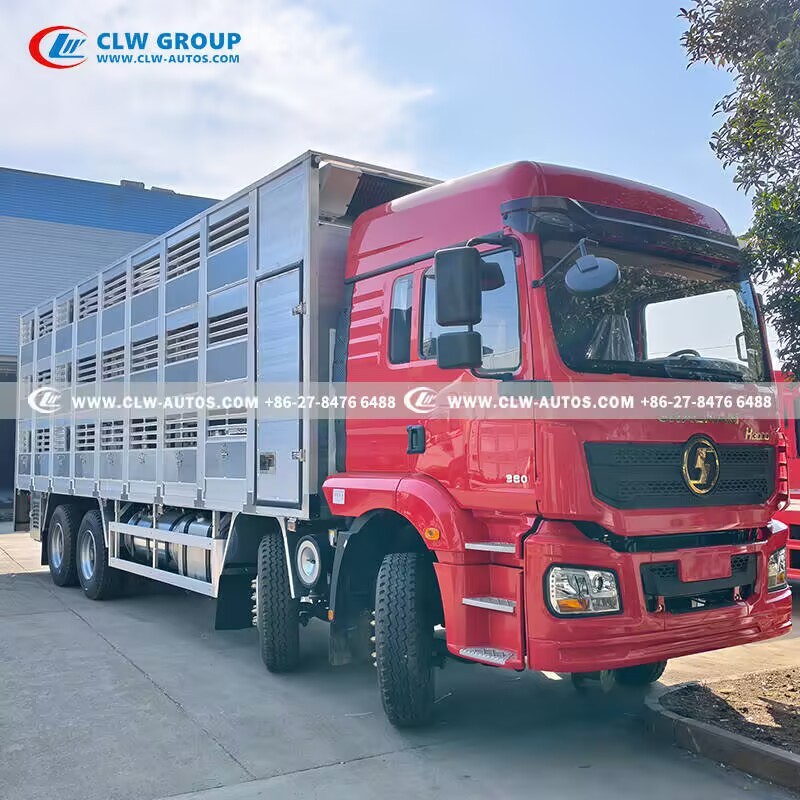

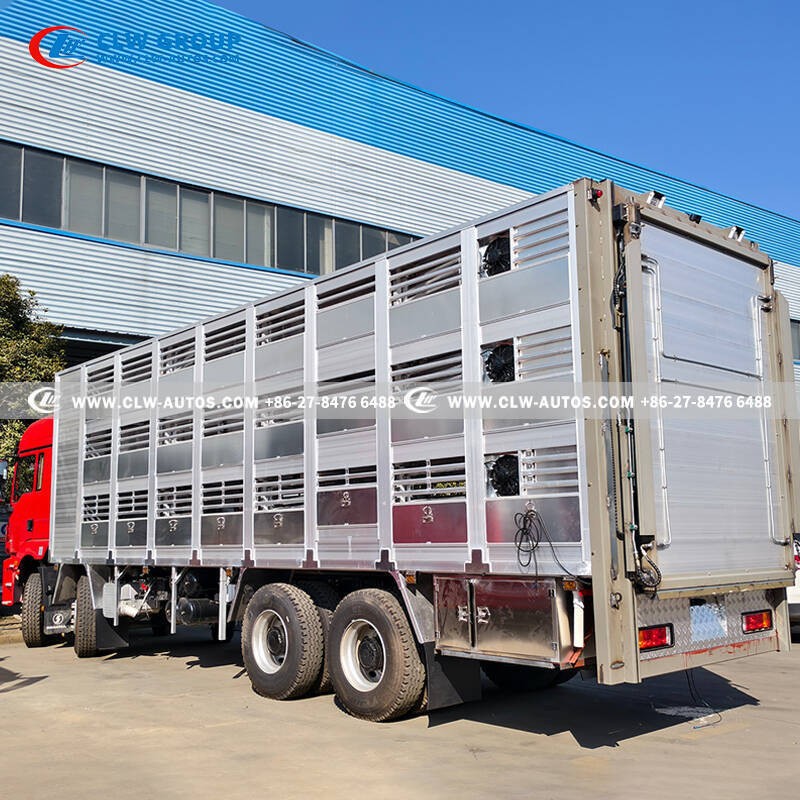

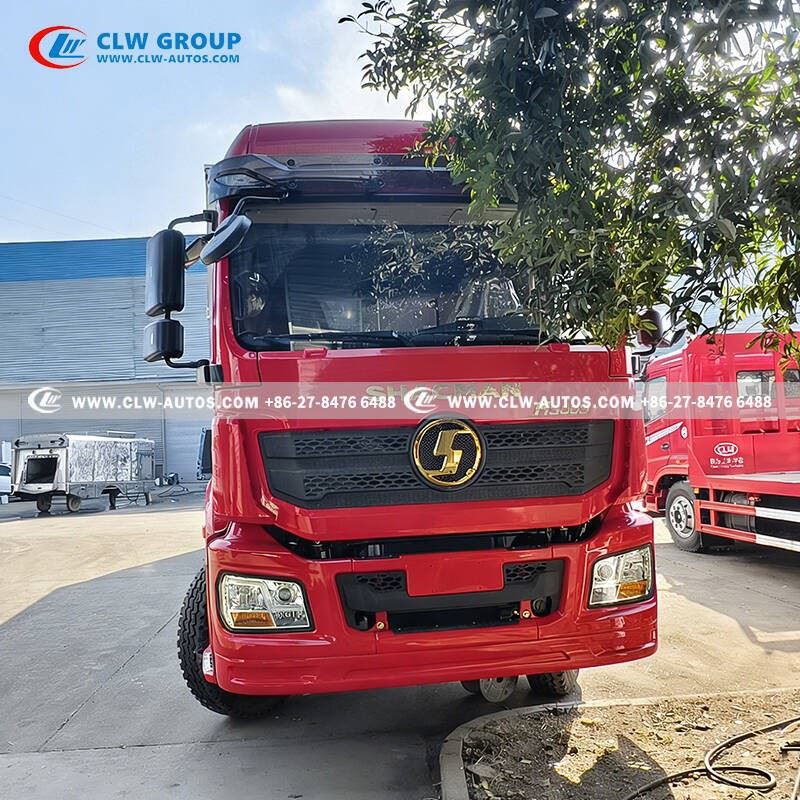

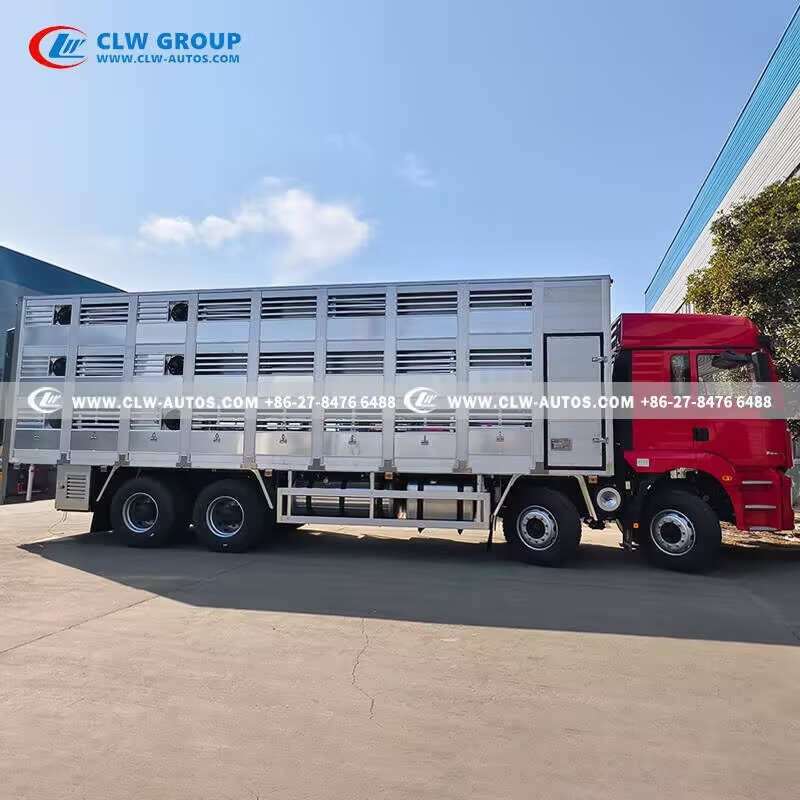

Shacman H3000 380HP Livestock Tansport truck
Three-Deck Climate-Controlled Pig Transport Vehicle , Optimized Space Utilization!
Move livestock with confidence using the Shacman H3000 from CLW Group. Designed for maximum animal welfare and operational performance, this advanced transporter features a fully climate-controlled body with integrated cooling and heating systems, ensuring optimal conditions year-round. Each tier is equipped with dedicated drinking outlets and cooling spray nozzles (18 in 3-tier, 24 in 4-tier configurations) to keep animals hydrated and stress-free.
With real-time in-cabin monitoring, 36 ventilation fans, side vents, and a rear hydraulic lift, safety and oversight are always prioritized. The high-strength aluminum body offers exceptional durability while reducing weight for greater payload capacity. Choose between configurations: transport 110-120 finishing pigs (3-tier) or 1100-1200 piglets (4-tier) efficiently.
Quick-clean flip-up sections enable thorough disinfection, minimizing downtime. Smarter, stronger, and designed around animal well-being-the Shacman H3000 delivers livestock in better condition, ensuring higher survival rates and higher returns.
Overall Dimensions: 12000×2550×3980 mm
Cargo Box Dimensions: 9500×2550×2650 mm
Wheelbase: 1950+4425+1400 mm
Engine: WP10.380E22
Gearbox: 12JSD200T-B
Rear Axle Ratio: 4.266
Rear Axle: MAN 7.5T
Frame: Double Layer 850×270(8+4)
Suspension: Front/Rear Multi-leaf Spring
Cab: Single row and half with one sleeper
Tires: 12.00R20
Fuel Tank: 400L aluminum alloy
Air conditioner: SONGZ 960
Sales director Terri Tu
Mobile: +86-139 8623 9477(whatsApp)
Email: terri@clw-autos.com
cargo box structure
Made of fully aluminum material, it is lightweight, has high strength and strong corrosion resistance.The interior can be divided into two, three or four layers. For each layer, 3 to 5 stalls are calculated, with each layer being 825mm high and the loading area ranging from 45.72 to 66 square meters. The middle plate of each layer can be lifted to facilitate the entry and exit, loading and unloading, and cleaning of the staff.
Ventilation system
Ventilation system: Electronic ventilation fans are installed on each floor. On each side of the carriage, there is a fan in each compartment to ensure the air circulation inside the carriage. The fan system can be operated by pressing the buttons in the driver's cabin.
Drinking water system
Each partition on each floor of the drinking water system is equipped with 2 drinking nozzles, which improves the survival rate of pigs during long-distance transportation. The water tank capacity is 220 liters.
sprinkler system
Sprinkler system: Two sprinkler heads are installed at each partition position on each floor. It can spray water to cool down the pigs according to the situation, and the operation is manually controlled. When the temperature inside the box is too high, the sprinkler system will be activated for cooling, and the cooling effect is obvious.
The top ceiling can be raised hydraulically
The top ceiling can be hydraulically raised, facilitating the entry and exit of personnel for loading and unloading, as well as providing for cleaning.

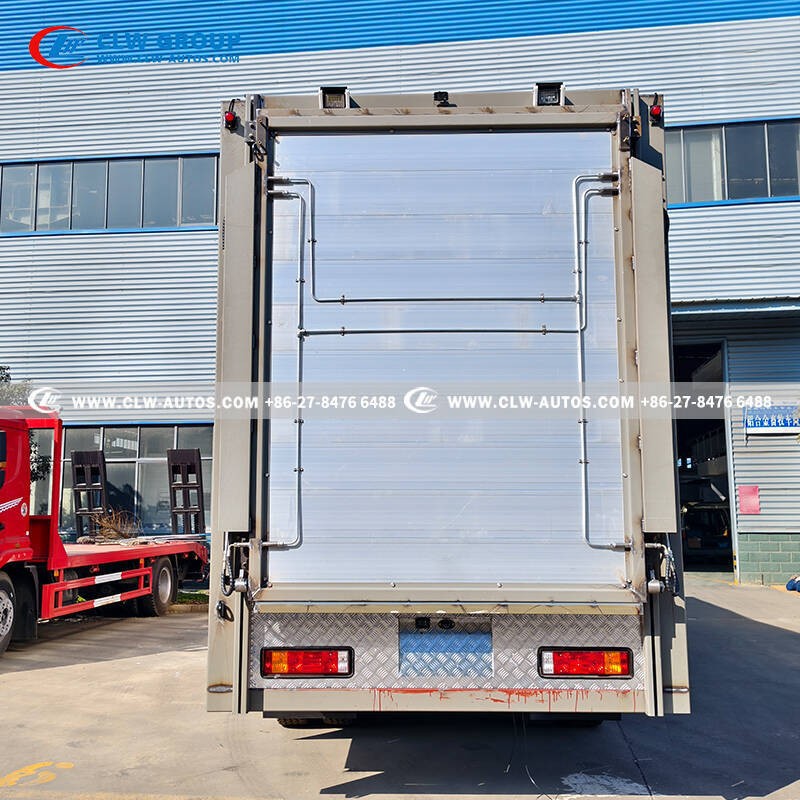

The hydraulic tailboard can be raised
Hydraulic lift system with a load capacity of over 2 tons, the tailboard can be fully lowered or kept at the same level as the pig-herding platform.
Monitoring system
The compartment is equipped with 3 surveillance cameras (one on each floor), you can real-time monitoring.
Drainage system
There are 2 sewage outlets at the front of the carriage and 2 more at the rear. This is to prevent water accumulation inside the carriage, which could cause the pigs to catch cold or feel unwell.
|
Large water storage tank
To supply water for drinking and spraying system, and to improve the survival rate of pigs during long-distance transportation. When the temperature inside the box is too high, the spray and watering system is used for cooling, and the cooling effect is obvious.
Van Structure
The interior of the box is divided into three layers, each floor is divided into 4 sections, 825mm high per layer. Anti-slip bottom plates. The internal layers can be opened separately, and the top ceiling can be hydraulically raised.
Q&A
Q: What is the key to high survival rates during chick transport?
A: Precise, consistent climate control is critical. Our truck's 8cm insulation, powerful Carrier C1100 unit, and balanced ventilation system prevent harmful temperature fluctuations and ensure fresh air exchange, minimizing chick stress and dehydration.
Q: Can this truck handle long-distance trips?
A: Absolutely. The large 400L fuel tank (optional), reliable WD615.87 engine, durable chassis, and comfortable HW76 cab are specifically designed for efficient and reliable long-haul transportation.
Q: Are customizations available for the cargo box interior?
A: Yes. We offer customizable internal racking systems and specialized chick box fittings to optimize load capacity, workflow, and chick safety based on your specific operational model.
Q: What safety features are included?
A: Standard safety features include ABS brakes, a high-position metal bumper, and Bosch steering. Optional headlight guards, intercooler protection, and a fire extinguisher provide additional layers of security.
