Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Mobile Maintenance Truck in China. If you're going to buy high quality Mobile Maintenance Truck, welcome to get more information from our factory. For price consultation, contact us.

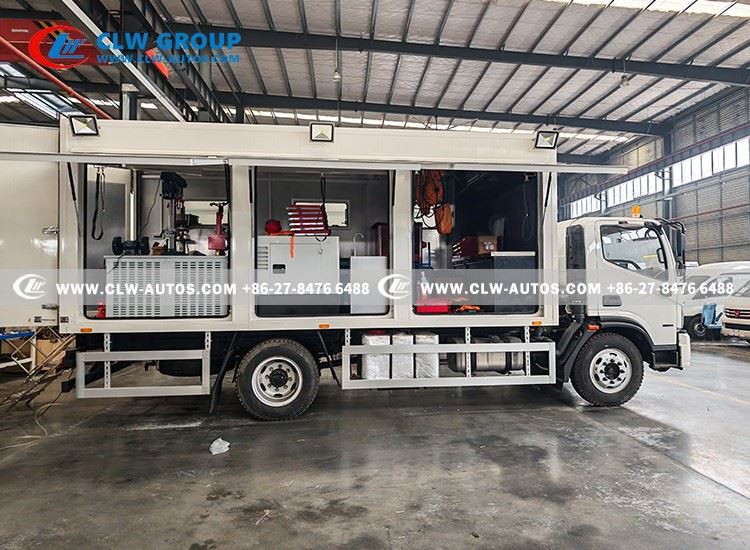

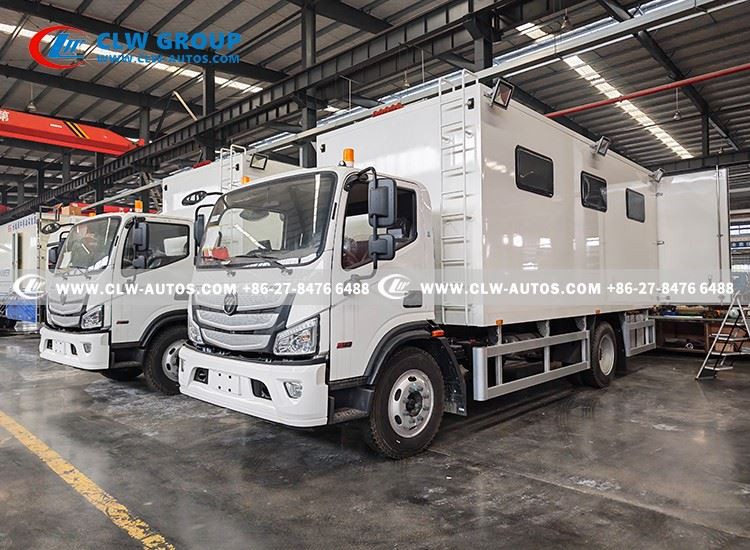

Foton Maintenance Truck Equipped With Professional Tools
Whether it is field equipment maintenance, emergency road repair or remote project support!
Product Name: Foton 4x2 Mobile Repair Truck
Application: Field equipment maintenance
Advantages: All Kinds of Tool and Equipment independent operation anywhere
Cab: Single row cabin, LHD, A/C
Wheelbase: 4200 mm
Engine: ISF3.8S3168
Horsepower: 168HP
Emission standard: Euro III
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 12000 kg
Front/Rear Axle loading: 3600kg /8000kg
Tires: 8.25R20 16PR, 6 pcs with one spare
| Upper configuration | |
|---|---|
| Van Body | |
|
Overall Dimensions (Modified) |
7785 × 2450 × 2810 mm |
|
Outer Layer |
1.5 mm aluminum alloy, high flatness, anti-salt spray, anti-corrosion, temperature shock resistant |
|
Inner Layer |
1.0 mm aluminum alloy, high flatness, anti-salt spray, anti-corrosion, temperature shock resistant |
|
Van Frame |
Reinforced frame structure, supports roof rail crane, rated load 1500 kg |
|
Van Body |
Exterior painted white; logos and lettering available upon buyer's request. Smooth surface, no burrs or sharp protrusions. |
|
Van Floor |
2.0 mm aluminum tread plate, anti-slip, anti-salt spray, anti-corrosion, heavy impact resistant |
|
Rear/Left/RightSide Bumper |
Fixed steel anti-collision guard |
|
Right Side Flap |
Right side flap can be lifted upward, supported by air springs, will not fall without external force. Waterproof design against rain intrusion. |
|
Flap Pull Ropes |
Two elastic pull ropes installed to prevent over-opening and enable easy closing |
| Lighting system | |
|
|
Rear Marker Lights：2 red LED lights Rear Tail Light Assembly：2 sets of red, yellow & white combination lights Left &Right Side Marker Lights ：3 yellow LED lights + 3 spare parts of same specification
|
|
|
|
|
|
Mains Socket：220V 60Hz quick socket on left side for maintenance tools and equipment |
|
Power Changeover Switch |
Manual switch for mains/generator power selection |
|
Power Control Box |
Equipped with leakage protection, air switches, branch circuit breakers; current & voltage display |
|
Grounding System |
Full vehicle grounding for electrical safety |
|
Lightning Protection |
Vehicle equipped with lightning protection system |
| Internal and external structure | |
|
Rear Door |
180° outward opening |
|
Left Windows |
≥3 sets outward-pushing windows |
|
Rear Access Ladder |
Retractable ladder under rear, with hidden handrails, no disassembly required |
|
Internal Workbench |
Special workbench for vertical drill, grinder, etc. |
|
Special Equipment Mounting |
Custom fixing solution for customer-owned equipment |
| Accessory | |
|
Water Pump |
Automatic water pump installed inside van to supply water from clean water tank |
|
Water Pipeline System |
Complete inlet and drainage piping |
|
|
PVC Water tank + sewage tank ≥ 250 liters. Waste Water Tank,side-mounted waste water tank with bottom drain valve Clean Water Tank, side-mounted clean water tank with bottom drain valve |
|
|
Fire Extinguishing System Water-based, foam, CO₂, and dry powder fire extinguishers |
Direct factory sales, eliminating intermediate links, providing cost-effective solutions for customers!

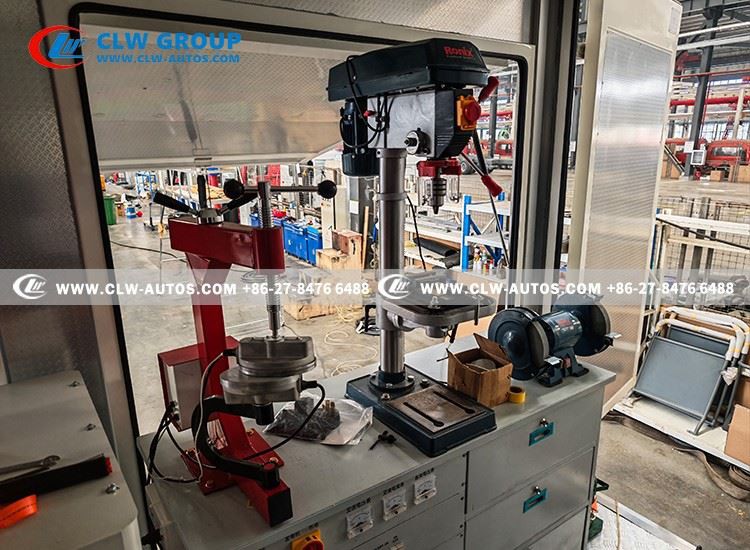

Mechanical Machining Station
Professional Bench Drill
Heavy-Duty Press
Precision Bench Grinder
Integrated Tool Storage
Durable Steel Workbench
Compact On-site Machining
Interior Sink & Cleaning Station
Stainless Steel Sink
Running Water System
Compact Utility Design
On-site Hygiene Support
Easy-to-Clean Surface
Integrated Drainage Solution

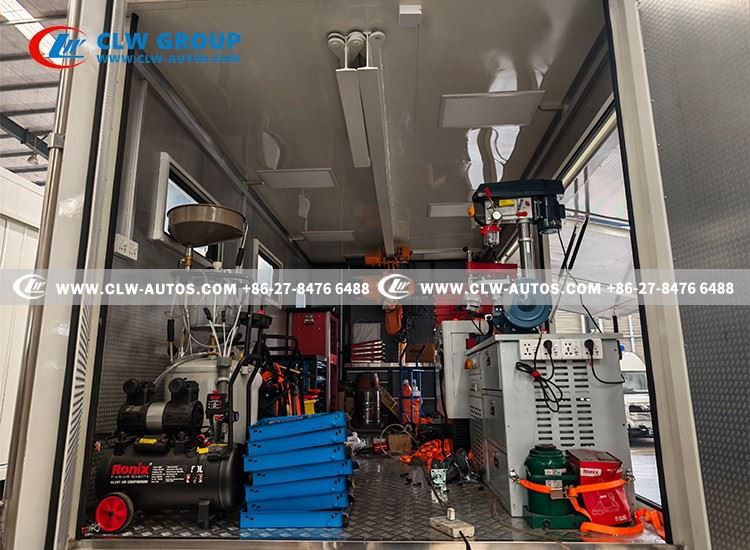

Pneumatic & Fluid Service Area
Powerful Air Compressor
Mobile Oil Extractor
Pneumatic Tool Support
Efficient Fluid Transfer
Durable Ronix Equipment
Compact Component Layout
Integrated Tool Foam Inlay
Customized Foam Inlays
Precision Manual Toolset
Rapid Tool Identification
Organized Storage Solution
Heavy-Duty Slide Drawer
Standardized Equipment Layout

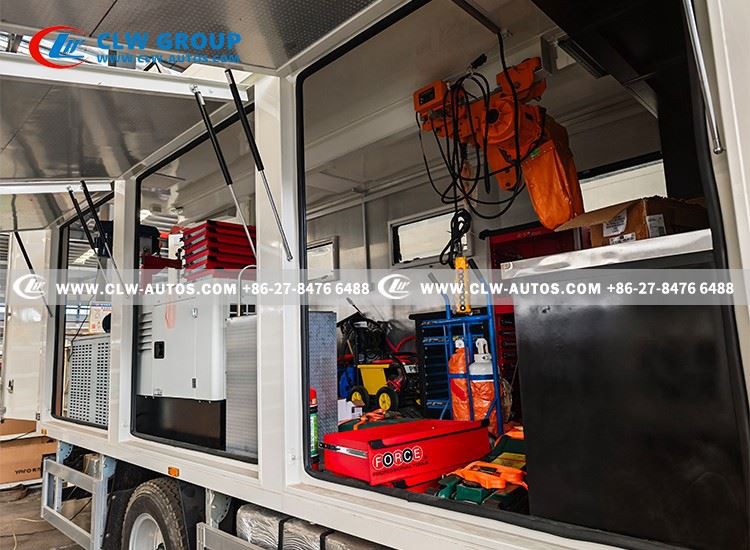

Silent Diesel Generator Set
High-Power 7.5kW Output
Dual-Voltage 110/220V Support
Integrated Power Control Box
Main Circuit Breaker Protection
Multi-Outlet Power Supply
15L Large Fuel Capacity

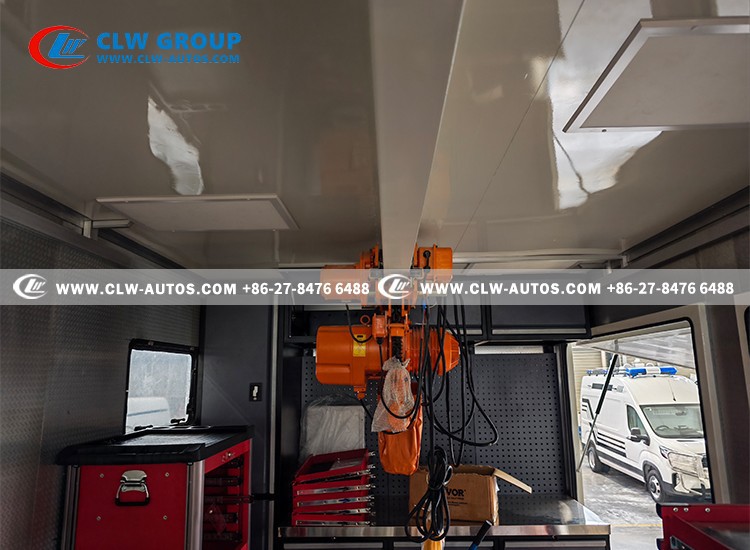

Electric Chain Hoist
2-Ton Lifting Capacity
Overhead Sliding Rail
Space-Saving Roof Mount
Effortless Heavy Loading
Precision Electric Control
Durable Steel Structure
Central Power Control Cabinet
Integrated Power Management
Dual-Source Switching (Mains/Gen)
Real-time Monitoring Meters
Safe Circuit Protection
Intuitive Control Interface
Heavy-Duty Enclosure

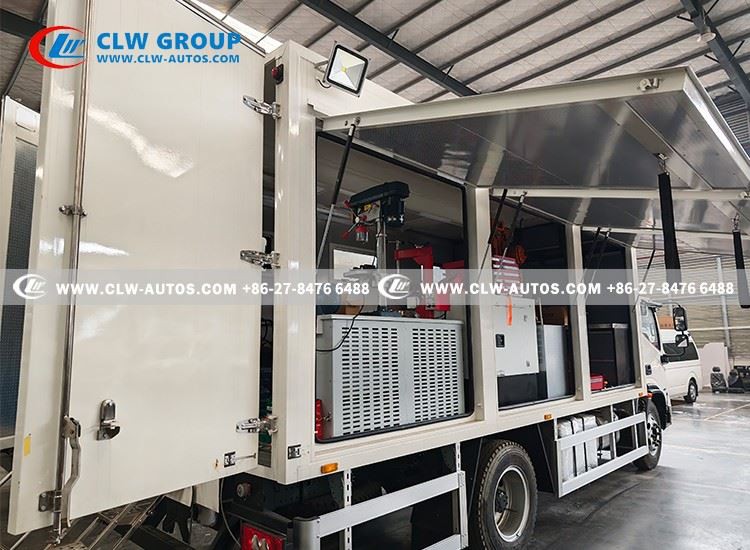

Side-Opening Wing
3-Side Accessibility
Weather-Proof Shelter
Easy Access Workspace
Optimal Ventilation Design
Rapid Deployment Capability
Hydraulic Wing-Door System
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
