Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16m faw aerial work platform truck in China. If you're going to buy high quality 16m faw aerial work platform truck, welcome to get more information from our factory. For price consultation, contact us.

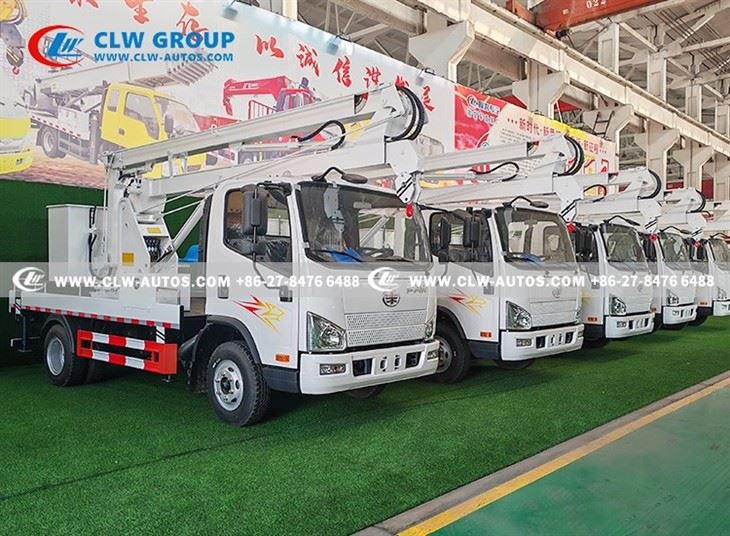

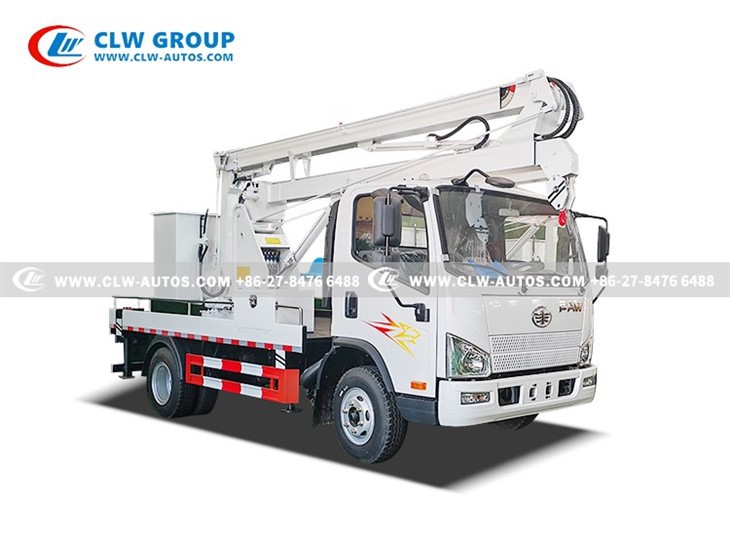

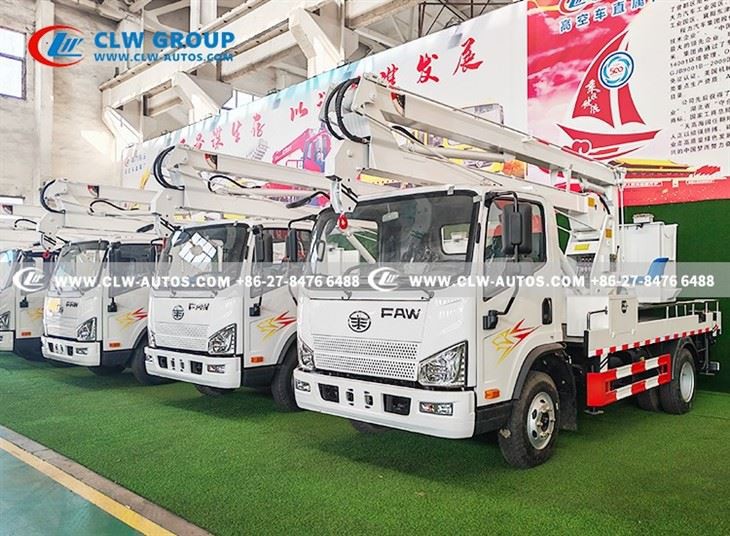

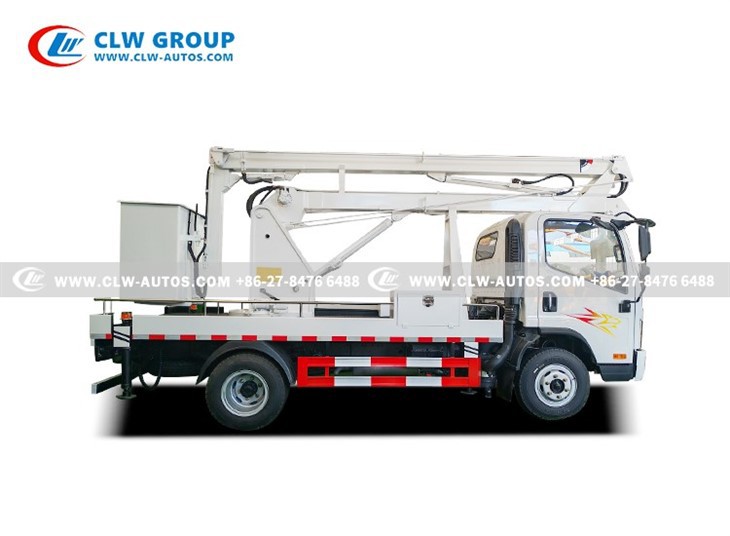

Engineered for precision in confined spaces, the FAW Jiefang 16m Articulated Aerial Work Platform is your reliable partner for efficient and safe aerial operations. Built on the robust FAW 4x2 single-axle chassis with a 3900mm wheelbase, this vehicle combines proven mobility with a highly versatile 3-section articulated arm. The boom's unique design allows it to fold from 0 to 70 degrees relative to the horizontal plane, enabling it to effortlessly reach over and around obstacles, making it the ideal solution for complex urban maintenance tasks like street light repair and power line maintenance.
--Unmatched Maneuverability with Articulated Boom
The core of this platform is its 16-meter high-reaching, three-section articulated arm. Unlike straight booms, this jointed design provides exceptional flexibility to access difficult-to-reach areas, from behind obstacles to deep into narrow spaces, ensuring no job is out of reach.
--Engineered for Electrical Safety
Safety is paramount, especially around power sources. This platform is equipped with a fully insulated bucket rated to withstand 600 volts, providing a critical layer of protection for operators during electrical repairs and high-voltage line maintenance.
--Robust & Reliable Power System
Powering this reliable machine is a Yuchai 4-cylinder, 130 HP engine, paired with a dependable domestic Wanliyang 6-speed manual transmission. This combination ensures ample power and fuel efficiency for both transit and on-site operation. The 2-ton front and 9.8-ton rear axles provide a stable foundation for all lifting tasks.
--Enhanced Stability and Operational Safety
For maximum safety during operation, the vehicle features H-type front and rear outriggers. All four stabilizers are equipped with hydraulic locking devices, securing the platform firmly on the ground. The hydraulic system itself is designed with redundancy in mind, incorporating 11 oil cylinders and bidirectional balance valves or hydraulic locks on critical functions to prevent accidental movement.
--Durable Construction for Long-Term Use
The aerial structure is built from high-strength Q345 steel profiles with a 4mm thickness, ensuring long-term durability and resistance to fatigue. The 65L hydraulic tank with a level gauge and a system operating pressure of 16 MPa guarantee consistent and powerful performance.
|
Technical Specification |
|||||
|
Chassis Part |
|||||
|
Condition |
FAW Tiger VH model , factory brand new 2025 |
||||
|
Wheelbase |
3900mm |
||||
|
Cab |
FAW Tiger VH single row and flat roof cabin |
||||
|
Engine |
Engine brand |
YUCHAI Engine YC4D130-33 |
|||
|
Horsepower |
130hp , 96kw |
||||
|
Emission standard |
Euro 2 |
||||
|
Transmission |
Manual type, WLY6TS55 , 6 forward speeds and 1 reverse |
||||
|
Clutch |
Ф330, hydraulic control with air booster pushing |
||||
|
Front axle loading |
2,000kg |
||||
|
Rear axle loading |
9,800kg |
||||
|
Rear axle speed ratio |
5.286 |
||||
|
Tyre |
8.25R16 14 PR, 6pcs with one spare |
||||
|
Upperstructure Configuration |
|||||
|
Boom |
Boom type |
Three-section folding arm |
|||
|
Material |
Q345 profile |
||||
|
Thickness |
4 mm |
||||
|
Section undulation angle |
0°-70° (relative to horizontal plane) |
||||
|
Working performance |
Maximum operating height |
16m |
|||
|
Working height at maximum working range |
6.8m |
||||
|
Hook |
1 tons |
||||
|
Outriggers |
Outrigger type |
Front and rear H-shaped |
|||
|
Leg material |
Profile Q345B, 5mm thickness |
||||
|
Leg span |
Longitudinal:3240mm; Transverse: 3180mm |
||||
|
Hydraulic lock |
All four legs have two-way hydraulic locks |
||||
|
Rear outriggers strobe light |
Yellow *2 |
||||
|
Turntable |
Vertical arm |
Low alloy steel palte welded composition |
|||
|
Slewing bearing |
Single row four point contact ball bearing with external gear. QWD730.20 |
||||
|
Hanging basket |
Rated loading |
≤250kg |
|||
|
Insulation |
Withstand 600volts of voltage |
||||
|
Dimension |
1080*620*1150mm (L*W*H) |
||||
|
Levelling type |
External pull rod mechanical levelling |
||||
|
Safety belt |
One pair |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
|
|
|||||
Proven FAW Reliability
Benefits from the rugged and trusted foundation of the FAW commercial vehicle platform.
Exceptional Versatility
The articulated boom offers superior flexibility compared to straight-boom models, allowing you to tackle a wider variety of jobs.
Safety as a Priority
With insulated buckets, hydraulic locks, and a stable outrigger system, operator safety is at the core of the design.
Direct Factory Source & Customization
As a specialized vehicle manufacturer, we provide competitive pricing and can discuss customization options to meet your specific needs.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Ready to Enhance Your Aerial Work Efficiency and Safety?
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Let's discuss how this flexible and robust FAW Jiefang 16m Articulated Aerial Work Platform can be the perfect tool for your business. We are committed to providing you with a high-quality, reliable vehicle and exceptional support.
