Foton 4000Liters Bitumen Distributor Truck

automatic control of spraying volume and working width
World famous hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
Italy burner for automatic fire and temperature control

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 4000liters bitumen distributor truck in China. If you're going to buy high quality foton 4000liters bitumen distributor truck, welcome to get more information from our factory. For price consultation, contact us.

Description

1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

2) System of 4000liters bitumen distributor truck

manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15ºC/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control

Reference picture

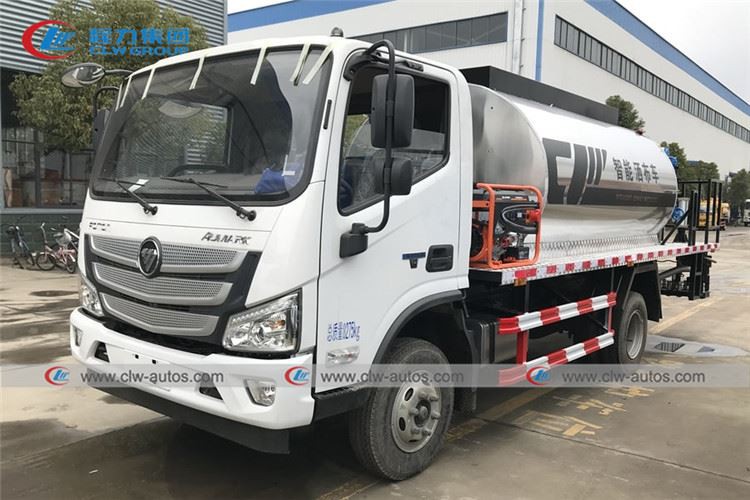

bitumen distributor truck01

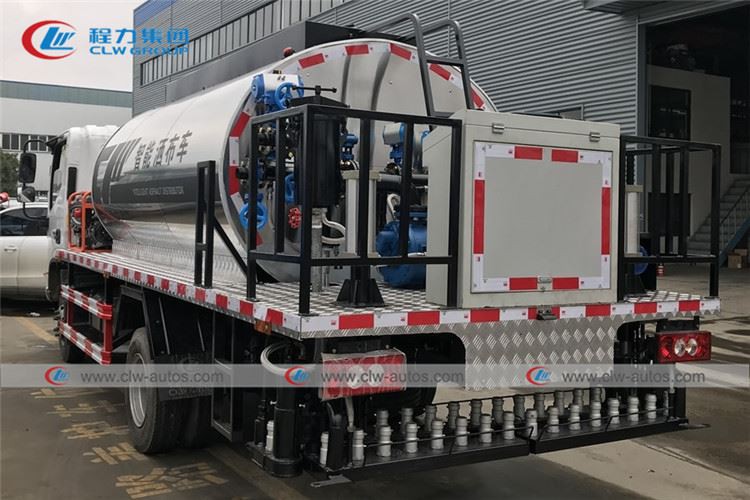

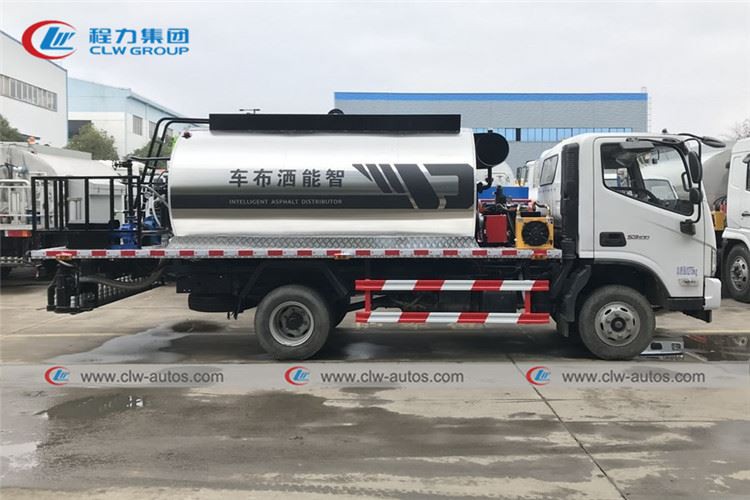

bitumen distributor truck04 bitumen distributor truck02

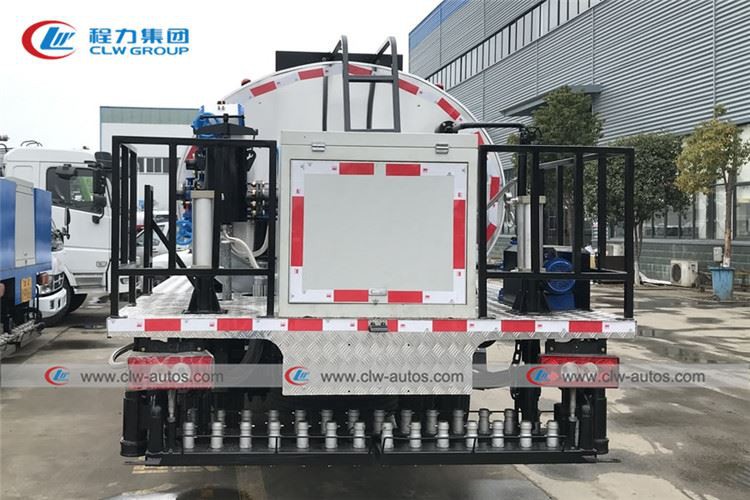

bitumen distributor truck03

bitumen distributor truck working show01

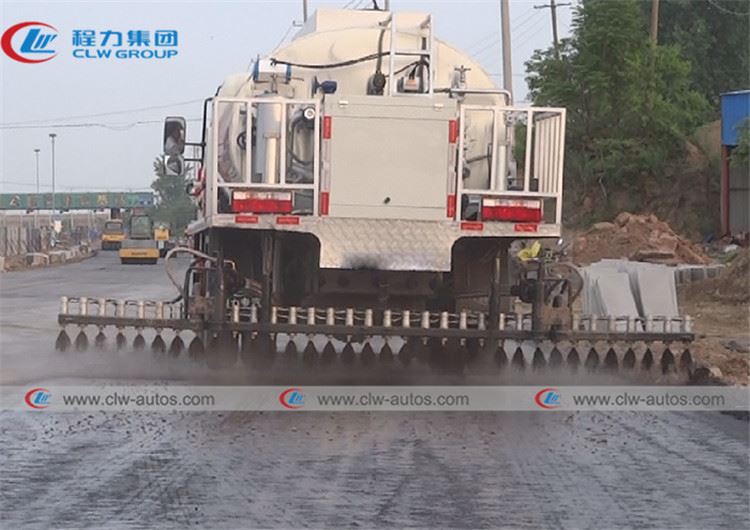

bitumen distributor truck working show02

Working Show

bitumen distributor truck working show01

Specification

Parameters
Chassis
Overall Dimension	7380x2280x2550mm
Gross Vehicle Weight	11000 kg
Curb Weight	5600 kg
Loading Weight	10000 Kg
Wheel Base	3800 mm
Front/rear Tread	1210/2320mm
Approach/Departure Angle	24/10 degree
Front Axle	3400kg
Rear Axle	6350kg
Engine	watering cooling, four stroke, 4 cylinder in line
Engine horsepower	130HP EURO III
Displacement	3.856 L (Diesel) 88KW
Max Driving Speed	90 km/h
Carbin	3 Passenger allowed, Left Hand Driving, with Air Conditioner
Tire	7.00R16 (6 pieces+1piece spare tire)
Upper part
Asphalt Tank	4 cbm/4000liters
Outside Material	Stainless plate
Insulation layer	≤20ºC/8h
Bitumen pump	QGB950; 950L/min
Hydraulic System
Hydraulic pump	CQB550-L
Driving Motor	05-110-BD31
Proportional Valve	EFBG-03-160-HF/Taiwan brand
Shuttle Valve	Shanxi Yuci brand
Overflow Valve	Shanxi Yuci brand
Control System
Control System	CLW-30-01/Germany Siemens
Control Method	Manual and computer control
Smart asphalt nozzle	30 pcs
Heating System
Heating method	Automatic heating by oil
Burner	G20/ Italy brand
Radiator	Risheng brand
Heat transfer oil pump	40-25-160
Gasoline Engine	6 kw
Spreading Width	6m
Spreading Speed	0.2~3L/min
Spreading Precision	±2%
