25Tons 25MT 50000Liters Bullet LPG Gas Storage Tank

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25tons 25mt 50000liters bullet lpg gas storage tank in China. If you're going to buy high quality 25tons 25mt 50000liters bullet lpg gas storage tank, welcome to get more information from our factory. For price consultation, contact us.



Function

--Bullet LPG tank (also called lpg tank, lpg gas tank,lpg gas storage tank,lpg storage tank,gas storage tank,cooking gas tank,lpg plant tank,filling station tank,lpg storage tank for sale in nigeria) is a professional product for storing LPG or propane gas,belonging to special equipment and vessels and require special material,third-class pressure vessel with Q345R material.Q345R is one of ASME standard material.

-- Bullet LPG tank can be divided into various types as follows,

★Above ground bullet LPG tank and underground bullet LPG tank;

★According to tank size,there are 5,000liters to 200,000liters bullet LPG tank for option;

★Vertical bullet LPG tank and horizontal bullet LPG tank.

Feature

--The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

--non-destructive testing and magnetic particle inspection test for each bullet LPG tank;

--Design pressure of bullet LPG tank: 1.77Mpa;

--hydraulic testing pressure:2.21 Mpa;

--Corrosion allowance: 1mm;

-Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.

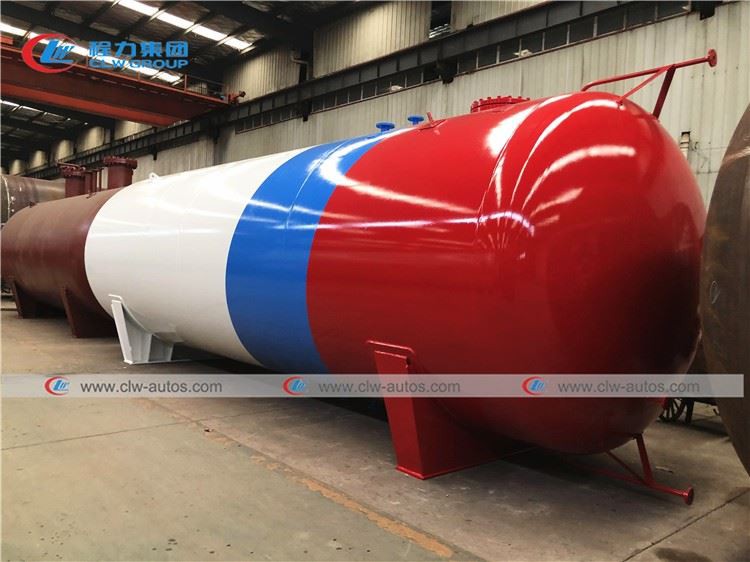

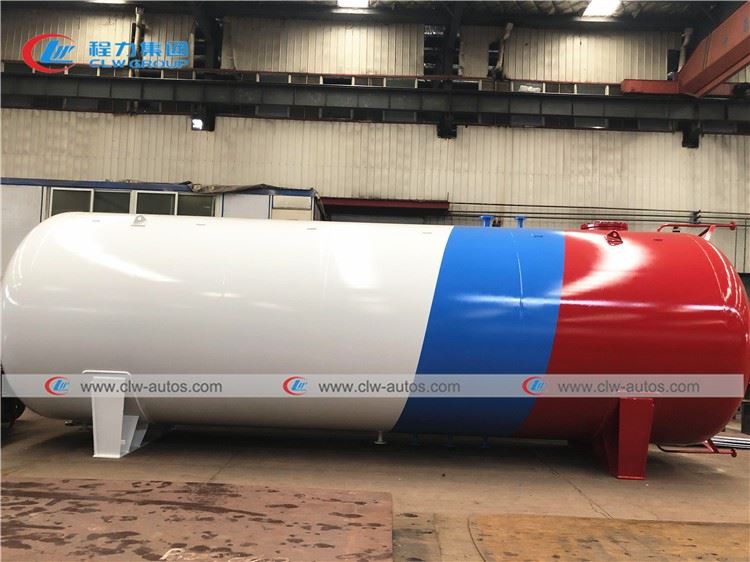

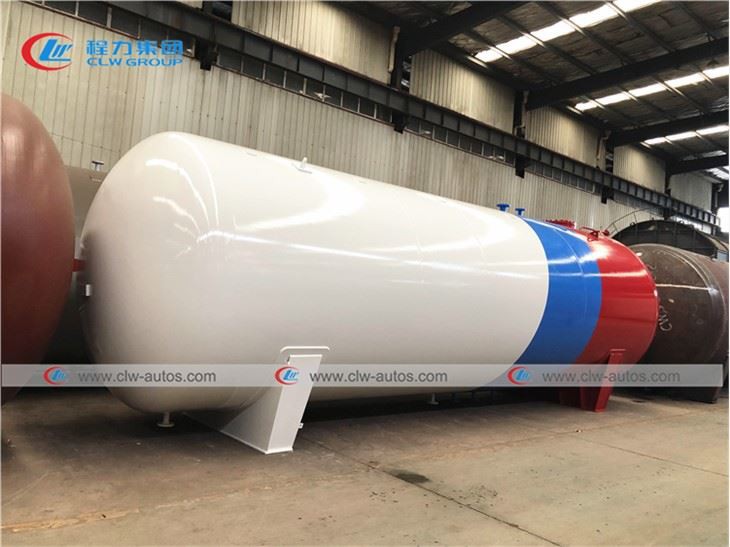

Pictures of finished bullet LPG tank

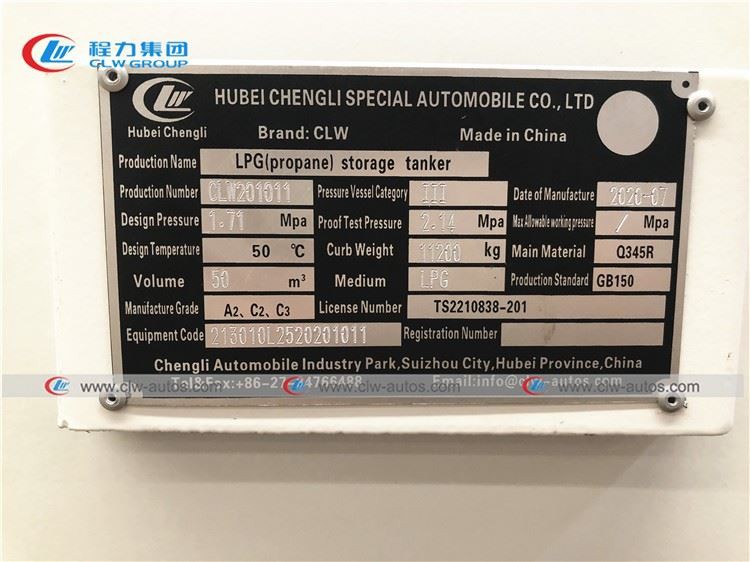

Specification of 25tons 50000liters bullet LPG tank

ITEM		PARAMETER	ITEM		PARAMETER
Volume		50cbm	Thickness of Shell		14mm
Tank Material		Q345R	Thickness of End plate		16mm
Overall Size		9182*2728*3318mm	Tank Net Weight		10640kg
Tank Diameter		2700mm	Loading Capacity		19950kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20℃~50℃	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-80	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5  1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40℃~60℃

Production and shipment of bullet LPG tank
FAQ★How can I get a sample of bullet LPG tank to check your quality?Answer:Due to the bullet LPG tank size,sample can not be sent to your country.But we have supplied a lot of bullet LPG tanks to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the bullet LPG tank?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?

Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of bullet LPG tank?

Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

★Does your bullet LPG tank have warranty service? How long is the warranty period?

Answer:Yes,lifetime of bullet LPG tank is 20 years.

Overseas service and Client visiting
