50,000 Liters 25 Tons LPG Storage Tanker Liquid Propane Gas Station Tank

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50,000 liters 25 tons lpg storage tanker liquid propane gas station tank in China. If you're going to buy high quality 50,000 liters 25 tons lpg storage tanker liquid propane gas station tank, welcome to get more information from our factory. For price consultation, contact us.



Function

--Propane Storage Tank (also called lpg storage tank,gas storage tank,cooking gas tank,lpg plant tank,filling station tank) is  a professional product for storing LPG or propane. It belongs to special equipment. It is a third-class pressure vessel with Q345R material.

-- propane storage tank can be divided into various types as follows,

Above ground propane storage tank and underground propane storage tank;

According to tank size,there are 5000liters to 200,000liters propane storage tank for option.

Feature

--The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

--non-destructive testing and magnetic particle inspection Test

--The sealing testing and pressure resistance of the tank

--Design pressure 1.77Mpa;

--hydraulic testing pressure:2.21 Mpa;

--Corrosion allowance: 1mm;

-Optional for tank accessories and station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.

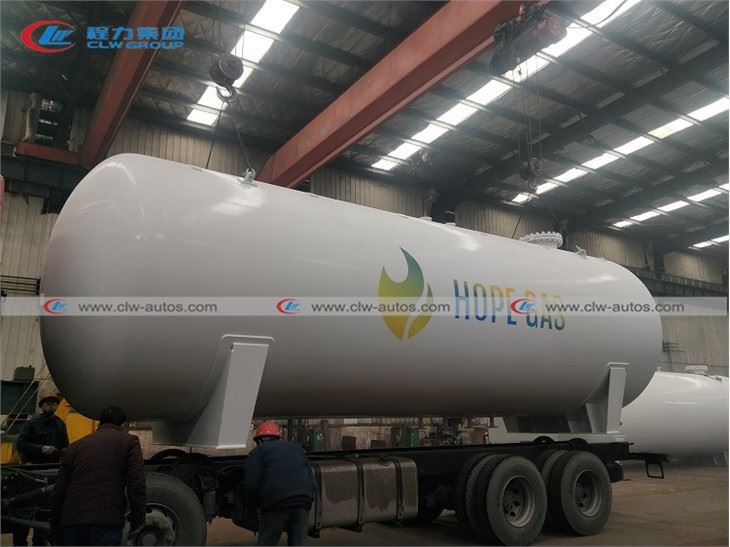

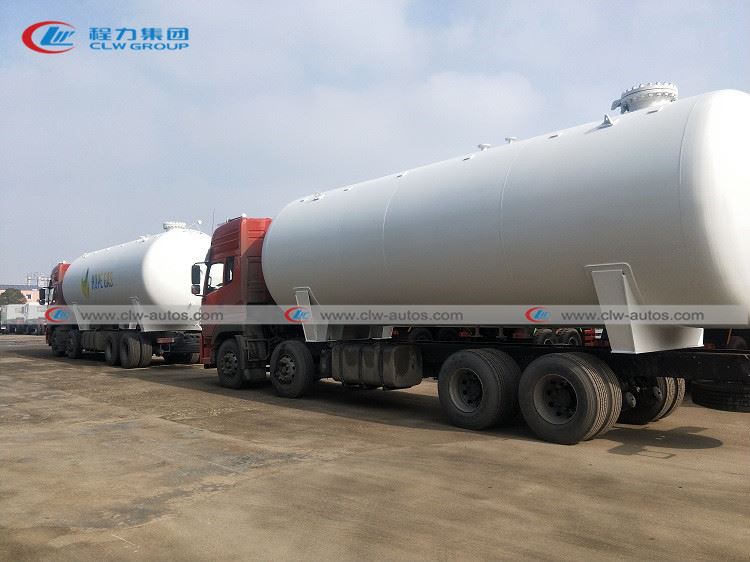

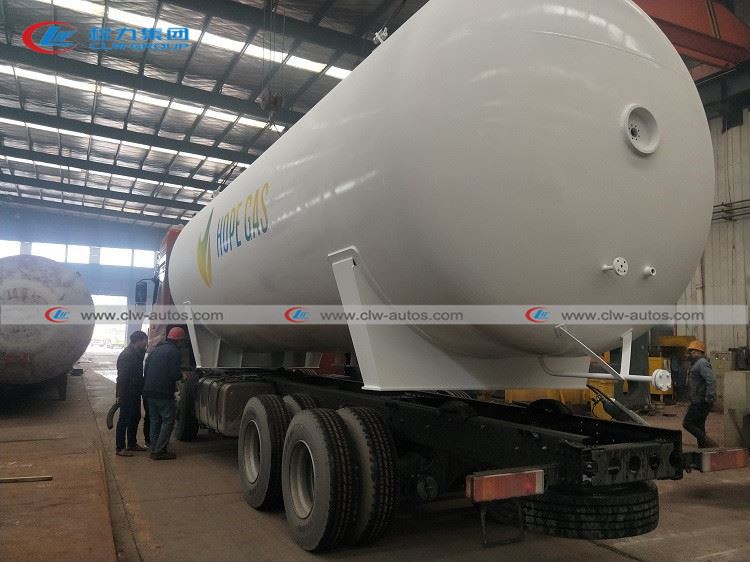

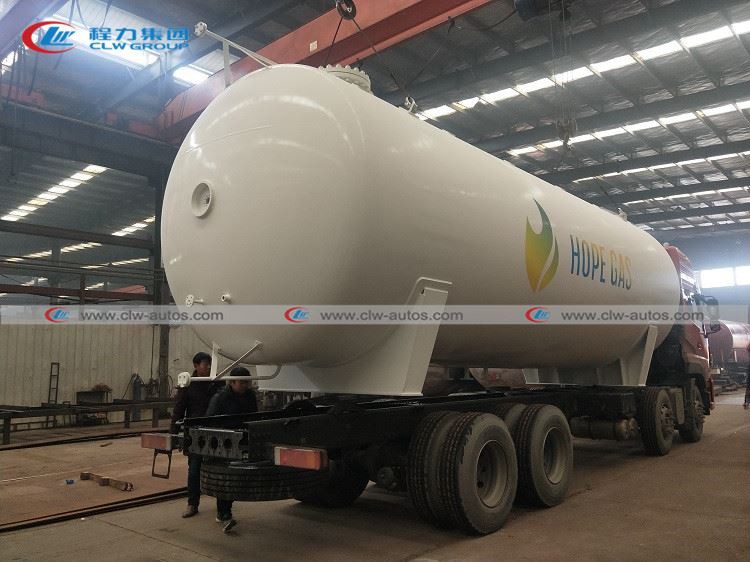

Reference picture

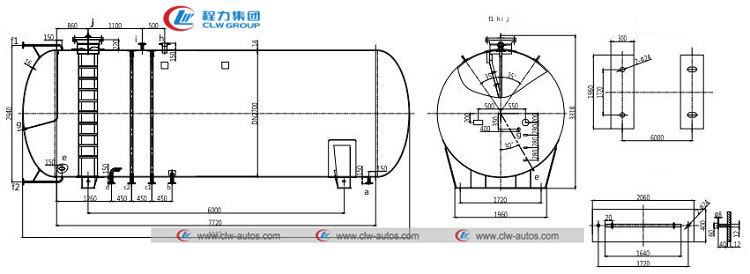

Drawing of 50tons lpg storage tank

Specification

General Parameters
ITEM	PARAMETER	ITEM	PARAMETER
Volume	50cbm	Thickness of Shell	14mm
Tank Material	Q345R	Thickness of End plate	16mm
Overall Size	9182*2728*3318mm	Tank Net Weight	10640kg
Tank Diameter	2700mm	Loading Capacity	19950kg
Design Pressure	1.77Mpa	Gas Density	420kg/M3
Hydraulic Test Pressure	2.22Mpa	Corrosion Allowance	1mm
Design Temperature	-20ºC~60ºC	Heat Treatment	Bulk
Vapor Outlet	DN50	Gas Outlet	DN50
Life time	15 years
Accessories
Model	Item	Qty	Junction surface
J41N-2.5-50	Stop Valve DN50	6	RF
J41N-2.5-25	Stop Valve DN25	2	RF
J41N-2.5-80	Stop Valve DN80	1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5	1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5	1	RF
A42F-25-80	Safety Valve DN80	1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa	1
WTQ-280	Thermometer M33*2 2.5 degree	1	-40ºC~60ºC
