Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga stainless steel sewer jetter in China. If you're going to buy high quality isuzu giga stainless steel sewer jetter, welcome to get more information from our factory. For price consultation, contact us.

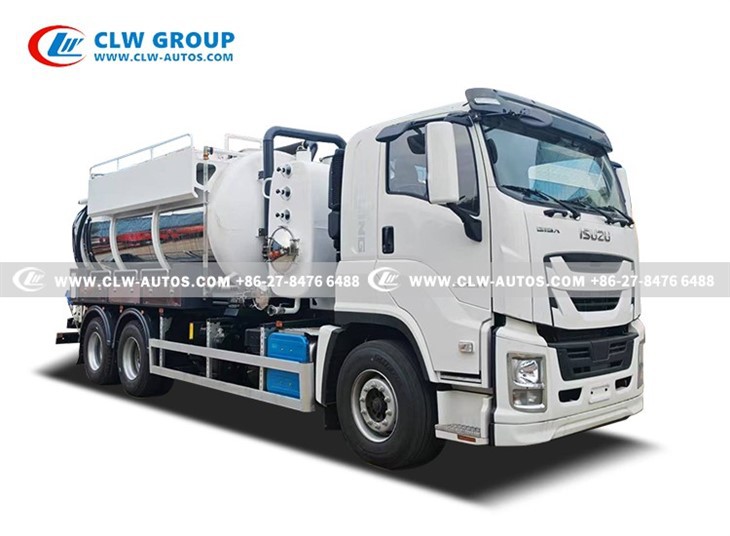

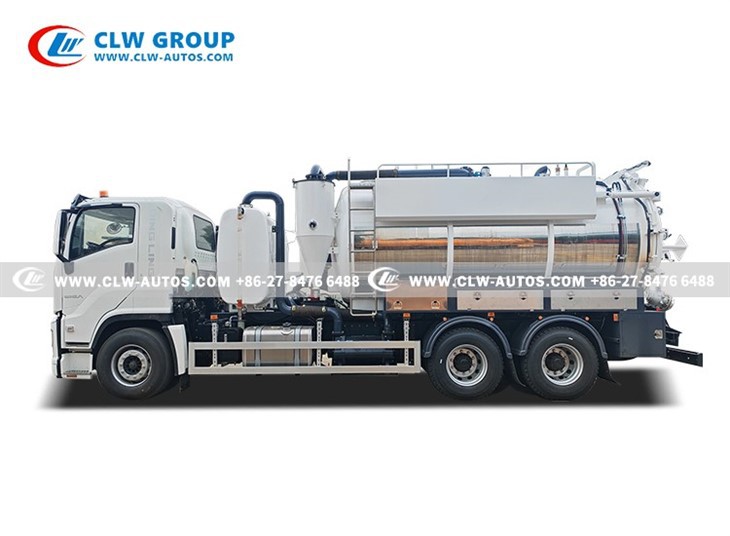

Engineered for extreme durability and superior performance, the Isuzu Giga 6x4 Stainless Steel Combination Sewer Cleaner sets a new standard in industrial and municipal waste management. Built on the robust Isuzu Giga rear double-bridge chassis, this vehicle integrates a powerful jetting system with a high-capacity vacuum unit, all centered around a corrosion-resistant stainless steel tank with a total capacity of 20 m³ (6 m³ fresh water + 14 m³ sewage). Designed for continuous operation in the toughest environments, it delivers exceptional cleaning power and operational efficiency while significantly reducing long-term maintenance costs.
--Next-Generation Tank Durability & Smart Access
The 8mm thick stainless steel construction provides superior resistance to corrosive waste materials, extending the tank's service life. The innovative dual-access rear door features a main hydraulic door alongside a 600mm service hatch, allowing for routine inspections and minor operations without repeatedly opening the main gate. This preserves the door seal's integrity and prevents premature wear, ensuring a perfect closure every time.
--High-Pressure Jetting with Optimized Power Transfer

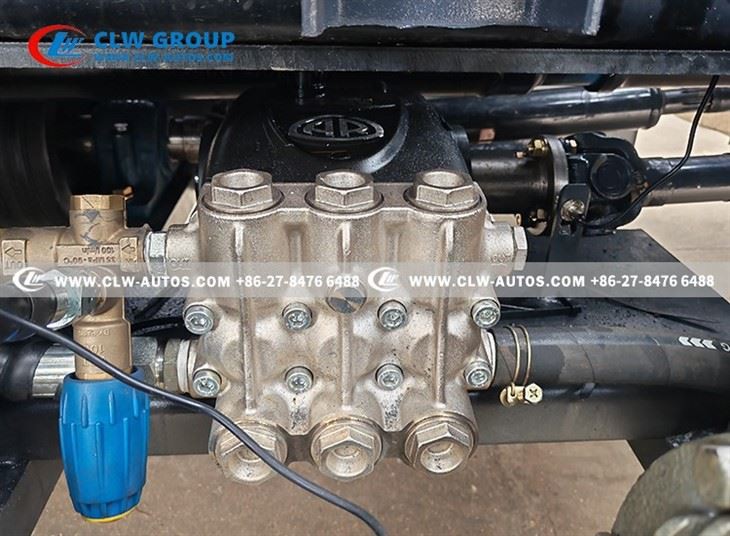

At the heart of the cleaning system is a Pinfu high-pressure pump, delivering a relentless 350 L/min at 180 bar to break up the toughest blockages. The system is driven by a reliable sandwich power take-off (PTO), ensuring maximum power transfer from the chassis engine for consistent performance and fuel efficiency.
--Powerful Domestic Vacuum System with Premium Performance
For suction duties, the truck employs a Weilong vacuum pump, a top-tier domestic brand known for its reliability and power. It achieves an absolute pressure of 7000Pa with a suction speed of 68 L/s at 800 rpm, enabling it to quickly evacuate sludge, water, and solid debris.
--Enhanced Operational Efficiency & Safety
Dual-Function Tank: The interconnected water-sewage system allows for operational flexibility, while the hydraulic tip-tank with self-dumping facilitates complete and rapid waste disposal.
--All-Weather Readiness: DN200 inlet/outlet pipes ensure high-volume flow, and the truck is equipped with rear work area lighting and arrow boards for safe 24/7 operation.
Operator-Centric Design: Features like a sight glass, pressure gauge, and internal anti-corrosion coating in the sewage tank simplify monitoring and maintenance.
|
Technical Specification |
|||||
|
Chassis Part |
|||||
|
Condition |
ISUZU, factory brand new 2025 |
||||
|
Wheelbase |
4350+1370 mm |
||||
|
Cab |
ISUZU cabin LHD, 1+2 seats Electric AC, Cooling Fan |
||||
|
Engine |
Engine brand |
ISUZU engine, 6KH1-TCG60 |
|||
|
Horsepower |
300hp |
||||
|
Fuel type |
Diesel |
||||
|
Emission standard |
Euro 6 |
||||
|
Transmission |
Manual type, FAST, 9 speeds forward and 2 reverse |
||||
|
Front axle loading |
7,000kg |
||||
|
Rear axle loading |
10,000kg |
||||
|
Tyre |
295/80R22.5 18PR, 10pcs with one spare |
||||
|
Stainless Steel Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
20 m3, 20,000 litres |
|||
|
Clean water tank |
6m3, 6,000litres |
||||
|
Sewage tank |
14m3, 14,000litres |
||||
|
Jetting system |
High-pressure jetting pump model |
PINFL 350L/min |
|||
|
Vacuum system |
Vacuum pump model |
Chinese brand Weilong Vacuum pump | |||
|
Vacuum speed |
68L/S at 800 rpm |
||||
|
Drive system |
HP pump driven by Sandwich PTO |
||||
|
Filtration |
Dual-stage filtration protects pump from debris |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Dumping mechanism |
Front-mounted hydraulic lift |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Reel |
Rear-mounted hydraulic reel, 160° hydraulic swing (deploy/ retract/ lateral positioning). |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
