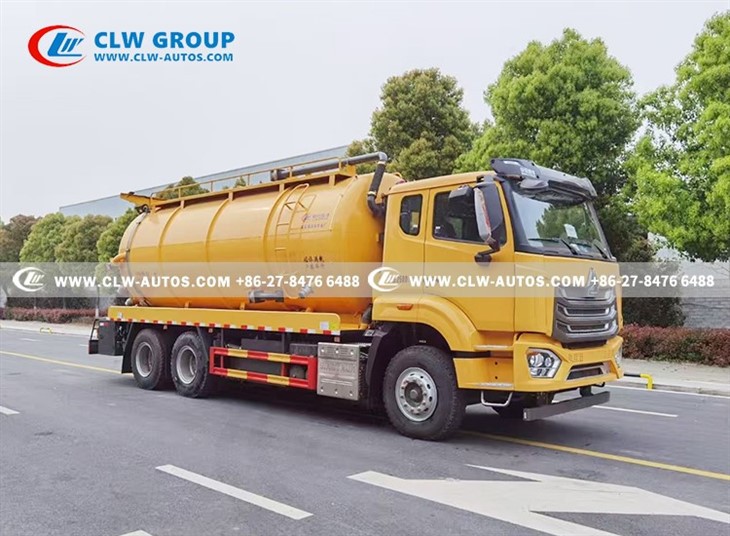

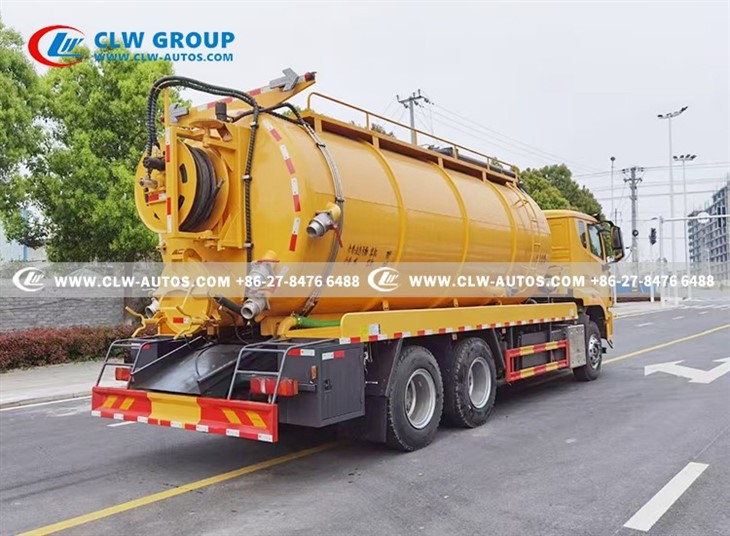

In the demanding fields of municipal maintenance and industrial waste management, efficiency and versatility are key. The HOWO 6x4 20-Cubic Meter Sewer Cleaning and Vacuum Truck is engineered to meet these challenges head-on. This robust multi-functional vehicle combines high-pressure cleaning, powerful vacuum suction, and a large-capacity tank into a single, powerful unit, designed to significantly enhance productivity and prevent secondary pollution in various operating environments.
--High-Capacity, Durable Tank System
The truck features a large 20-cubic meter tank, strategically divided into a 5 m³ clean water tank and a 15 m³ sewage tank. Crafted from 8mm thick high-strength carbon steel, the tank is built for longevity and resistance to corrosive waste. This configuration can be fully customized to match your specific job site requirements and waste hauling ratios.
--Powerful Cleaning & Vacuum Systems with Customizable Options
1. High-Pressure Cleaning:
The system is equipped with a high-performance high-pressure pump. We offer options to suit every budget and need, including cost-effective domestic Pinfu pumps or high-end Italian import pumps for superior performance and durability. It comes with various specialized nozzles designed for clearing urban sewer blockages, industrial pipelines, and even for firefighting emergencies.
2. Powerful Vacuum Suction:
For the vacuum system, clients can choose from reliable Chinese brands like Yifeng or Weilong pumps, or opt for imported vacuum pumps. The system achieves an impressive vertical suction lift ≥ 8 meters and includes a 7-meter long suction hose, enabling it to handle淤泥, slurry, and large particles effectively.
--Robust Chassis and Reliable Performance
Built on a sturdy HOWO 6x4, 10-wheel chassis with a 4350+1350 mm wheelbase, this truck is designed for stability and heavy-duty use. It's powered by a robust Weichai 380 HP engine with a displacement of 9726 ml, paired with a manual transmission offering 10 forward and 2 reverse gears. The 7.5-ton front axle and 13-ton rear axle, along with 12.00R20 tires and ABS, ensure safety and reliable performance under full load.
--Efficiency and User-Friendly Design
The vehicle is designed for high-efficiency operations, featuring a fully-powered PTO for stable pump operation and a self-sustaining hydraulic system. User-centric features like a rear-opening tank, double-cylinder self-dumping capability, an observation window, and a handwashing device make operation and maintenance convenient and efficient.
|
Technical Specification |
|||||
|
Chassis Part |
|||||
|
Condition |
Sinotruk HOWO, factory brand new 2025 |
||||
|
Wheelbase |
4350+1350 mm |
||||
|
Cab |
HOWO cabin LHD/RHD, 1+2 seats Electric AC, Cooling Fan |
||||
|
Engine |
Engine brand |
WEICHAI engine, WP10.380E53 |
|||
|
Horsepower |
380hp |
||||
|
Fuel type |
Diesel |
||||
|
Displacement |
9726 ml |
||||
|
Emission standard |
Euro 5 |
||||
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
|
Transmission |
Manual type, HW19710L, 10 speeds forward and 2 reverse |
||||
|
Front axle loading |
7,500kg |
||||
|
Rear axle loading |
13,000kg |
||||
|
Rear axle speed ratio |
4.63 |
||||
|
Frame |
Double-deck (8+5/300) |
||||
|
Leaf spring |
4/4/5 |
||||
|
Fuel tank |
400L |
||||
|
Tyre |
12.00R20, 10pcs with one spare |
||||
|
Upperstructure Configuration |
|||||
|
Tank dimensions |
Tank volume capacity |
20 m3, 20,000 litres |
|||
|
Clean water tank |
5m3, 5,000litres |
||||
|
Sewage tank |
15m3, 15,000litres |
||||
|
Jetting system |
High-pressure jetting pump model |
PINFL XO |
|||
|
Pipe cleaning capacity |
Ø800-1500mm municipal pipelines |
||||
|
Vacuum system |
Vacuum pump model |
CN-YIFENG 2BE-204 liquid ring pump |
|||
|
Horizontal suction range |
50 m |
||||
|
Drive system |
HP pump driven by Sandwich PTO |
||||
|
Filtration |
Dual-stage filtration protects pump from debris |
||||
|
Tank assembly |
Anti-overflow system |
Primary+ cyclone secondary valve |
|||
|
Dumping mechanism |
Front-mounted hydraulic lift |
||||
|
Accessories |
Top platform, filter ports, ladder |
||||
|
Reel |
Rear-mounted hydraulic reel, 160° hydraulic swing (deploy/ retract/ lateral positioning). |
||||
|
Discharge |
Side-mounted Ø100mm suction valve |
||||
|
Work platforms |
Both extended side platforms + toolboxs |
||||
|
Remarks |
Color is optional LOGO painting as per customer request |
||||
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Ready to Enhance Your Waste Management and Cleaning Operations?
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Let's discuss how this powerful and versatile HOWO 6x4 Cleaning and Vacuum Truck can be tailored to meet your specific challenges . We are committed to providing you with a high-quality, reliable vehicle and exceptional service.
