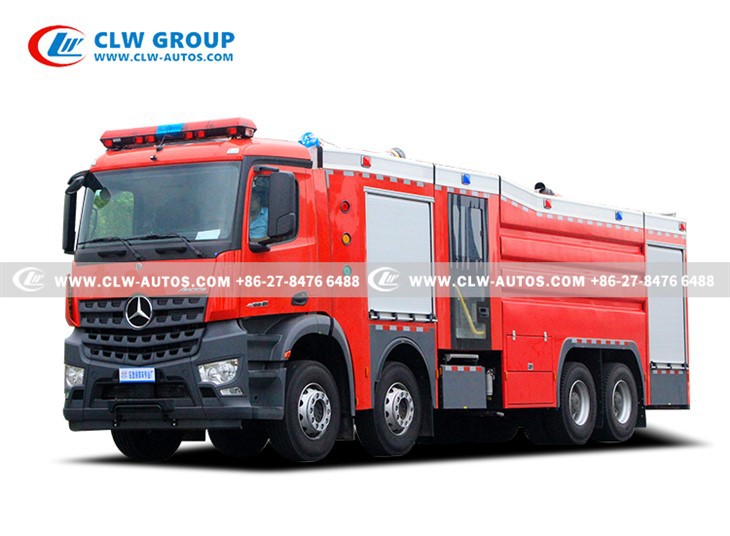

Mercedes Benz Fire Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of mercedes benz fire truck in China. If you're going to buy high quality mercedes benz fire truck, welcome to get more information from our factory. For price consultation, contact us.

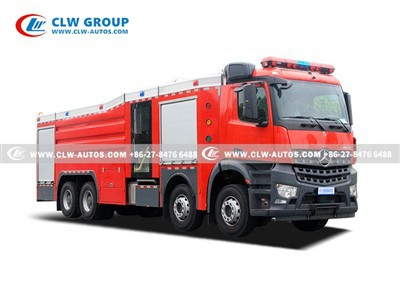

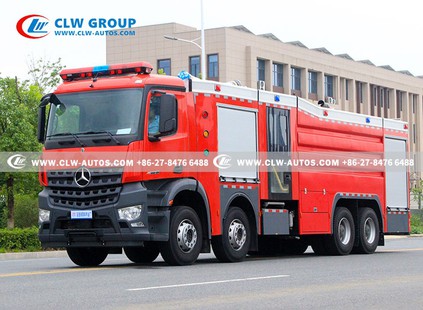

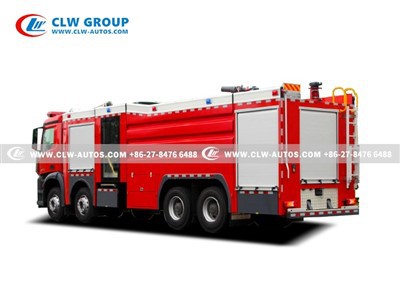

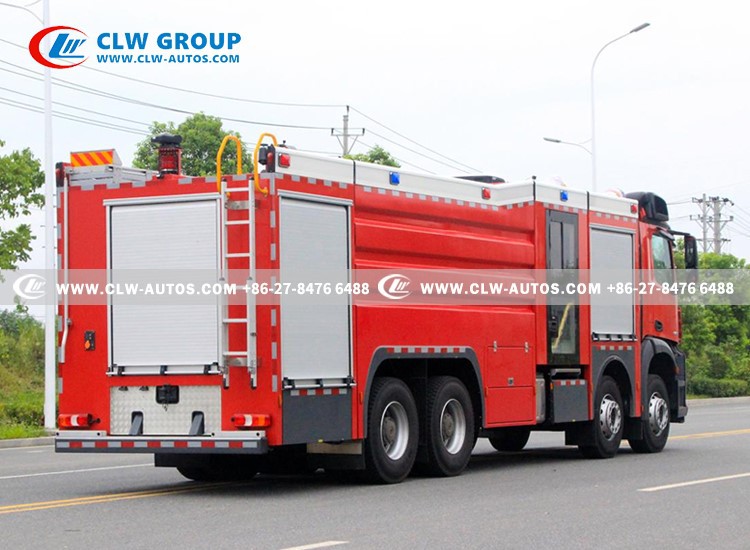

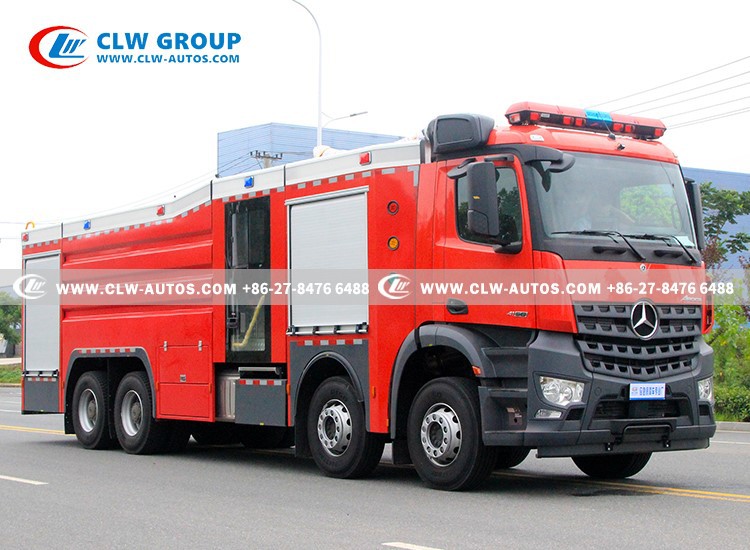

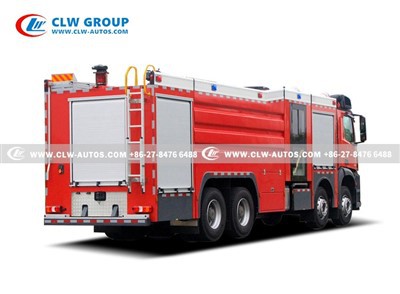

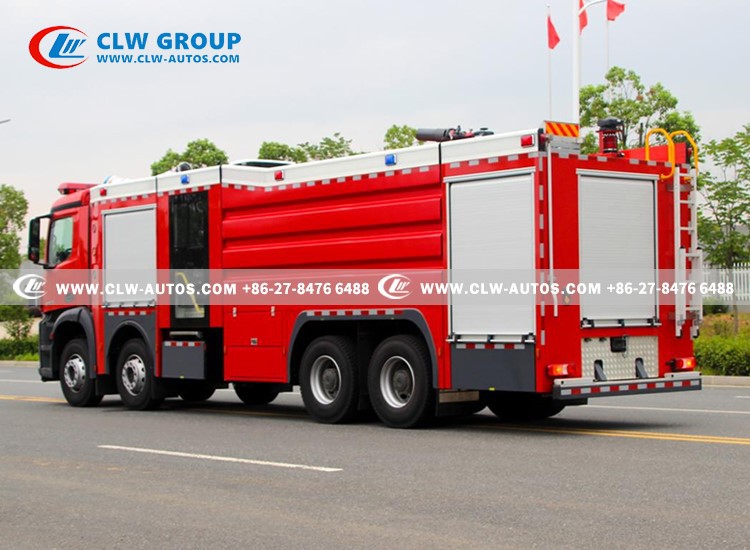

Mercedes Benz 8x4 PM180 Foam Fire Truck





We are 100% Straight Factory Manufacturer

We have 100% Quality Assurance









Foam Fire Truck,  is a specialized vehicle designed to combat fires, particularly those involving flammable liquids, chemicals, or other situations where water alone is ineffective or could worsen the situation. These trucks are equipped with foam proportioning systems that mix water with foam concentrate to create a foam solution, which is then discharged through hoses or monitors to extinguish fires. It uses a fixed fire gun, which can control pitch and horizontal rotation at the same time. The fire extinguishing system is simple and convenient to operate and reliable to use. It has a novel appearance, scientific and reasonable layout, easy operation, and complete instrument display; it has complete accessories and tools, and adopts rotating, pulling and other structures, which are compactly arranged and easy to use, making it closer to the needs of fire fighting. It is a kind of heavy main battle fire truck with large loading capacity and multi-crew capacity. This product not only has Flammable Liquid Fires: Effective for fires involving gasoline, oil, jet fuel, and other hydrocarbons. Chemical Fires: Used for fires involving polar solvents like alcohols, acetone, and other chemicals. Industrial Fires: Ideal for refineries, airports, and manufacturing facilities where flammable liquids or gases are present. Wildland Fires: Foam can be used to create firebreaks or protect structures, espeicially airports firefighting, but also can be equipped with sets of elevated fire trucks and used jointly to meet the fire fighting in high-rise buildings.









Hedy He Sales Manager

Mobile: +86-188 2740 1066 (WhatsApp)

Email: hedy@clw-autos.com



















Name	Mercedes Benz 8x4 PM180 Foam Fire Truck
Driving model	8x4
Dimension	11710x2550x3560 mm
Cab	single row seat, 1+1 separate crew room, 6 people 6.8L--9L air ventilator heating and air comditioning intercom units
Gross vehicle weight	37300 Kg
Fluid carrying capacity	18100 Kg
Approach/Departure angle	18° / 9°
Wheelbase	1750+4600+1350 mm
Fuel tank	390L/ steel material/ left side
Engine	Diesel engine Horse power: 578HP, 425Kw Displacement: 15600 ml Emission standard: National Ⅵ
Transmission	Automatic type, 16 forward and 4 reverse
Max.speed	85 Km/h





Type	ESP Electronic vacuum pumps
Rated flow rate	150L / s @1.0Mpa
Rated pressure	1.0 Mpa
Diversion time	7m Deep suction time≦100 s
Installation location	Rear-mounted





Rated flow rate	120L / s@1.0Mpa
Main gun water range	85 m
Foam range	70 m
Pitch rotation	-45°~ +120°
Horizontal turning angle	0~355°





Pump Room	Liquid Tank
Rear - 4 suction ports	Liquid tank capacity: 18000 Kg water tank capacity: 14000 Kg foam tank capacity: 4000 Kg
Left / right sides - 3 spouts	Tank material: 304 Stainless steel thickness: ≧3 mm
Left / right sides - 2 suction ports	Manhole diameter: ≧450 mm
