ISUZU FVZ 6x4 16000Liters Water Tank Fire Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvz 6x4 16000liters water tank fire truck in China. If you're going to buy high quality isuzu fvz 6x4 16000liters water tank fire truck, welcome to get more information from our factory. For price consultation, contact us.



Function

--Water tank fire truck(also called fire sprinkler,sprinkler truck,forest fire sprinkler,school fire sprinkler,airport fire sprinkler,coummunity fire sprinkler,fire sprinkler,fire fighting tanker,water tanker truck,fire engine,fire fighting truck,fire fighter truck,fire extinguisher water truck) is a combined collection of fire truck and sprinkler and is between the fire truck and sprinkler with integrated use of fire sprinkler and fire truck although there is no equipment box compared with the same fire function.

--Compared with the sprinkler, it inherits all the functions of the sprinkler and makes up for the problems of small range and small pressure.

--Equipped with fire water pump and equipment, the fire sprinkler is also equipped with a larger capacity of water storage tank and water gun, water cannon, etc.

--Water and fire personnel can be transported to the fire site to independently fight the fire.

It can also be used for direct fighting by drawing water from the water source or supplying water to other fire engines and fire sprinkler systems.

--Advantage of  the function of fire truck: because there is no fire truck equipment box, the chassis height and vehicle width are more suitable for the mountain, township and village road conditions, forest fire, township and village fire tools.

-- Water tank fire truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc Water tank fire truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Water tank fire truck;

3) according to loading capacity,there are 3tons,4tons 5tons,6tons,8tons,10tons,15tons,20tons Water tank fire truck

Feature

--high quality ISUZU truck chassis;

--Spacious FVZ truck cabin with A/C;

--Powerful 300HP engine for tough road with reliable performance;

--Continuously adjusted into fog, heavy rain, light rain and drizzle with safety guardrail.

--Reliable chinese brand fire fighting pump and fire cannon;

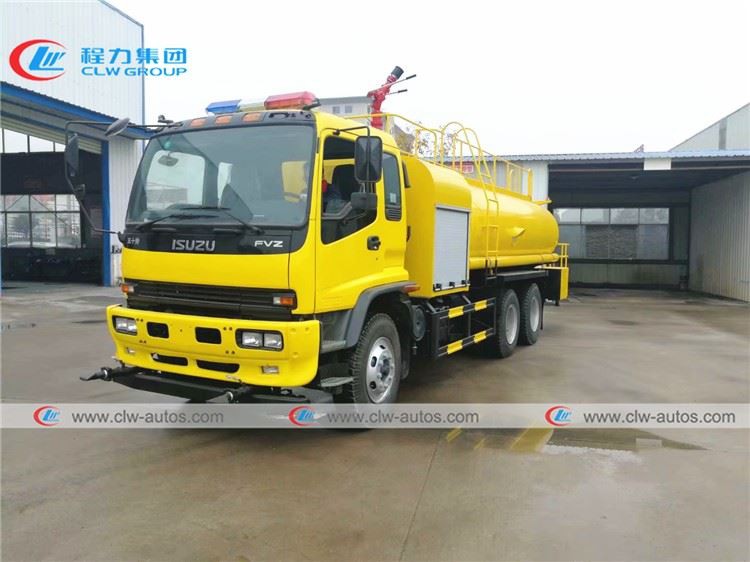

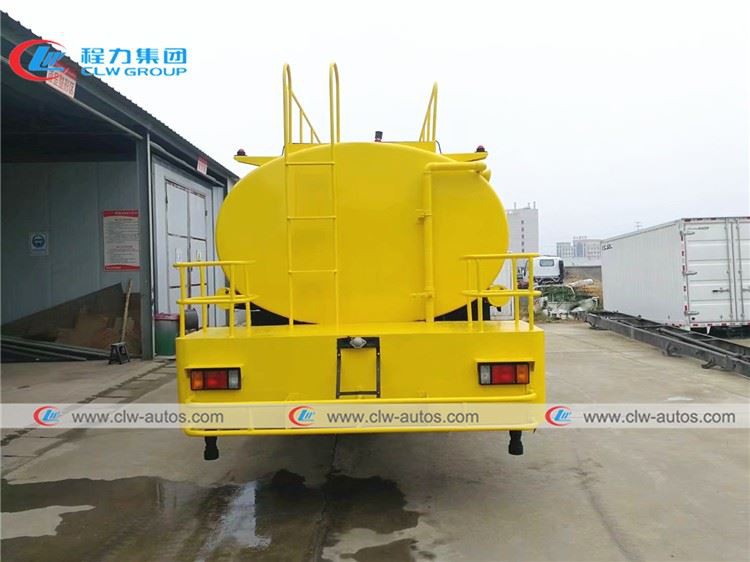

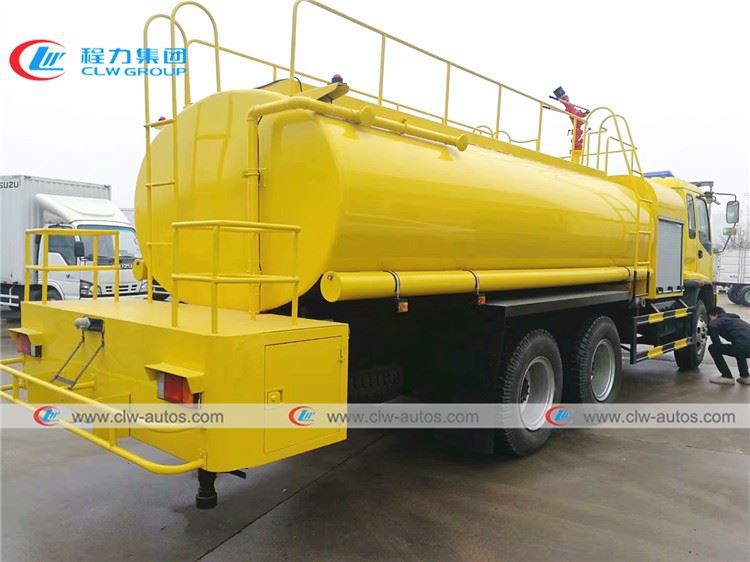

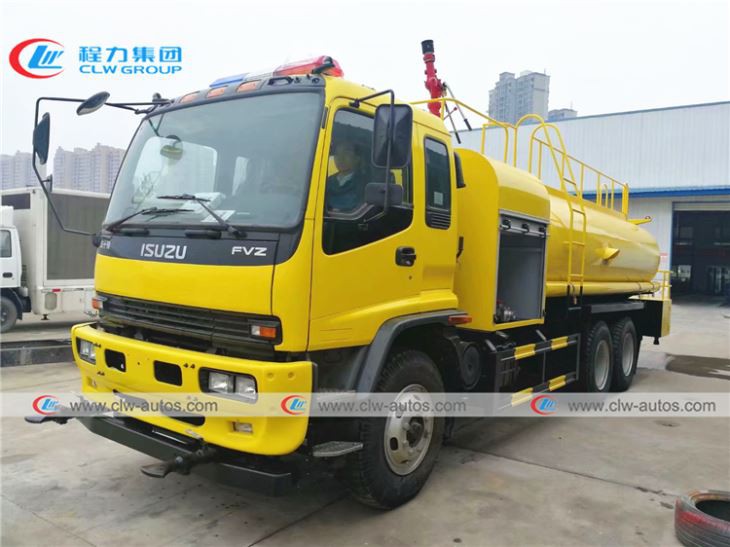

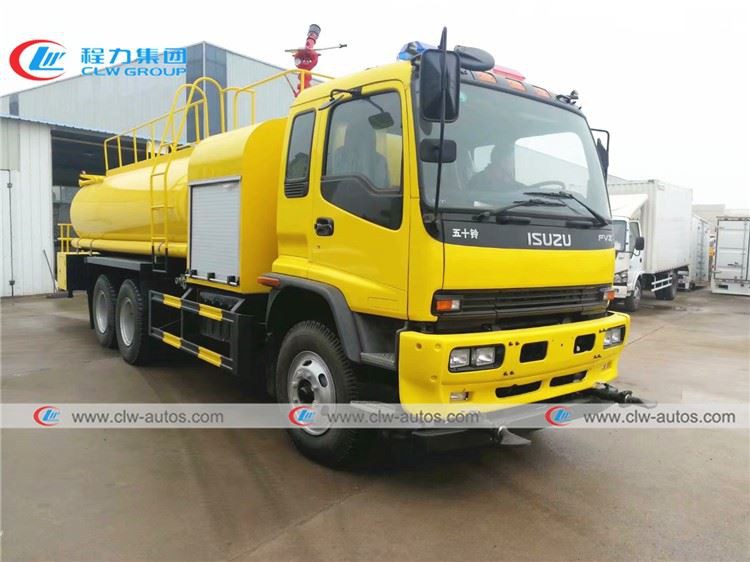

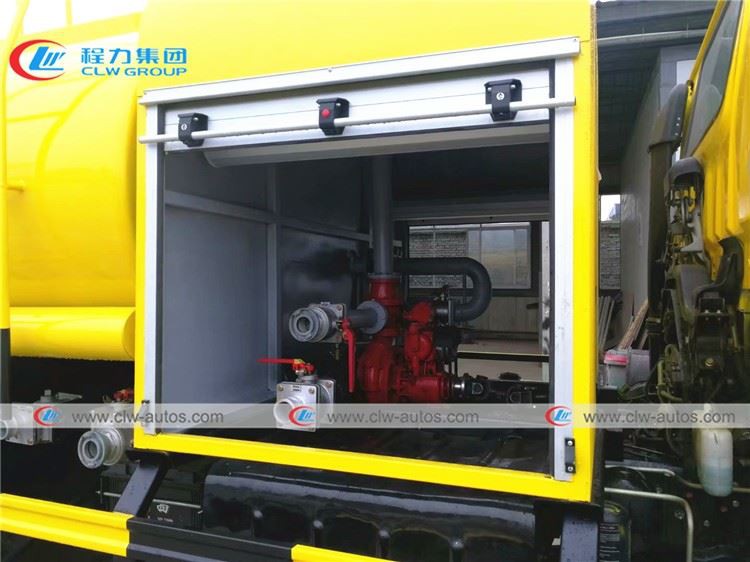

Reference picture

Specification

ISUZU FVZ 6x4 300HP 16,000Liters Water Sprinkler Fire Truck
General	Chassis brand	ISUZU
	Overall Dimension	10250×2490×3300mm
	GVW	25000kg
Cab	Cabin type	ISUZU FVZ type cabin,3 persons
	Air conditioner	Optional
Engine	Engine Model	6HK1-TCH
	Engine Power	221kW/300HP
	Displacement	7790ml
	Emission standard	Euro V or VI
Chassis	Wheelbase	4350+1300mm
	Driving Type	6X4,left hand drive
	Max.speed	90km/h
	Gear box	FAST 9-peed forward and 1 reverse
	Tire	11.00R20,10 pcs with one spare
Superstructure	Water tank	Carbon steel/16000liters
	Fire pump	CB10/60
	Fire pump rated flow	60L/s@1.0MPa
	Fire cannon	PS50
	water monitor rated flow	50L/s@1.0MPa
	Water monitor range	Water range≥65m
	Suction head	6m
