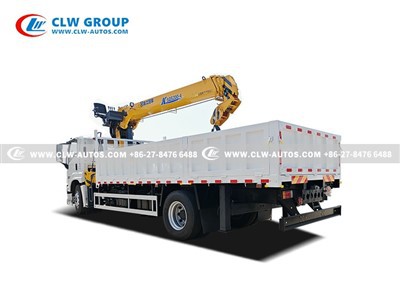

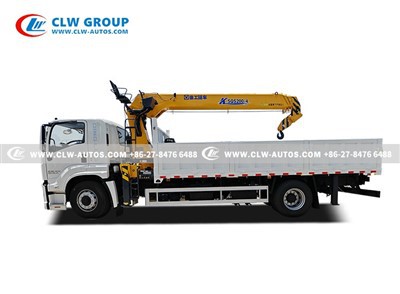

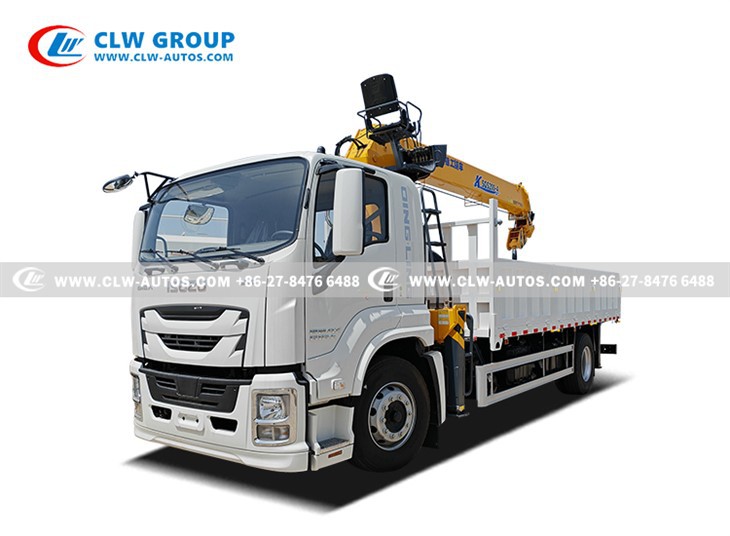

ISUZU GIGA FTR 8Tons Crane Truck
Drive type:4x2
Engine:ISUZU 205hp
Cargo box size: 5200x2300x550 mm
Cargo box loading capacity:15Tons
Maximum lifting capacity:8000 kg
Maximum working radius:11.75m
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga ftr 8tons crane truck in China. If you're going to buy high quality isuzu giga ftr 8tons crane truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU GIGA 4X FTR 8Tons Straight Boom Crane Truck
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Products Description
Crane Truck is a set of lifting and transportation functions in one of the special vehicles, the full name of the "Car Lifting and Transporting Trucks". It is a kind of special truck which realizes the lifting, turning and lifting of goods through hydraulic lifting and telescopic system, and is usually assembled on the truck. The truck crane is generally composed of the chassis of the truck, cargo compartment, PTO(power take off) , crane and outrigger. With the ability of both cargo transportation and lifting operation, it is widely used in many fields such as logistics, construction, electric power maintenance, rescue and so on.
Products Operation Video
Key Feature
Versatility
- Integrated lifting and transport functions
- Reducing equippment and labor costs
Flexible and efficient
- Rotatable and telescopic crane arm covers various working radii.
Structural Composition
- Chassis part: adopts the chassis of cargo truck, with strong loading capacity.
- Lifting mechanism: including hydraulic system, outrigger, boom (straight or folding boom), hook, etc., lifting capacity from a few tons to dozens of tons
Operation mode
- Controlled by hydraulic system, support manual or remote control operation, some models are equipped with electronic limit and other safety devices.
Top Applications & Advantages
- Logistics and transportation: loading and unloading of heavy goods (e.g. mechanical equipment, building materials).
- Municipal engineering: installing street lights, billboards or carrying pipes.
- Emergency Rescue: Rapid lifting of obstacles or accident vehicles.
- Agriculture/Forestry: Moving agricultural machinery or timber.
- Economy: one vehicle for two purposes, reducing equipment investment.
- Convenience: suitable for decentralized or temporary operation.
- Adaptability: it can be equipped with various attachments (such as grabs and clamps) to expand its functions.
Products Parameters
|
Chassis Specification |
|
|
Chassis Model |
QL1180JQFRCY |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2500 x 3900 mm |
|
Cab |
Original FTR 4X cabin with air conditioner |
|
Wheelbase |
5000 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
9650 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 18PR |
|
6pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4HK1-TC60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5200ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
5200 X 2300 X 550 mm |
|
Loading Capacity |
15 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|
Crane |
|
|
Model |
XCMG - SQS200-4 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 5 extendable boom |
|
Crane Type |
Straight Boom Crane |
|
Max. Lifting Capacity |
Effectively: 8000 kg at 2.5 meters |
|
Max. Working Radius |
11.75 meters |
|
Max. Lifting Height |
15 meters |
|
Max. Lifting Moment |
200 T.m |
|
Max. Oil Flow of Hydraulic System |
63 L/min |
|
Max. Pressure of Hydraulic System |
26 Mpa |
|
Crane Weight |
3520 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|

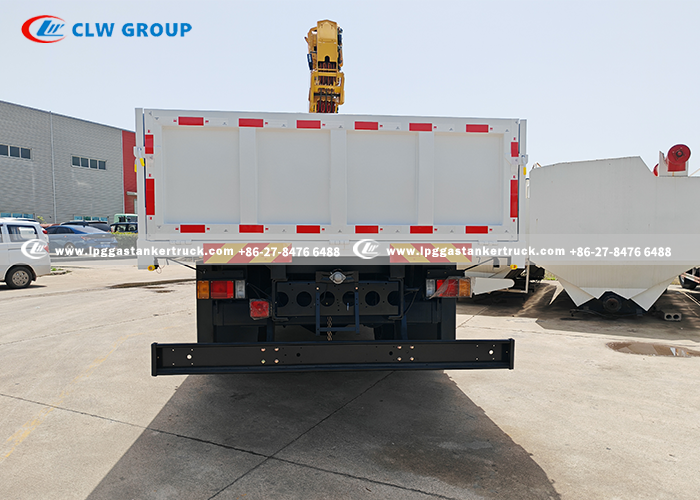

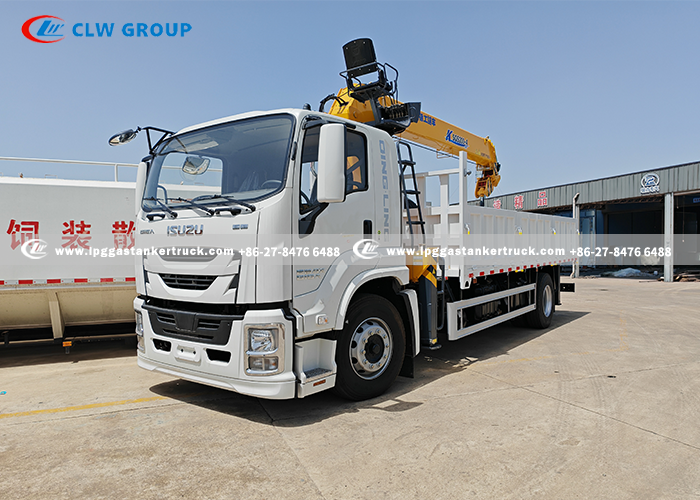

Products Photos
High-quality Chassis
- ISUZU 205hp diesel engine
- 6 Forwards Transmission
- 295/80R22.5 Tire
Practical Cargo Compartment
- Economical and durable, strong transportation power
- Exclusive use of lightweight design to improve the vehicle's greater carrying capacity, more fuel-efficient and improve transport capacity, higher annual payback rate.

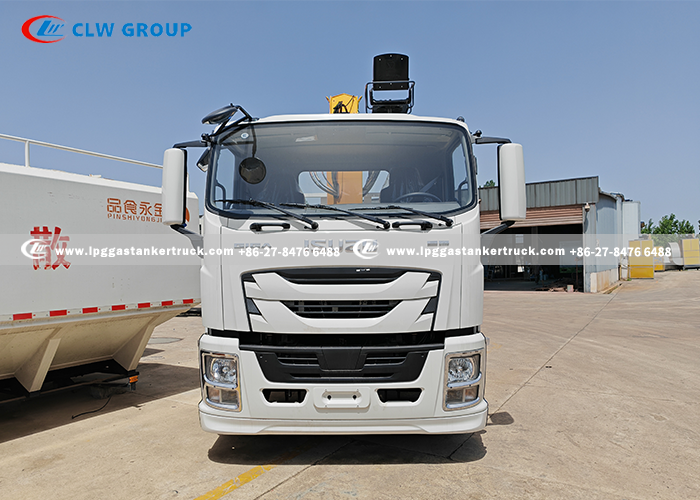

Comfortable Drive
- ISUZU Giga FTR VC61 4X Cabin
- With air conditioner
- Motorized windows and doors
- Multifunction steering wheel

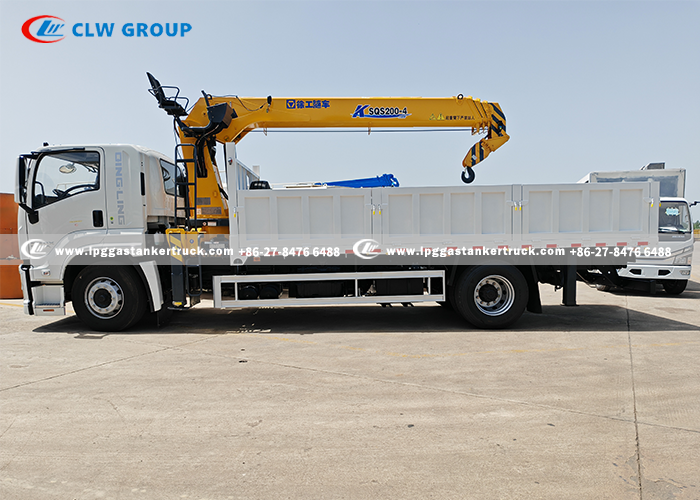

Straight Boom Crane
- Straight arm for easier control of vertical take-offs and landings
- Wider working radius
- Relatively simple operation
- Easy chassis mounting

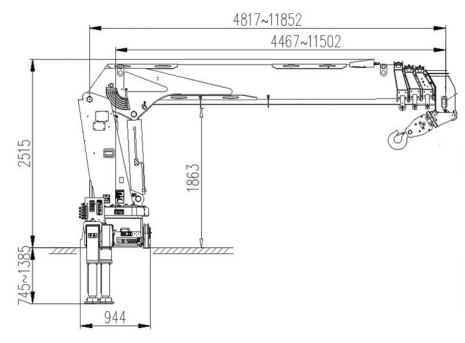

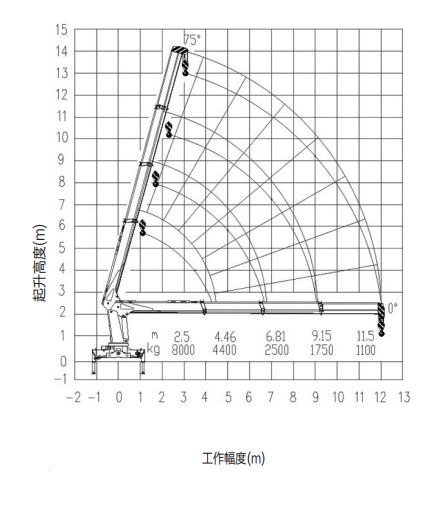

Crane Rated Lifting Load
