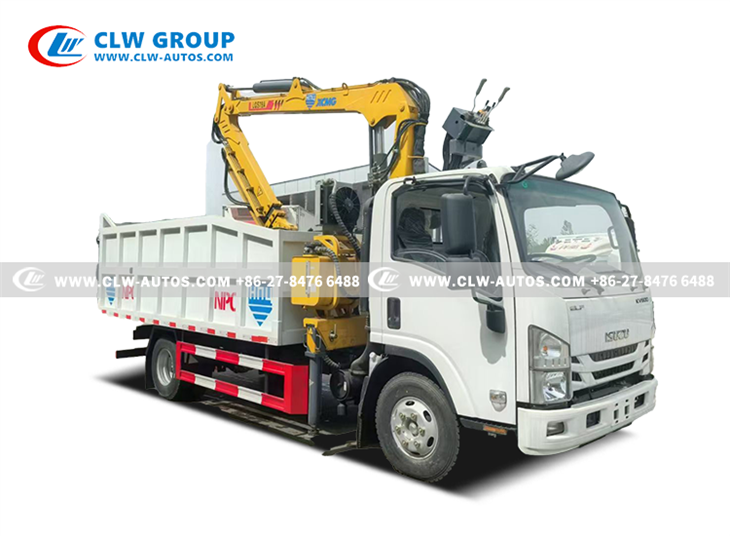

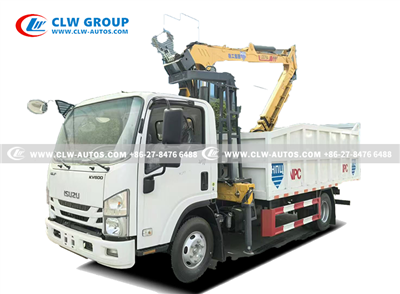

ISUZU KV100 Dump Truck With Crane

Name: China ISUZU KV100 Dump Truck With Crane Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 266587381

Drive type:4x2
Engine:ISUZU 132hp
Maximum lifting mass:700 kg
Maximum working range:7.8m

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 dump truck with crane in China. If you're going to buy high quality isuzu kv100 dump truck with crane, welcome to get more information from our factory. For price consultation, contact us.

Japanese Brand ISUZU 4x2 1 Tons DumpTruck With Crane

We are 100% Straight Factory Manufacturer

We have 100% Quality Assurance

Products Operation Video

Products Description

Crane Truck is a set of lifting and transportation functions in one of the special vehicles, the full name of the "Car Lifting and Transporting Trucks". It is a kind of special truck which realizes the lifting, turning and lifting of goods through hydraulic lifting and telescopic system, and is usually assembled on the truck. The truck crane is generally composed of the chassis of the truck, cargo compartment, PTO(power take off) , crane and outrigger. With the ability of both cargo transportation and lifting operation, it is widely used in many fields such as logistics, construction, electric power maintenance, rescue and so on.

Key Feature

Versatility

It can both transport goods and complete lifting operation independently, no need to equip additional cranes, saving the cost of equipment and labor.

Flexible and efficient

The lifting arm can be folded or telescopic, adapting to narrow space operation (such as construction sites, warehouses, etc.), with strong mobility.

Structural Composition

Chassis part: adopts the chassis of cargo truck, with strong loading capacity.
Lifting mechanism: including hydraulic system, outrigger, boom (straight or folding boom), hook, etc., lifting capacity from a few tons to dozens of tons

Operation mode

Controlled by hydraulic system, support manual or remote control operation, some models are equipped with electronic limit and other safety devices.

Top Applications & Advantages

Logistics and transportation: loading and unloading of heavy goods (e.g. mechanical equipment, building materials).
Municipal engineering: installing street lights, billboards or carrying pipes.
Emergency Rescue: Rapid lifting of obstacles or accident vehicles.
Agriculture/Forestry: Moving agricultural machinery or timber.

Economy: one vehicle for two purposes, reducing equipment investment.
Convenience: suitable for decentralized or temporary operation.
Adaptability: it can be equipped with various attachments (such as grabs and clamps) to expand its functions.

Products Parameters

ISUZU Truck Parameters
Condition	New condition/4x2/ Right and Left Drive
Chassis	Brand		ISUZU
	Overall Weight		6810 kg
	Curb Weight		3620 kg
	Wheelbase		3815 mm
	Dimensions		6750 x 1890 x 2750 mm
	Axle Load		3000/5000 kg
	Max. Driving Speed		100 km/h
	Tire	Specifications	6pcs with 1 spare tire
		Number	7.50R16
Clutch	Reinforced diaphragm clutch
Gear Box	Manual type, 6 Forwards & 1 Reverse
Cabin	2 Passenger Allowed, with Air conditioner
Engine	Model		ISUZU Diesel Engine, 4 Cylinders
	Horsepower		132 HP
	Emission Standard		Euro Ⅵ
	Displacement		2999 ml
Brakes	Air brake
Steering Gear	Power steering, hydraulic steering with power assistance
Upper Parameters
Box Configuration	Dimension		4200 x 2300 x 1100 mm
	Thickness		4mm for the bottom and 3mm for the side
	Shape		Tofu block, tailgate folio with locking lever, center double top cylinder
Crane Parameters
Brand	XCMG
Maximum Lifting Mass	700 kg
Maximum Working Range	7.8 m
Outrigger Cylinder Stroke	558 mm
Remarks	1. Full set of English logo, English manual.
	2. Radiator
	3. 1TON Round log grabber

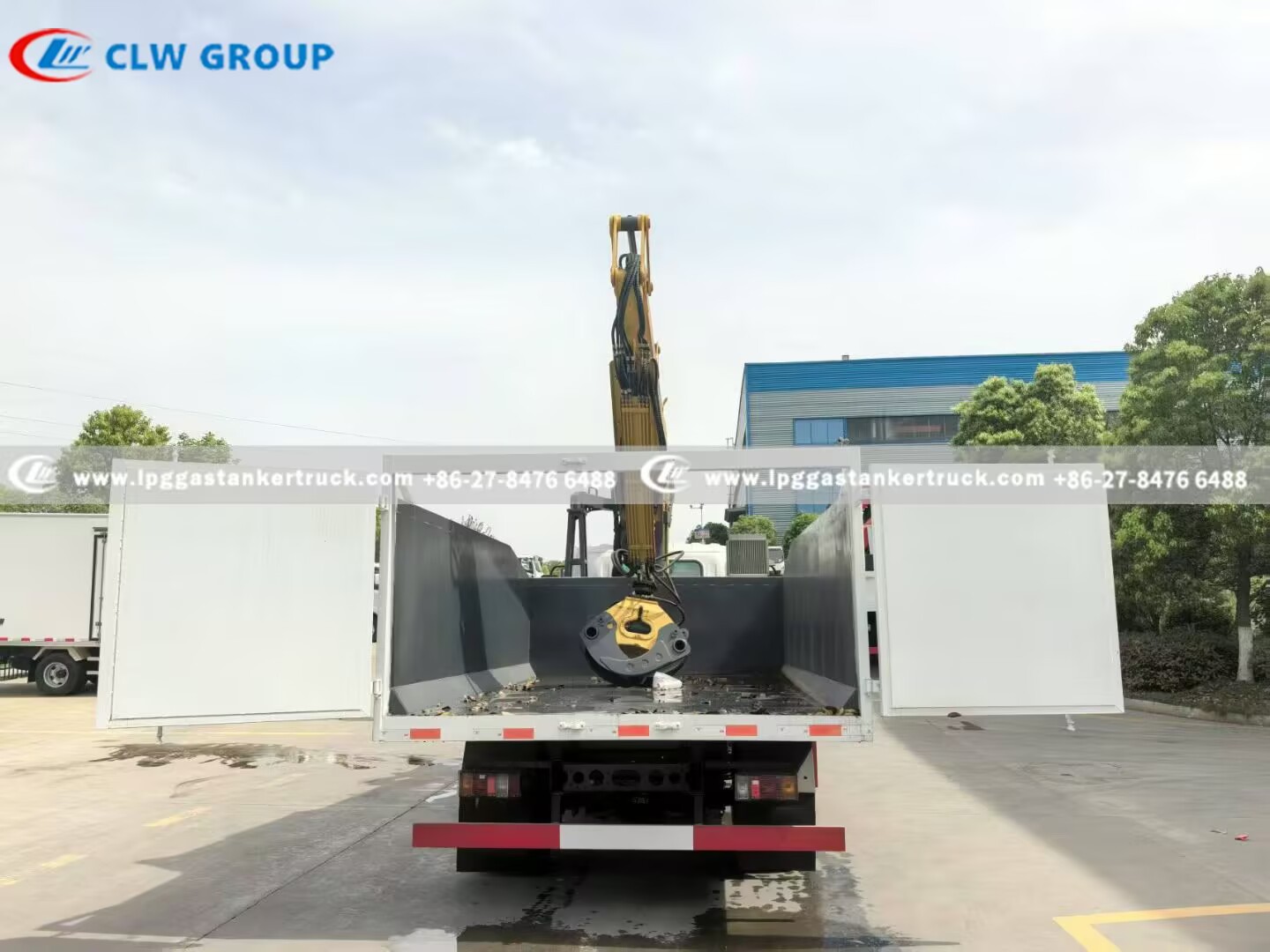

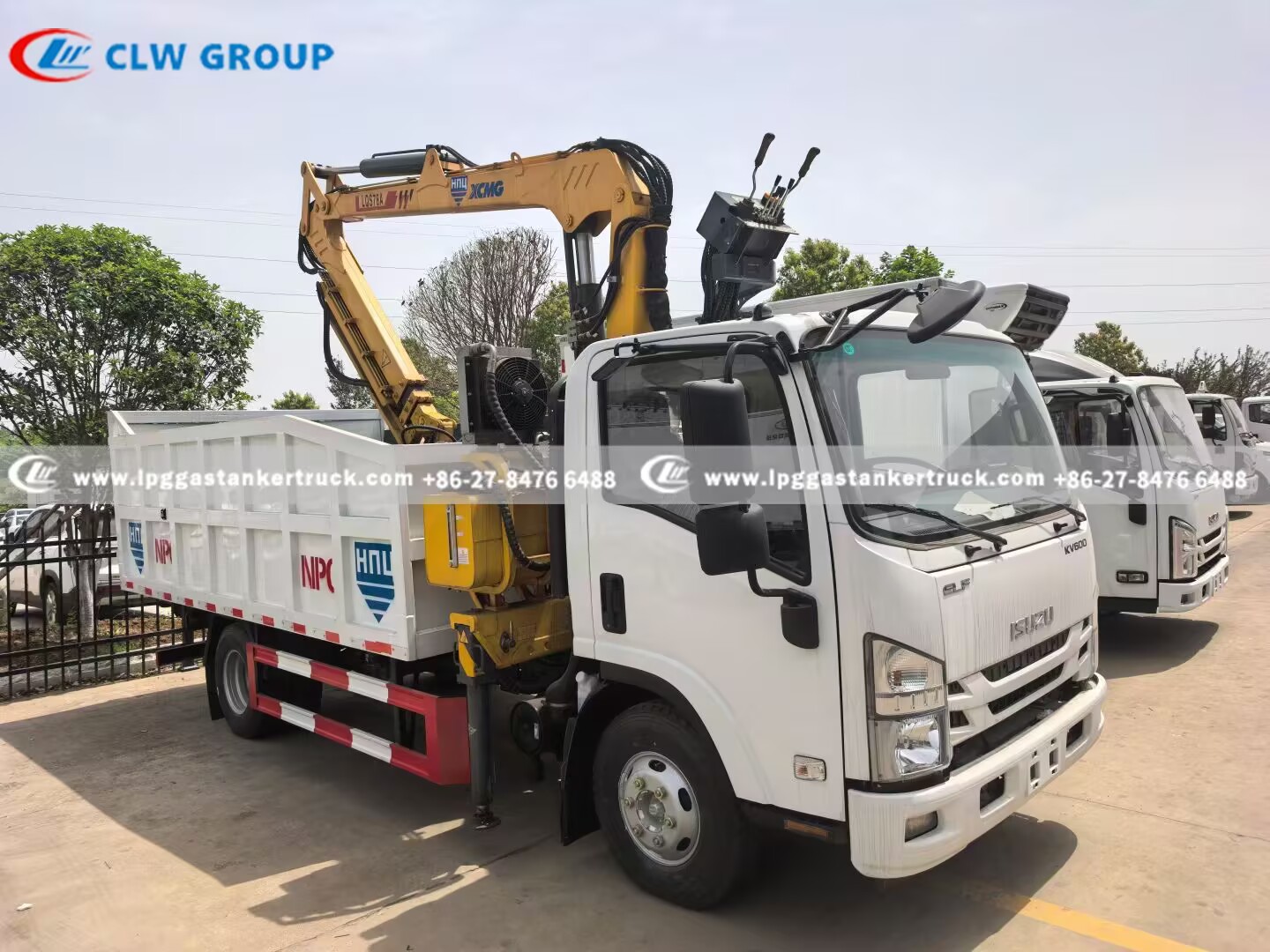

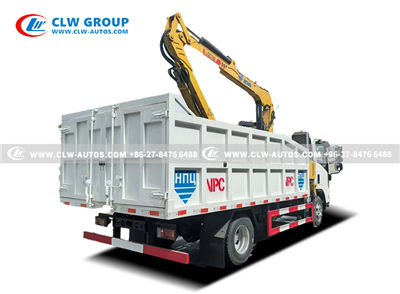

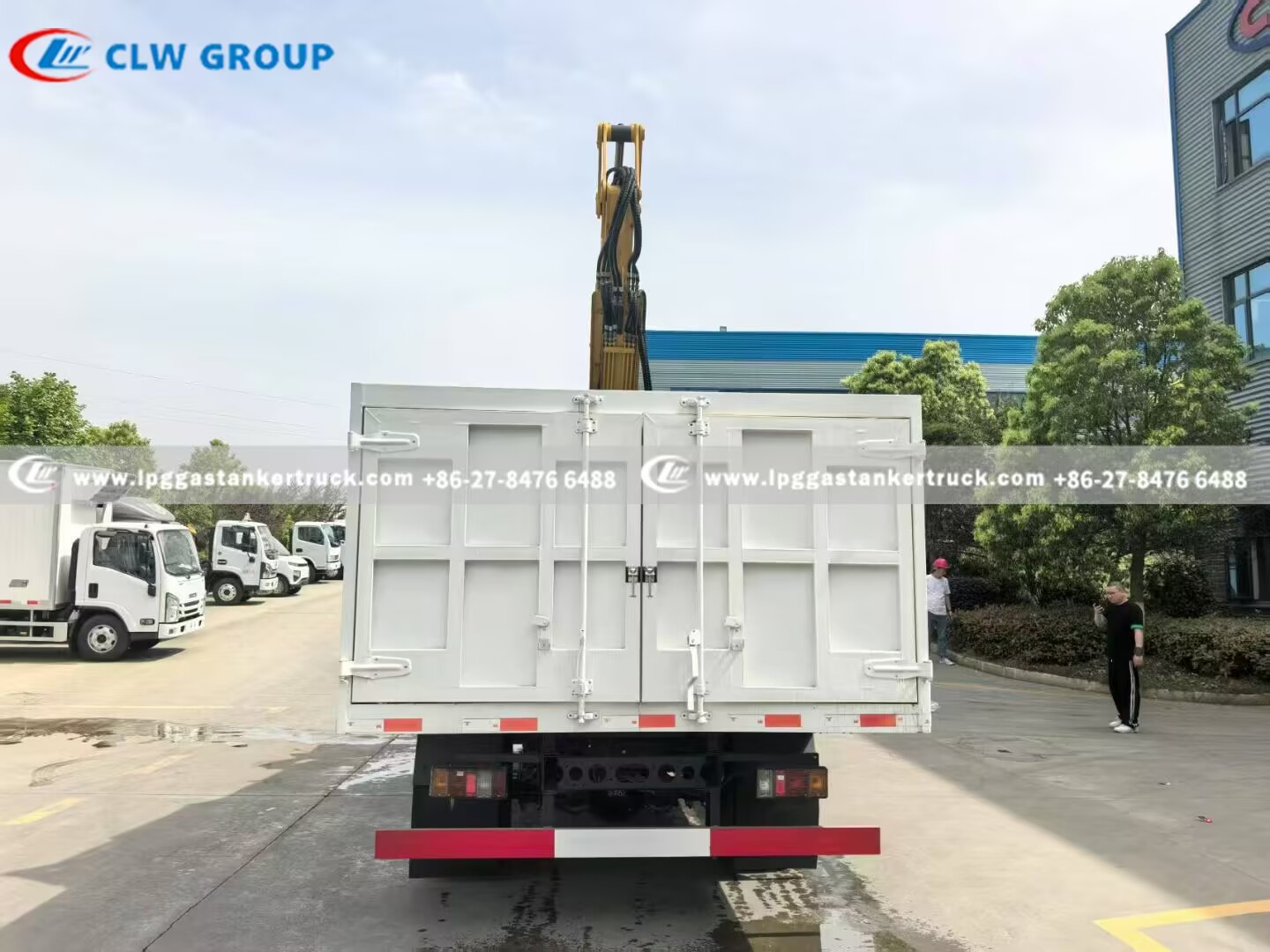

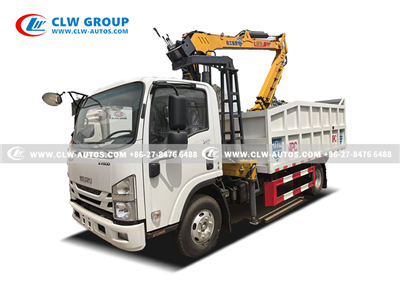

Products Photos

Boutique crane

Professional manufacture Large lifting capacity
Boom design is scientific and practical, stronger carrying capacity, made of high strength steel plate, lighter crane weight, larger lifting capacity.
Unique safety overload capacity design, so that the lifting is safer, the scope of work is larger.

Hydraulic System

Powerful lifting and free retracting
Sealing plugs are installed to prevent the intrusion of dirt and air.
Good hardness, strong pressure resistance, powerful lifting, free expansion and contraction, anti-corrosion and rust prevention.
Easily realize the lifting, turning and lifting of goods.

Practical cargo compartment

Economical and durable Transportation power
Unique lightweight design to improve the vehicle's greater carrying capacity, more fuel-efficient and improve transport capacity, higher annual payback rate.

Smaller tonnage cranes for more flexible operation
