Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 46m 47m concrete pump truck in China. If you're going to buy high quality isuzu 46m 47m concrete pump truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Concrete pump truck(also called pump truck.) is used for transfering concrete in construction site
--Concrete pump truckcan be divided into various types as follows,
1) according to truck brands,there are ISUZU and CAMC Concrete pump truck;
2) according to driving model: 6X4 and 8x4 Concrete Pump Truck;
3) according to Maximum cloth height: 39m, 41m, 43m, 46m, 47m, 49m, 51m, 53mm.
Feature
--International brand ISUZU truck chassis, top quality and easy to do future maintainance;
--Most competitve price with top quality;
--Boom pump: Rexroth Germany
--Main oil pump: Germany Rexroth

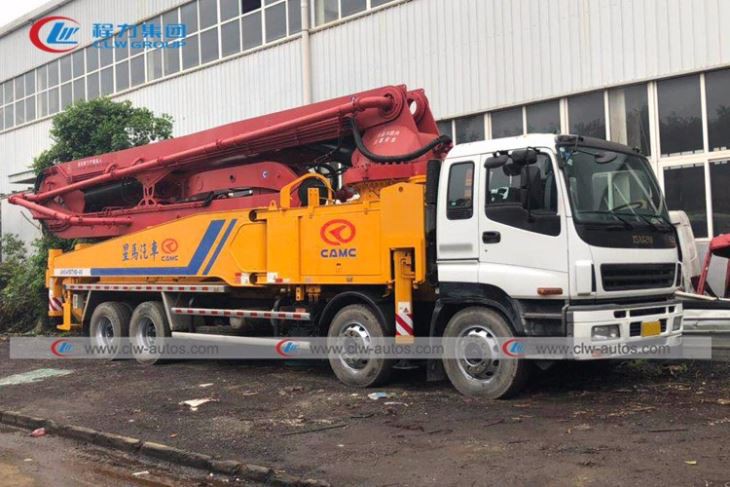

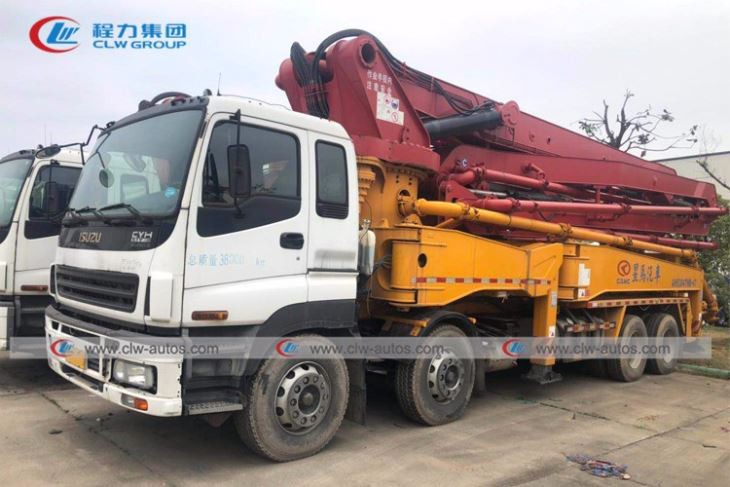

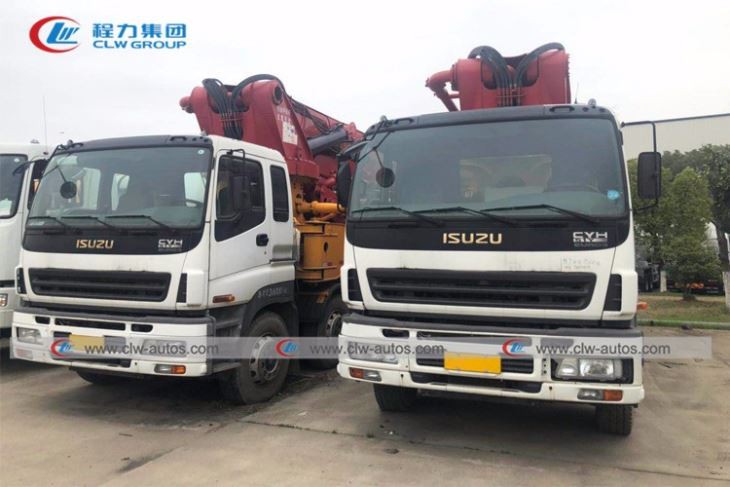

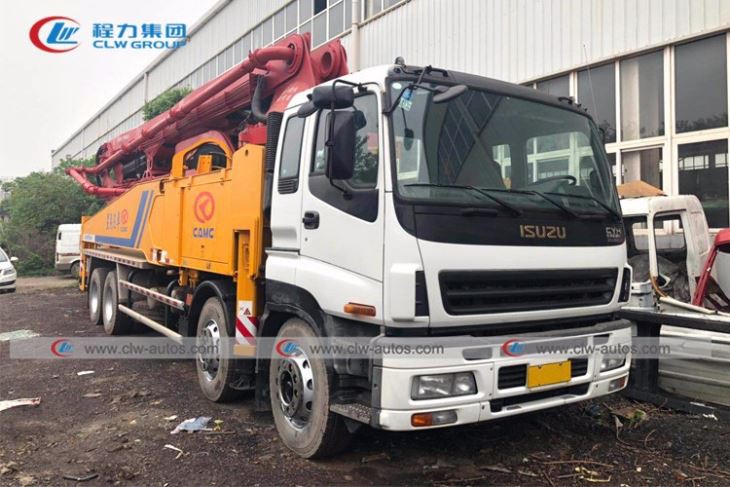

Reference picture
Specification
Pumping system | Theoretical maximum delivery(m3/h) | 150 |
The maximum exit pressure of concrete (MPa) | 7.8 | |
Rated working pressure (MPa) | 35 | |
Pumping frequency (min-1) | 24 | |
Hopper volume (L) | 550 | |
Feeding height (mm) | 1450 | |
Boom and structure | structure type | CLW-47 |
Maximum cloth height (m) | 46.6 | |
Leg span (front × rear × portrait)(mm) | 9960×9060×9460 | |
Chassis and vehicle | Chassis model | CYH51Y |
Driving method | 8×4, left steering | |
Wheelbase mm | 1850+4605+1310 | |
engine model | 6WF1D | |
Maximum engine power kW/(r/min) | 287/1800 | |
Maximum engine torque N.m/(r/min) | 1863/1100 | |
Engine capacity (cc) | 14.256 | |
Fuel type | Diesel | |
Fuel tank capacity (L) | 400 | |
Exhaust emission standards | EURO III | |
Maximum vehicle speed (km/h) | 89 | |
Mass of completed vehicle (kg) | 3900 | |
Overall dimensions (length × width × height) (mm) | 12750×2490×3990 |
