Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20m telescopic boom skylift truck in China. If you're going to buy high quality 20m telescopic boom skylift truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. The leg can manipulate and linkage alone;
2. The upper leg and operation between the interlock device, leg did not open upper cannot perform all operations;
3. The operating system: with two work station, 360 ° rotating turntable in all directions, working bucket load rating of 200 kg. Job hopper installation ignition control; And options of wireless remote control; With operation can choose infinitely adjustable-speed; Lower have security emergency system;
Product Specification
|
|
|||
|
Overall dimensions |
7410mm x 2210mm x 3250mm |
||
|
Gross vehicle weight |
6840kg |
||
|
Wheel base |
3800 mm |
||
|
F/R track base |
1110/1990mm |
||
|
Approach/departure angle |
21/12° |
||
|
Cabin |
Dongfeng Single Row Cabin, 2 Passenger Allowed, |
||
|
Engine |
Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling |
||
|
Displacement/ HP |
3760CC / 141HP |
||
|
Max speed |
90 km/h |
||
|
Tire specification |
7.60 - 16, 6 Pieces with 1 Spare |
||
|
Traction system |
4x2 |
||
|
Number of axles |
2 |
||
|
Bucket |
Max. work height: 23 meters |
||
|
Max. bucket floor height: 22meters |
|||
|
Max. work radius: 10 meters |
|||
|
Rated load: 200kg |
|||
|
Dimension (L×W×H) 1000×650×1200 (mm) |
|||
|
Boom |
Type Four-section telescopic synchronously |
||
|
Rotation angle 360° |
|||
|
Elevation angle -12°~80° |
|||
|
Outriggers |
Type: H |
||
|
4000x4000mm |
|||
|
Major Feature |
Outrigger |
computer controlled system, one key to stretch out & balance the level of the truck |
|
|
Balancing |
Automatically Balancing system with Tilting Angle Sensor & level detector |
||
|
Getting on & off Lock |
Computer control system, |
||
|
Telescopic Arm Control |
Controlling system in the bucket, with manual control. |
||
|
Platform Control system |
LED Screen Display with Button control |
||
|
Range Control |
Large Angle Sensor to Detect the Arm Length & Rotation Range |
||
|
Walkie-Talkie |
Included |
||

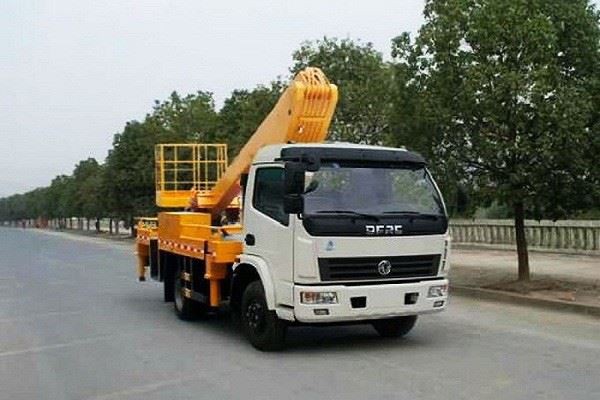

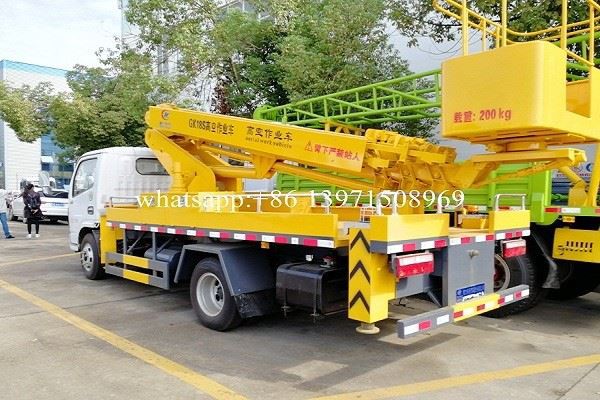

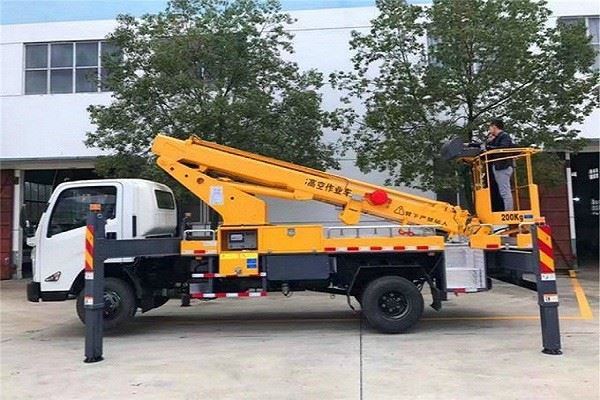

Reference Photos
Our Advantage
a. The hydraulic and electric control system are equipped with various limiting device and emergency engine flame out device in operation failure, automatically cut off the power supply or emergency stop engine failure, stop dangerous actions, to ensure safety.
b. 4 legs are H type distribution, can be individually adjusted to achieve the vehicle on the road leveling. The driving intensity and distribution of the location of the optimization, to ensure the stability of the entire operating vehicle in the entire operating surface, will not be turned over.
c. Vehicle warning and operation notice nameplate complete, the installation position of eye-catching, firmly.
d. The entire hydraulic system and electrical system of key parts procurement from the well-known enterprises at home and abroad, to ensure the reliability and service life1.The hydraulic and electric control system are equipped with various limiting device and emergency engine flame out device in operation failure, automatically cut off the power supply or emergency stop engine failure, stop dangerous actions, to ensure safety.
2. 4 legs are H type distribution, can be individually adjusted to achieve the vehicle on the road leveling. The driving intensity and distribution of the location of the optimization, to ensure the stability of the entire operating vehicle in the entire operating surface, will not be turned over.
3. Vehicle warning and operation notice nameplate complete, the installation position of eye-catching, firmly.
4. The entire hydraulic system and electrical system of key parts procurement from the well-known enterprises at home and abroad, to ensure the reliability and service life
Successful Case
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
1. Excellent services during your whole purchasing process.
2. 24 hours on line for your urgent demand.
3. Positive response to your need and solutions to your problems.
4. Engineers available to service machinery overseas.
FAQ
Q1: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q2: How about the delivery time?
A: Commonly, it takes 25~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
Q3. What is the packaging?
A: bulk ship, ro-ro ship, container ship. Professional, economic and safe methods and measures to package trucks or equipments.
