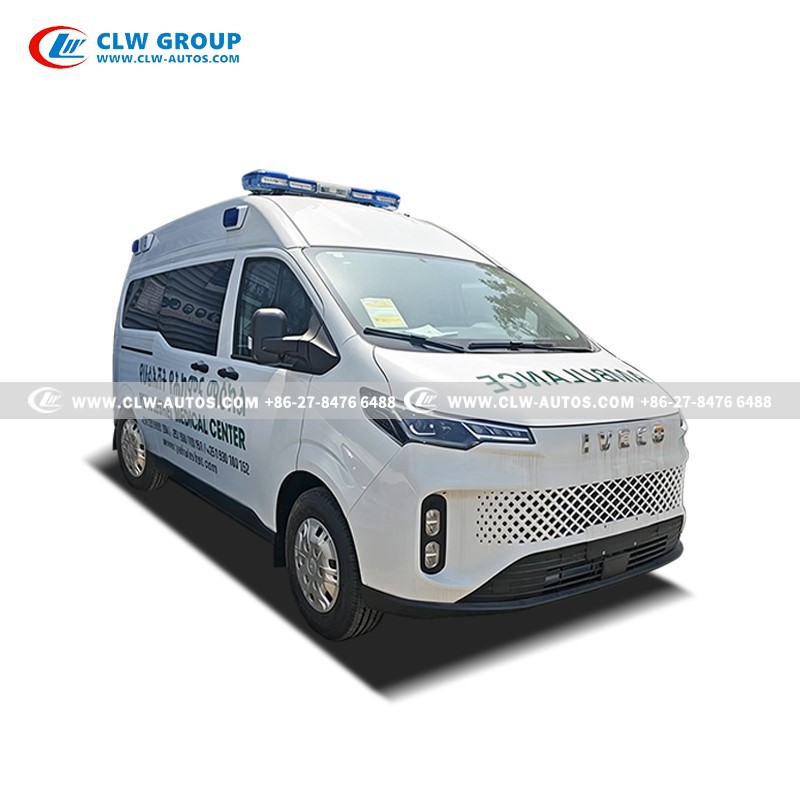

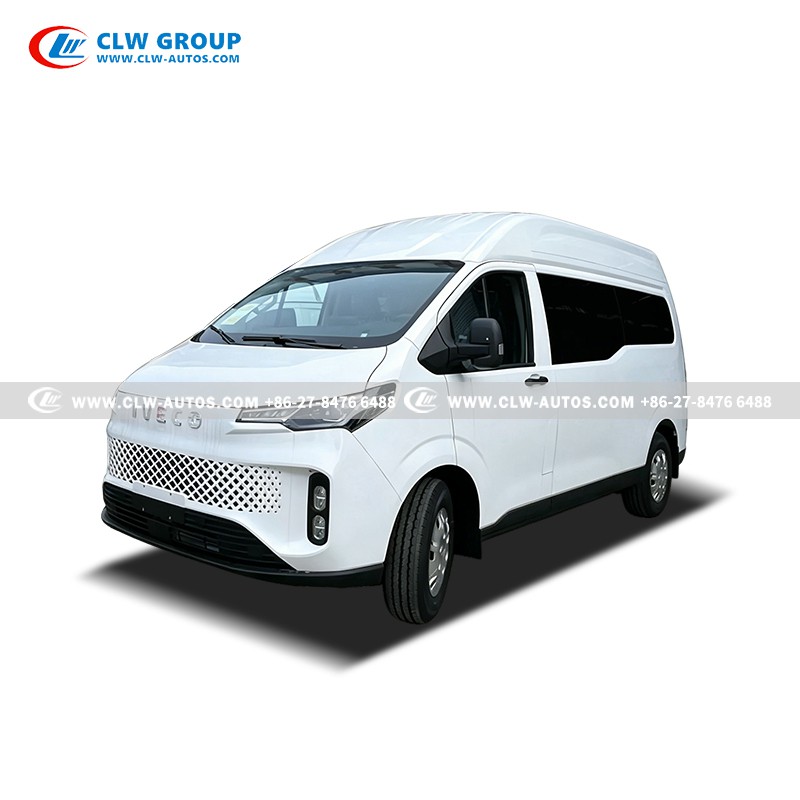

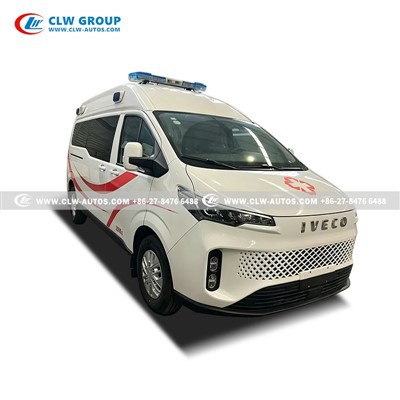

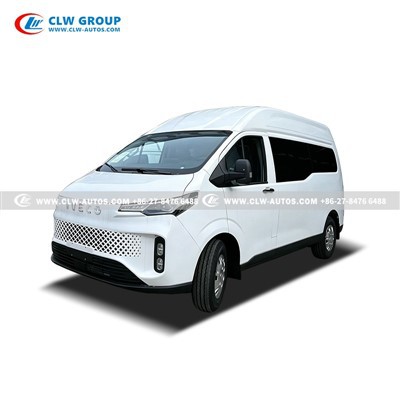

IVECO Pure EV Ambulance
Truck brand: IVECO Juxing Model
Battery: Lithium iron phosphate battery (capacity 88.8 kWh)
Motor: Rated 70KW/Peak 150KW/204PS
Tire: 215/75R 16LT, 6+1pcs
Gross weight: 3495kg
Dimension: 5364*2030*2540 (LxWxH)
Wheelbase: 3366mm
Max speed: 130km/h
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of iveco pure ev ambulance in China. If you're going to buy high quality iveco pure ev ambulance, welcome to get more information from our factory. For price consultation, contact us.
Pure Electric IVECO Juxing Model Economical, Environmentally Friendly Ward-type ICU Ambulance
Products Description
The Iveco Juxing Pure Electric Monitoring Ambulance is professionally refitted based on the long-wheelbase Iveco Juxing chassis, integrating new energy power technology, European automotive safety standards, and mature domestic medical vehicle modification craftsmanship. As an eco-friendly and high-reliability emergency medical vehicle, this electric ambulance balances powerful dynamic performance, comprehensive active & passive safety configurations, and humanized medical cabin layout. It is widely applicable to tertiary hospitals, community medical centers, emergency stations, and medical transfer institutions, perfectly catering to urban daily first aid and inter-hospital patient transportation missions.

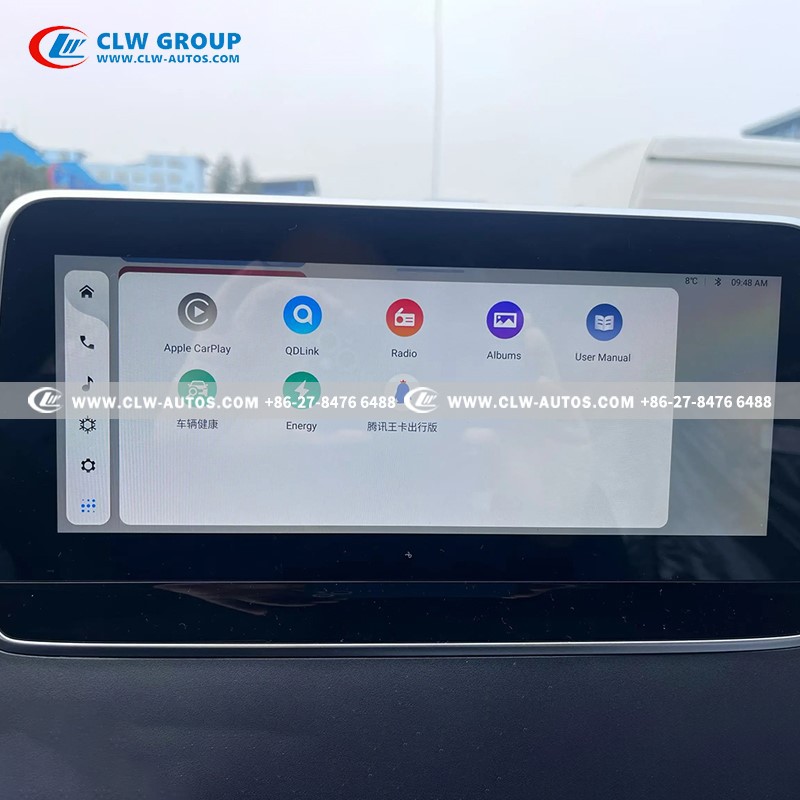

The Iveco Juxing electric ambulance is equipped with a full digital instrument cluster and a 10-inch infotainment touchscreen, supporting Apple CarPlay and real-time vehicle health monitoring.
Techinical Specification
| Technical Specification of EV IVECO Ambuulance | ||
| 1. Chassis Part | ||
|
Condition |
IVECO Electrical 4X2, factory brand new |
|
|
Wheelbase |
3366 mm |
|
|
Dimension(approximately) |
5364*2030*2540mm |
|
|
Gross vehicle weight |
3495 kg |
|
|
Cab |
IVECO long axle cabin, rhd |
|
|
Motor |
Motor model |
TZ202XSSQC |
|
Battery |
Battery Type |
Lithium iron phosphate battery |
|
Battery thermal management |
liquid heat |
|
|
Drive type |
Front-mounted motor, front-wheel drive |
|
|
Approach/Departure Angle |
18º/21º |
|
|
Max driving speed |
130km/h |
|
|
Minimum ground clearance |
170mm |
|
|
Braking type |
Front and rear disc brakes |
|
|
Tire |
215/75R16RT (alloy wheels), tire pressure monitoring |
|
|
2. Upperstructure Configuration of ICU Ambulance |
||||
|
Medical alert appearance |
Truck body structure |
Steel reinforced frame construction |
||
|
The swing door on the right side, double-opening tailgate structure at the rear end. |
||||
|
Appearance |
All white, Red Cross logo at sides and rear door, with colorful strips all round, designed as customer request. |
|||
|
2/3 frosted cellophane to effectively protect patient privacy |
||||
|
Medical cabin rescue facilities
|
Rescue system |
--The all-aluminum alloy automatic loading stretcher --An aluminum alloy track-type IV stand, including two folding hooks, is installed on the top of the medical cabin. |
||
|
Medical oxygen control system |
Two 10L steel oxygen cylinders, with nominal pressure of 15MPA |
|||
|
A ventilator interface and a wall oxygen inhaler, 0-15L/min |
||||
|
Medical electrical system |
Inverter |
1000W vehicle-mounted sine wave |
||
|
220V /12V multifunctional socket |
||||
|
Sterilizing lamp |
Intelligent timed ultraviolet disinfection |
|||
|
Interior configuration |
Cabinet assembly |
1 set of long equipment cabinet made of new environmentally friendly materials, with storage spaces. |
||
|
One set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2*10L oxygen cylinders |
||||
|
Medical floor |
Made of new lightweight materials, waterproof, mildew-proof, antibacterial, and easy to clean. |
|||
|
Fire extinguisher |
One fire extinguisher |
|||
|
Safety handrail |
A long handrail installed |
|||
|
Walkie-talkies |
One hands-free microphone is installed |
|||
|
Waste bin |
Equipped with one covered, foot-operated waste bin. |
|||
Reference Pictures

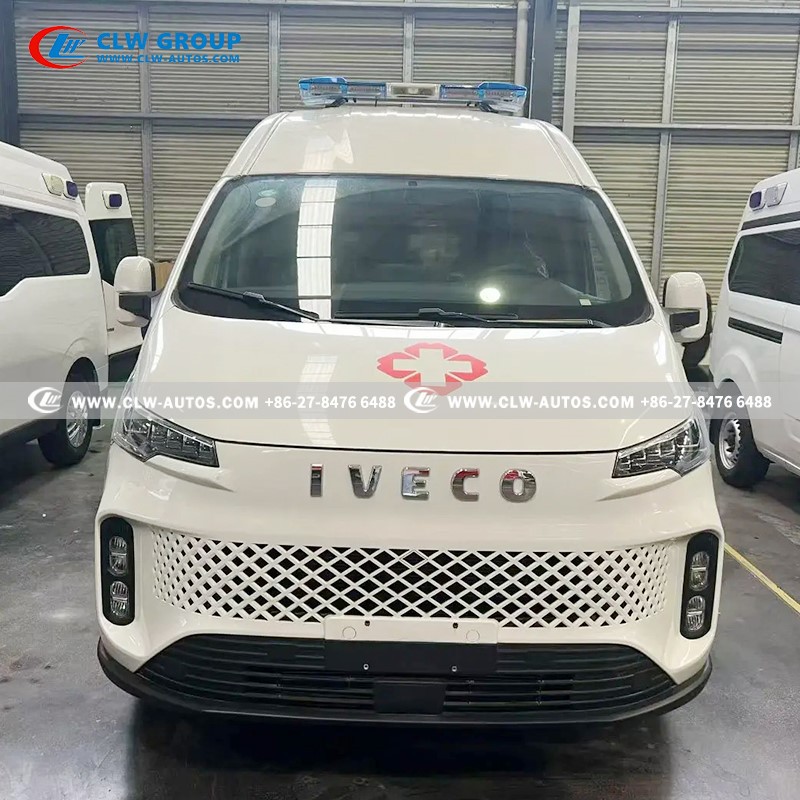

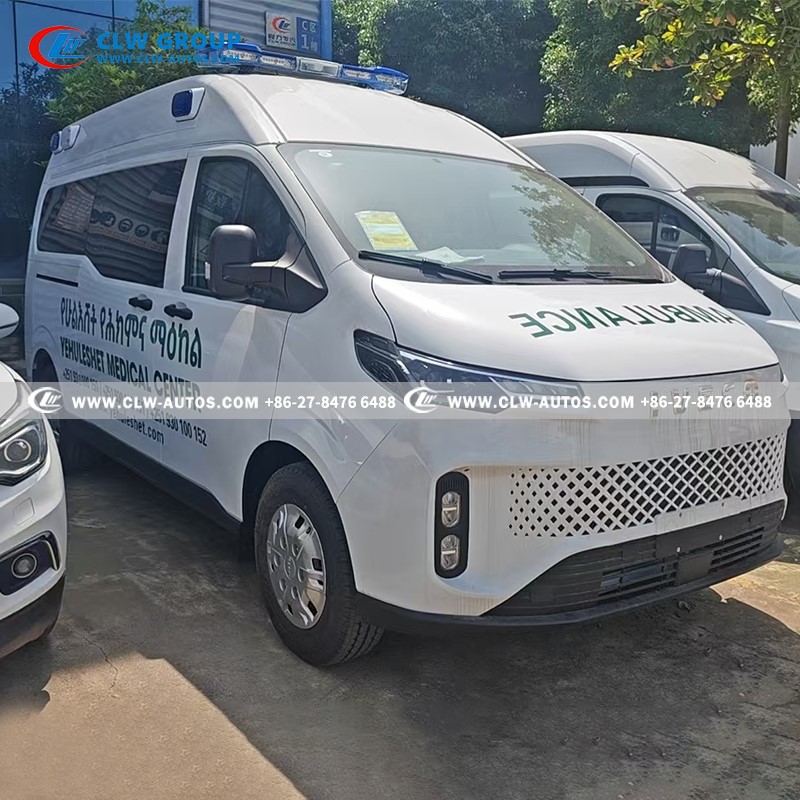

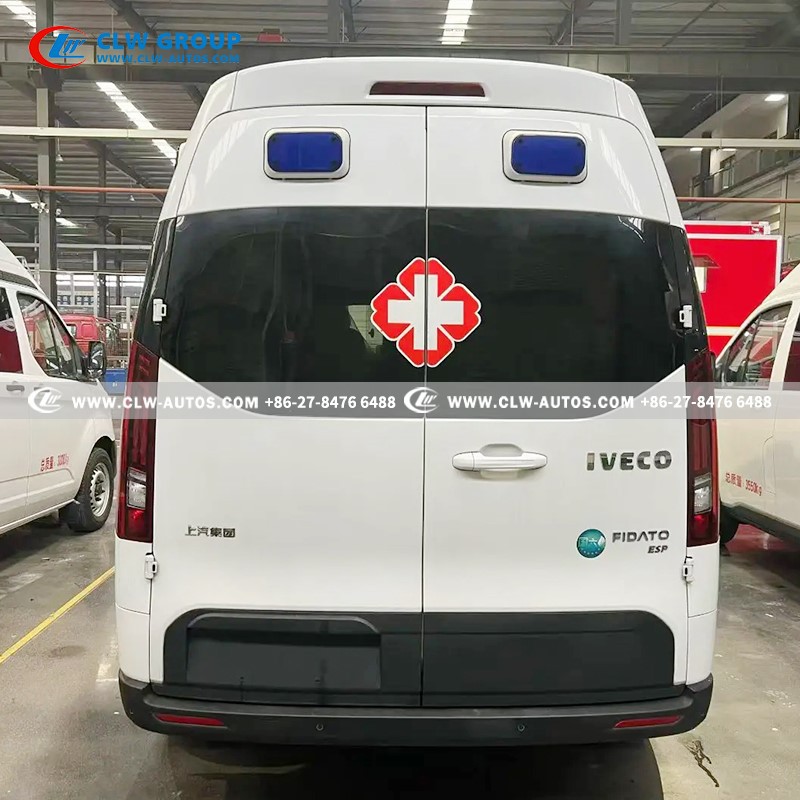

Chassis & Exterior Structure
Built with a long-wheelbase commercial vehicle chassis, the ambulance adopts an aluminum alloy wheel hub structure matched with wear-resistant medical-grade tires.
Equipped with a real-time tire pressure monitoring system, it ensures stable driving on urban roads and suburban pavements.
The 170mm minimum ground clearance provides excellent trafficability, adapting to diverse complex road conditions. The low-center-of-gravity body effectively reduces body tilt during driving, improving driving stability and riding comfort for critically ill patients.
The independent enclosed medical cabin is separated from the driving cab to avoid mutual interference between drivers and medical staff.
The cabin is equipped with professional medical isolation materials, antibacterial and easy-to-clean interior panels, meeting medical sanitation standards.
Reserved installation spaces for medical equipment such as patient stretchers, vital sign monitors, infusion racks, and oxygen supply systems.
The reasonable walking space inside the cabin allows medical personnel to perform first aid operations including vital sign monitoring, drug infusion, and emergency resuscitation during transportation.
Superior Active Safety Configuration
To ensure driving safety under complex road conditions, this Iveco electric ambulance is equipped with a full set of intelligent driving assistance systems.
The integrated safety package includes ABS anti-lock braking system, ESP electronic stability program, EBA emergency brake assist, and HHC hill-start hold control. Additionally, it supports automatic emergency braking (AEB), lane departure warning with lane keeping assist, and blind spot monitoring system (BSD+BOW).
The built-in fatigue driving monitoring system real-timely detects driver status to avoid driving risks caused by fatigue. For optimal driving visibility, it adopts automatic induction headlights, LED rear position lamps, and daytime running lights, ensuring safe travel day and night.
High-Efficiency Pure Electric Power System
Powered by a high-performance permanent magnet synchronous motor (Model: TZ202XSSQC), the vehicle delivers a rated power of 70kW and a peak power of 150kW (204PS).
The matched high-capacity lithium iron phosphate battery (88.8kWh) supports dual charging modes of DC fast charging and AC slow charging, equipped with an 11kW built-in charger.
The pure electric power system realizes zero emissions, low noise, and low operation costs, complying with global environmental protection policies for medical transportation vehicles.
Stretcher & Patient Handling:
Equipped with an automatic loading stretcher and a secondary scoop stretcher, enabling safe and efficient patient transfer.
Power Supply:
1000–1500W inverter with standard 220V power outlets, supporting continuous operation of critical medical devices such as defibrillators, portable ventilators, and suction pumps.

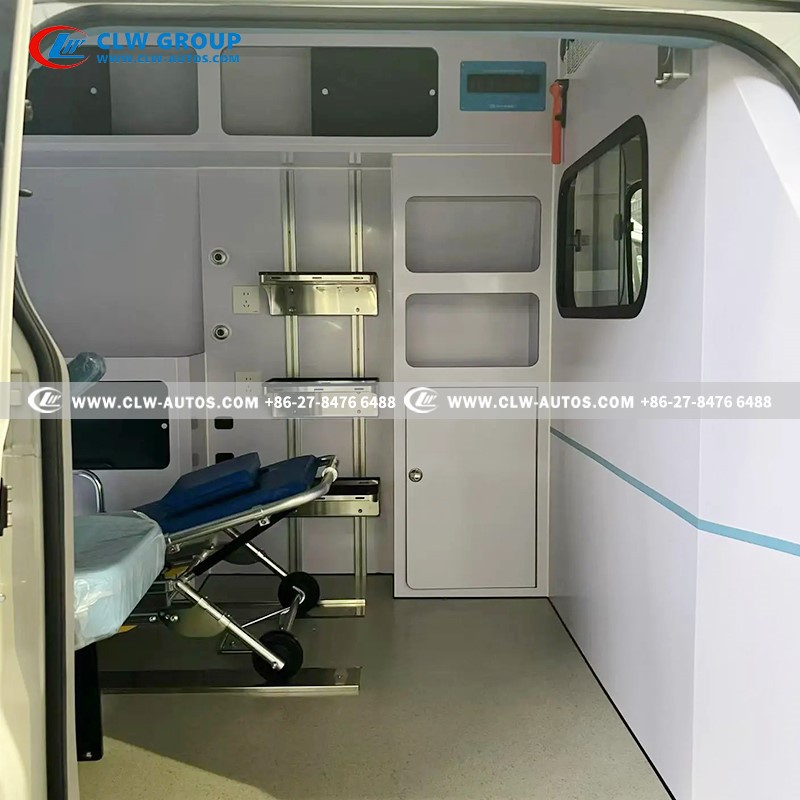

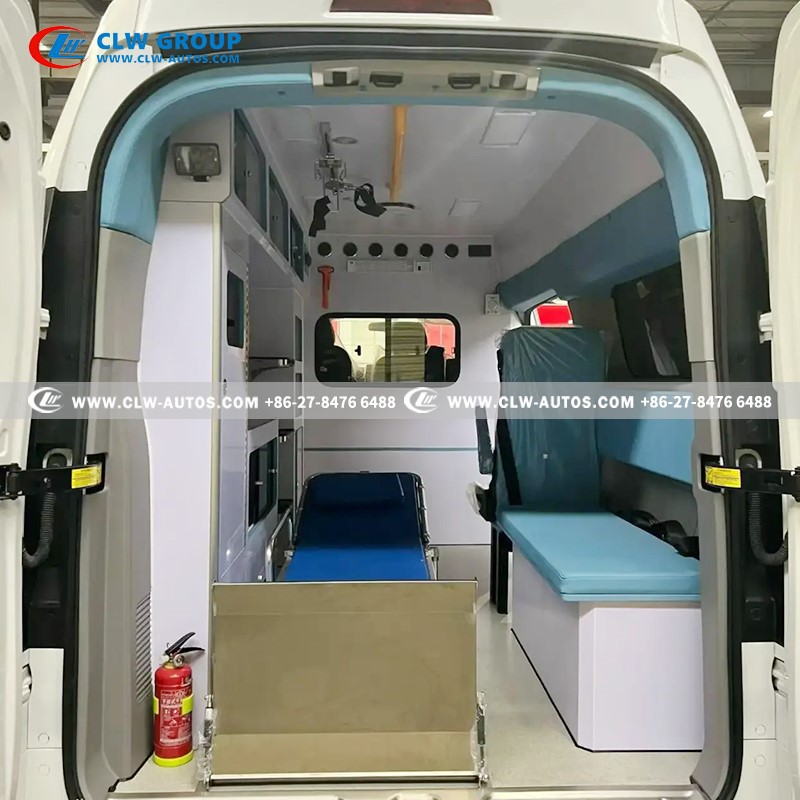

Humanized & Spacious Medical Cabin
Refitted with leading domestic medical modification technology, the medical cabin features a reasonable spatial layout and ample internal space.
The cabin is designed to meet professional medical rescue needs, reserving installation positions for first aid equipment, monitoring instruments, medical oxygen systems, and patient stretchers.
The reasonable space partitioning ensures smooth operation for medical staff during on-site rescue and patient transfer, providing a comfortable and professional medical treatment environment for patients.

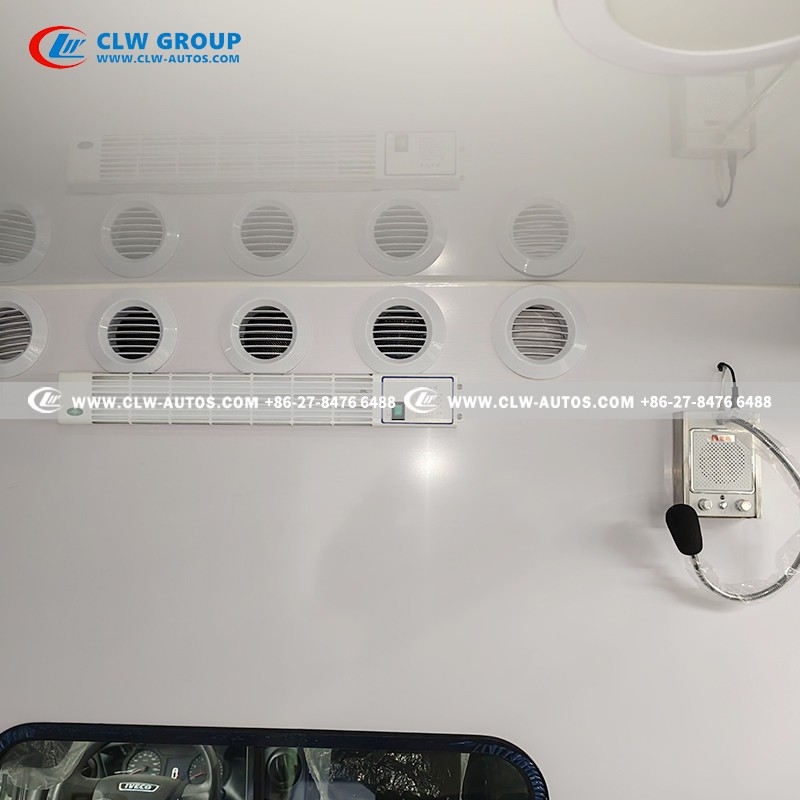

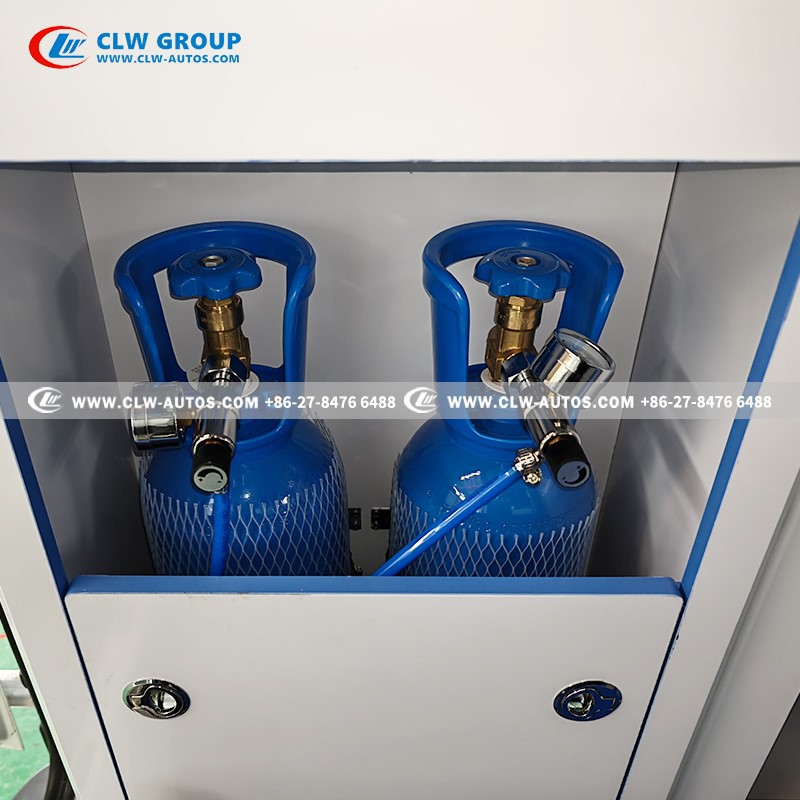

10L Oxygen Clinders *2 Intercom system on the middle partition wall

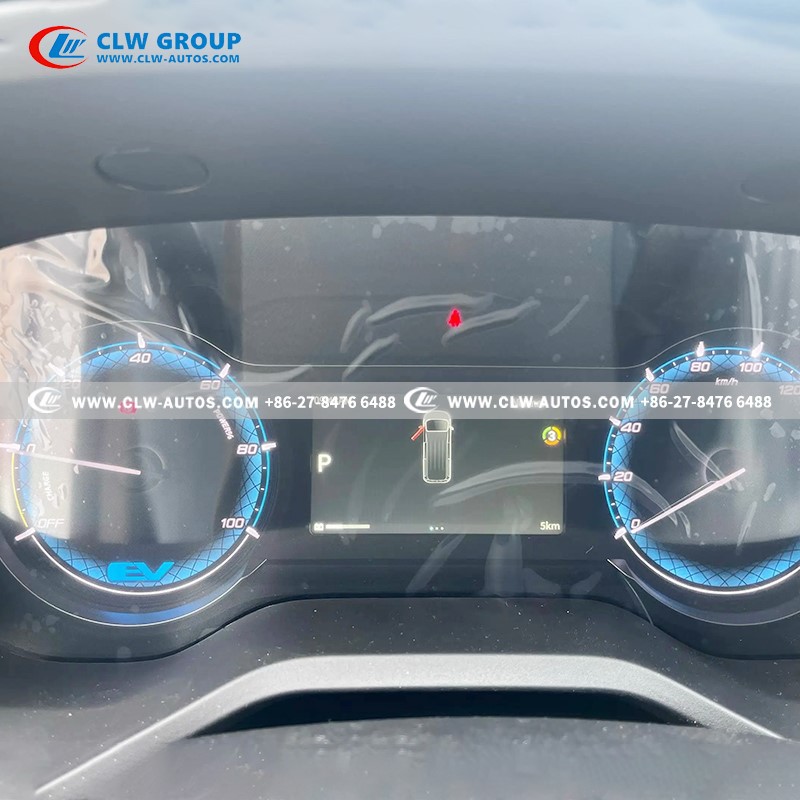

Dashboard panel of EV IVECO Ambulance Center console display
Our Official Website--Factory Real Shot Video For You
Customization and ambulance type options
We offer three primary ambulance configurations to match your operational requirements, with full customization of interior layouts, equipment packages, and exterior branding:
- Transport Ambulance: The most cost-effective option, designed for non-emergency patient transfers and basic medical transport. Ideal for routine hospital-to-hospital or dialysis center trips.
- Monitoring (ICU) Ambulance: A fully equipped advanced life support (ALS) platform, featuring expanded medical storage, enhanced monitoring capabilities, and a dedicated workspace for on-board medical interventions. Suitable for critical care transfers and emergency response.
- Negative Pressure Ambulance: Purpose-built for the safe transport of infectious patients, with a specialized negative pressure system that prevents contaminated air from escaping the medical cabin. Essential for epidemic response and high-risk patient isolation.
Our team can tailor every detail to your specifications, including custom exterior livery, logos, and specialized medical equipment integration for government tenders or unique operational needs.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Ready to Invest in a Sewer Cleaner Built to Last?
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Contact us now for a detailed quotation and to discuss custom configuration options!
We are ready to provide you with a high-quality, reliable solution and comprehensive support.
The Iveco Juxing Pure Electric Monitoring Ambulance integrates reliable pure electric power, industrial-leading active safety technology, European-standard high-strength body, and professional medical modification design.
It features strong power, stable performance, comprehensive safety protection, and flexible application scenarios.
As an economical, environmentally friendly, and high-performance emergency medical vehicle, it is an ideal transportation equipment for modern medical institutions to upgrade emergency rescue systems, widely serving urban first aid and patient transfer businesses.
