IVECO Dual Rear Tires Ambulance
Truck brand: IVECO OUSHENG Model
Engine: Diesel engine, F1AE8481G, 146hp, Euro 6
Gear box: Manual type, 6 forward speed gears
Tire: 195/75R 16LT, 6+1pcs
Oil tank volume: 100L fuel tank
Dimension: 5495*2011*2776mm (LxWxH)
Wheelbase: 3300mm
Max speed: 130km/h
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of iveco dual rear tires ambulance in China. If you're going to buy high quality iveco dual rear tires ambulance, welcome to get more information from our factory. For price consultation, contact us.

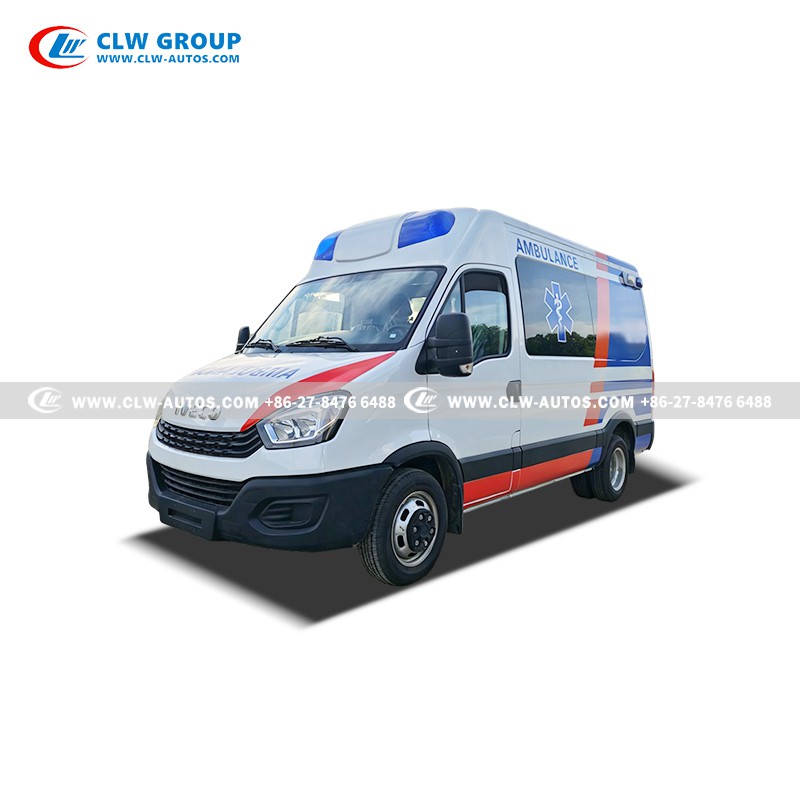

IVECO Ousheng Model Double Rear-tires Ward-type ICU Ambulance
Products Description
Built on the proven IVECO Ousheng (Daily) chassis, this dual rear-wheel ambulance is engineered to deliver exceptional performance, safety, and flexibility for emergency medical services worldwide. Designed for both urban and challenging operational environments, it combines robust European engineering with fully customizable medical configurations to meet the diverse needs of hospitals, EMS teams, and humanitarian organizations.
Core Chassis & Powertrain Performance
At the heart of this ambulance is a Euro 6-compliant diesel powertrain, built for reliability and efficiency even in harsh conditions:
- Engine: F1AE8481G 1.994L diesel engine, delivering 107 kW (146 hp) of power, ensuring strong acceleration and consistent performance for emergency response.
- Transmission: 6-speed manual gearbox, offering precise control and smooth shifting for confident operation in all driving scenarios.
- Top Speed: 130 km/h, enabling rapid response to time-critical emergencies.
- Dimensions: 5495 × 2011 × 2776 mm (L×W×H), with a 3300 mm wheelbase, balancing compact maneuverability with spacious medical cabin volume.
- Chassis & Handling: Dual rear-wheel setup with 195/75R 16LT tires (6 tires + 1 spare) enhances stability, load capacity, and traction, while front/rear track of 1742/1538 mm ensures confident handling on uneven roads.
- Fuel Capacity: 100L fuel tank supports long-distance missions without frequent refueling stops, ideal for rural or cross-regional operations.
Techinical Specification
|
Technical Specification |
||||
|
1. Chassis Part |
||||
|
Driving type |
4X2 |
|||
|
Passengers |
7-8 people (including patients) |
|||
|
Gross weight |
4100kg |
|||
|
Wheelbase |
3300mm |
|||
| Dimension | 549*2011*2776 mm (L*W*H) | |||
|
Oil tank volume |
100L |
|||
|
Driving type |
Front-engine,rear-wheel-drive layout |
|||
|
Engine |
Engine model |
F1AE8481G, 1.994L |
||
|
Fuel type |
Diesel |
|||
|
Horsepower |
107KW, 146HP |
|||
|
Emission standard |
National Ⅵ |
|||
|
Transmission |
Left handing driving, Manual , 6 forward gears and 1 reverse |
|||
|
Tyre |
195/75R 16LT, 6+1pieces |
|||
| Max. speed | 130km/h | |||
| Front/rear track | 1742/ 1538mm | |||
|
Remarks |
Power windows, remote central locking, large central screen, reversing camera, multi-function steering wheel, cruise control |
|||
|
2. Upperstructure Configuration of ICU Ambulance |
||||
|
Medical alert appearance |
Truck body structure |
Steel reinforced frame construction |
||
|

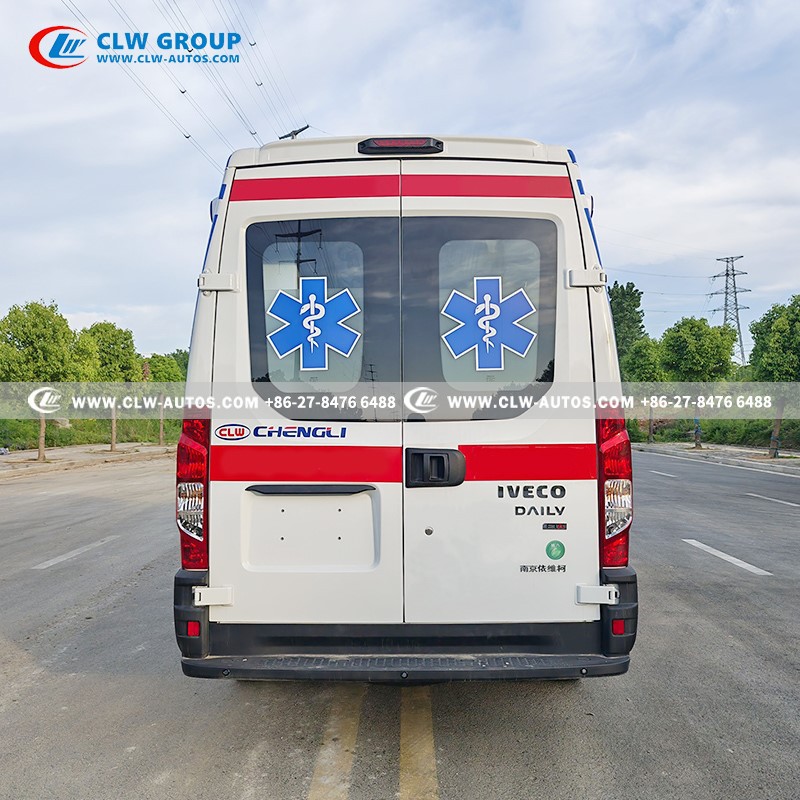

The swing door on the right side, double-opening tailgate structure at the rear end. |
||||
|
Appearance |
All white, Red Cross logo at sides and rear door, with colorful strips all round, designed as customer request. |
|||
|
2/3 frosted cellophane to effectively protect patient privacy |
||||
|
Medical cabin rescue facilities
|
Rescue system |
--The all-aluminum alloy automatic loading stretcher --An aluminum alloy track-type IV stand, including two folding hooks, is installed on the top of the medical cabin. |
||
|
Medical oxygen control system |
Two 10L steel oxygen cylinders, with nominal pressure of 15MPA |
|||
|
A ventilator interface and a wall oxygen inhaler, 0-15L/min |
||||
|
Medical electrical system |
Inverter |
1000W vehicle-mounted sine wave |
||
|
220V /12V multifunctional socket |
||||
|
Sterilizing lamp |
Intelligent timed ultraviolet disinfection |
|||
|
Interior configuration |
Cabinet assembly |
1 set of long equipment cabinet made of new environmentally friendly materials, with storage spaces. |
||
|
One set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2*10L oxygen cylinders |
||||
|
Medical floor |
Made of new lightweight materials, waterproof, mildew-proof, antibacterial, and easy to clean. |
|||
|
Fire extinguisher |
One fire extinguisher |
|||
|
Safety handrail |
A long handrail installed |
|||
|
Walkie-talkies |
One hands-free microphone is installed |
|||
|
Waste bin |
Equipped with one covered, foot-operated waste bin. |
|||
Reference Pictures
Proven IVECO Reliability:
Built on the globally trusted IVECO Daily chassis, renowned for durability and low maintenance costs in demanding service environments.
Superior Stability & Load Capacity:
The dual rear-wheel configuration provides enhanced stability and payload capacity, critical for carrying heavy medical equipment and patients safely.
Regulatory Compliance:
Euro 6 emissions certification ensures compatibility with modern environmental standards, supporting import and operation in most international markets.
Global Support & Spare Parts:
With widespread IVECO service networks, spare parts availability, and our dedicated export support team, you can count on reliable after- sales service wherever you operate.
Independent Climate Control:
Separate heating/cooling systems for the driver's cab and medical cabin ensure comfort for both the crew and patients, regardless of external weather conditions.
Oxygen Supply System:
2 × 10L medical oxygen cylinders with hidden pipeline distribution, providing a continuous oxygen supply for patients during transit.
Ventilation & Disinfection:
A top-mounted bidirectional ventilation fan ensures fresh air circulation, while UV disinfection light eliminates harmful pathogens, maintaining a sterile environment.
Advanced Lighting System:
Complete interior lighting setup including 4 ceiling lamps, infusion spotlights, and rear cabin work lights, supporting clear visibility for medical procedures day or night.
Stretcher & Patient Handling:
Equipped with an automatic loading stretcher and a secondary scoop stretcher, enabling safe and efficient patient transfer.
Power Supply:
1000–1500W inverter with standard 220V power outlets, supporting continuous operation of critical medical devices such as defibrillators, portable ventilators, and suction pumps.
Storage & Organization:
Purpose-built medical cabinets, lockers, and oxygen cylinder storage compartments keep equipment secure and easily accessible during emergencies.
Communication & Isolation:
A built-in two-way intercom system enables seamless communication between the driver and medical team, while a full partition wall creates a fully isolated medical cabin, ensuring patient privacy and reducing distractions.
Safety Essentials:
Standard equipment includes a fire extinguisher, medical waste bin, overhead safety handrails, and emergency hammers for added crew and patient protection.
10L Oxygen Clinders *2 Intercom system on the middle partition wall

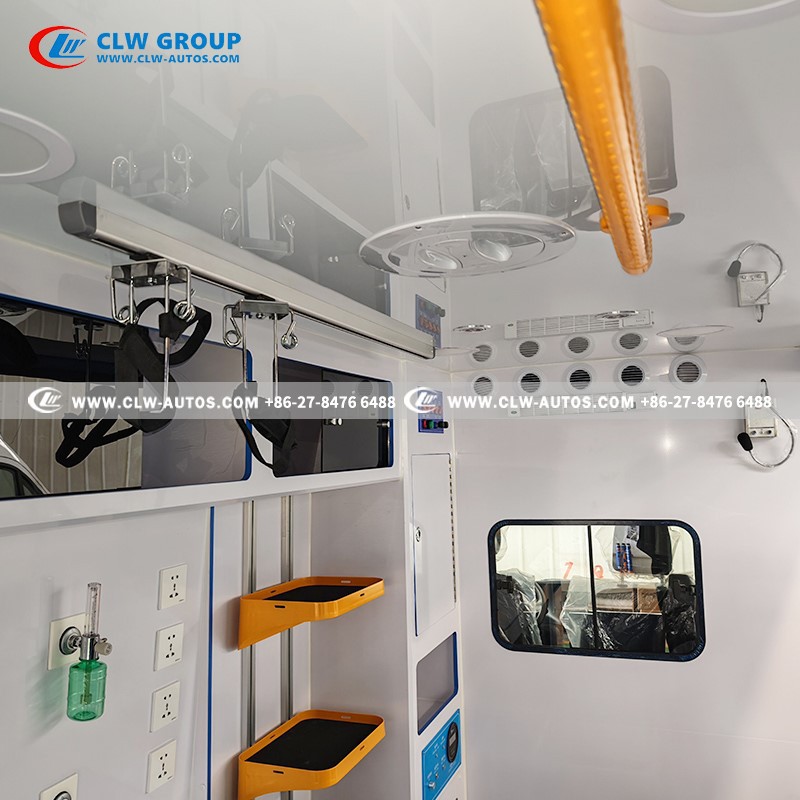

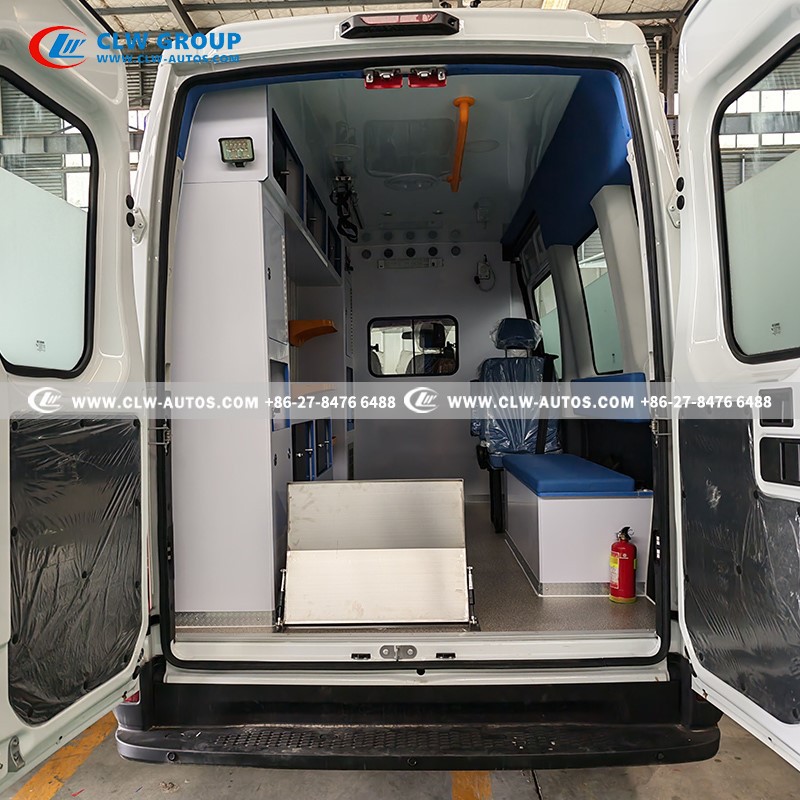

IV stand and two hooks Interior design of ICU/Ward-type Ambulance
Our Official Website--Factory Real Shot Video For You
Customization and ambulance type options
We offer three primary ambulance configurations to match your operational requirements, with full customization of interior layouts, equipment packages, and exterior branding:
- Transport Ambulance: The most cost-effective option, designed for non-emergency patient transfers and basic medical transport. Ideal for routine hospital-to-hospital or dialysis center trips.
- Monitoring (ICU) Ambulance: A fully equipped advanced life support (ALS) platform, featuring expanded medical storage, enhanced monitoring capabilities, and a dedicated workspace for on-board medical interventions. Suitable for critical care transfers and emergency response.
- Negative Pressure Ambulance: Purpose-built for the safe transport of infectious patients, with a specialized negative pressure system that prevents contaminated air from escaping the medical cabin. Essential for epidemic response and high-risk patient isolation.
Our team can tailor every detail to your specifications, including custom exterior livery, logos, and specialized medical equipment integration for government tenders or unique operational needs.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
