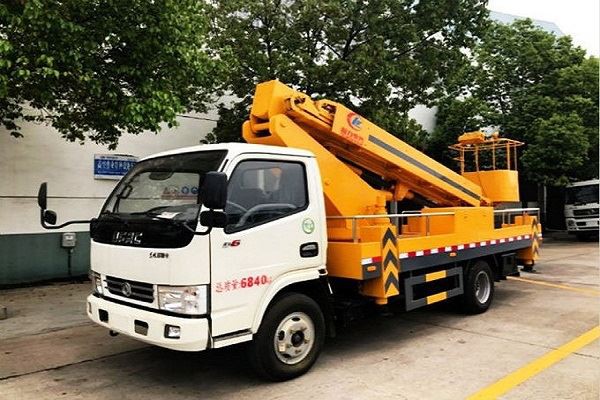

20m Telescopic Boom Skylift Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20m telescopic boom skylift truck in China. If you're going to buy high quality 20m telescopic boom skylift truck, welcome to get more information from our factory. For price consultation, contact us.



Product Description

1. The leg can manipulate and linkage alone;

2. The upper leg and operation between the interlock device, leg did not open upper cannot perform all operations;

3. The operating system: with two work station, 360 ° rotating turntable in all directions, working bucket load rating of 200 kg. Job hopper installation ignition control; And options of wireless remote control; With operation can choose infinitely adjustable-speed; Lower have security emergency system;

Product Specification

20m Telescopic Boom Skylift Truck
Overall dimensions		7410mm x 2210mm x 3250mm
Gross vehicle weight		6840kg
Wheel base		3800 mm
F/R track base		1110/1990mm
Approach/departure angle		21/12°
Cabin		Dongfeng Single Row Cabin, 2 Passenger Allowed,
Engine		Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling
Displacement/ HP		3760CC / 141HP
Max speed		90 km/h
Tire specification		7.60 - 16, 6 Pieces with 1 Spare
Traction system		4x2
Number of axles		2
Bucket		Max. work height: 23 meters
		Max. bucket floor height: 22meters
		Max. work radius: 10 meters
		Rated load: 200kg
		Dimension (L×W×H) 1000×650×1200 (mm)
Boom		Type Four-section telescopic synchronously
		Rotation angle 360°
		Elevation angle -12°~80°
Outriggers		Type: H
		4000x4000mm
Major Feature	Outrigger		computer controlled system, one key to stretch out & balance the level of the truck
	Balancing		Automatically Balancing system with Tilting Angle Sensor & level detector
	Getting on & off Lock		Computer control system,
	Telescopic Arm Control		Controlling system in the bucket, with manual control.
	Platform Control system		LED Screen Display with Button control
	Range Control		Large Angle Sensor to Detect the Arm Length & Rotation Range
	Walkie-Talkie		Included

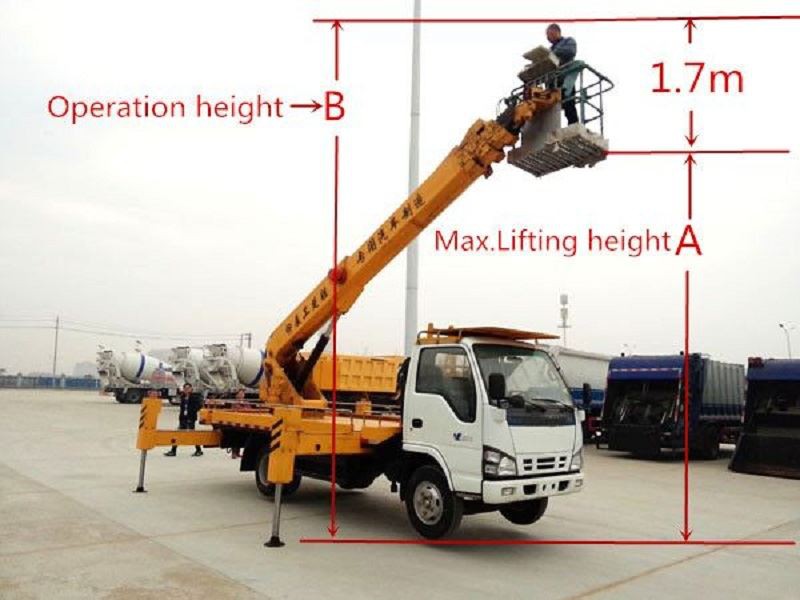

Reference Photos

Our Advantage

a. The hydraulic and electric control system are equipped with various limiting device and emergency engine flame out device in operation failure, automatically cut off the power supply or emergency stop engine failure, stop dangerous actions, to ensure safety.

b. 4 legs are H type distribution, can be individually adjusted to achieve the vehicle on the road leveling. The driving intensity and distribution of the location of the optimization, to ensure the stability of the entire operating vehicle in the entire operating surface, will not be turned over.

c. Vehicle warning and operation notice nameplate complete, the installation position of eye-catching, firmly.

d. The entire hydraulic system and electrical system of key parts procurement from the well-known enterprises at home and abroad, to ensure the reliability and service life1.The hydraulic and electric control system are equipped with various limiting device and emergency engine flame out device in operation failure, automatically cut off the power supply or emergency stop engine failure, stop dangerous actions, to ensure safety.

2. 4 legs are H type distribution, can be individually adjusted to achieve the vehicle on the road leveling. The driving intensity and distribution of the location of the optimization, to ensure the stability of the entire operating vehicle in the entire operating surface, will not be turned over.

3. Vehicle warning and operation notice nameplate complete, the installation position of eye-catching, firmly.

4. The entire hydraulic system and electrical system of key parts procurement from the well-known enterprises at home and abroad, to ensure the reliability and service life

Successful Case

Customer Visiting

Overseas Exhibition and After-sales Service

Sales Service

1. Excellent services during your whole purchasing process.

2. 24 hours on line for your urgent demand.

3. Positive response to your need and solutions to your problems.

4. Engineers available to service machinery overseas.

FAQ

Q1: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.

Q2: How about the delivery time?

A: Commonly, it takes 25~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.

Q3. What is the packaging?

A: bulk ship, ro-ro ship, container ship. Professional, economic and safe methods and measures to package trucks or equipments.
