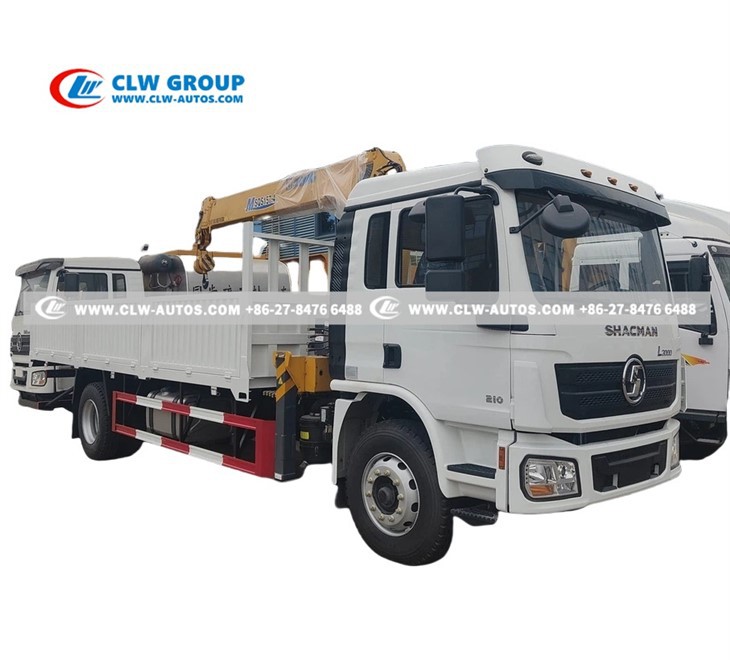

SHACMAN L3000 Truck Crane 5 Tons
Drive Type:4x2
Engine Power:210hp
Cargo Box Loading Capacity:15Tons
Crane Type: Straight Boom Crane
Crane Lifting Capacity:5Tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 truck crane 5 tons in China. If you're going to buy high quality shacman l3000 truck crane 5 tons, welcome to get more information from our factory. For price consultation, contact us.
SHACMAN L3000 5-Ton Crane Truck – Built for Export, Made to Last
1. Product Description
The SHACMAN L3000 5-Ton Crane Truck is a rugged and versatile lifting solution engineered for demanding conditions. Designed with international standards in mind, it combines powerful performance, exceptional durability, and intelligent design to meet the needs of construction, logistics, and heavy-duty service industries worldwide.
2. Key Highlights
Durable L3000 Chassis
Built on SHACMAN's proven medium-duty platform with high structural strength and excellent load-bearing capacity.
5-Ton Hydraulic Crane
Powerful crane with smooth operation, multiple boom configurations, and high lifting precision – ideal for lifting equipment, cargo, and building materials.
Robust Powertrain
Equipped with a high-torque diesel engine (Euro III/IV/V compliant) for strong pulling power and efficient fuel use.
Reinforced Cargo Body
Flatbed design with steel reinforcement and anti-skid surface, ensuring safe and stable loading for various materials.
All-Terrain Capability
Heavy-duty axles and suspension system designed to handle rough roads and harsh environments in developing regions.
Customizable for Export
Available in left-hand or right-hand drive, tropical radiator, enhanced filters, and optional add-ons to suit overseas markets.
Driver-Friendly Cabin
Ergonomic interior with comfortable seating, A/C, and wide visibility – boosting operator comfort during long working hours.
Easy Maintenance
Modular components and wide availability of spare parts simplify upkeep and reduce downtime.
3. Technical Specifications
|
1.Technical Specifications -- SHACMAN L3000 Chassis |
||
|
Chassis Model |
SX5185JS08J571 |
|
|
Driving Model |
4 X 2 |
|
|
Cab |
Single Row Right Hand Driving with air conditioner Power assistance Electric window Central lock |
|
|
Wheel Base |
5700 mm |
|
|
Axle Loading (front/rear) |
5000/11500 kg |
|
|
External Dimensions (L x W x H) |
9000×2500×3500mm |
|
|
Max. driving speed |
90 km/h |
|
|
Engine |
Model |
WP6.210E32 |
|
Type |
Weichai diesel engine 6 cylinders in a line Water cooled,turbocharged,after cooled,cold start |
|
|
Horse Power |
210Hp |
|
|
Max output power |
154KW |
|
|
Emission standard |
Euro II |
|
|
Displacement |
6750 ml |
|
|
Rated Speed |
2600 rpm |
|
|
Gearbox |
Manual type, 6 forward gears & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
10.00R20, 6 pieces with 1 spare tire. |
|
|
2.Technical Specifications -- Crane |
|
|
Crane Model |
SQS125-4 |
|
Max Lifting Capacity (t) |
5 |
|
Max Lifting Moment (t·m) |
12.5 |
|
Boom Shape |
Hexagonal |
|
Boom Sections |
4 (3 Telescopic Sections) |
|
Boom Length (m) |
3.53–12 |
|
Max Working Radius (m) |
12 |
|
Telescopic Speed (m/s) |
0.2 |
|
Boom Elevation Angle (°) |
1–71 |
|
Slewing Speed (r/min) |
2 |
|
Slewing Angle (°) |
360 (Unlimited) |
|
Hoisting Speed (°/s) |
5.8 |
|
Max Lifting Height (m) |
14.2 |
|
Hydraulic Pressure (MPa) |
20 |
|
Hydraulic Tank Volume (L) |
60 |
|
System Flow Rate |
50 L/min |
|
Rated Power (kW) |
19 |
|
Support Leg Type |
H-shaped Outriggers |
|
Outrigger Span (m) |
2.28–4.9 |
|
Safety Device |
Overwinding Alarm |
|
Self Weight (kg) |
1980 |
|
Matching Vehicle |
Truck with ≥5t Payload |
|
Hook Hoisting Speed (m/min) |
7 |
|
Installation Space (mm) |
750 |
|
Steel Wire Rope Diameter |
8 mm |
|
Steel Wire Rope Length |
65 m |
|
3.Crane Lifting Capacity Reference Table |
||||||||
|
Working Radius (m) |
2.5 |
3 |
3.5 |
5 |
5.5 |
6.5 |
10 |
12 |
|
Rated Load (kg) |
5000 |
3850 |
3250 |
1860 |
1780 |
1500 |
550 |
400 |

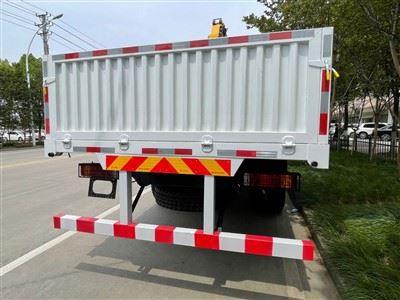

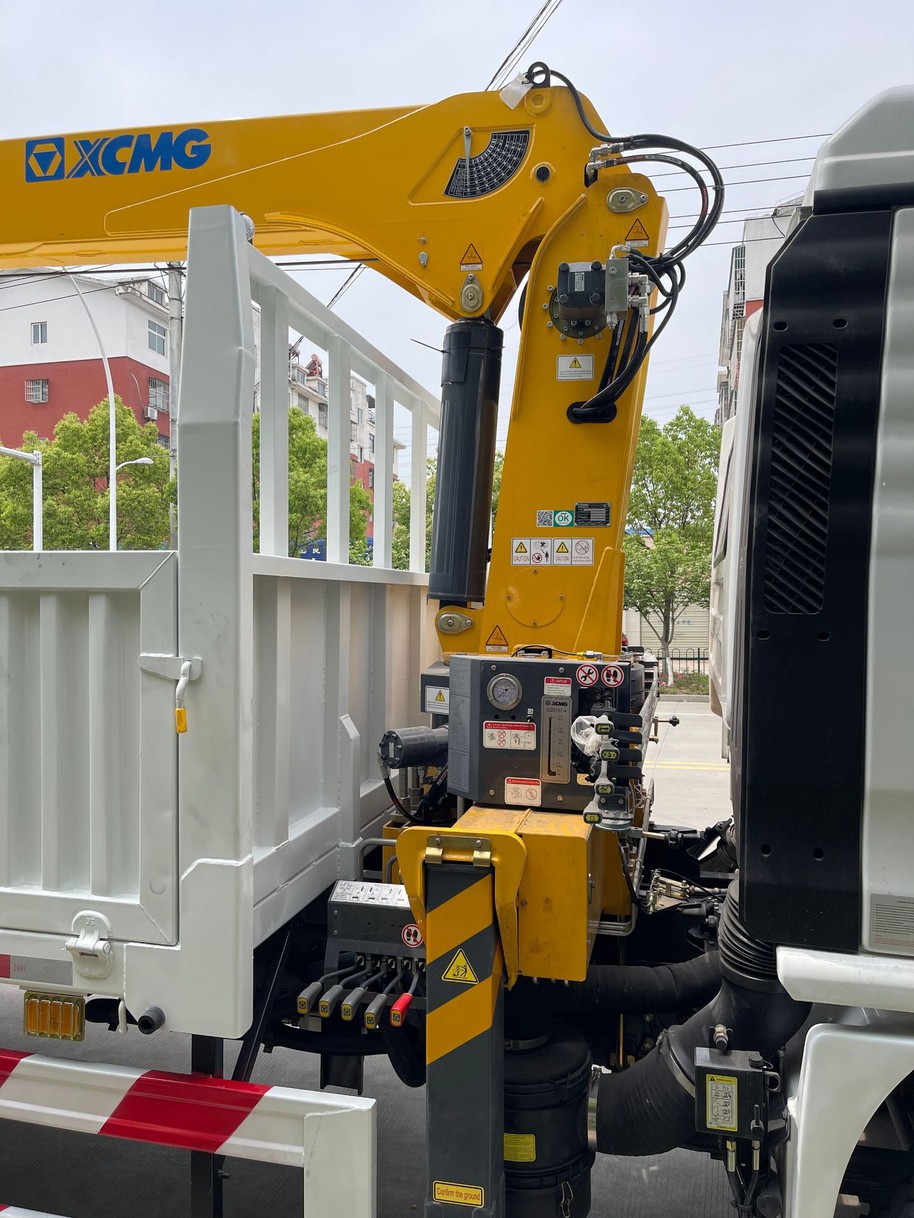

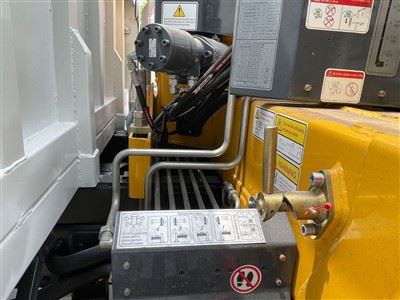

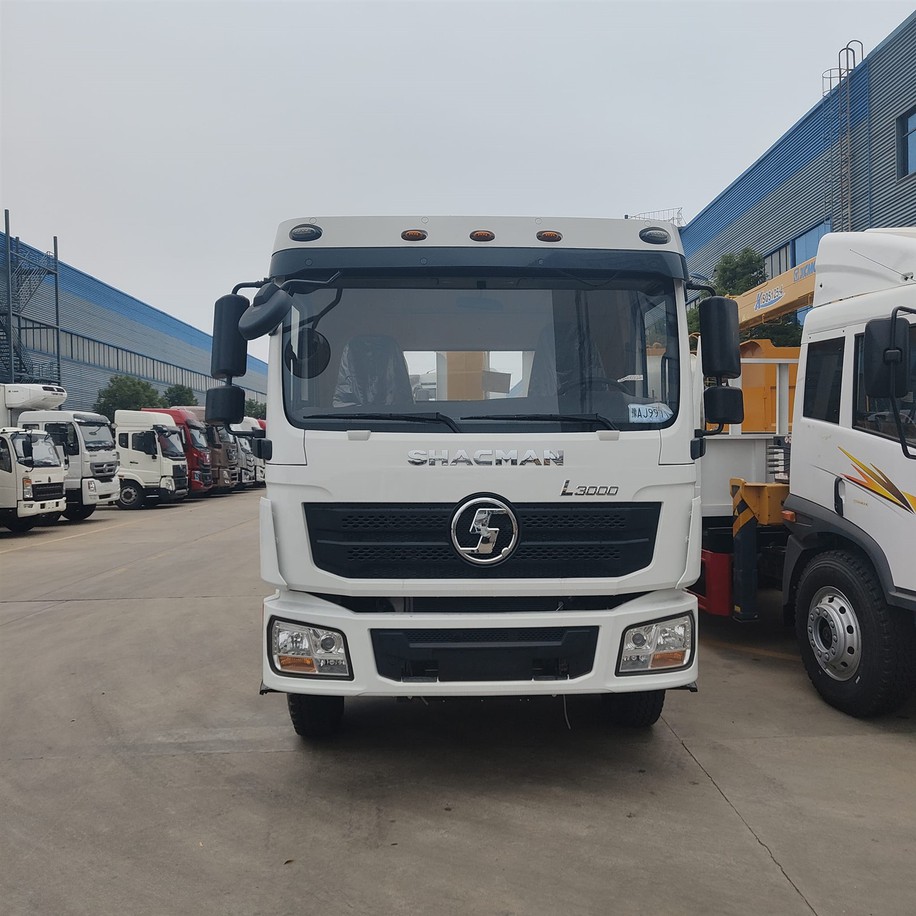

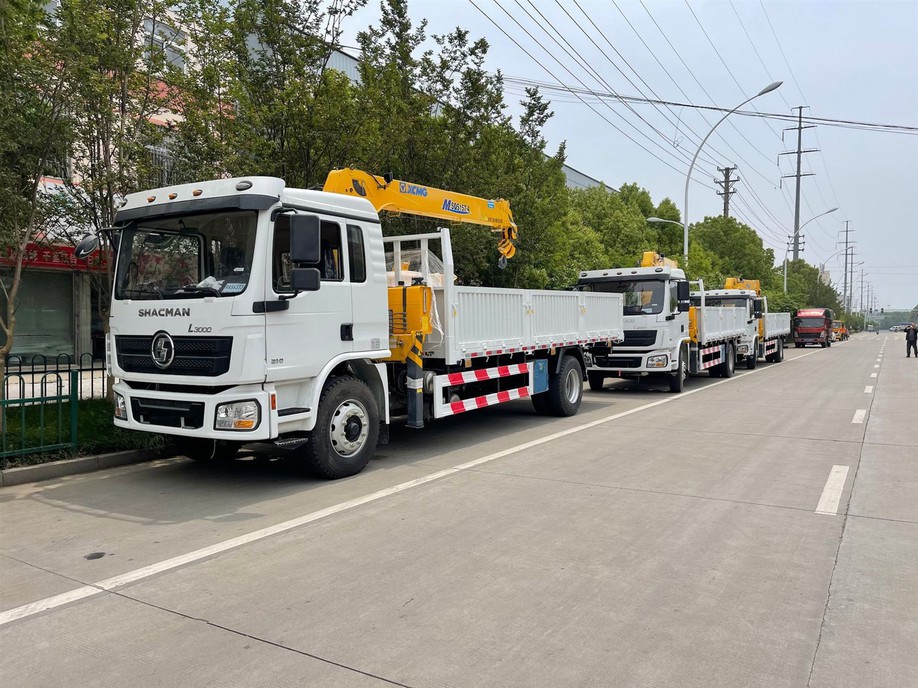

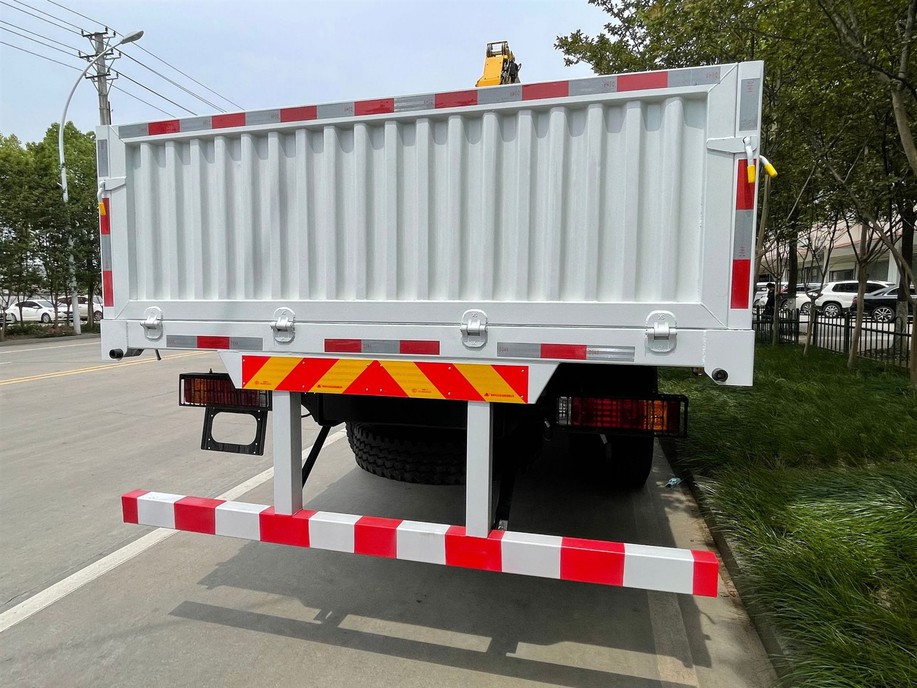

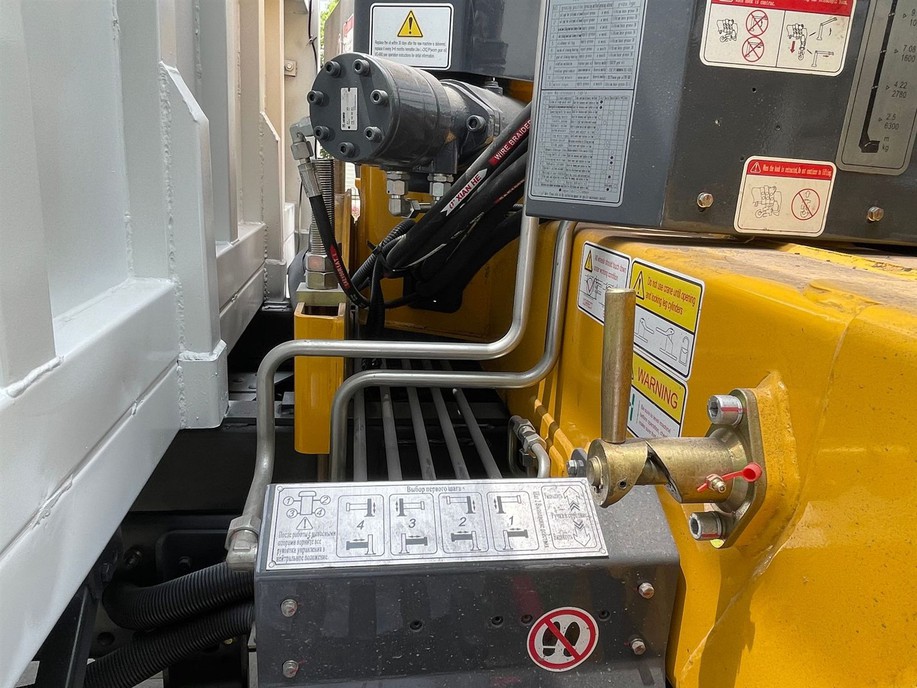

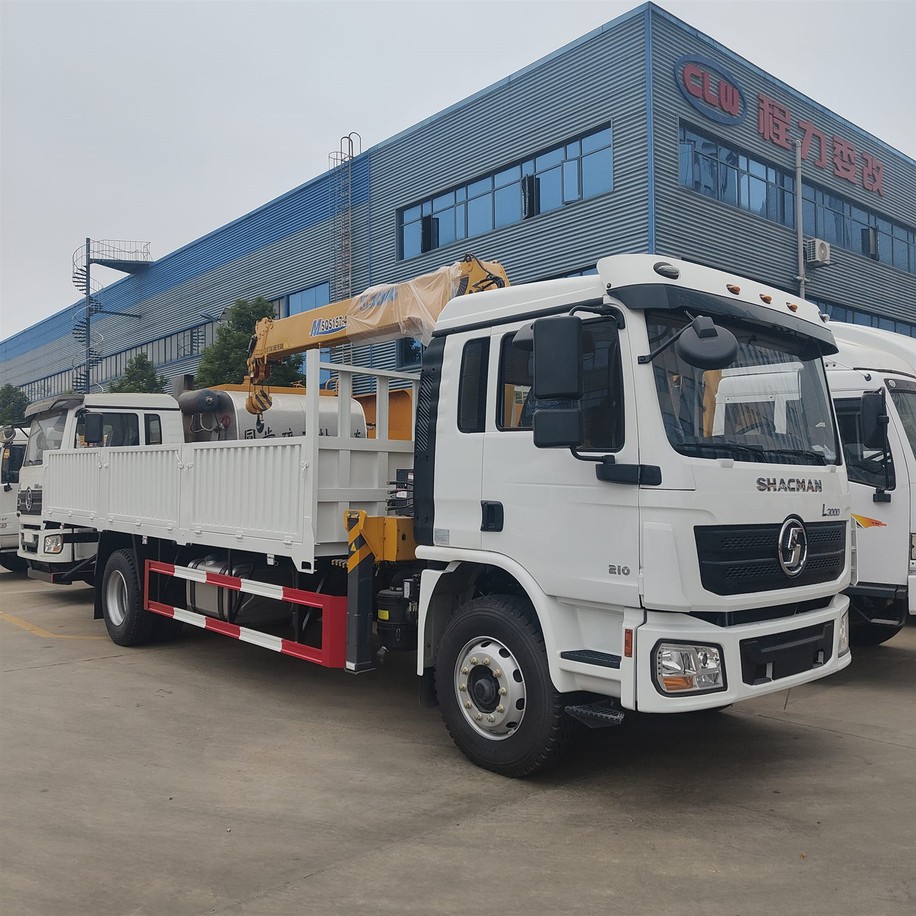

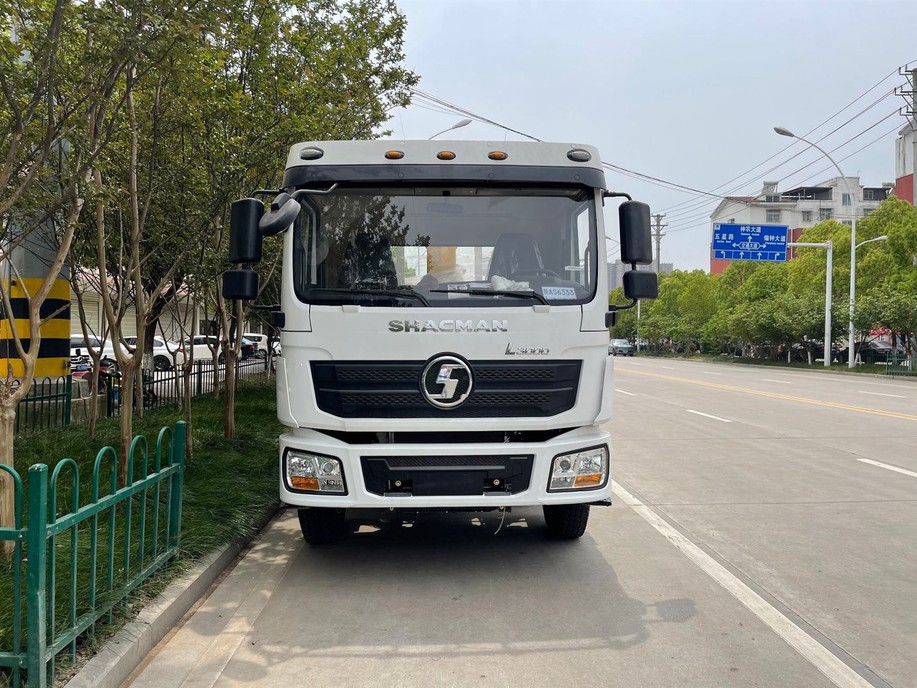

4. Detailed Photos

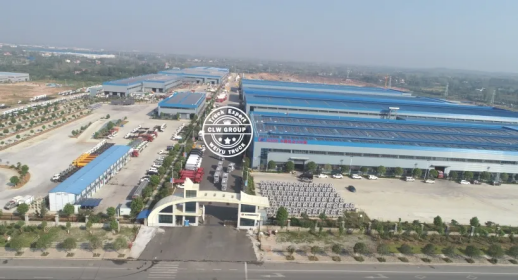

5. Company Profile
