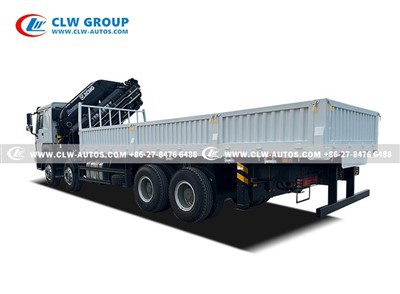

HOWO 43Tons Knuckle Boom Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 43tons knuckle boom crane truck in China. If you're going to buy high quality howo 43tons knuckle boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

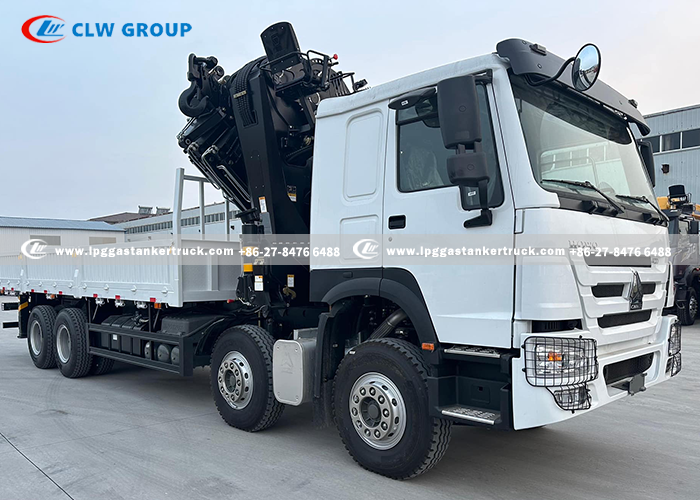

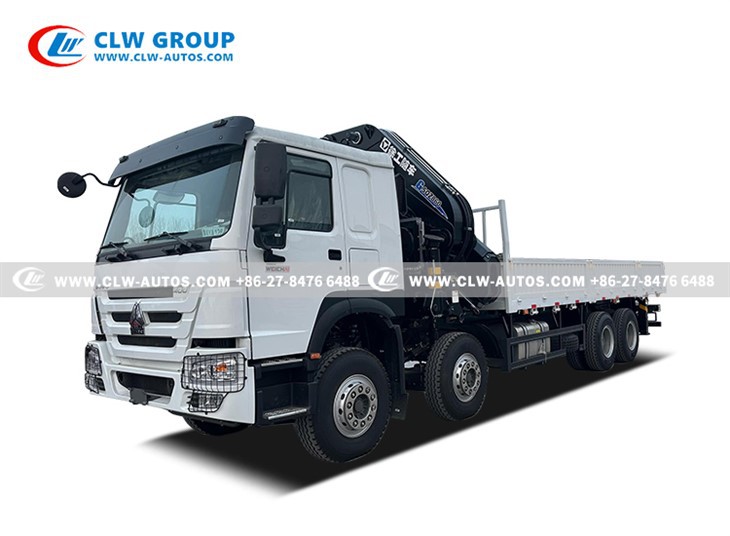

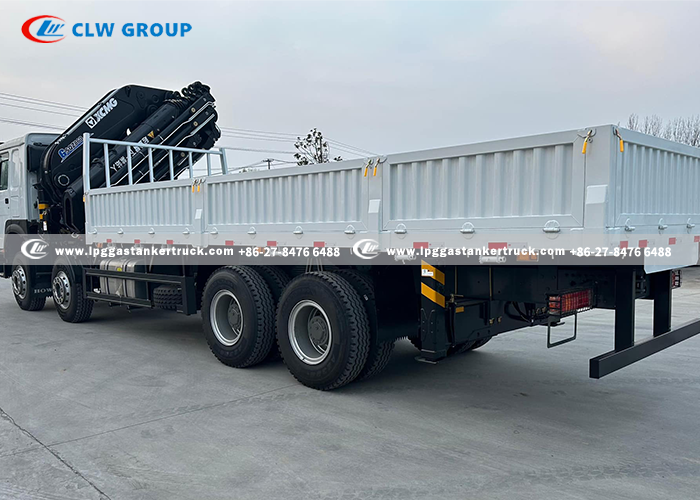

Sinotruk HOWO 12 Wheels 8X4 43-Ton Knuckle Boom Crane Truck





Crane Truck is a type of hydraulic lifting and telescopic system designed to perform cargo hoisting, rotation, and elevation tasks, typically mounted on a commercial vehicle. It generally consists of a truck chassis, cargo bed, lifting mechanism, and crane assembly. The boom of the truck-mounted crane is categorized into straight boom truck cranes and articulated boom truck cranes. The benefits of this equipment include excellent mobility, quick relocation capability, integration of lifting and transport functions, and optimized resource utilization.

1. Articulated Arm Configuration

• Features a multi-jointed folding arm that can be compactly stowed, optimizing space efficiency and ideal for confined workspaces.

2. Versatile Functionality

• Compatible with various attachments such as grabs, clamps, lifting hooks, and elevated work platforms, making it suitable for timber transport, scrap metal recovery, machinery assembly, and similar operations.

3. High-Performance Power Unit

• Utilizes either a standalone hydraulic pump or a chassis-powered take-off drive, ensuring seamless hoisting operations.

4. Usage Environments

• Distribution hubs: Containerized cargo handling.
• Construction zones: Lifting steel beams and formwork.
• Disaster response: Rapid debris clearance (articulated arm can access tight spaces).

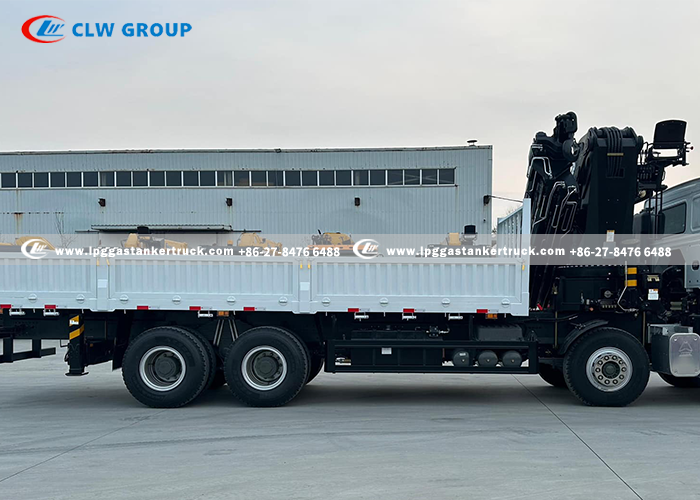

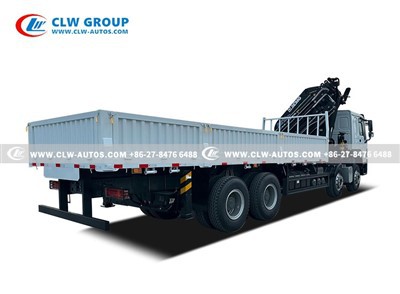

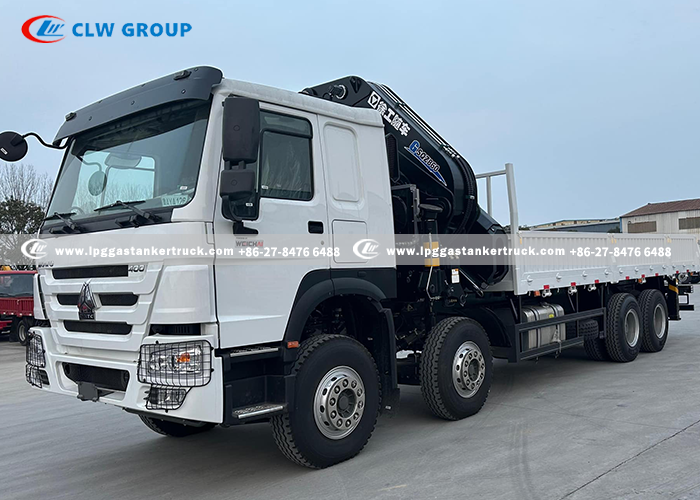

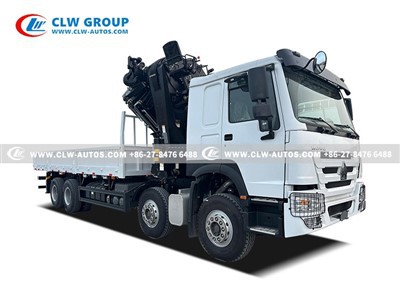

HOWO Crane Truck With 43Tons Folding Boom Crane
Chassis Specification
Chassis Model	ZZ1317V46
Driving Model	8x4
Cab	HW76 cabin Right hand drive With air conditioner
Dimension	12000 x 2500 x 3900 mm
Wheelbase	1800 + 4600 + 1350 mm
Gross vehicle Weight	31000 kg
Curb Weight	10350 kg
Front Axle Loading Capacity	9500 x2 kg
Rear Axle Loading Capacity	16000 x2 kg
Axle Number	4
Tire	12.00R20 18PR
	12pcs with 1 spare tire
Engine	Weichai diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: WP12S400E201
	Horse power: 400 HP
	Displacement: 11596 ml
	Emission standard: Euro 2
Transmission	Model: HW19710
	10 Forwards & 2 Reverses
Fuel Tank Capacity	400L
Upper Parameters
Cargo Box
Size (L*W*H)	7500 X 2400 X 600 mm
Loading Capacity	30 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel

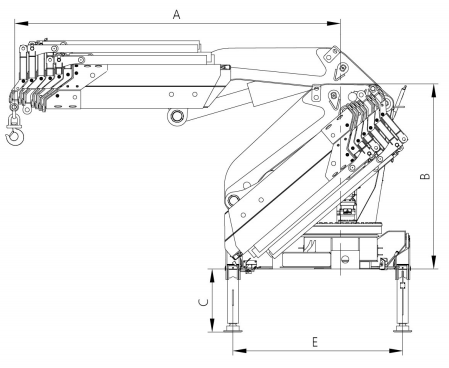

Crane
Model	SQZ860
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 7 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 43000 kg at 1.7 meters
Max. Working Radius	16 meters
Max. Lifting Height	23 meters
Max. Lifting Moment	740 kN.m
Max. Oil Flow of Hydraulic System	80 L/min
Max. Pressure of Hydraulic System	33 Mpa
Crane Weight	9100 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

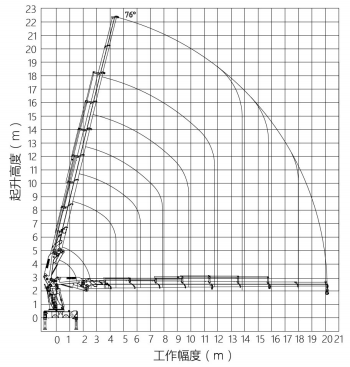

Crane Rated Lifting Load Image

Sinotruk HOWO 8X4 Crane Truck with 20-ton Folding Boom Crane

Crane Truck with Log Grapple

Completes the loading and unloading of firewood at the forest site.
For loading and unloading of bamboo in bamboo forests

Crane Truck with Brick Clamp

According to different types of bricks to develop different sizes of fixtures

Generally adopt folding arm crane
