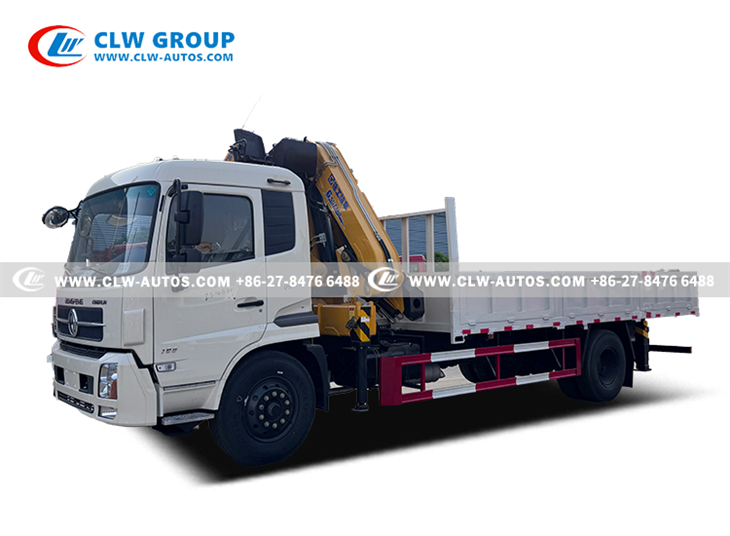

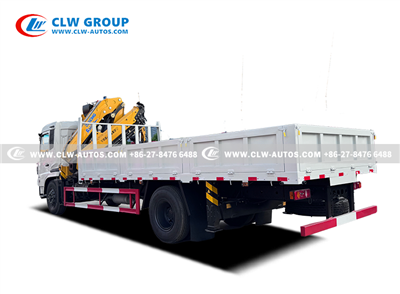

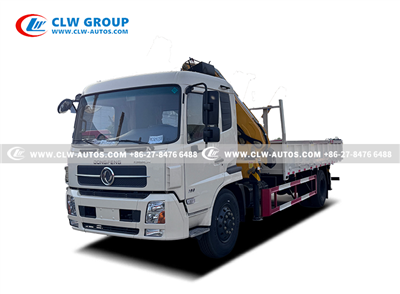

Dongfeng 8Tons Knuckle Boom Crane Truck

Name: China Dongfeng 8Tons Knuckle Boom Crane Truck Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 268705739

Drive Type: 4x2
Engine:190hp
Cargo Box Loading Capacity:10Tons
Crane Type: Knuckle Boom Crane
Crane Loading Capacity: 8Tons

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8tons knuckle boom crane truck in China. If you're going to buy high quality dongfeng 8tons knuckle boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

DONGFENG Kingrun 4X2 Crane Truck With 8Tons Knuckle Boom Crane

Products Description

Dongfeng Truck-Mounted Crane Carrier – Key Features & Specifications

1. Core Advantages

✔ Integrated Lifting & Transport – Combines a hydraulic crane with a cargo bed for multifunctional operations.
✔ Dongfeng Reliability – Built on proven Dongfeng commercial chassis (e.g., KR, KL, or VL series).
✔ Customizable Configurations – Adaptable to diverse loads (construction materials, equipment, logistics).

2. Common Applications

✔ Construction – Steel beams, pipes, prefab modules.

✔ Utilities – Transformer/pole installation.

✔ Logistics – Machinery/container handling.

✔ Emergency – Roadside recovery.

3. Why Choose Dongfeng?

✔ Cost-Effective – Lower TCO vs. European brands.
✔ Service Network – Local support in 50+ countries.
✔ Custom Options – Cold-/tropicalized packages available.

Products Video

Products Parameters

Dongfeng Crane Truck With 8Tons Folding Boom Crane
Chassis Specification
Chassis Model	DFL114
Driving Model	4x2
Dimension	8560 x 2500 x 3900 mm
Wheelbase	4500 mm
Gross vehicle Weight	15000 kg
Curb Weight	9650 kg
Front Axle Loading Capacity	6000 kg
Rear Axle Loading Capacity	10000 kg
Axle Number	2
Tire	10.00R20
Tire	6pcs with 1 spare tire
Engine	Cummins diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: B190 33
	Horse power: 190 HP
	Displacement: 5900ml
	Emission standard: Euro 2
Transmission	Model: DF6
Transmission	6 Forwards & 1 Reverse
Upper Parameters
Cargo Box
Size (LWH)	4500 X 2400 X 600 mm
Loading Capacity	10 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	XCMG - SQZ160
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 5 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 8000 kg at 2.0 meters
Max. Working Radius	12.75 meters
Max. Lifting Height	15 meters
Max. Lifting Moment	168 kN.m
Max. Oil Flow of Hydraulic System	40 L/min
Max. Pressure of Hydraulic System	28 Mpa
Crane Weight	2960 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color
Crane Rated Lifting Load

Products Photos

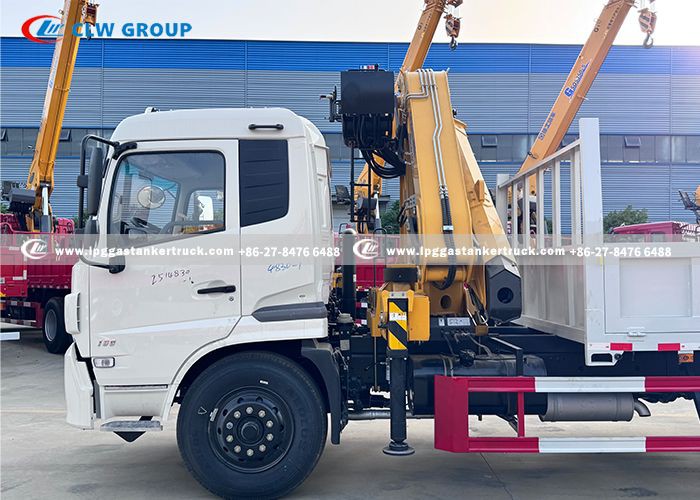

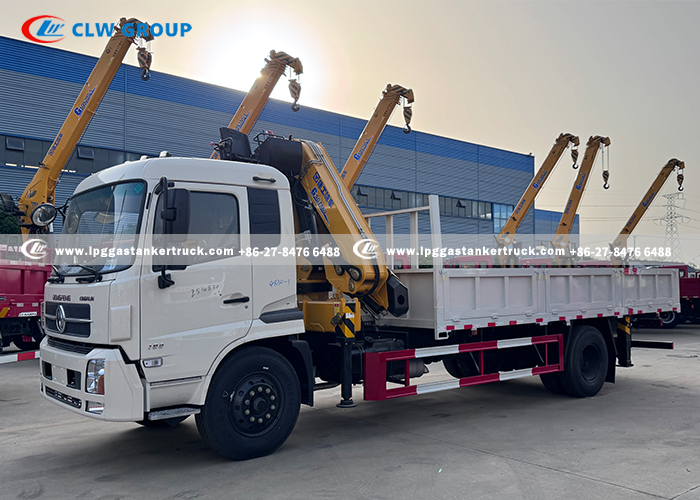

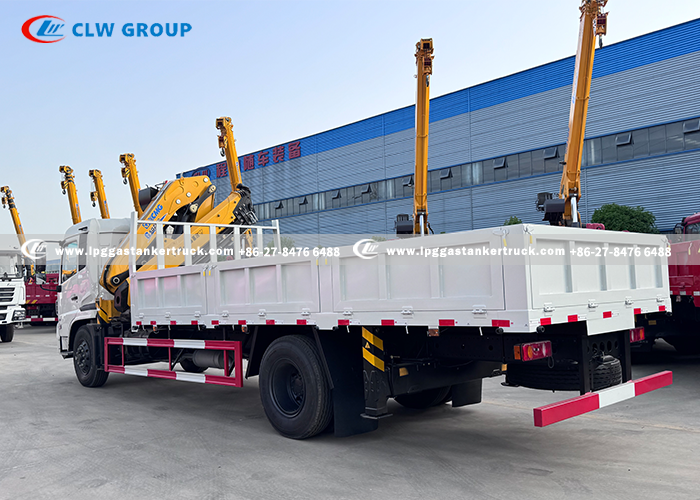

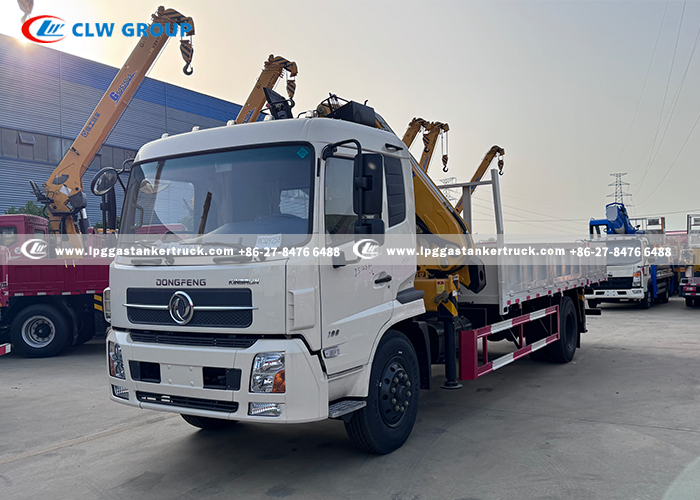

Dongfeng Kingrun 6 Wheels 190hp Crane Truck

Cargo Box Loading Capacity: 10Tons

Cargo Box Thickness: 3mm for the side and 5mm for the bottom

Crane Brand : XCMG

Crane Max.Loading Capacity: 8Tons

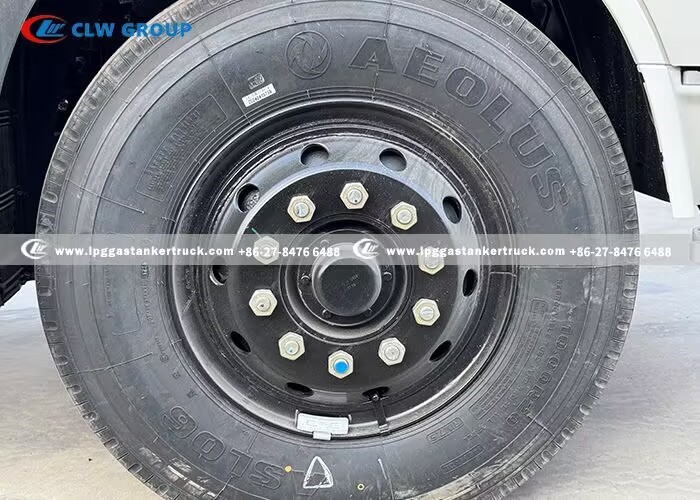

Tire: 10.00R20

Crane optional Configuration

Crane Truck with Log Grapple

According to different types of bricks to develop different sizes of fixtures
Generally adopt folding arm crane

Crane Truck with Brick Clamp

Completes the loading and unloading of firewood at the forest site.

For loading and unloading of bamboo in bamboo forests

Crane Truck with Drilling Rig

For transportation, drilling, erection and pulling of poles.
Save time and labor

Crane Truck with Personnel Basket

Can be used as an aerial work truck
