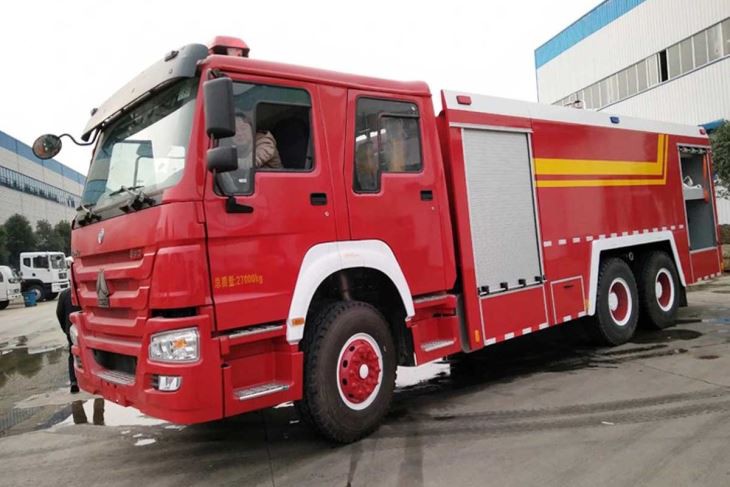

HOWO Foam Fire Truck
According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo foam fire truck in China. If you're going to buy high quality howo foam fire truck, welcome to get more information from our factory. For price consultation, contact us.
Fire Fighting Truck ,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;
Features of howo Fire Fighting Truck :
---- Optional for different siz,strong enough for all road conditions.
---- powderful engin; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump
---- Massive, durable, long service life.
Specification
Condition | New condition/Left or Right hand drive/6x4 | |||
Chassis | Brand | SINOTRUK | ||
Model | HOWO | |||
Curb weight(kg) | 15750 | |||
Wheelbase(mm) | 4300+1350 mm | |||
Dimensions(mm) | 10650*2500*3540 mm | |||
Overhang (front/rear) (mm) | 1500/2500 mm | |||
Wheel track (front/rear) (mm) | 2110/1830/1830 mm | |||
Approach/Departure angle(°) | 15/11° | |||
Axle Load(kg) | 7000/13000/13000 | |||
Max. driving speed(km/h) | 95 km/h | |||
Clutch | Reinforced diaphragm clutch | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | |||
Steering Gear | Power steering, hydraulic steering with power assistance | |||
Tire | Number | 10pcs with one spare tire | ||
Specifications | 12R22.5 | |||
Gear box | HW13710, Manual type, 10 Forwards & 2 Reverses | |||
Cabin | Four doors and it can hold 8 fire fighter and 1 driver. With Air conditioner | |||
Engine | Brand | SINOTRUK | ||
Model | HOWO | |||
Fuel type | Diesel | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Displacement(ml) | 9726 ml | |||
Power(kw) | 247kw | |||
Horsepower(HP) | 336 HP | |||
Emission standard | Euro 2 | |||
Torque(N.m) | 1500 N.m | |||
Upper & Fire Fighting System | ||||
Water tank | Volume(CBM) | 13.0 CBM | ||
Tank Material | Q235 Carbon steel | |||
Foam tank | Volume(CBM) | 3.0 CBM | ||
Tank Material | Q235 Carbon steel | |||
Proportion control system | Foam vessel , proportioned equipment, water - entering pipe and liquid - out pipe etc | |||
Fire pump | Type | Centrifugal pump | ||
Model | CB20.10/30.60 | |||
Flow(L/s) | 60 | |||
Pressure(Mpa) | 1.0 | |||
| ≥ 7 m | |||
Fire fighting pump Suction Time | ≤45 s | |||
| Model | PL48 | ||
Flow(L/s) | 48 L/s | |||
Water Range(m) | ≥55 m | |||
Foam Range(m) | ≥50 m | |||
Swing angle | Horizontal | 360 ° | ||
Tilt angle | -30°~80° | |||
Fire Truck Production
Bulk Order for Fire Truck
Fire Truck bulk order Shipment
Overseas Exhibition and Local Support
Customer Visiting
Foam Fire Truck Application
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades.
Sales Service
1. We can product truck according the customer's requirements(color,size,logo and so on)
2. We can send our technician to arrive the customer's country to provide the service .
3. We can train customer's workers for free.
4. Our truck warranty:12 months.we can provide the parts for free at the first year.
Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q1. How to purchase the truck from our company?
A: You can choose the model from our website. Also, you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
Q2. How to ensure product quality?
A: We passed the international quality system certification. You can see the certification for our factory. you can also entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4. What is the warranty term?
A: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
