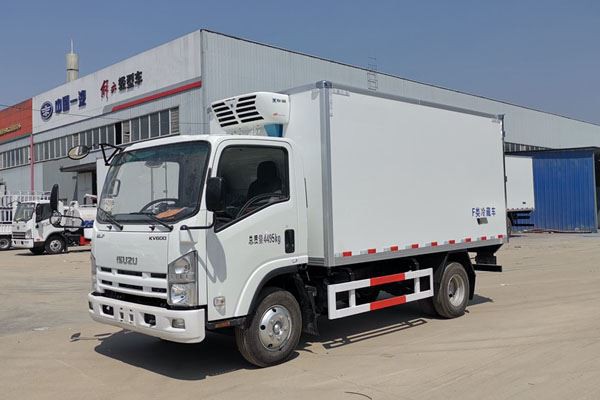

Fish Transport Refrigerated Van Truck
Refrigerator truck is the van truck equipped with refrigerator device which used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and also vaccines.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of fish transport refrigerated van truck in China. If you're going to buy high quality fish transport refrigerated van truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Refrigerator truck is the van truck equipped with refrigerator device which used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and also vaccines, with which inside temperature could be optional of -5°, 10°, -16°, -18°.The surface of van body could be made of fiberglass, aluminum or stainless steel. The padding material with varieties of thickness is polyurethane foam that could preserve the temperature.
Specification
|
|
| |
Vehicle model | ISUZU 4x2 refrigerated delivery box truck | ||
Overall dimensions | mm | 7000*2600*3920 | |
Body internal dimensions | 5150*2440*2400 | ||
Actual load | kg | 8950 | |
Curb weight | Appro×7900 | ||
Exhaust/kw | ml/hp | 5900/180 | |
Max speed | km/h | 90 | |
Fuel type | Diesel | Engine | Isuzu |
Number of axles | 2 | Pieces of spring | 9/10 |
Number of tires | 6+1 | Tire specification | 10.00R20 |
Configuration | Refrigerator is Hanxue brand, made in China, working temperature is minus 18 celsius degree. | ||
Introduction | The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts. | ||
Production cycle | 20-25 days | ||
Warranty | 12 month,from the date of supply | ||

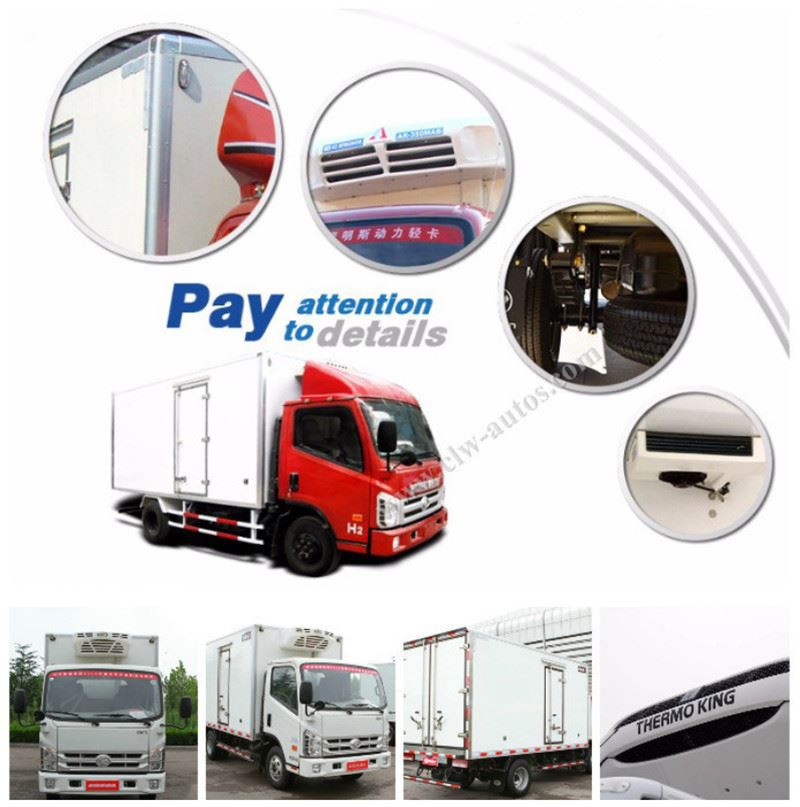

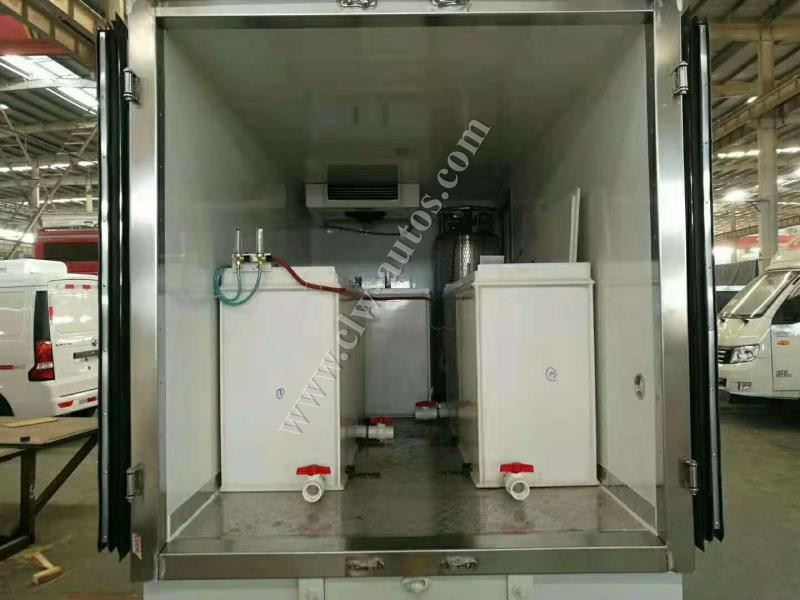

Reference Picture
Our Advantage
1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam(60mm,80mm,100mm) in the core.
2).Thermal insulation layer is 60-100mm thick, which offers a very good thermal insulation performance.
3).We can also furnish you refrigerator units, the Temperature range can be 0°C ~-18°C.
Successful Case
Customer Inspection
Overseas Exhibition
Sales Service
One year quality warranty for key parts such as axles, engine, transmission;
· All spare parts would be OEM and supplied at cost prices;
· Overseas service center to ensure efficent after-sales service;
· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
1.One year quality warranty for key parts such as axles, engine, transmission;
2.All spare parts would be supplied at cost prices;
3.Overseas service center to ensure efficent after-sales service;
4.We can train customer's workers for free.
FAQ
Q: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q
: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .
A: Yes, we have 100% test before delivery.
Q: How do you control the quality of product?
A: Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
