Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of australia 3-axle adr compliant side tipper semi trailer for mining industry in China. If you're going to buy high quality australia 3-axle adr compliant side tipper semi trailer for mining industry, welcome to get more information from our factory. For price consultation, contact us.

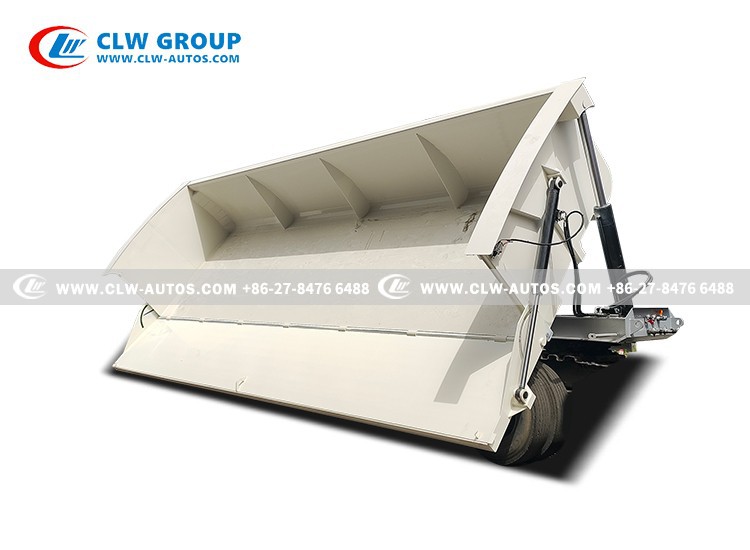

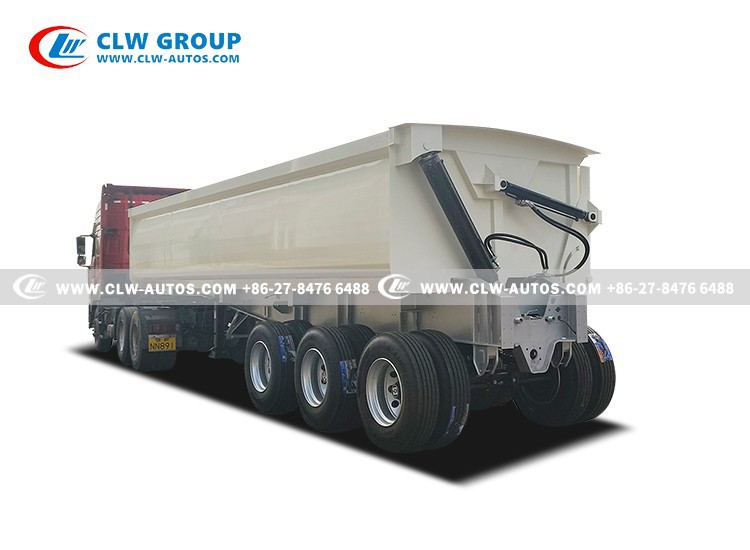

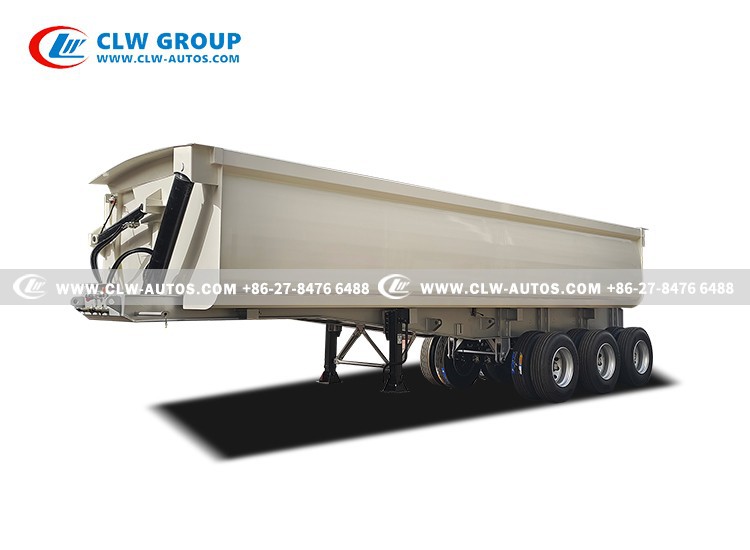

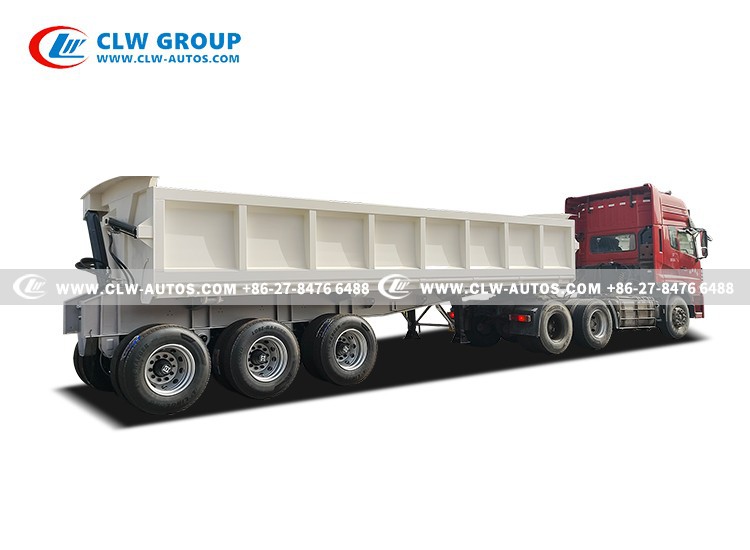

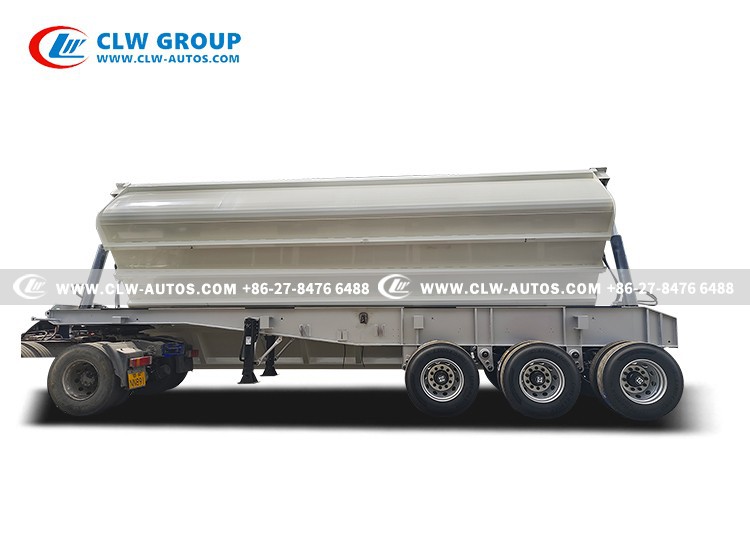

High-Quality 3-Axle ADR Side Tipper Trailers For Australia – Built for Durability & Safety
Looking for a reliable 3-axle side tipper trailer compliant with Australian ADR standards? Our heavy-duty side tipper trailers are engineered for superior performance in mining, construction, and bulk material transport across Australia.
✔ ADR Certified – Fully compliant with Australian Design Rules for safety and roadworthiness.
✔ Robust Construction – High-tensile steel frame for maximum durability in harsh conditions.
✔ Efficient Tipping Mechanism – Hydraulic side tipper design for fast, safe unloading.
✔ 3-Axle Stability – Enhanced load distribution for heavy-duty hauling (up to 40 tonnes capacity).
✔ Low Maintenance – Reinforced chassis and premium components for long service life.
✔ Custom Options – Available in various sizes, configurations, and compliance upgrades.
General information
Length: overall length 34FT(10,500mm)
Width: 2480mm
Height:2840mm
Tare weight: 8500kgs
Payload: 40000kgs
Body construction
Chassis : Heavy duty and extra durability designed Fabricated I-Beam - 345 MPA. welded by automatic Submerged-Arc processes
Axle: 3 axles, FUWA K-HITCH, 11.5tons
Cylinder: two set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm
Suspension: mechanical with 10-piece leaf spring. Air bag is optional
King Pin: JOST brand 50mm or 90mm avaliable. Two bosses with 90mm Kingpin to suit Tandem or Tri Axle Dolly
Landing gear: Jost brand Two Speed, Manually operated, with Rubber Flap Guard to front
Wheel Rim: 9.0R22.5, 10 stud steel rim 13 pieces PCD 335; alloy rim is optional
Spare Tire Rack: Dual swinging type
Braking System: 3 sets of T30/30 Spring brake chamber; 40L air tanks with Wabco air controlled system.
Mud guard: Spring Tension Rubber over Tri Group
Finish: Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color
Light & wire: Orion brand ADR LED Combination Rear Lights, and LED Side lights. with ADR standard wire and 7-pin socket
Road-train bracket: 20mm thick folfed C-Channer. With extra support gussets.
Also customized for 40HQ container loading, 40FR container loading.
Contact us today for a quote!
Mrs. Alice Tang. +86 180 7154 2196 (WhatsApp/Mob)
Alice@clw-autos.com
Mining & quarry operations
Construction material transport
Agricultural and bulk haulage
Waste management & recycling
Australian-Made Compliance – Meets all ADR and state transport regulations.
Heavy-Duty Performance – Built to withstand Australia's toughest terrains.
Safety-First Design – Includes reinforced braking, LED lighting, and stability enhancements.
Upgrade your fleet with a 3-axle ADR side tipper trailer designed for efficiency, safety, and longevity.
