Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40000liters lpg storage tank in China. If you're going to buy high quality 40000liters lpg storage tank, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc
2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
Product Specification
| 40000Liters LPG Storage Tank | ||||
| Volume of Tank | 40000 Liters | |||
| Filling Weight | 15960 kg | |||
| Tank Weight | 9380 kg | |||
| Thickness of Shell (mm) | 12 mm | |||
| Thickness of endplate (mm) | 14 mm | |||
| Tank Diameter | 2400 mm | |||
Overall Size | 9270*2428*3018(mm) | |||
| Material of Tank | Carbon Steel Q345R | |||
| Design Pressure | 1.71 MPa | |||
| Hydraulic Test Pressure | 2.21 Mpa | |||
| Design Temperature | -20ºC~50ºC | |||
| Heat Treatment | Bulk | |||
| Corrosion Allowance | 1 mm | |||
| Vapor Outlet | DN50 | |||
| Gas Outlet | DN50 | |||
| Life Time | 15 years | |||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||
| Standard Accessories of LPG Tank | ||||
| Model | Item | Qty | Junction Surface | |
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | / | |
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | / | |
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |

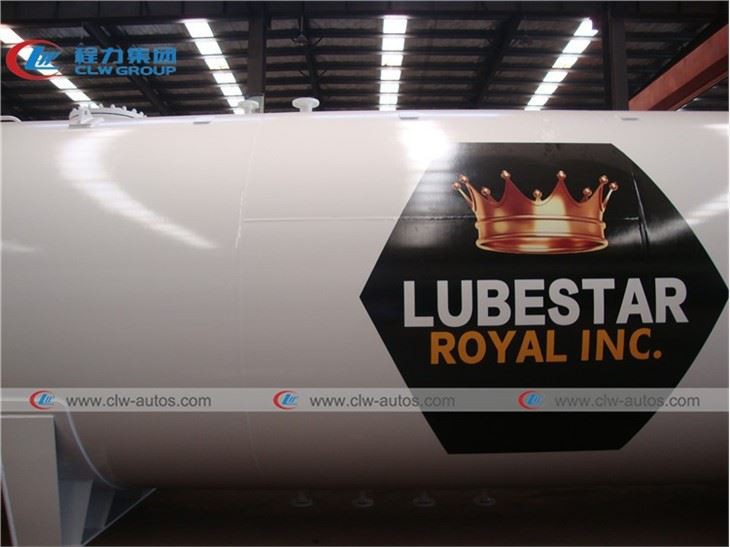

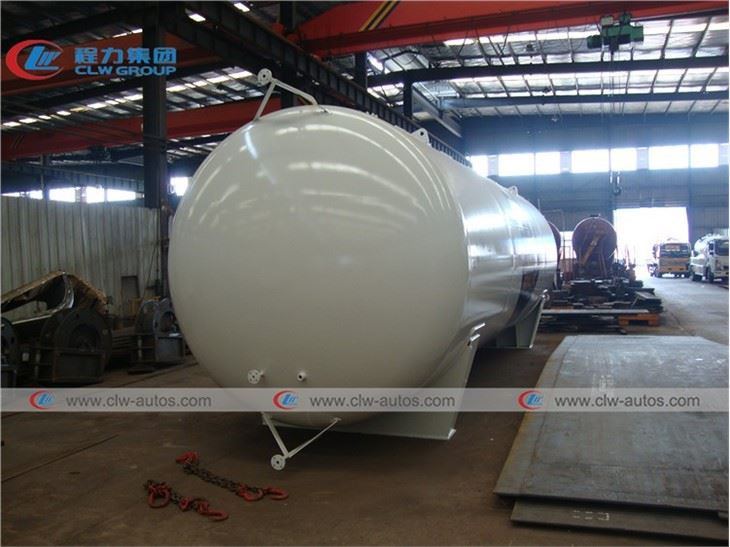

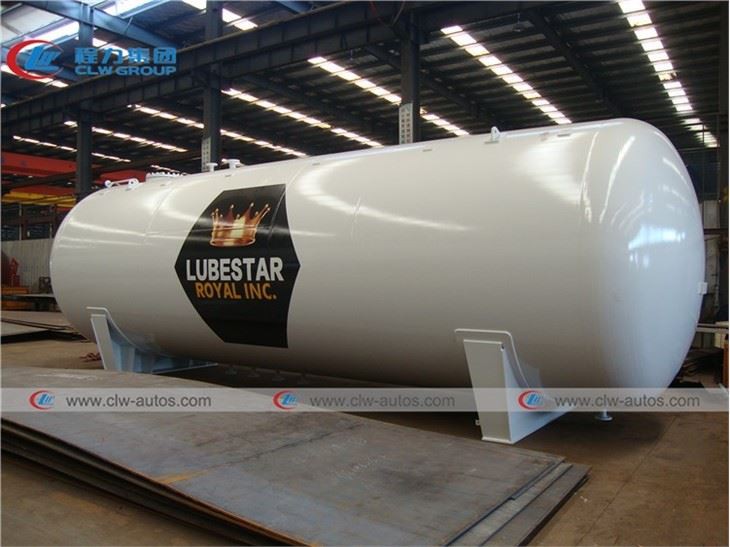

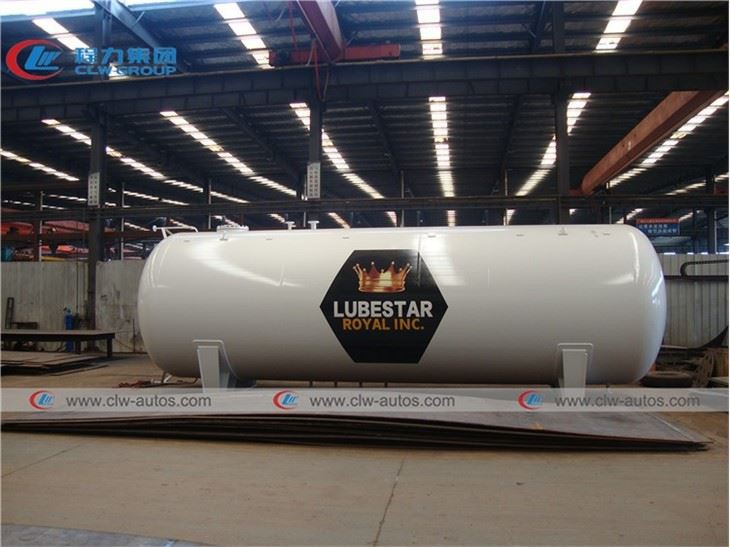

Reference photos
