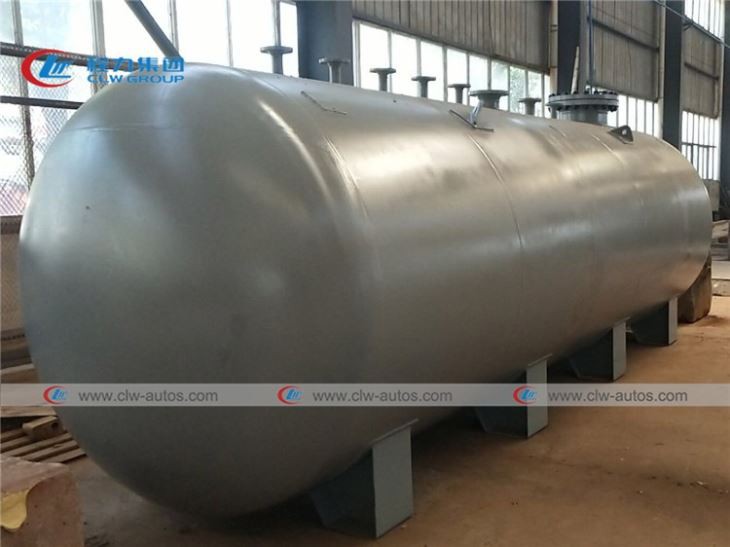

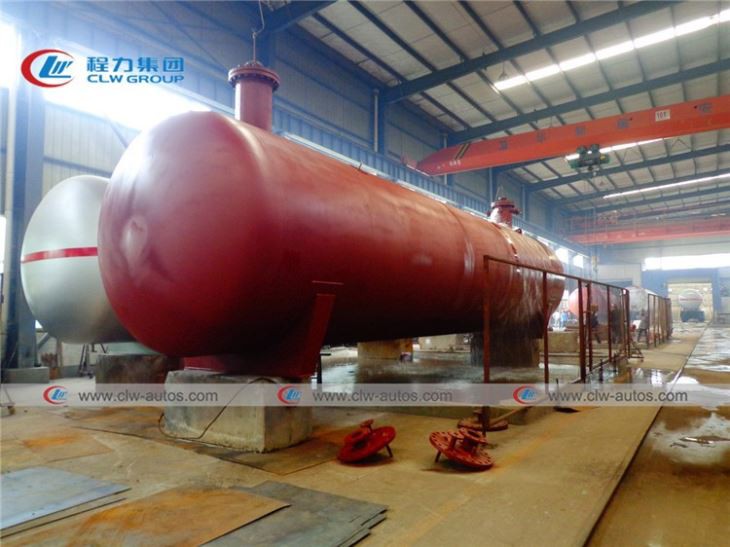

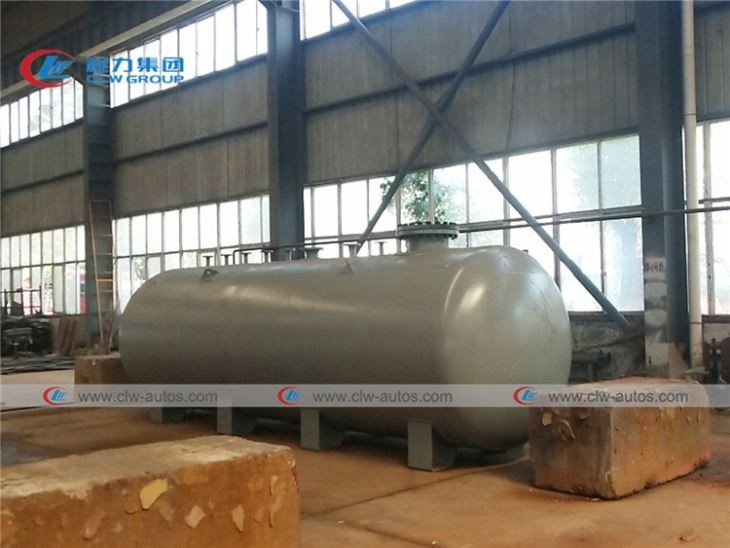

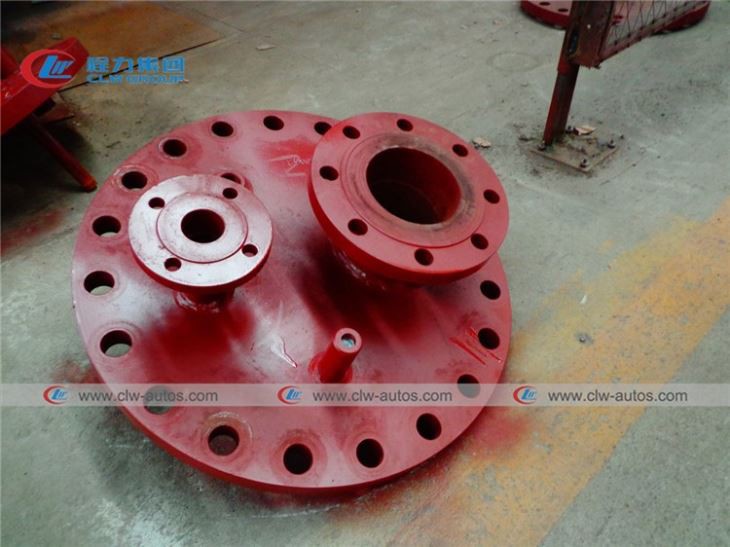

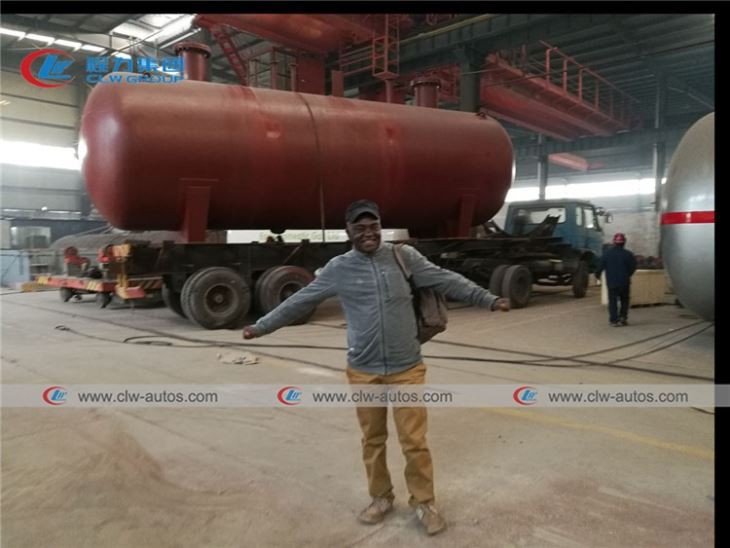

Mounted LPG Propane Gas Underground Tank

Volume of Tank (cbm)

50

Tare Weight (kg)

12750 kg

Filling Capacity (kg)

30000 kg

Thickness of Shell (mm)

14

Thickness of Endplate (mm)

16

tank cylinder diameter (mm)

2700

External Dimensions (mm)
(length×width×height)

10962*2728*3318

Material of Tank and Main Pressure Parts

Carbon Steel Q345R

Filling Medium

Liquefied Petroleum Gas

Design Pressure

1.77MPa ( 256.65 Psi)

Corrosion Allowance

1 mm

Medium Density

550 kg/ cbm

Parts No

Size

Parts Name

Model No.

Quantity

Unit

a

DN50

Cut-off Valve for Drain Outlet

J41N-2.5-50

1

set

b

DN50

Cut-off Valve for Liquid Phase Outlet

J41N-2.5-50

1

set

c1

DN50

Cut-off Valve for Gas Phase Balance Outlet

J41N-2.5-50

1

set

c2

DN50

Cut-off Valve for Gas Phase Balance Outlet

J41N-2.5-50

1

set

d

DN50

Cut-off Valve for Liquid Inlet

J41N-2.5-50

1

set

i

DN50

Cut-off Valve for Air Drain Outlet

J41N-2.5-50

1

set

h

DN80

Cut-off Valve for Safety Valve

J41N-2.5-80

1

set

f1

DN25

Cut-off Valve for Magnetic Level Gauge

J41N-2.5-25

1

set

f2

DN25

Cut-off Valve for Magnetic Level Gauge

J41N-2.5-25

1

set

e

M33*2

Thermometer

WTQ-280

1

set

g

M20*1.5

Pressure Gauge

Y-100T

1

set

/

/

Magnetic Level Gauge

HG21584-95

1

set

/

DN80

Safety Valve

A42F-25

1

set

M20×1.5

Needle Valve

J24W-320-DN6

1

set

Total Quantity

14

1.1

50,000 liters LPG Storage Tanks complete with accessories

1 units

1.2

15Hp (11Kw) LPG Vapor Compressor with Explosion proof motor

1set

1.3

10Hp (7.5Kw) LPG Pump with Explosion proof motor, 2"

2set

1.4

3HP Air Compressor (with 70 liters tank and Explosion proof motor)

1 Set

1.5

LPG Filling Dispenser

2 set

1.6

Digital Filling Machine,

2 sets

1.7

Gas (LPG) Leakage Detector (Control + 4Nos Sensors)

1 set

1.8

Emergency Shut-off Valve (DN50) Pneumatic Control

2Nos
