Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8x4 hog hauling truck in China. If you're going to buy high quality dongfeng 8x4 hog hauling truck, welcome to get more information from our factory. For price consultation, contact us.

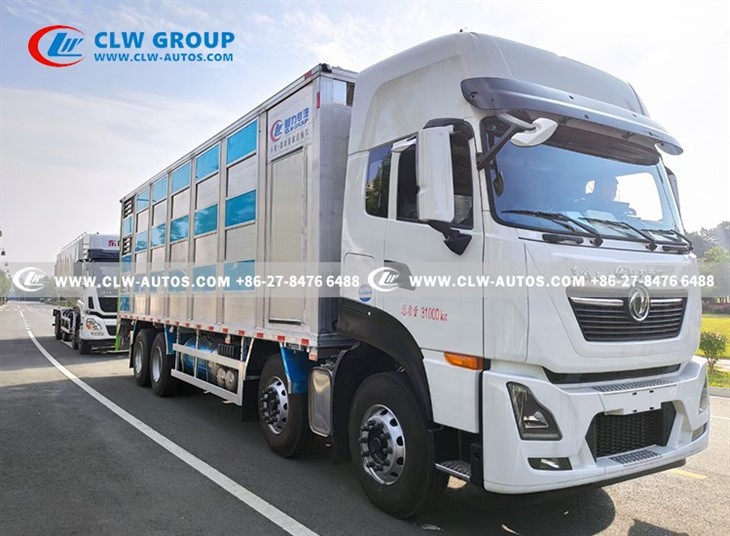

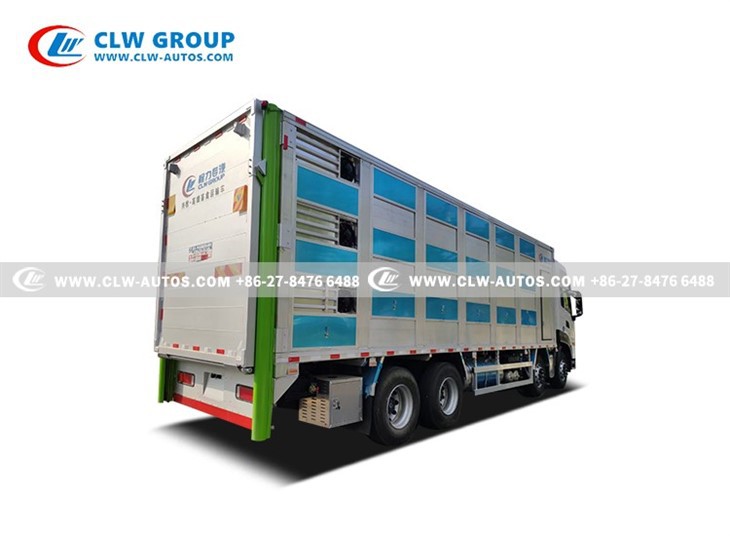

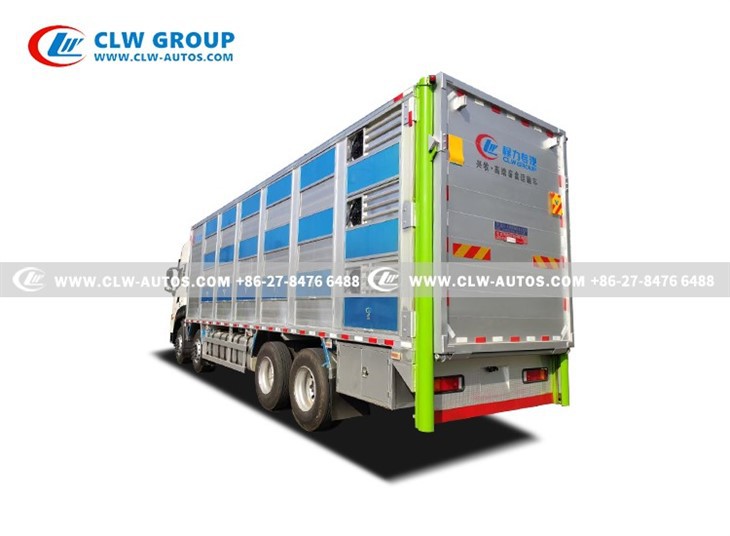

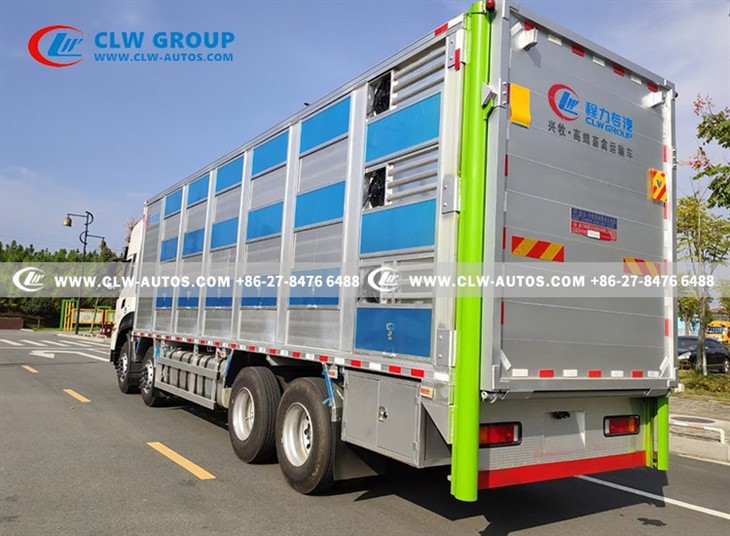

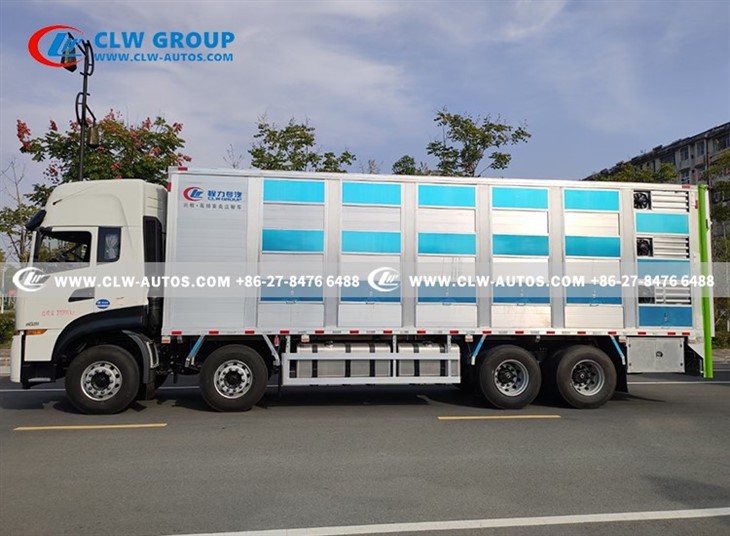

DONGFENG KL 8X4 Animal Transportation Pig livestock Carrier

We are Straight Manufacturer from China.

Quality First, Service Best, Welcome for Inquiry!

Products Description

The livestock transport vehicle primarily used for transporting live pigs is also referred to as a hog hauling truck or swine transport trailer. Its body features an all-aluminum or stainless steel insulated structure with fiberglass exterior panels.

The main structural characteristics are as follows:

Multi-Tier Loading System
Automated Feeding System
Climate-Controlled Cabin System
Spraying System
Hydraulic Access Ramp System
Power Supply System
Integrated Monitoring & Control System

Multi-Species Adaptability

The modular design supports configurable conversions for:

--Cattle: Reinforced flooring + 1.8m ceiling height (per EU 1/2005)

--Sheep/Goats: Adjustable partition spacing (400-600mm)

--Poultry: Stackable cage integration + enhanced ventilation

Chassis Technical Specification
Driving mode		8X4
Overall dimension		12,0002,5003,995mm
Gross weight		31,000kg
Curb weight		15,500kg
Rated loading weight		15,370kg
Wheelbase		1850+5150+1350mm
Cabin		Top-flat, one row and a half cabin; Left hand driving
Engine	Engine brand	DONGFENG dCi420-51
	Horsepower	420hp
	displacement	11.12L
	Torque	2110N.m
	Emission standard	Euro Ⅴ
Transmission		FAST, 12 forward gears and 2 reverse; Manual
Tyre		12.00R22.5
Front/Rear axle loading		5,000kg2 ; 10,000kg2
Fuel tank		600L; aluminum alloy material
Air storage tank		200L; aluminum alloy material
Max driving speed		84.2km/h
Upper Structure Parameters
Van body dimension		960025002600mm
Van material		The whole van body is made of aluminum alloy
Single-layer square area		21.25m2
Numbers of pigs loaded		Three storey	110pigs;125kg per one
		Four storey	1200pigs; 10kg per one
Spraying System		Pressurized water tank Distribution pipelines Spray nozzles Wastewater collection tank
Automated Feeding System		Feed tank Pipeline pump Distribution piping Feeding nozzles
Climate-Controlled Cabin System		Vehicle-mounted refrigeration unit Heating blower Air-mixing delivery chamber Ventilation exhaust fans Temperature & humidity sensors
Hydraulic Access Ramp System		Vertical hydraulic tail lift Folding safety guardrails Non-slip surface

Videos Shots On The Spot

Main structural characteristics:

Multi-Tier Loading System

The transport compartment is equipped with a 2- or 3-tier loading mechanism, where hydraulically operated partitions allow pigs to move between levels-essentially "taking an elevator." Each tier features dividing panels to separate the animals.

Automated Feeding System

--Feed tank (food storage)

--Pipeline pump (for liquid delivery)

--Distribution piping

--Feeding nozzles (for precise dispensing)

This system ensures efficient, automated delivery of liquid feed to pigs during transport.

Climate-Controlled Cabin System

--Vehicle-mounted refrigeration unit (cooling)

--Heating blower (warming)

--Air-mixing delivery chamber (for balanced airflow)

--Ventilation exhaust fans (gas circulation)

--Temperature & humidity sensors (real-time monitoring)

Spraying System

--Pressurized water tank (for spray supply)

--Distribution pipelines

--Spray nozzles (for even water dispersion)

--Wastewater collection tank (environmental compliance)

The system cools piglets via water mist while maintaining cabin hygiene.

Reference Pictures

Professional Livestock Transport Vehicle: Key Benefits & Versatility:

Enhanced Animal Welfare & Economic Value

This specialized transport vehicle ensures optimal conditions for pigs and other livestock during transit by maintaining:

Hygiene: Automated spray cleaning + wastewater containment

Nutrition: Liquid feeding system with timed delivery

Climate Control: Active temperature/humidity regulation (±1°C accuracy)

Safety: Non-slip ramps + multi-tier hydraulic loading

Result:
✓ 30-50% reduction in mortality rates (vs. conventional transport)
✓ Improved meat quality by minimizing stress-induced lactic acid buildup
✓ Biosecurity compliance through enclosed design (blocks pathogen transmission)

Customization Options:
• Retractable side panels for avian transport
• Removable dividers for mixed loads
• Floor grating patterns by species (e.g., diamond plate for hoofed animals)
