4x2 HOWO Container Tractor Truck Terminal Tractor Head

Engine:SINOTRUK 266HP engine;
Driving model:LHD or RHD
Gear box:10-speed forward and 2 reverses
Tire:11.00R20
Model: 4X2,4x4,6x4 and 6x6 for optional.

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x2 howo container tractor truck terminal tractor head in China. If you're going to buy high quality 4x2 howo container tractor truck terminal tractor head, welcome to get more information from our factory. For price consultation, contact us.

Function

--Container Tractor Truck(also called Container Tractor, Container Truck Head, Container Tractor Head, Terminal Tractor Truck, Jetty Container Tractor and Terminal Truck Head etc) is used for transporting different kinds of semi trailer in jetty.

--Container Tractor Truck can be divided into various types as follows,

1) according to truck brands,there are SINOTRUK HOWO and Dongfeng container tractor truck;

2) according to driving model: 4X2 and 6X4 container tractor truck;

Feature

--Specified design for transporting different kinds of terminal/jetty use semi trailer.

--50/90(2 inch/3.5 inch) Fifth wheel for optional.

--Emission standard: Euro2/Euro3/Euro4/Euro5/Euro6 for optional.

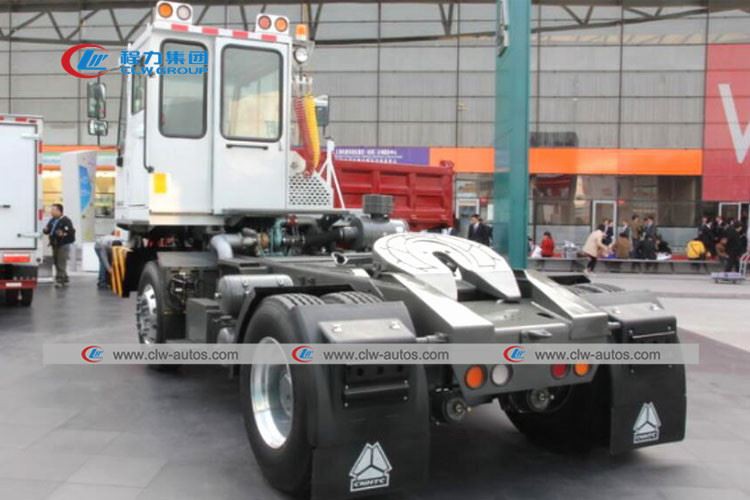

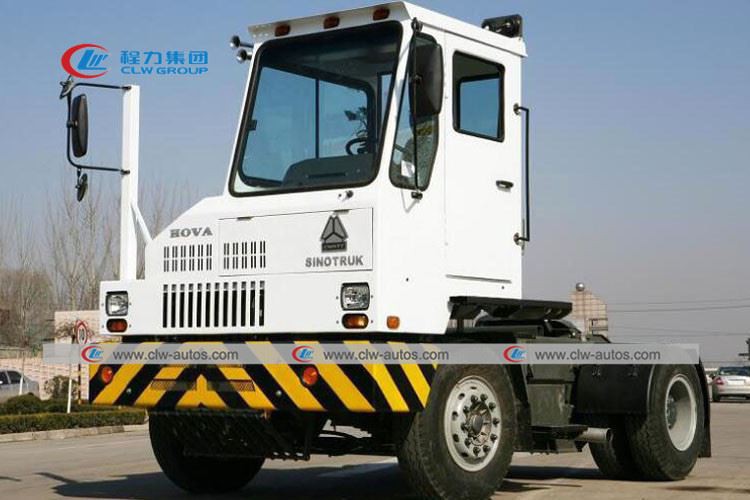

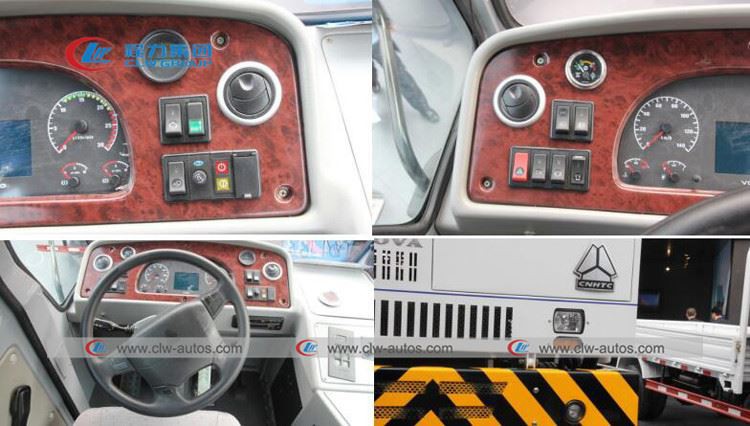

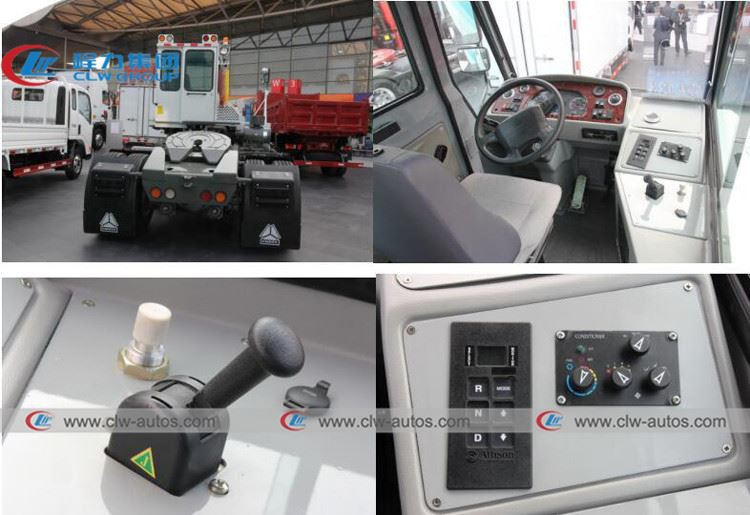

Reference picture

Specification

Dimension(Lx W xH)（unloaded）（mm）			5075×2650×3500
Approaching angle/Departure angle（°）			21/48
Overhang(front/rear) (mm)			1350/725
Wheel base (mm)			3000
Max speed（km/h）			39
Curb weight（kg）			6800
Engine (Steyr technology, made in China)	Model		WD615.62
	Type		4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Fuel type		Diesel fuel
	Horse Power（HP)		266
	Emission		EURO 2
Transmission		Model	ZF S6—120
Steering system		Model	ZF
Tyre		11R22.5
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	Spring energy, compressed air operating on rear wheels
