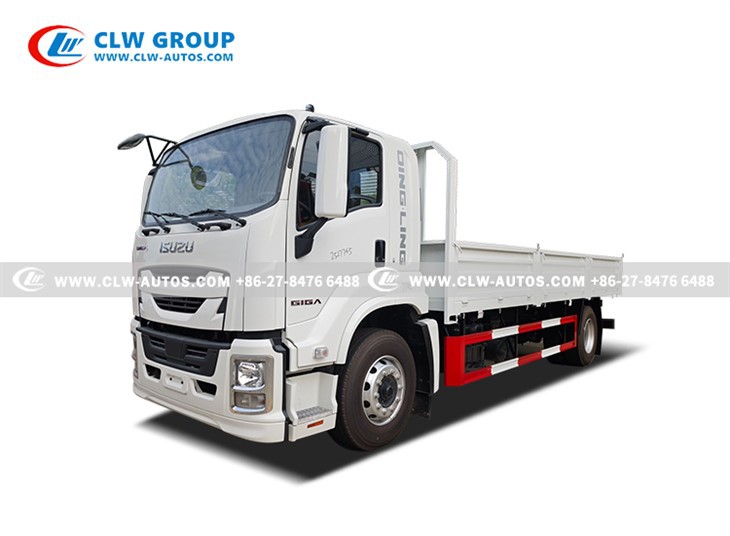

ISUZU FTR 10Ton Cargo Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 10ton cargo truck in China. If you're going to buy high quality isuzu ftr 10ton cargo truck, welcome to get more information from our factory. For price consultation, contact us.

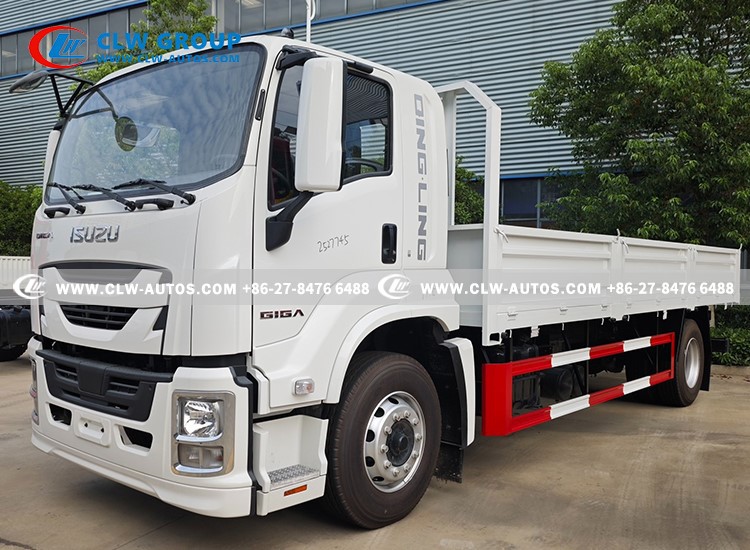

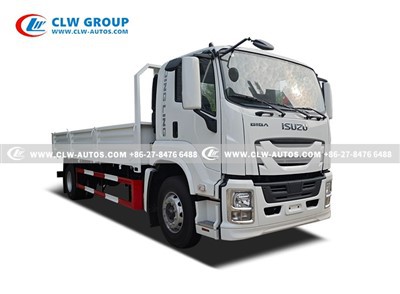

ISUZU FTR 4X 10Ton Cargo Truck / 205HP / 5000mm





1. Reliable and Efficient Powertrain

• Engine: Equipped with Isuzu's classic 4HK1-TC60 inline four-cylinder diesel engine, with a displacement of 5.2L, a maximum power of 205 horsepower, and a maximum torque of 520 N·m. This engine is renowned for its durability and fuel efficiency, and its low-speed high-torque characteristics make it highly suitable for urban and intercity short-to-medium-distance transportation.
• Transmission: Paired with a 6-speed manual transmission, featuring clear gear engagement and a wide gear ratio range, ensuring better adaptability to heavy-load starts and various road conditions, with high reliability.



2. Strong Chassis Load-Bearing Capacity

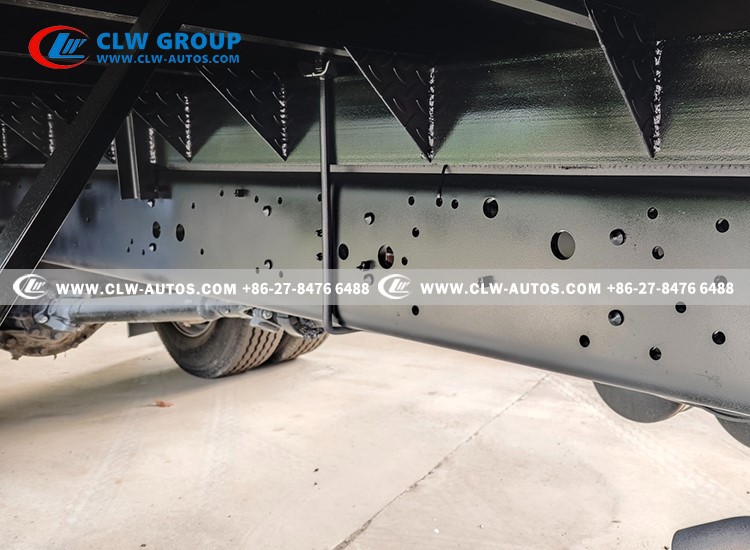

• Frame: Utilizes a straight high-strength steel beam, robust and solid, providing a strong foundation for heavy-load operations.
• Axles: Both front and rear axles are Isuzu products, with reasonably matched load-bearing capacity. The rear axle ratio is typically 5.571, balancing sufficient traction with certain economic efficiency.
• Suspension: The front axle features multi-leaf spring steel suspension, while the rear axle adopts a main and auxiliary leaf spring structure (e.g., 10/11+8 configuration), delivering excellent load-bearing capacity, making it highly suitable for transporting heavy goods such as construction materials and agricultural products.



3. Practical and Comfortable Cab

• Space Layout: Features a day cab with a sleeper (semi-sleeper), offering mainstream interior space in its class. The sleeper provides temporary rest for drivers, ensuring high practicality.

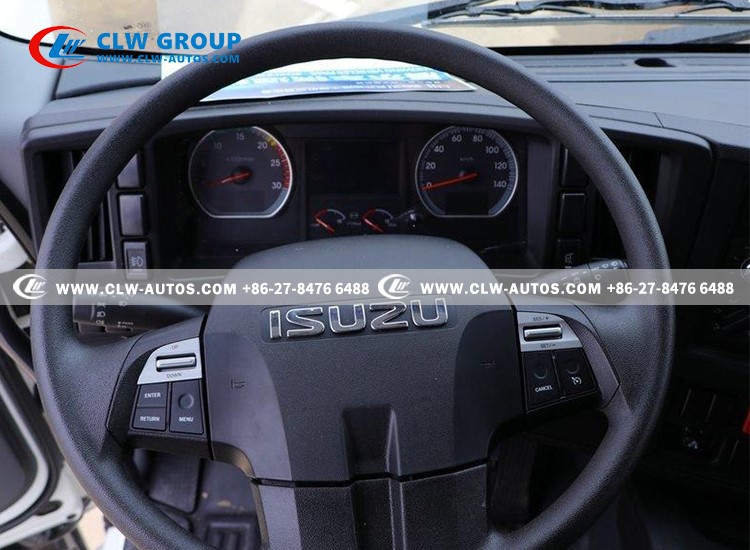

• Comfort Features: Standard equipment includes mechanically adjustable shock-absorbing seats, power windows, central locking, and air conditioning, focusing on practicality to meet basic comfort needs. The ergonomic design is mature and user-friendly.



4. Clear Primary Application Scenarios

• This model is positioned for intercity logistics distribution, construction material transportation, and agricultural product transportation, among other short-to-medium-distance heavy-load markets, making it a standard "medium-duty truck" workhorse.

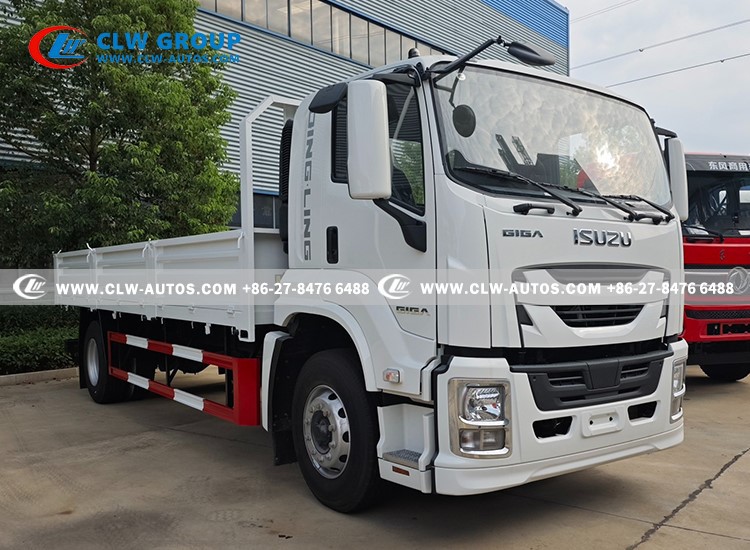

ISUZU Cargo Truck
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	8000 x 2400 x 2300 mm
Cab	Original ISUZU 700P Cabin With Air Conditioner Left Hand Drive
Wheelbase	5000 mm
Gross vehicle Weight	18000 kg
Curb Weight	4490 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	235/80R22.5
	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4KH1-TC60
	Horse power: 205 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: MLD
	6 Forward & 1 Reverse

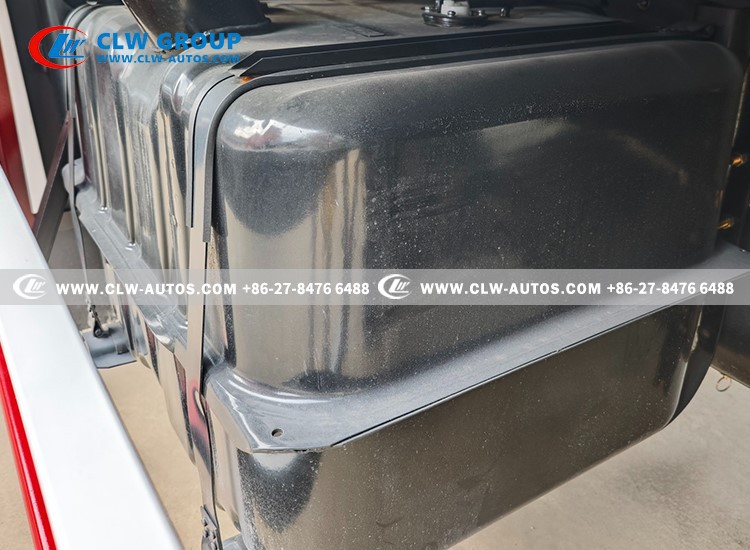

Fuel Tank Capacity	200L
Upper Parameters

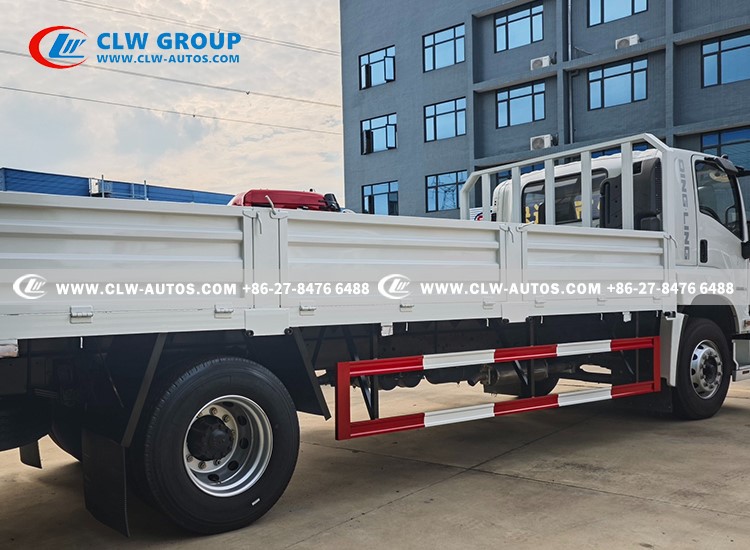

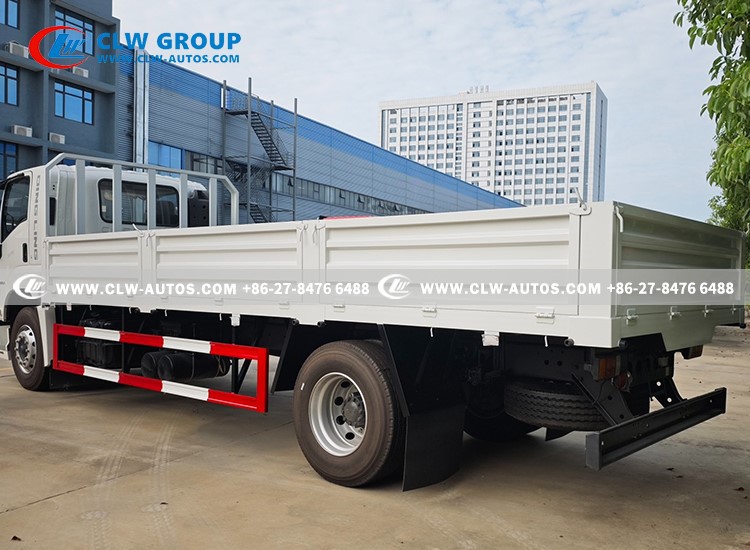

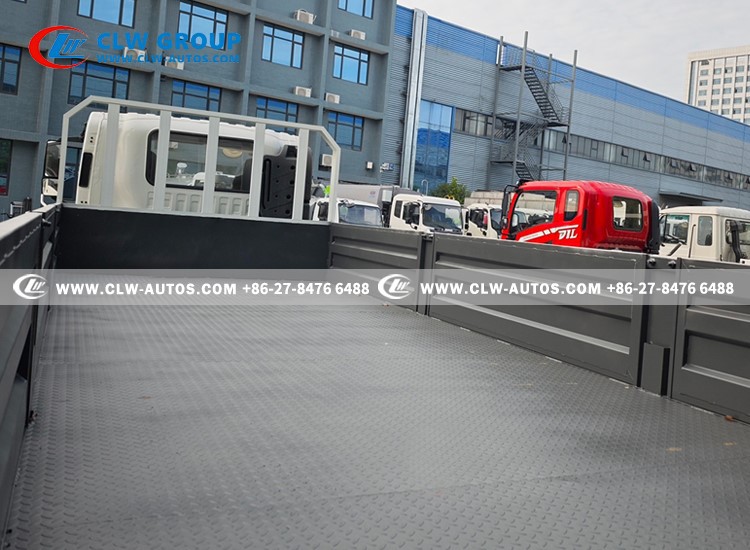

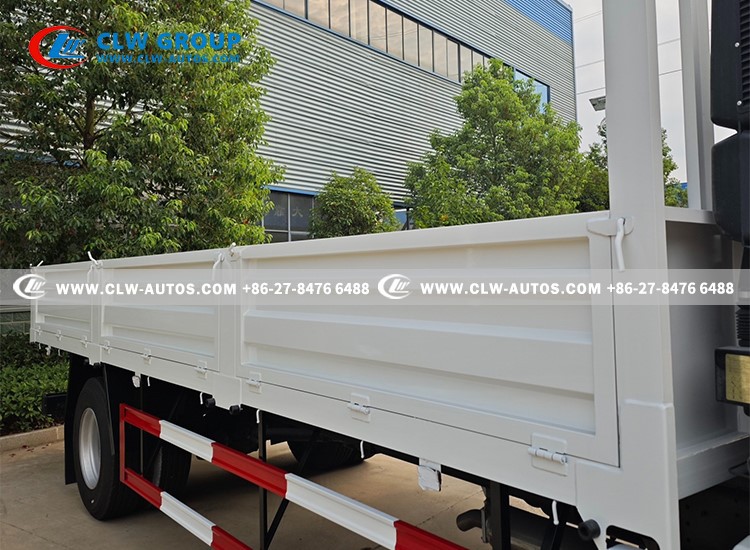

Cargo Box
Size (L*W*H)	6200 X 2100 X 400 mm
Loading Capacity	10 Ton
Bottom Thickness	4 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
