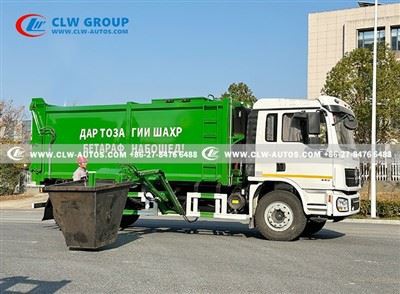

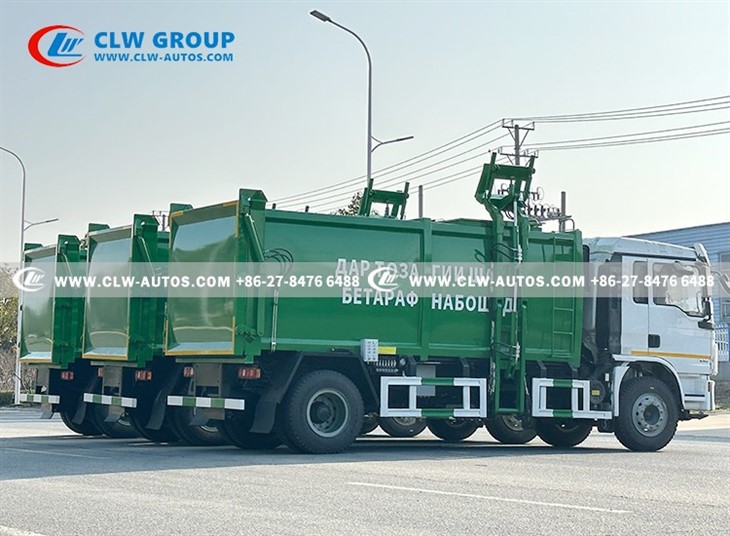

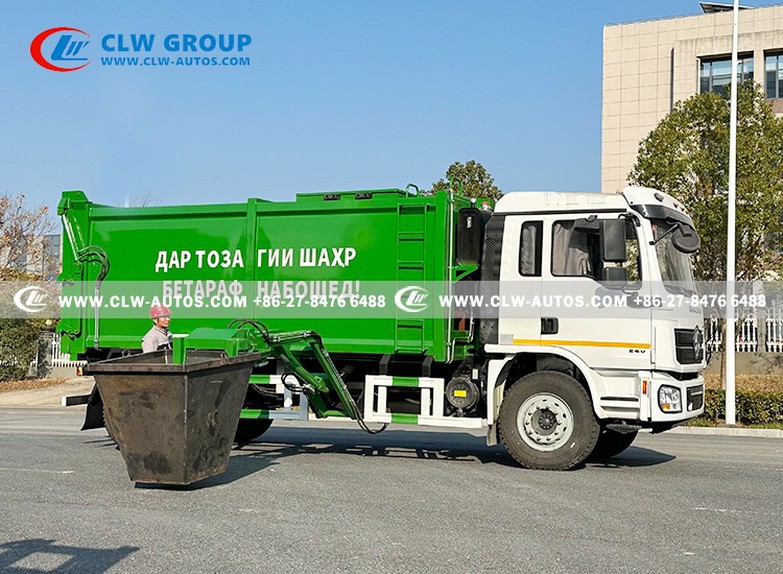

Shacman L3000 16cbm Side Loader Garbage Truck

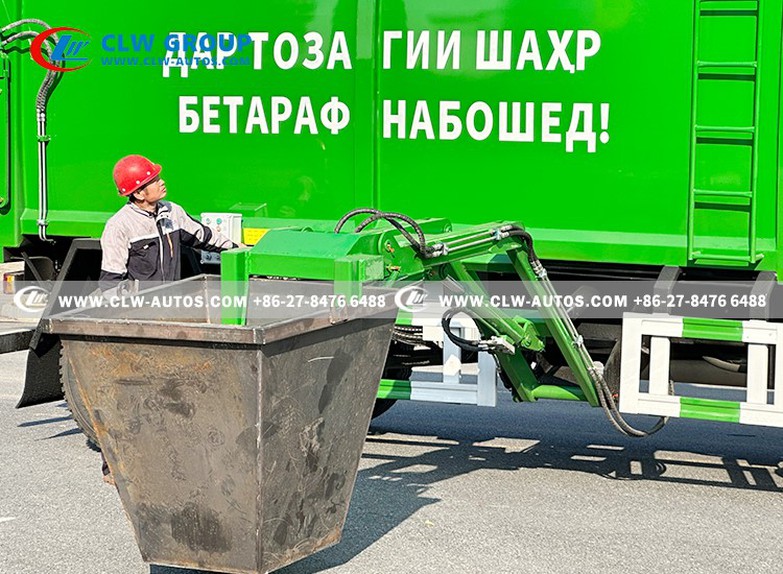

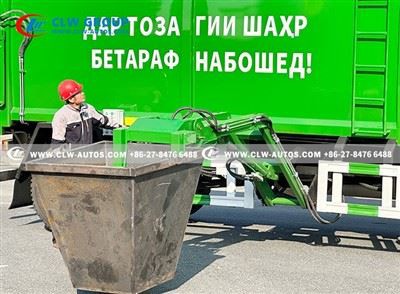

Lifting up 500kg Iron Drum
Tank material:Q345, thickness 5mm

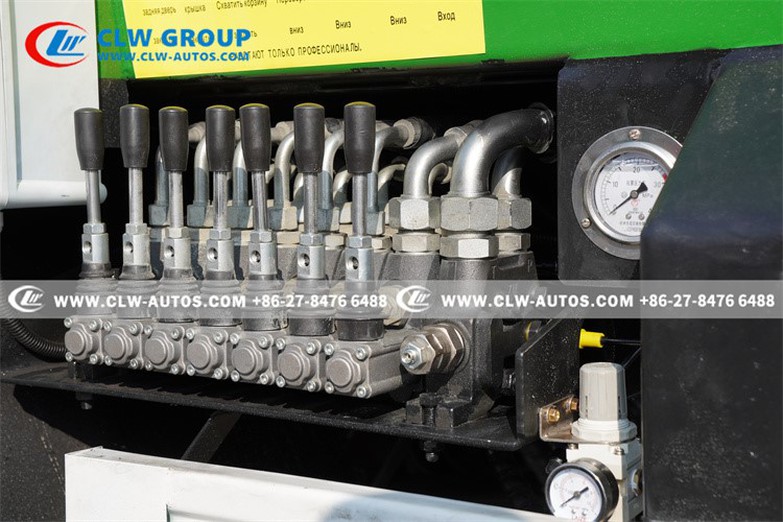

one set operation handle

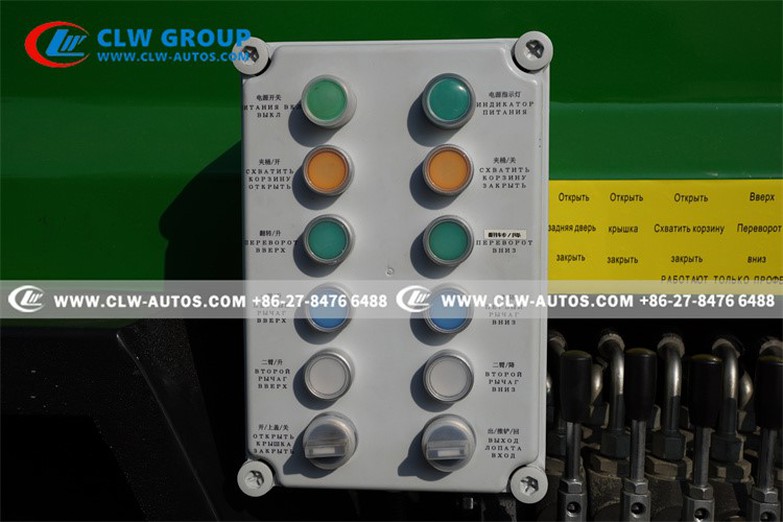

Two set operation panel
Russian Operation video
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 16cbm side loader garbage truck in China. If you're going to buy high quality shacman l3000 16cbm side loader garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
Shacman L3000 Side Loader Garbage Truck
Side loader garbage truck also known as side loader truck, side loading garbage truck, side load garbage truck, side loade garbage and recycling truck, which are widely used for domestic waste, solid waste, plastic bottles and recyling objects and transport to waste treatment facilities. Garbage truck are mostly used by municipal facilities and private companies for waste management purpose. This iron drum lifting garbage truck is special designed for Russia, Uzbekistan, Kazakhstan, Kyrgyzstan, Tajikistan, Turkmenistan etc.
Side loader garbage truck feature:

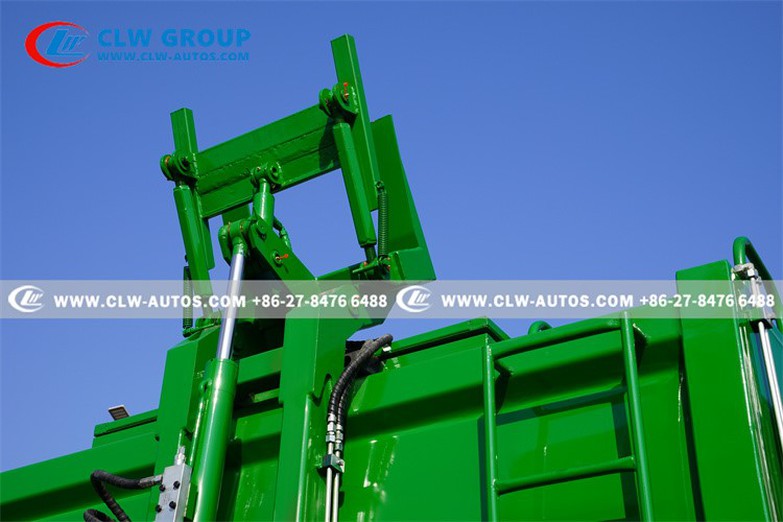

It consists a garbage tank, a hydraulic lifting system, and an hyradlic control operating system.
* The garbage tank is made by high intense Q345b carbon steel, 5mm tank thickness
* PLC control system:side control panel, operation hanle at side of the truck, and one set control panel at driver cabin.

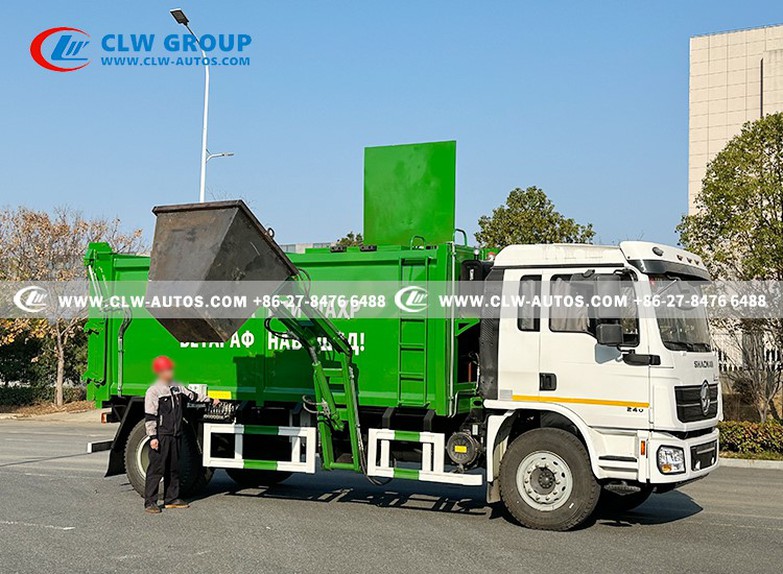

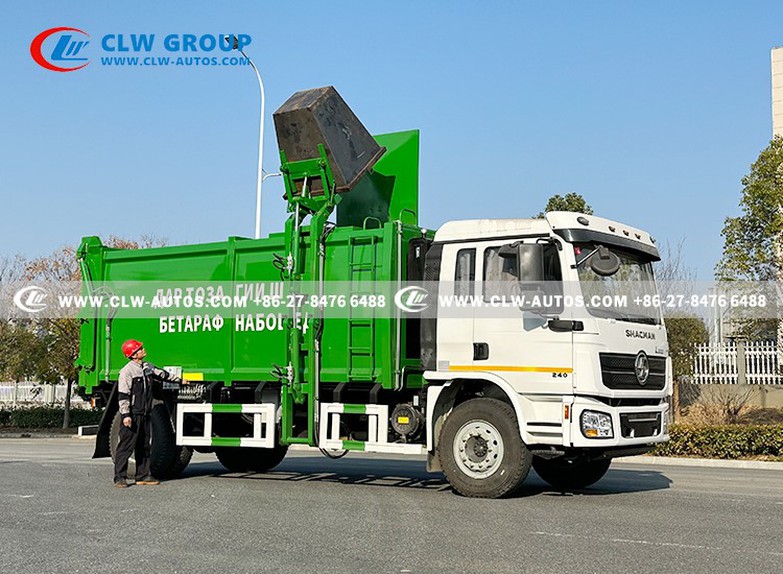

* Side loading :customized to lift up 500kg-600kg iron drum, also can design to working with 120L/240/600L plastic garbage.
* Garbage tank size can choose from 4cbm to 20cbm
* Optional choice: we can add two outrriger to support the garbage tank to lift up to discharing
Maintenance tips:
- Change hydraulic oil every six months
- Clean sewage tank regularly
- Grease the grease fitting and the slide inside the garbage bin can every week.
- Cean the sticky garbage and debris on the hydraulic cylinder to avoid the dust ring or oil seal of the oil cylinder is damaged.
-
Clean the engine fuel filter, air filter, and engine oil Filters, hydraulic system air filters regularly.
| Shacman L3000 sider loader garbage truck | |||
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Shacman L3000 | |
| Curb weight(kg) | 8250 kg | ||
| Wheelbase(mm) | 5000mm | ||
| Dimensions(mm) | 8250*2500*3250 mm | ||
| Axle Load(kg) | 4800/10000 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 6pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Transmission | Manual type, 8 Forwards and 2 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Weichai | |
| Model | WP6.240E32 | ||
| Horsepower/(HP) | 240 HP | ||
| Emission standard | Euro II | ||
| Upper Body | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 16.0 CBM | ||
| Thickness of the tank | 5 mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one side of the truck) | 500 L | ||
| Equipment | 1.Emergency triangle 2. First-aid kit with a standard set for first aid set |
||
| Painting and Logo | As customer's requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
|
Push plate cylinder. |
|||
| Optional parts | adding two outrigger to support garbage tank dumping | ||
