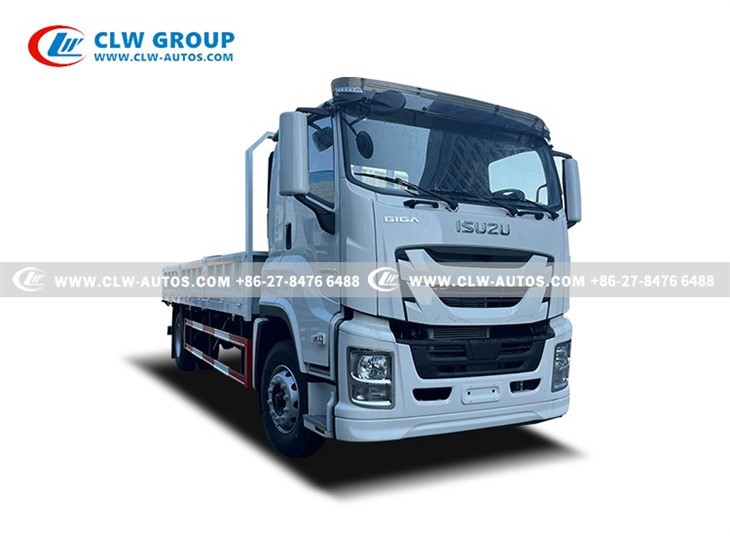

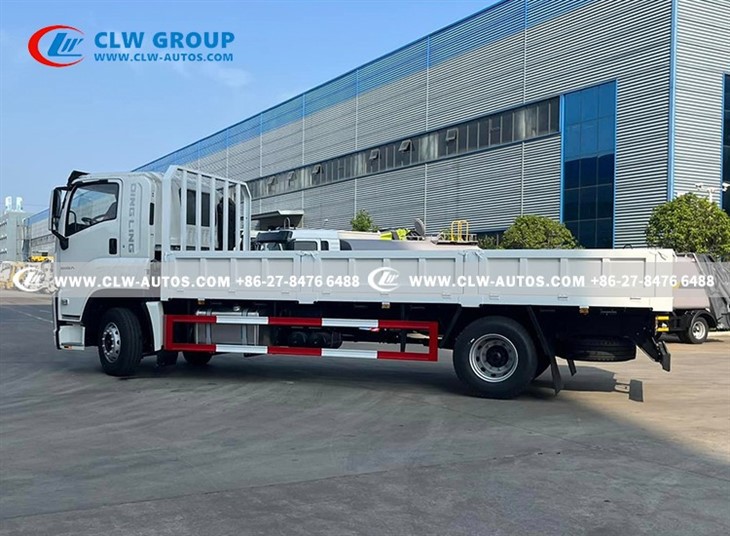

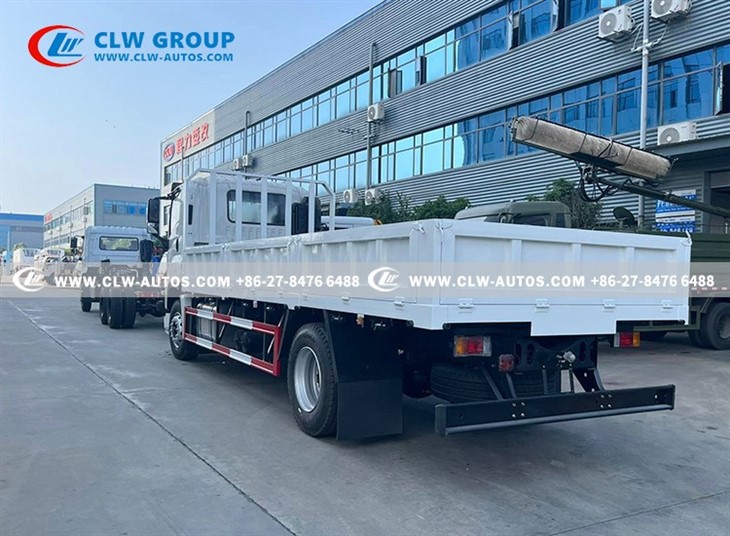

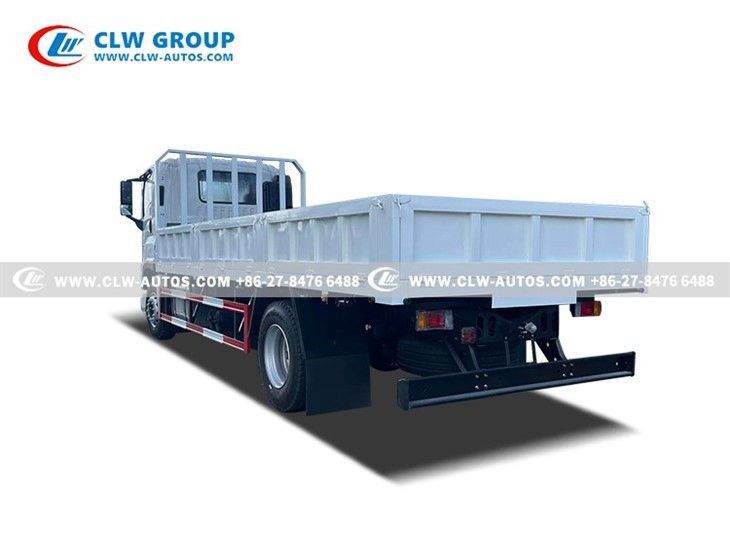

ISUZU GIGA Cargo Fence Truck 6.8 Meters

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga cargo fence truck 6.8 meters in China. If you're going to buy high quality isuzu giga cargo fence truck 6.8 meters, welcome to get more information from our factory. For price consultation, contact us.

ISUZU GIGA 4X2 10Ton Cargo Fence Truck

We are special vehicle straight manufacturer in China since 2004

Qingling ISUZU GIGA 4X large single-bridge cargo fence truck OPTIONAL FOR 5.8 METERS 6.8 METERS to 9.8-meter
Qingling Isuzu's medium and heavy-duty vehicle products all adopt a new naming method. The familiar names such as FTR and FVR will be replaced by new codes. The GIGA 4X introduced today is the previous FTR four-cylinder engine model, while FVR and FVZ have become GIGA 5X. The difference between the two is not only the difference in the engine, but also the design of the cab and chassis has been upgraded and changed.

First of all, in terms of appearance, the Isuzu GIGA 4X body is painted white as a whole, and the design of the double-layer U-shaped air intake grille in the middle grille brings a good sense of hierarchy to the whole vehicle.

At the same time, the middle grille and fenders can also be equipped with chrome trim strips, which will be more personalized and fashionable as a whole, and may attract many young truck friends.

The rearview mirror adopts an integrated design and uses a white paint that is consistent with the body, which effectively enhances the overall beauty. At the same time, the integrated rearview mirror can also reduce wind resistance when driving at high speed. In addition, the rearview mirror supports electric adjustment and electric heating functions, which ensures that the rearview mirror is clear when driving in foggy, rainy or snowy days, ensuring driving safety.

In terms of headlights, this Isuzu GIGA 4X uses an integrated headlight group for high and low beams, and a circle of silver chrome trim is added on the outside, which is very delicate as a whole. As for the headlight light source, halogen headlights are used, but thanks to the huge reflective bowl design, its brightness is still guaranteed, and the light transmittance will be better in cloudy, rainy and foggy weather.

Isuzu Juka 4X also comes standard with a deflector, which can further reduce the wind resistance of the whole vehicle, thereby reducing the impact of wind resistance on power to a certain extent.

In terms of vehicle weight, the curb weight of Isuzu GIGA is 8.15 tons, and the maximum allowable total mass of the vehicle is 18 tons. It can load nearly 10 tons of cargo, and its loading capacity is excellent.

Four-cylinder diesel engine 205 horsepower with 6 gears
In terms of power, GIGA4X is equipped with Qingling Isuzu 5.193L inline four-cylinder diesel engine, model 4HK1-TCG60. The maximum output power is 205 horsepower, the peak torque is 650 Nm, and the maximum torque can be output near 1600rpm, which meets the National VI emission standards. If you want to pursue stronger power, you can choose the Isuzu GIGA 5X model equipped with a six-cylinder engine.

The gearbox is matched with Isuzu's 6-speed manual gearbox, model MLD-6Q. Isuzu's gearbox has always been characterized by high reliability and easy shifting in the entire industry.

In terms of the rear axle, the vehicle uses Dongfeng Dana rear axle, and the tire is a low rolling resistance tire with a specification of 275/80R22.5, which can reduce fuel consumption, and can also be equipped with a smaller tire specification, thereby reducing the height of the vehicle body and increasing the cargo compartment volume.

The fuel tank of Isuzu Juka 4X uses a single-sided aluminum alloy tank with a capacity of 400L. If you are not satisfied with the tank capacity, you can also choose a larger tank to meet the longer distance of cargo transportation.

The interior is simple and convenient, and the space utilization rate is high

The cab of Japanese trucks has always been praised for its versatility and space utilization rate, and Isuzu Juka 4X continues this advantage. In terms of interior, the overall design is mainly practical, and all button settings are within reach, and there will be no bending down to operate. The width of the cab is 2200mm, which can accommodate up to 3 truck drivers. When 2 truck drivers ride on a daily basis, the space is still very abundant.

Isuzu GIGA 4X adopts a three-spoke multi-function steering wheel design, with multimedia control buttons on the left and cruise control buttons on the right, which is convenient for quick setting and adjustment while driving, and the overall grip of the steering wheel is also relatively comfortable.

The instrument panel uses a full LCD instrument panel, which can display comprehensive information such as speed, speed, fuel volume, average fuel consumption, etc., and can intuitively display the vehicle status. Compared with the previous Isuzu pointer instrument, this LCD instrument upgrade can be said to be quite intuitive.

In terms of configuration, Isuzu GIGA 4X comes standard with electric rearview mirror adjustment, original air conditioning, electric one-button lifting windows and other functions, combined with multiple storage spaces, the overall convenience is very convenient, and can fully meet the daily needs of drivers

Isuzu GIGA 4X uses a single-layer sleeper, the width of the sleeper reaches about 70cm, and there are more sponge fillings, so it is no problem to accommodate a card friend to rest. For large single-bridge models, previous models often lengthened the cargo compartment to increase the cargo compartment volume, thereby encroaching on the cockpit space, reducing or even eliminating the berth space. While the Isuzu Juka 4X has a cargo compartment volume of 68 cubic meters, it still retains a 70cm berth, which shows that its space design is still very good.
