Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng road sweeper truck in China. If you're going to buy high quality dongfeng road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: For city road cleaning, industry area road cleaning, coal plants, power plants, cement plants, steel plants and mining pavements cleaning.
2. Main products: Deputy engine and hydraulic system
3. Deputy engine: China local famous brand
Specification
| New condition/RHD/LHD/4x2 | ||||||
| Brand | Dongfeng | |||||
Curb weight(kg) | 4865 kg | ||||||
Wheelbase(mm) | 3300 mm | ||||||
Dimensions(mm) | 5970×2100×2380 mm | ||||||
Overhang (front/rear) (mm) | 1032/1638 mm | ||||||
Wheel track (front/rear) (mm) | 1506/1466 mm | ||||||
Approach/Departure angle(°) | 19/12° | ||||||
Axle Load(kg) | 2450/4300 kg | ||||||
Max. driving speed(km/h) | 90 km/h | ||||||
Clutch | Reinforced diaphragm clutch | ||||||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||||
Steering Gear | Power steering, hydraulic steering with power assistance | ||||||
Tire | Quantity(pcs) | 6pcs with one spare tire, 7pcs tires in total | |||||
Specifications | 7.00-16 nylon tire | ||||||
| Manual type, 5 Forwards & 1 Reverse | ||||||
| Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||||||
| Model | CY4102 | |||||
Displacement(ml) | 3856 ml | ||||||
Power(kw)/Horsepower(HP) | 70 kw/95 HP | ||||||
Cylinder quantity(pcs) | 4 pcs | ||||||
Emission standard | Euro 3 | ||||||
Upper | |||||||
| Garbage tank | Tank material | Stainless steel 304 | ||||
Tank volume(cbm) | 4.0 cbm | ||||||
Water tank | Tank material | Stainless steel 304 | |||||
Tank volume(cbm) | 1.5 cbm | ||||||
| Model | ISUZU | |||||
Power(kw)/Horsepower(HP) | 55 kw/75 HP | ||||||
Fuel type | Diesel | ||||||
| Sweeper Diameter(mm) | 900 mm | |||||
Working area(m) | 2.7-3.0 m | ||||||
| 1, Rear LED pilot lamp | ||||||

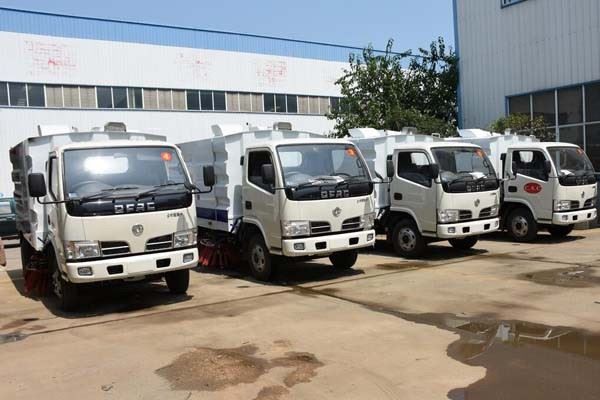

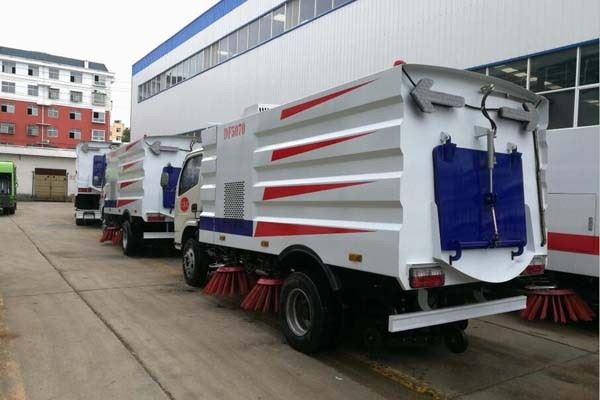

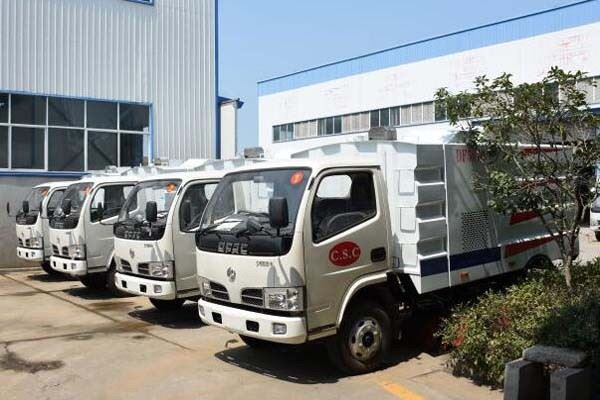

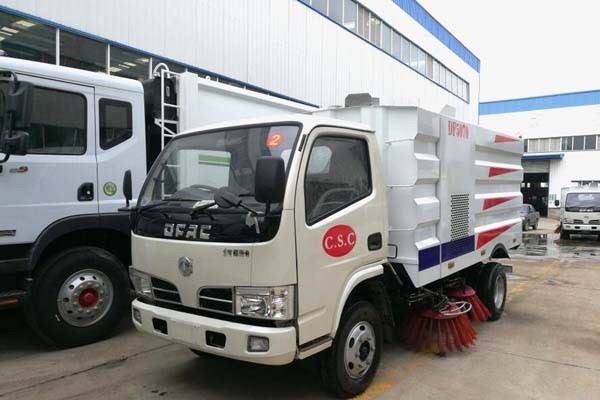

Reference Picture
Production Process
①Super Structure frame welding and installation.
②Deputy engine installation
③Hydraulic system and sweeping system installation.
④Control system and electricity device installation.
⑤Painting and Customized LOGO design
⑥Hydraulic control system is optional
Our Advantage
1. Easy to replace road cleaning brushes
2. International brand deputy engine and top quality.
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: Which brand hydraulic valves in your road sweeper?
A: We usually adopts China famous brand Hi-pressure hydraulic valves and hydraulic oil cylinder in our road sweeper
Q2: How about the power of your road sweeper’s deputy engine?
A: Different size road sweeper equip with different power deputy engine
Q3: If this road sweeper is easy to operate?
A: Yes. We can provide operation video for you also.
Q4: Should we prepare any spare parts for future maintenance?
A: Yes. We will provide some spare parts for free, if you need more, we can supply it as factory cost price to you.
