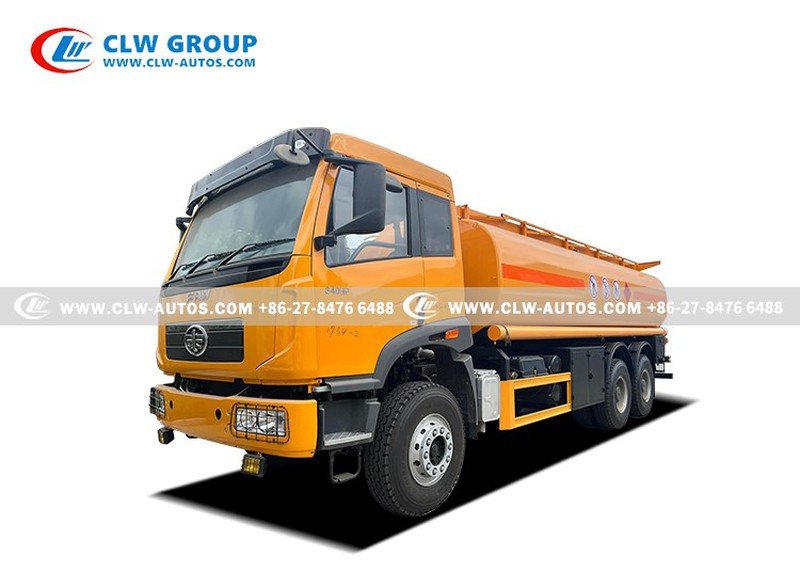

Export FAW 25cbm 25,000L Oil Tank Truck For Sale
FAW - China Top 1 chassis brand
10 wheels
25tons 25cbm 25m3 25,000L 25,000liters tank capacity
Diesel engine
Q235 carbon steel oil truck
Aluminum Alloy fuel dispenser truck
3,000 liters to 40,000 liters Per Customer Request
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of export faw 25cbm 25,000l oil tank truck for sale in China. If you're going to buy high quality export faw 25cbm 25,000l oil tank truck for sale, welcome to get more information from our factory. For price consultation, contact us.
FAW 25cbm 25,000L Oil Tank Truck For Sale
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Products Descriptions
Oil tank truck: also known as mobile refueling truck, computer tax control refueling truck, oil tank truck, oil loading truck, oil truck, oil transport truck, oil transport truck, mainly used for oil derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar oil products) transportation, storage and dispensing.
According to different uses and use of the environment, it has refueling or oil transport functions, with oil suction, oil pump, oil storage, oil distribution and other functions. The special part of the oil truck is composed of tank, PTO, transmission shaft, gear oil pump, pipe network system and other components.
*Inner structure of the oil tank*
Our vehicle is optional for:
- Chassis Brand: FAW, SHACMAN, ISUZU, DONGFENG, JMC, JAC, FORLAND, SINOTRUK, etc.
- Driving Type: 4X2, 4X4, 6X4, 6X6, 8X4
- Emission Standard : Euro I, Euro II, Euro III, Euro IV, Euro V, Euro VI
- Cabin: LHD or RHD
- Tank Capacity: 5,000L, 10,000L, 15,000L, 20,000L, 25,000L, 30,000L, 35,000L
- Tanker Compartment: Can be separated to different size
- Refueling equipment: Pump, Dispenser or Flow meter, Filling hose
After-sales Service Provided:
- One Year Warrenty
- Video technical support
- Overseas Call Centers
- Online support
*Min. order: 1 pc
For more informations, please contact:
WhatsApp: +86 139 2570 3918
Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
Products Parameters
|
Overall Dimension |
10900 x 2500 x 3250 mm |
|
Gross Vehicle Weight |
27600 kg |
|
Curb weight |
11500 kg |
|
Loading Weight |
16100 kg |
|
Wheel Base |
4600+1350mm |
|
Cabin |
2 or 3 Passengers Allowed, with A/C |
|
Engine |
EURO II, Weichai Diesel, WP10.290E32, 6 Cylinder |
|
Horse Power |
290 HP |
|
Displacement |
9.726L |
|
Gearbox |
Manual, FAST 9JS119, 9 Forward & 1 Reverse |
|
Axle |
6.5Ton Front Axle, 11.5Ton Rear Axle |
|
Max Driving Speed |
80 km/h |
|
Tire |
315/80R22.5, 10 Pieces with 1 Spare |
|
Oil Box |
400 Liters |
|
Tank Volume |
25,000 Liters, Compartment no. can be customized |
|
Tank Material |
Q235 Carbon Steel, 5mm Thickness Tank color and design can be customized |
|
Manhole |
API Manhole |
|
Safety Feature |
Breather Valve+Emergency cut-off Valve |
|
Oil Filling System |
Oil dispenser - China Top Brand Censtar, 1 Unit Oil filling nozzle & Rubber hose, 1 Unit Oil filling pump, 1 Unit Standard tool box, 1 Unit |
Special Equipments

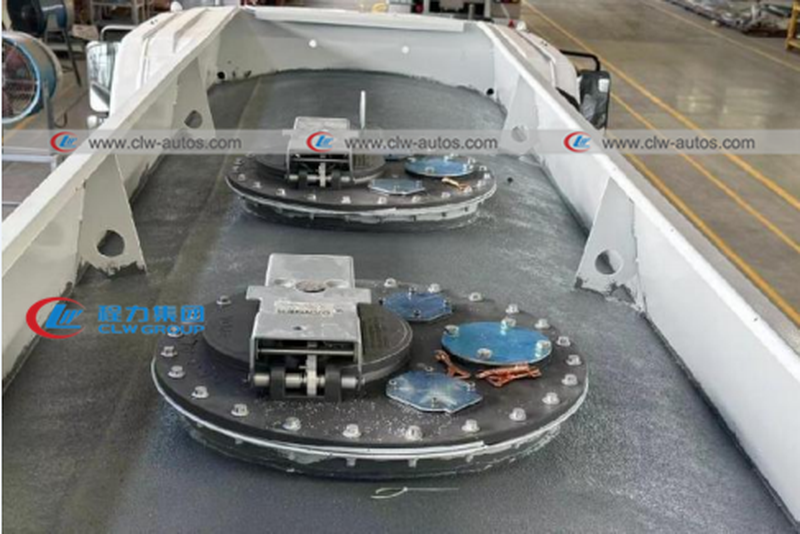

API Manhole to Container Oil Vapor for Safety
With spill-proof sensor and Safty Valve
Spill-proof Sensor
The spill-proof sensor is mainly used in the fuel tank truck to detect the refueling situation in the tank. When the feed is excessive, the internal terminal transmission signal plays a role, and prompts the refueling platform to stop refueling, so as to ensure the safety of refueling. The anti-static system is composed of the anti-overflow probe rod, anti-overflow socket and ground bolt.
- Made of Stainless steel material with strong corrosion resistance.
- Easy to adjust. the alarm height can be adjustable.
Subsea Valve
Subsea valve is also named of emergency cut-off valve, installed at the bottom of the fuel truck and mainly sealed inside the tank body. When the pipeline valve is accidentally broken, it can make the tank body still sealed, avoiding liquid leakage in the tank, improving the safety and reliability of transportation.
- Made of stainless steel material with strong corrosion resistance.
- Simple structure and durable, easy maintenance.

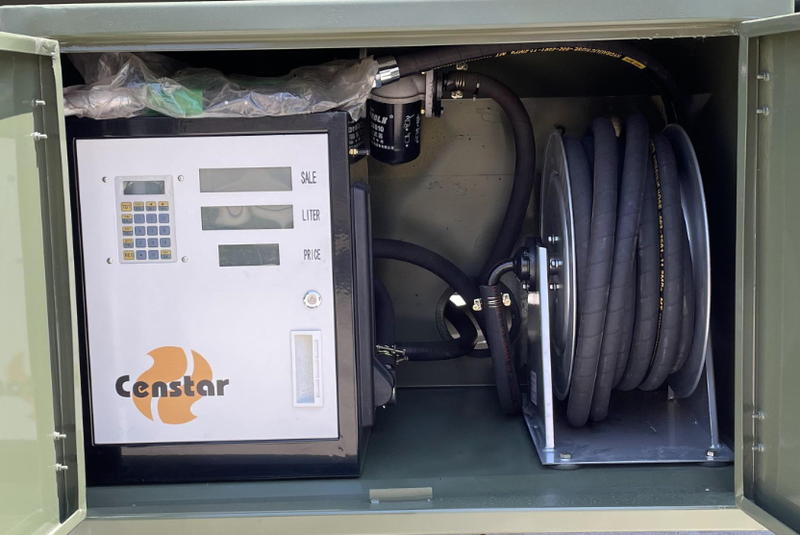

Pump, Dispenser, Filling Guns All in One Unit
PTO Drive High Efficiency Oil Pump
China top brand Oil Dispenser Powered by Truck Electricity

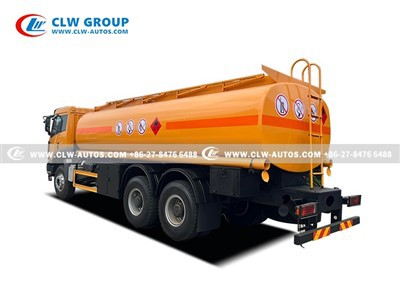

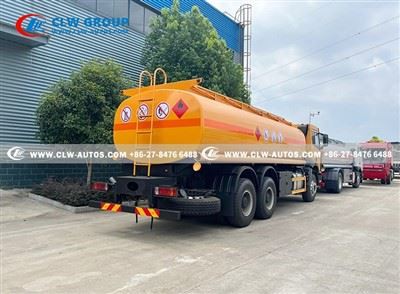

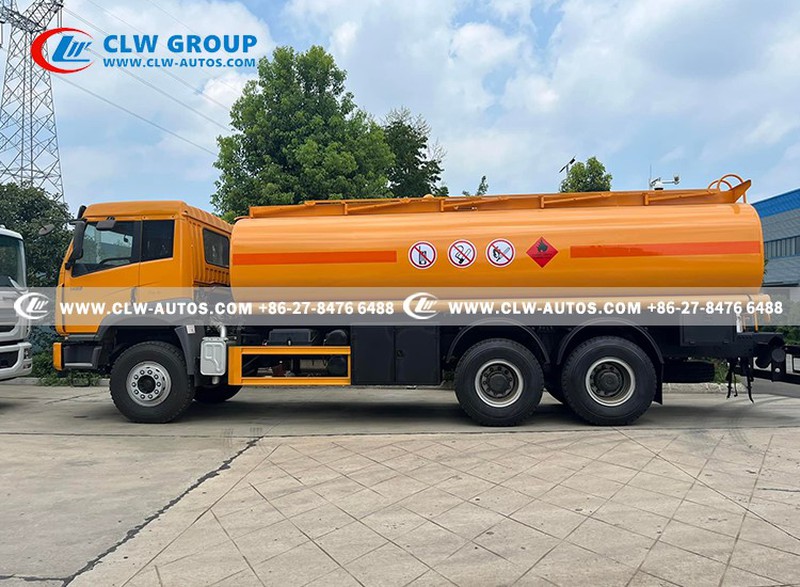

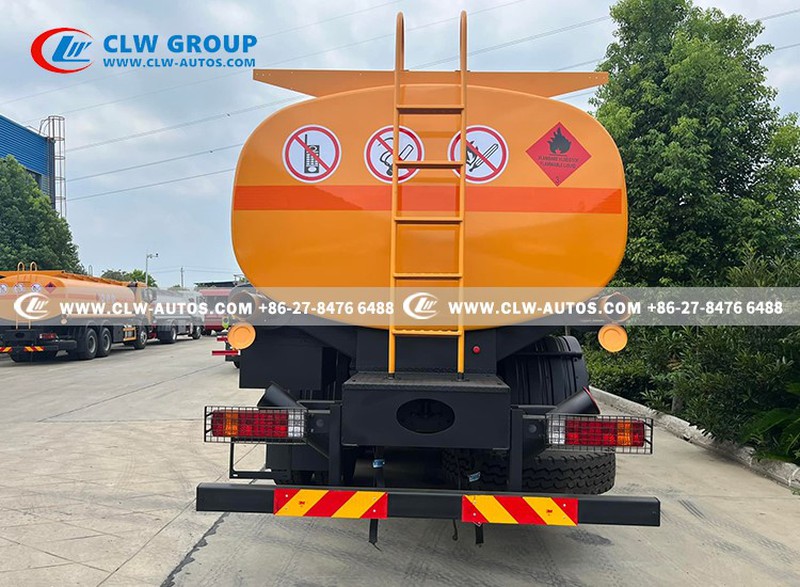

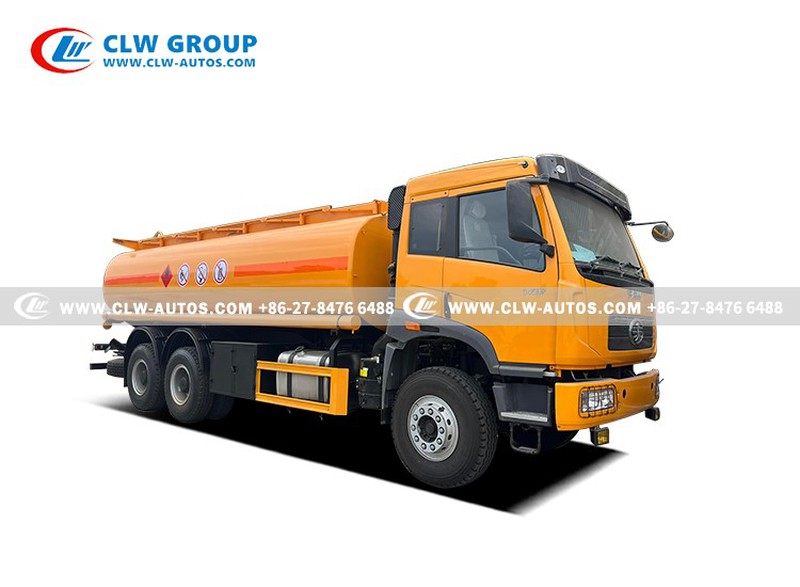

Reference Pictures
*Color and Design can be Customized*
