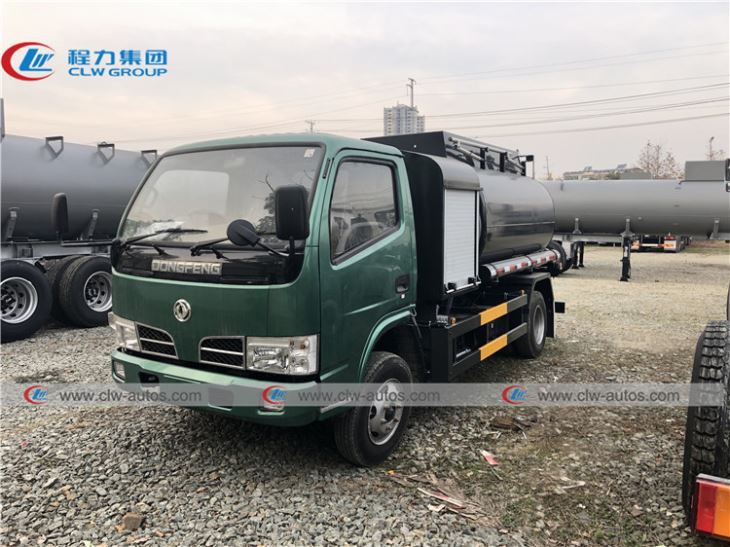

Dongfeng 5000Liters Oil Dispenser Truck
Tank Size:5,000Liters
Oil pump: Chinese Top brand
Oil Dispenser:Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount
Hose Reel with Filling Gun
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 5000liters oil dispenser truck in China. If you're going to buy high quality dongfeng 5000liters oil dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1.
Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2.
Refueling System: Oil pump, Hose reel with filling gun/Oil dispenser machine
3.
Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
4.
Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5.
Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6.
Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

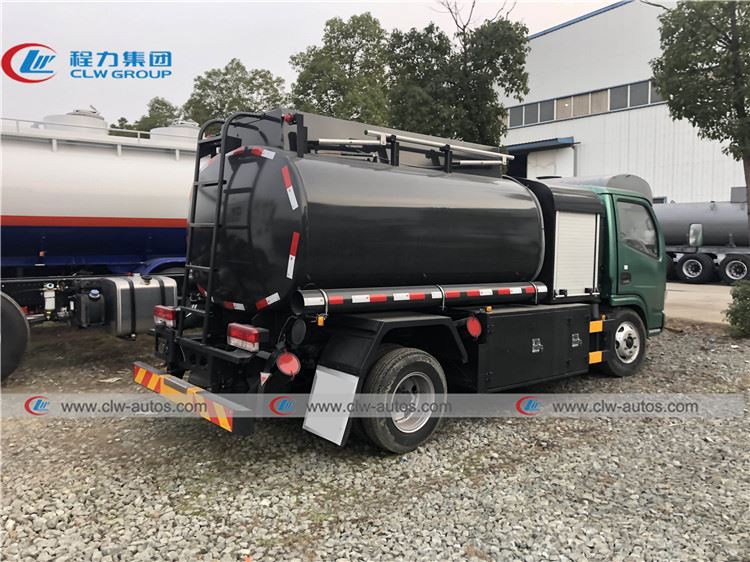

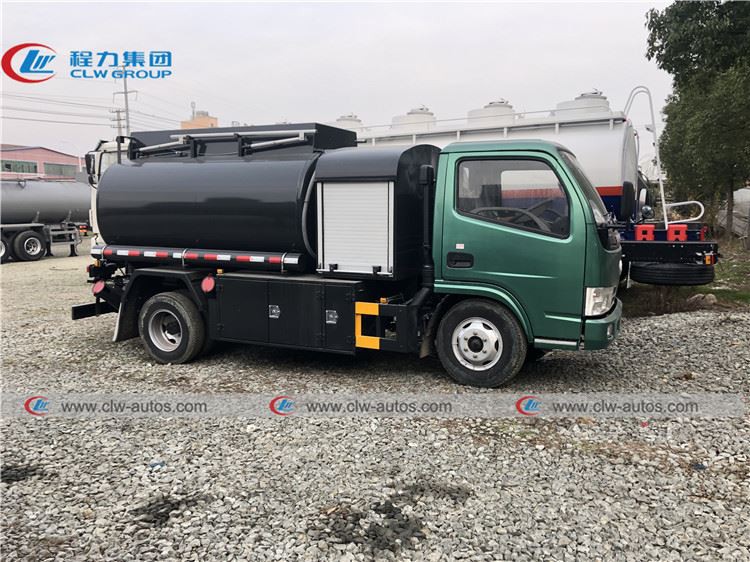

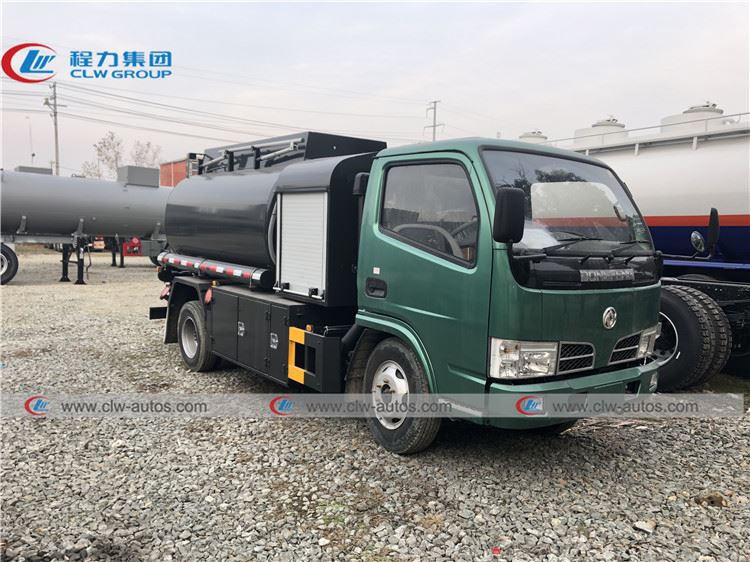

Reference picture
Specification
Condition | New condition/LHD/4X2 | ||
Chassis | Brand | dongfeng | |
Curb weight(kg) | 5260kg | ||
Wheelbase(mm) | 3360 mm | ||
Dimensions(mm) | 5300X1900X2200 mm | ||
Front/Rear Axle loading(kg) | 2500/4800 kg | ||
Wheel track (front/rear) (mm) | 1880/1800 mm | ||
Front/Rear overhang(mm) | 1430/2370 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: engine exhaust valve brake | |||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 9.00R20 | ||
Transmission | Manual type, 6 Forwards and 1 reverse | ||
Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Chaochai | |
Model | CY4102 | ||
Fuel type | Diesel | ||
Displacement(ml) | 2771 ml | ||
Power(kw) | 70kw | ||
Horsepower(HP) | 95HP | ||
Cylinder number | 4 | ||
Emission standard | Euro III | ||
Fuel Tank | |||
Fuel tank | Capacity(cbm/liters) | 4~5cbm/4000~5000Liters | |
Tank material | Tank material:Q235 high tensile strength steel. | ||
Thickness(mm) | 5mm of tank and 6mm of end plate | ||
Compartment No. | 1 | ||
Baffle | 1 No,4 mm carbon steel | ||
Manhole cover | 1 manhole cover, ∮500mm 1 set with breather valve | ||
Bottom Valve | 1 set of API Pneumatic Bottom Valve | ||
Discharging valve | 1 set ∮ discharging valve | ||
Handrail | Two sides | ||
Ladder | At rear of tank | ||
Painting | Color and design as customer's requirement | ||
