Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5000liters oil dispenser truck in China. If you're going to buy high quality isuzu 5000liters oil dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
--The fuel tank truck is also called Mobile Fuel Truck, oil loading truck, oil refulling truck, etc. It is mainly used for storage and transport of oil.
--The fuel tank truck can equipped with computer fuel dispenser. It could be used as the mobile filling station.
-- According to different needs, fuel tank truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
General Technical Parameters | |||
Overall Dimension | 6454*2350*2550 (mm) | ||
Gross Vehicle Weight | 8360kg | ||
Chassis Specification | |||
Chassis Brand | ISUZU | ||
Drive model | 4*2 | ||
Cabin | Single row, Cab reversible, Left-hand Drive, with air condition. | ||
Number of Passengers | 2 | ||
| Model | 120HP, with ABS. | |
Power | 88KW/120HP | ||
Emission standard | EURO 4 | ||
Fuel type | Diesel | ||
Gearbox | ISUZU, 5 Forwards & 1Reverse, manual operation, with power steering. | ||
Brake System | Oil break, with vacuum booster pump. | ||
Wheel Base | 3360mm | ||
Front/Rear Axle Loading | 2500/4800(Kg) | ||
Overhang | Mechanical Suspension, | ||
Tire | 650-16, steel wire tire, 6pc with 1 spare tire. | ||
Max Driving Speed | 90 km/h | ||
Upperstructure Specification | |||
Fuel Tank | Tank Material | Q235B Carbon Steel (Stainless Steel and Aluminum Alloy can be choosed) | |
Effective Volume | 5CBM | ||
Medium Type | Fuel(Gasoline, Diesel, etc.) | ||
Tank Thickness | 4mm | ||
Compartment | 2 compartments, 2000 liters for each. (optional configuration) | ||
Manhole cover | 2 units, with breath valves. | ||
Emergency cut-off valve | 2 unit. | ||

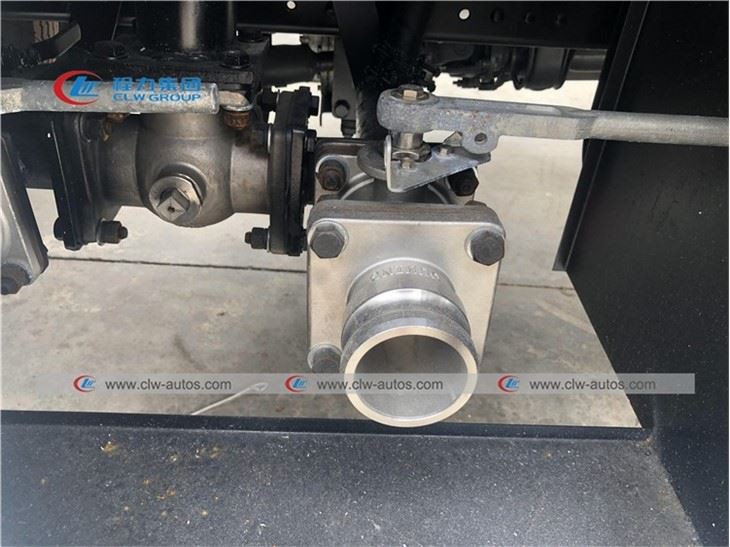

Discharging valve | 2 unit. | ||
Lifting Ladder | 2 units. | ||
Color | According to customer's requirements. | ||
Dispenser System | 1, Dispenser machine; | ||

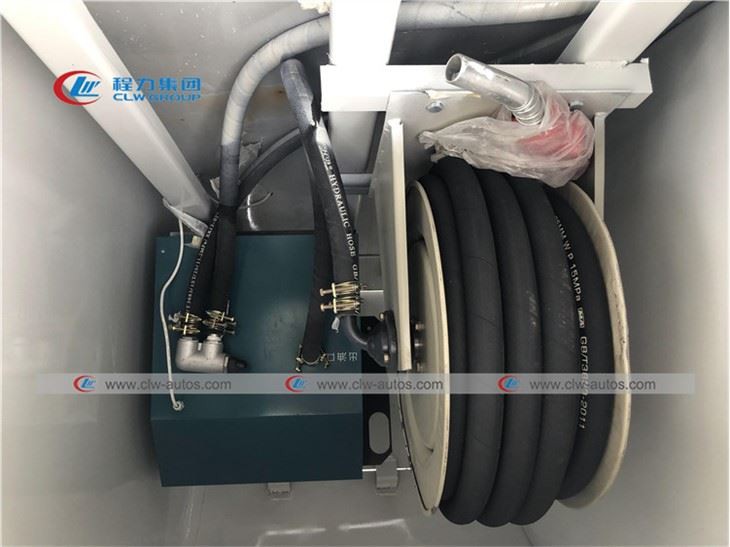

2, Refueling retractable rubber hose reel and filling gun, 2 units; | |||
3, Pump. | |||
