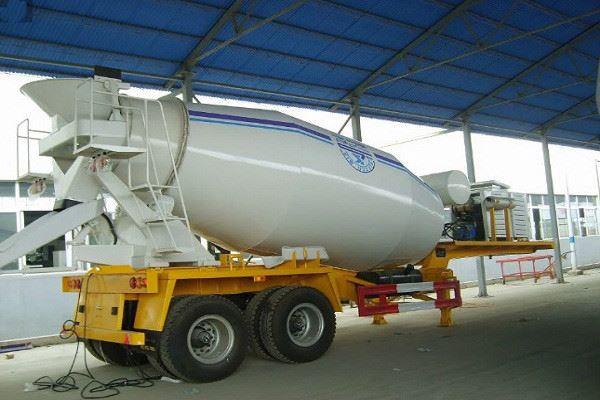

30cbm Concrete Mixer Trailer
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. Color is optional at request.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30cbm concrete mixer trailer in China. If you're going to buy high quality 30cbm concrete mixer trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Mixer Trailer Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator.
4. 400Liter Water Tank with Pressure Water Filling.
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
12CBM Concrete Mixer Trailer | ||
DIMENSIONS | ||
Tare Weight | 10900kg | |
Overall Width | 2495mm | |
Overall Length | 9663mm | |
Overall Height | 3780mm | |
Photo for reference, finial product can be made according to exact requirements | ||
TANK | ||
Capacity | 12CBM | |
Mixing Tanker Sloping Angle | 14,12,10 degree | |
Mixing Tanker Revolving Speed | 12-20 (r/min) | |
Thickness | 6mm | |
KEY ACCESSORIES | ||
Diesel Engine | TD226B-6 Diesel engine, Weichai Brand, 127KW | |
Hydraulic Pump | ACA6023, American Eaton Brand | |
Hydraulic Motor | HHD6033, American Eaton Brand | |
Gear Box | PMB7BSP, PMB Brand | |
CHASSIS SPECIFICATION | ||
Chassis & Main Beam | Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm. | |
Axles | 2 axles | |
Capacity 16Ton | ||
Suspension | Mechanical suspension | |
Leaf Spring | 8-piece leaf spring | |
King Pin | JOST band 2" Bolt-in King Pin | |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
Wheel Rim | 8.25-22.5 wheel rim, 9 pieces | |
Tyre | 11R22.5 tire with one spare tire, 9 pieces | |
Spare Tire | One set of spare tire including a carrier | |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. Color is optional at request. | |
Accessories | One standard tool box with basic tools | |

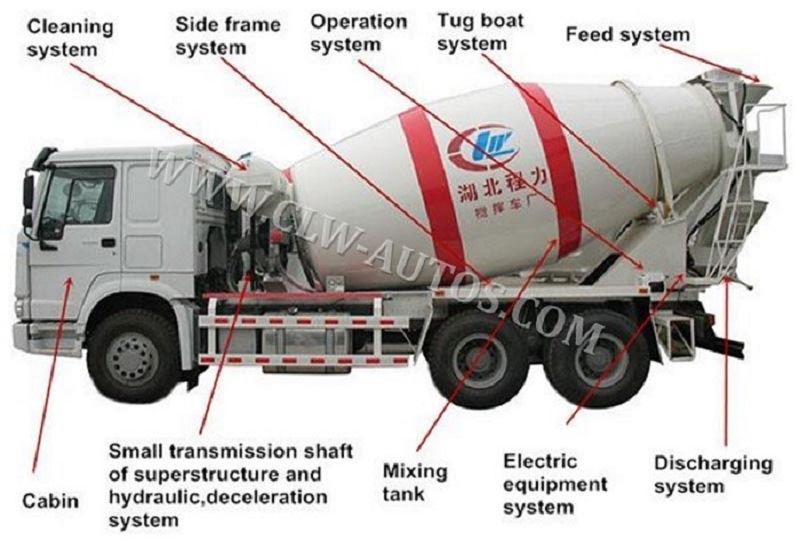

Reference Photos

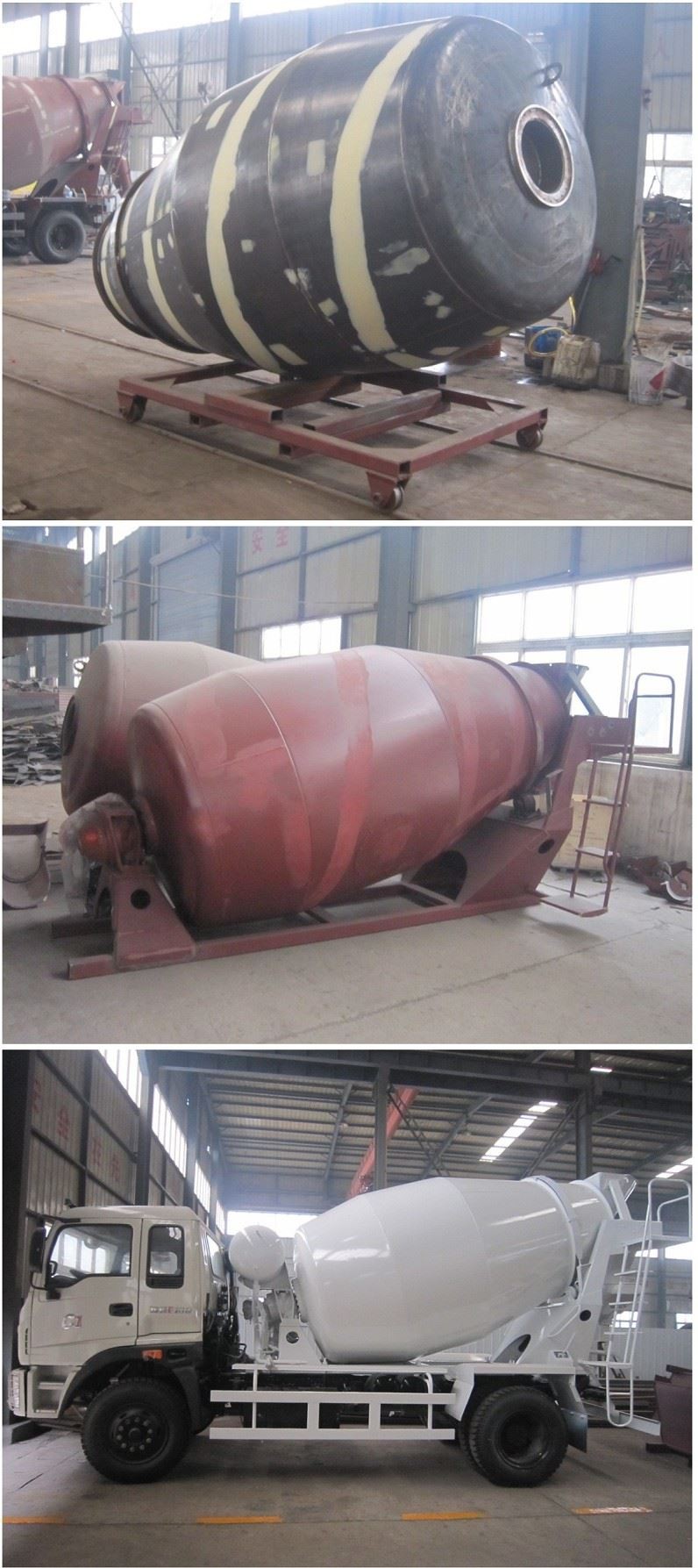

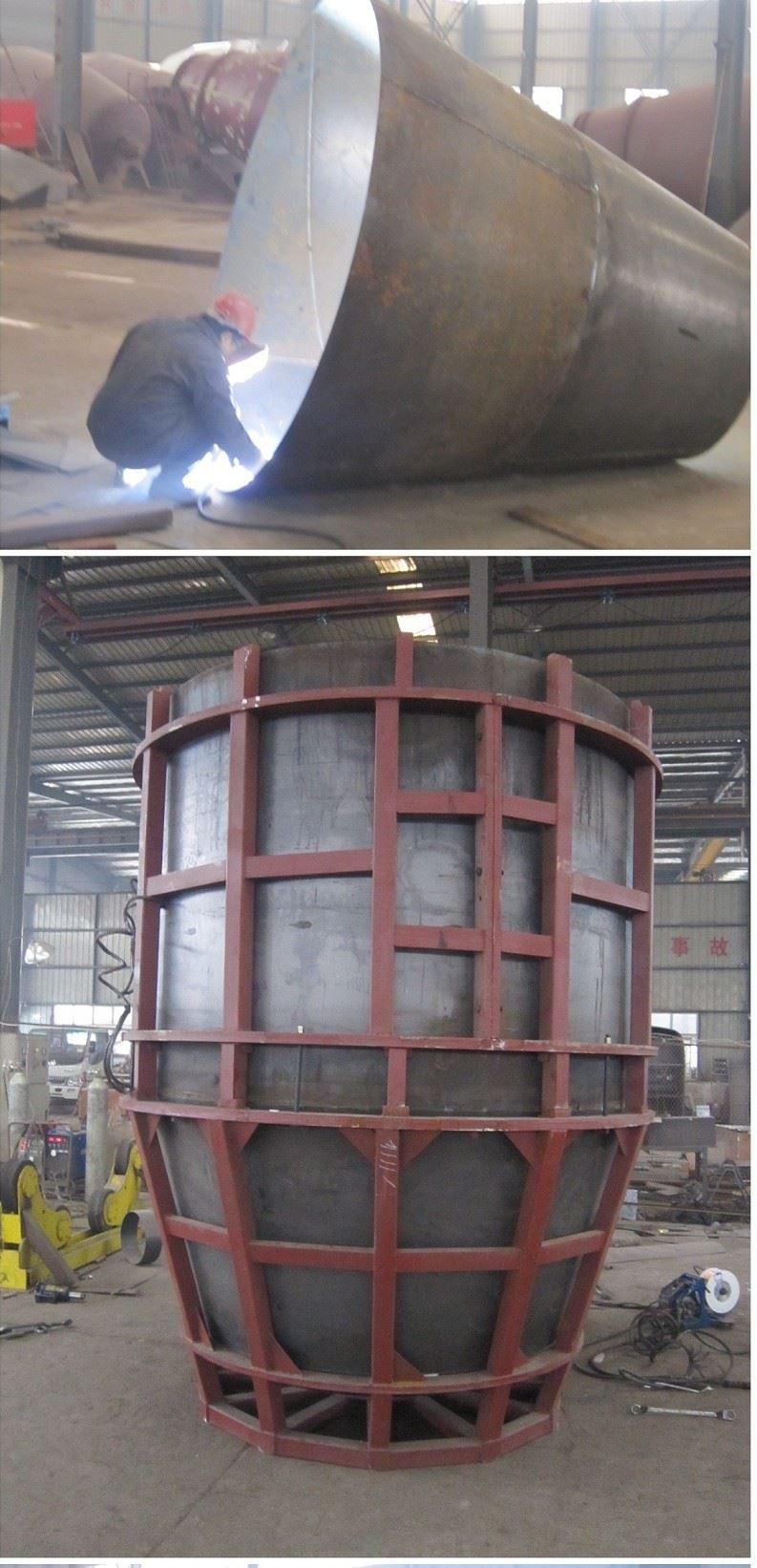

Process of mixer production

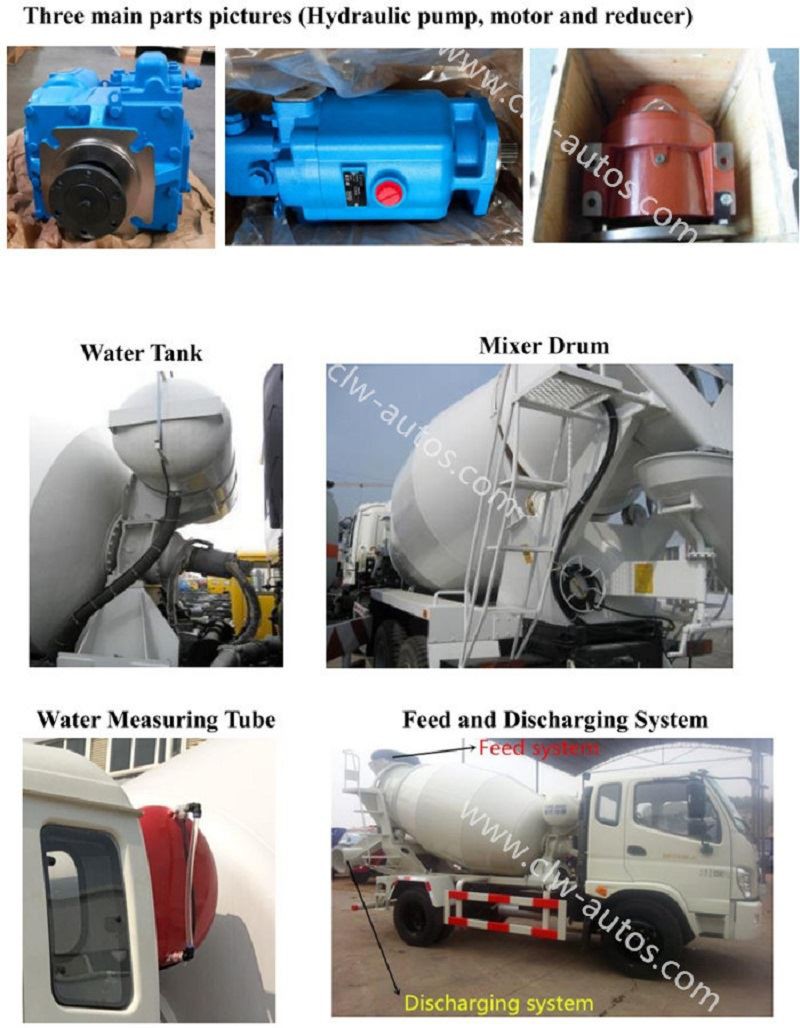

Details of concrete mixer truck

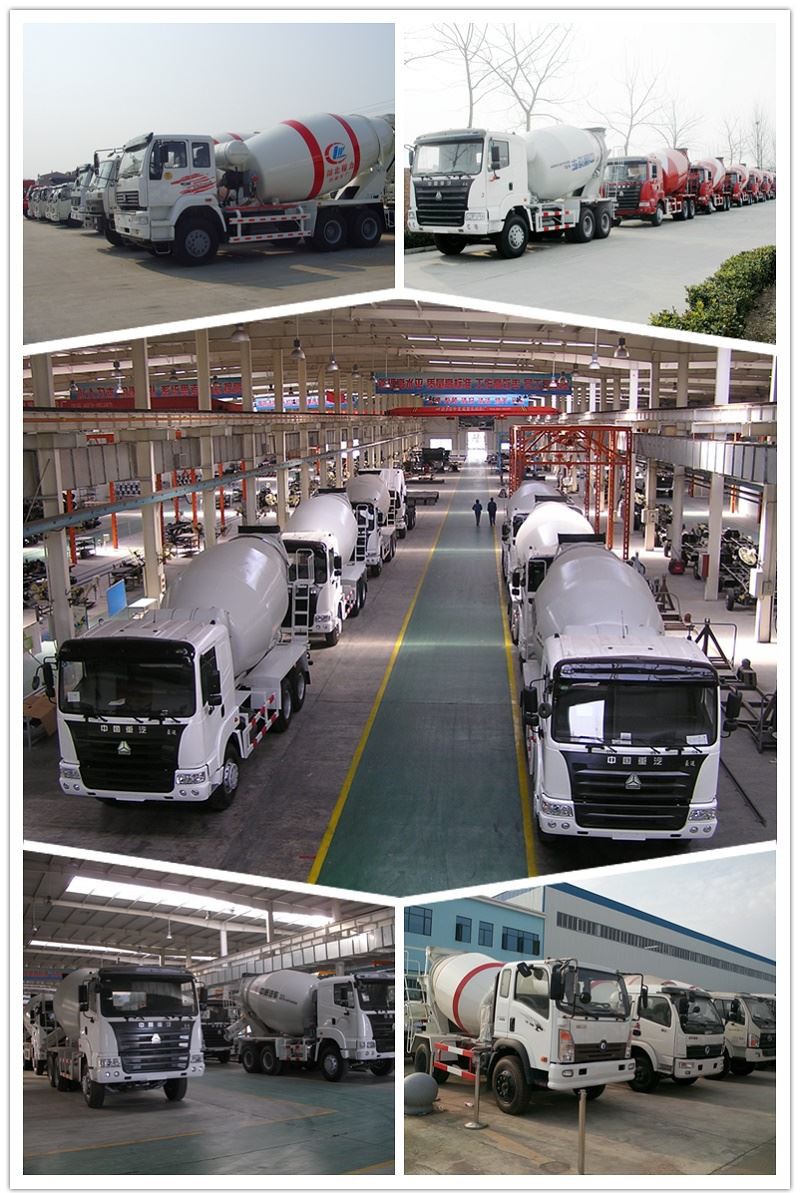

Factory Show
Production Process
① Production of chassis;
② Production of running system;
③ Welding subframe on running system and chassis;
④ Production and welding of mixing drum, water tank, hydraulic pump, moter and reducer,etc;
⑤ Installing circuit and testing;
⑥ Painting and Customized LOGO design.
Our Advantage
① High quality materials and integrated welding process;
② Ensure stable and reliable vehicle performance through strict testing;
③ Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to our customer.
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
① Pre-sales Service: Communicate with customers, analyze their requirements;
② Sales Service: Provide professional technical solutions, recommend the right models and provide quotation document accordingly, ensure quick delivery and shipment.
③ After-sales Service: Quick feedback to solve your problem, professional engineering and production team, spare parts supplied at factory price whenever needed, regular customer after-sale visiting, and free technical staff training and guidance.
FAQ
Q1: How about your welding of this mixer truck?
A: All adopts automatic welding machine
Q2: What size of the cleaning water tanker of your mixer truck?
A: It’s depends on mixer truck size.
Q3: Can you equip with Italy brand PMP hydraulic pump and motor of your mixer truck?
A: Yes. We can adopts PMP hydraulic pump and motor.
Q4: Have your company ever sold this kind of mixer truck to Africa market before?
A: Sure. We have clients in Nigeria, Tanzania, Kenya, Uganda and Rwanda etc.
Q5: What mixing size is most suitable for my business?
A: We usually suggest 10CBM and 12CBM 6x4 type mixer truck to our clients.
